AWBLIN Power Circuit Probe Tester, LCD Digital Automotive Test Light with Vol...
$24
DESCRIPTION

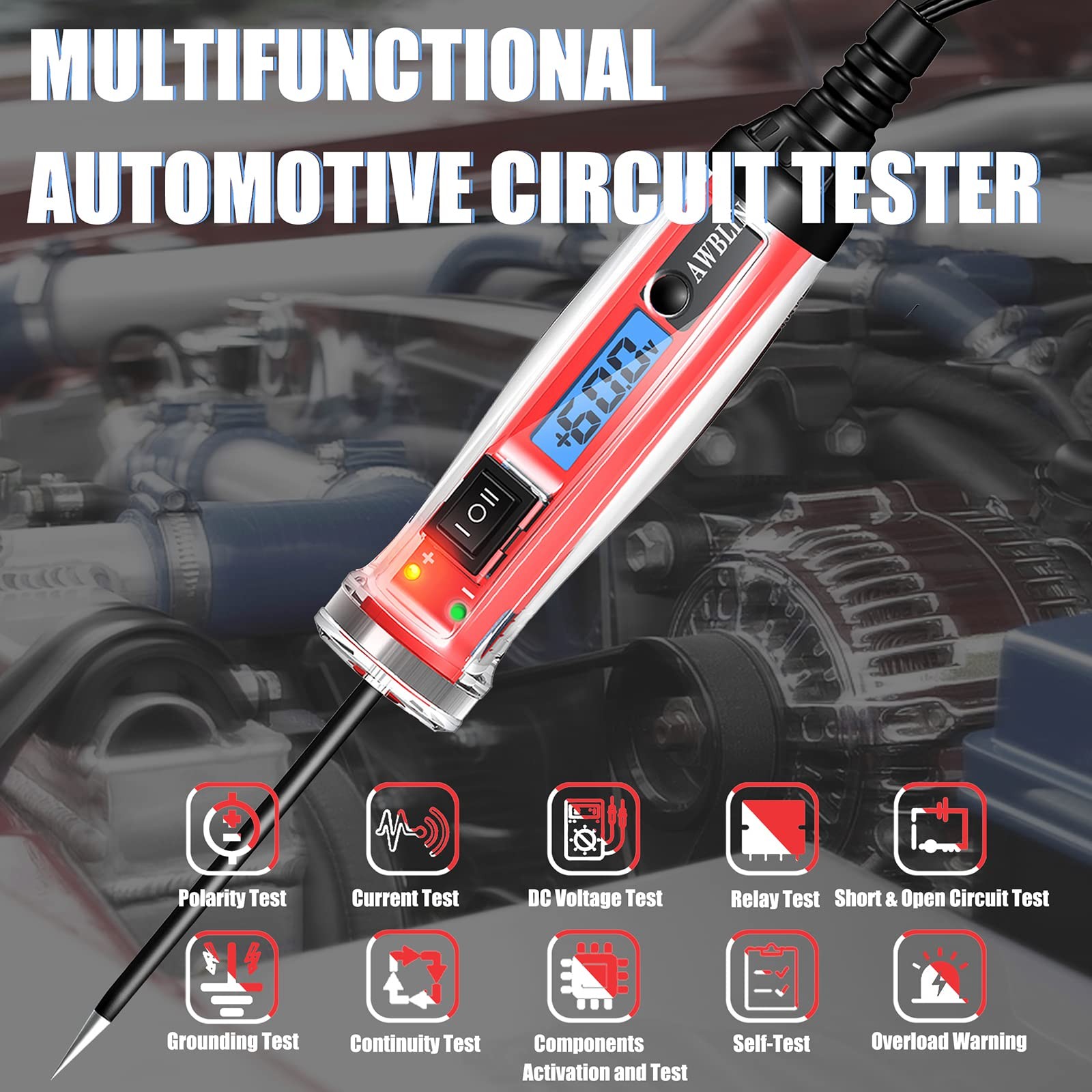

AWBLIN Power Circuit Probe Tester, LCD Digital Automotive Test Light with Voltage Display&Illumination, DC Voltage Tester, Electrical System Tool, Relay Fuse Continuity Current Test.
- MULTIFUNCTIONAL CIRCUIT PROBE TESTER：The power circuit probe tester has multiple functions, such as detection Circuit Polarity, Voltage, Connection, Break, Lighting, Ignition Plug, Sensor Measurement, Grounding Test, Continuity Test, Component Activation and other functions. No additional tools needed to help you reduce car diagnosis time.
- 2 WORKING MODES: The automotive test light supports 2 working modes: voltage mode and current mode(Resolution: 0.1V/0.1A), Two Clip Supply voltage: 5-36VDC, Probe test voltage: 1-60VDC, Probe test current: DC 0-8A. The electric test Pen usually default voltage mode, press the small black round button, you can easily switch to the current mode. It is powered by vehicle’s battery, no extra battery needed.
- EASY TO READ: The circuit tester combines an LCD digital backlight display with an LED red/green indicator light design, making it easier to read the voltage and current values of the screen and distinguish between positive and negative electrodes.
- ILLUMINATION FUNCTION: the test light probe built-in flashlight is bright enough to light up your work area. When the two alligator clamps respectively clamp the positive and negative ends of the battery, the flashlight immediately lights up, which is more convenient for you to test at night or in dark areas.
- OVERLOAD PROTECTION & BUZZER ALARM: In voltage mode, the Tester will display overvoltage warning when voltage exceeds 61VDC. The LCD will display “OL”, red LED light on. In current mode, If the current is too high, the LCD will display “OL”, buzzer alarm. When the current exceeds 8A, the tester will automatically disconnect to protect the circuit to reduce unnecessary losses. The disconnection time varies with the load current.
- EXTENDED SPRING WIRE & ANTI-LOST PROBE COVER: Compared with the ordinary wire, the automotive light tester comes with high quality spring wire that can stretch up to 196.85 inches, making the maintenance and diagnosis work more portable, convenient and fast. It allows you to test from the front of the car to the rear without constantly searching for a suitable ground. In addition, the integrated design of the anti-loss cover ensures no puncture wounds, no matter where you go will not be lost.
AWBLIN Power Circuit Probe Kit is the most versatile and practical tool yet, power supply voltage between 5 to 36V DC, and the probe test voltage from 1 to 60V DC, with 196.85 inches spring line, supports the detection of open circuit, short circuit and relay/component tester, continuity tester.
