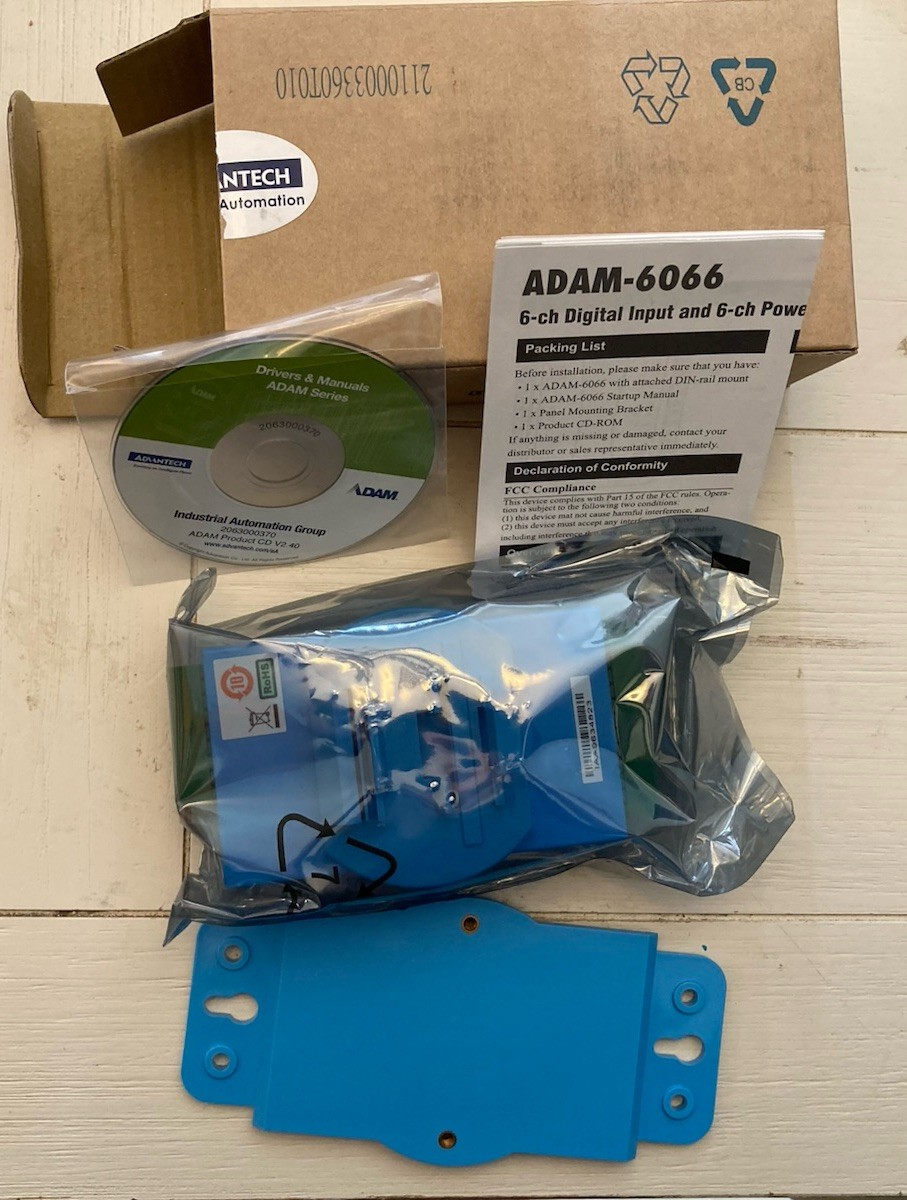

This Advantech Adam 6066 6DI 6 Relay Modbus TPC Power Relay Module is a reliable and efficient unit for industrial automation and motion controls. With a unit quantity of one, this module is designed to provide optimal performance for your business and industrial needs. The module is compatible with 250V AC and is perfect for other automation equipment.
The Advantech brand is known for its quality and durability, and this unit is no exception. The model Advantech Adam 6066 6DI 6 is a top-of-the-line module that is perfect for anyone looking for reliable and efficient automation equipment. Whether you are looking to improve your existing system or start a new project, this module is sure to meet your needs.
Specifications
General
LAN 10/100Base-T(X)
Power Consumption
2.5 W @ 24 VDC (ADAM-6066)
Connectors
1 x RJ-45 (LAN), Plug-in screw terminal block (I/O and power)
Watchdog Timer
System (1.6 second) and Communication (programmable)
Power Input
10 ~ 30 VDC
Supports Peer-to-Peer
Supports GCL
Supports Modbus/TCP, TCP/IP, UDP, DHCP,SNMP, HTTP and MQTT Protocol
Digital Input
Channels 6
Dry Contact
Logic level 0: close to GND
Logic level 1: open
Wet Contact
Logic level 0: 3 VDC
Logic level 1: 10 ~ 30 VDC
Supports 3 kHz Counter Input (32-bit + 1-bit overflow)
Keep/Discard Counter Value when Power-off
Supports 3 kHz Frequency Input
Supports Inverted DI Status
Relay Output (Form A)
Channels 6
Contact Rating (Resistive)
ADAM-6060: 120 VAC @ 0.5 A
30 VDC @ 1 A
ADAM-6066: 250 VAC @ 5 A
30 VDC @ 3 A
Breakdown Voltage
500 VAC (50/60 Hz)
Relay On Time
7 ms
Relay Off Time
3 ms
Total Switching Time
10 ms
Insulation Resistance 1 GΩ min. at 500 VDC
Maximum Switching 20 operations/minute
Rate (at rated load)
Supports Pulse Output
Protection
Isolation Voltage 2,000 VDC
Power Reversal Protection
Environment
Operating Temperature -10 ~ 70°C (14 ~ 158°F)
-40 ~ 70°C ( -40~158°F) for D version
Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
-40 ~ 80°C (-40~176°F) for D version
Operating Humidity
Storage Humidity
20 ~ 95% RH (non-condensing)
0 ~ 95% RH (non-condensing)
