*Compatibility Chart
1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).
2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.
3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).
Mercedes-Benz R-Class W251
R320 Bluetec Wagon 4-Door 3.0L 2009
R320 CDI Wagon 4-Door 3.0L 2007-2008
R350 4Matic Wagon 4-Door 3.5L 2006-2013
R350 Base Wagon 4-Door 3.5L 2008-2013
R350 Bluetec 4Matic Wagon 4-Door 3.0L 2010-2013
R500 Base Wagon 4-Door 5.0L 2006-2008
R500 Premium Wagon 4-Door 5.0L 2006
R500 Sport Wagon 4-Door 5.0L 2006-2008
R550 4Matic Wagon 4-Door 5.5L 2008
R63 AMG Base Wagon 4-Door 6.3L 2007
*Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout
*Installation Guideline:
1.Installation is in the reverse order of air compressor removal using factory mounting hardware.
*Warning & Notice:
1.When the air compressor being replaced, the matching relay must be replaced according to the corresponding vehicle. If there is something wrong with the relay which leads the compressor to continuous operation without any break, it will burn out the electric motor or other plastic part.
2.When the air compressor being installed, the critical parts such as rubber shock pad and damping spring must be fully fixed on the stand without short installation or missing installation (The air compressor is unequipped with parts). With the anti-vibration parts of short installation or missing installation, a loud noisy instance will happen when the air compressor is working for the sake of resonance.
3.Distribution valve, shock absorber, air tank and tube connector must be checked after air compressor installed to ensure air-tightness. The lifespan of the air compressor will be shortened if the leakage exists.
4.Increased noises while the compressor is running may be caused by a non-functioning compressor mounting. Change the rubbers and springs of the mounting in any case.
5.A porous intake hose often is the cause for a breakdown of the compressor. Change the intake hose and preferably also the filter and noise absorber, because we do not want the compressor to breakdown because of these.
6.Change the relays before installing the compressor even if it seems to still work. This is also a specification by the car manufacturer. Be sure to change the right relays. Relays look similar, that is why there is a risk to change the wrong relays.
7.Be sure to check whether the system is leakproof after repairing. The easiest way to do this is to park the vehicle. Wait for the system to automatically re-adjust if your car has this feature. Then measure the heights from the ground to the lower edge of the fender as exactly as possible and take notes. On the day after measure these heights again and compare them with the ones before. Even a small difference will lead to a damaged compressor and damaged valves in the long run.
*OEM Part Number:
2513201204,2513201304,2513202004,
2513202104,2513202704,2513202604
| Item Specifics | |
|---|---|
| Placement on Vehicle | Left Right Front Rear |
| Size | Single Dimension(CM) 31.75(length)*17.78(width)*17.78(height) |
| Single Weight(KG) | 4.300 |
| Included Hardware | Compressor |
| Certification | ISO9001 |
| Lubrication Style | Oil-Free |
| Drive Layout | Front Engine RWD & 4WD |
| Platform | W251 |
| Material | Iron Aluminium Alloy Rubber |
| Color | Silver Black |
| Type | Air Suspension Compressor |
| Custom Bundle | No |
| Return Policy | 30 Days Free Return |
| Manufacturer Warranty | 1 Year |
| Quantity | Single |
| Fitment Type | Direct Replacement |
| OE Spec or Performance/Custom | OE Spec |
| Adjustable | Yes |
| Features | Sealed |
| Brand | Ewaymotor |
| Manufacturer Part Number | EW110098A01 |
| Interchange Part Number | 2513201204, 2513201304 |
| Other Part Number | 2513202004, 2513202104 |
| Superseded Part Number | 2513202704, 2513202604 |
We accept all kinds of ebay payment.
Shop Category Hot Item
Delivery
New List Item
Help & Info Payment Policy Shipping Policy Return Policy FAQ About Us |

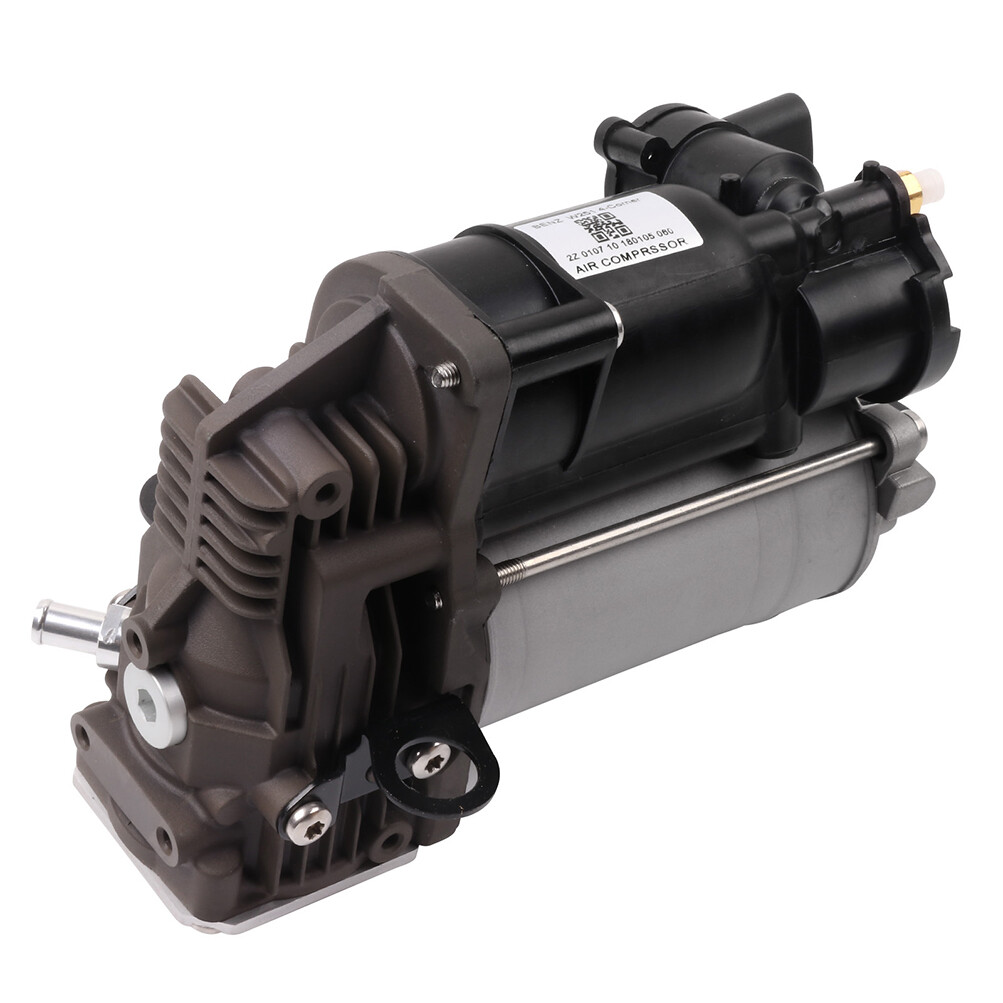

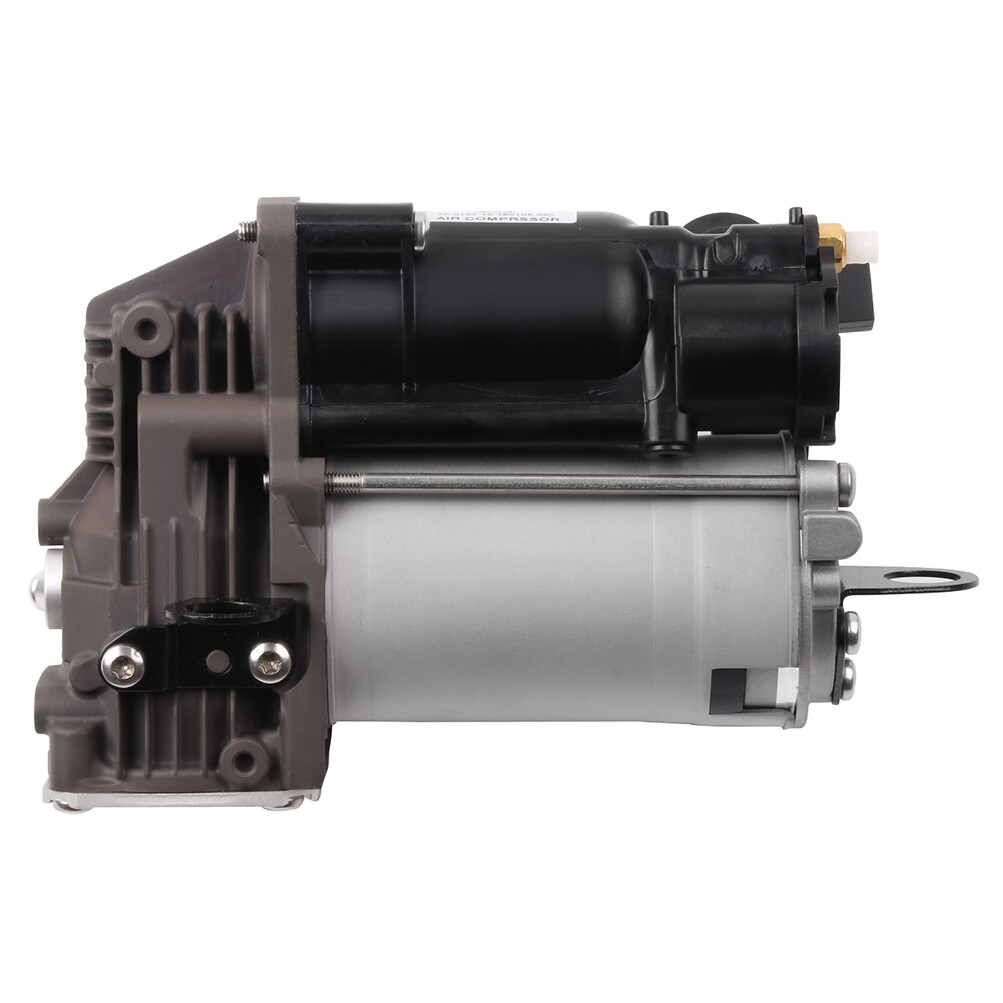

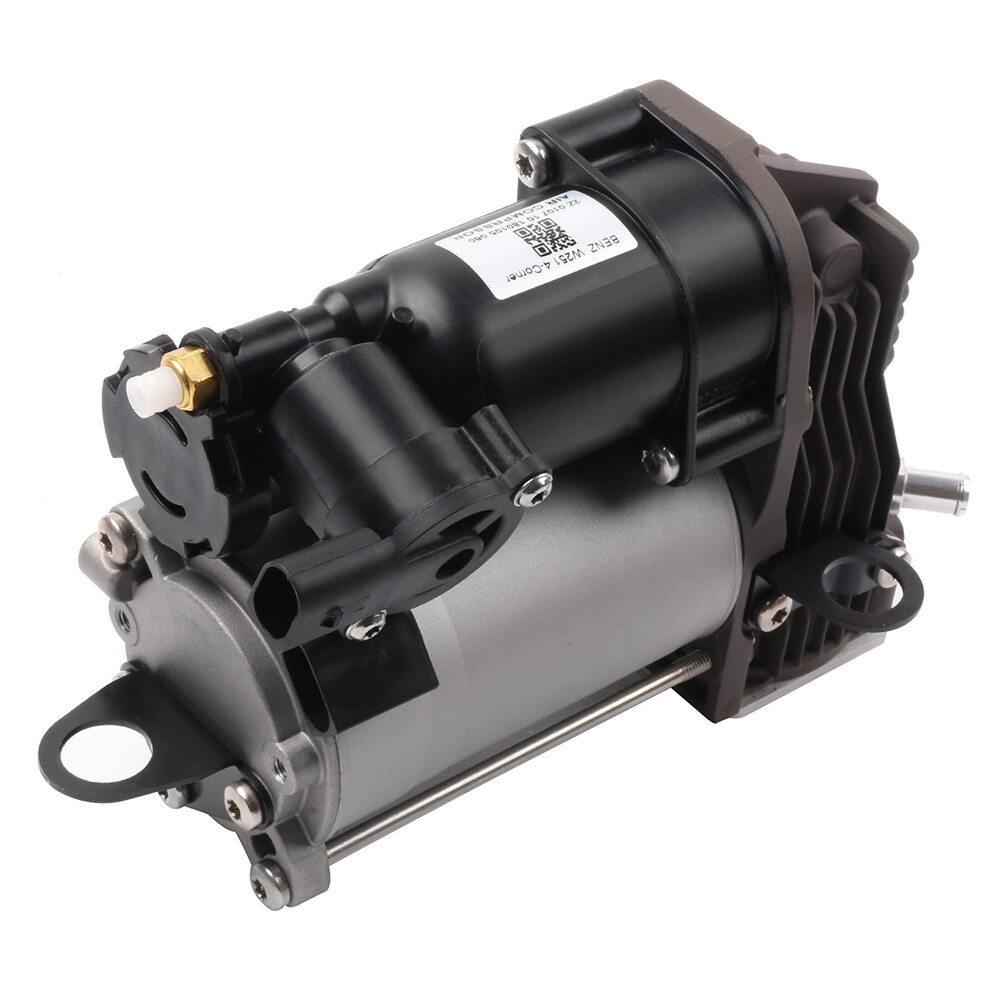

Air Suspension Compressor Pump For Mercedes W251 R320 R350 R500 R550 R63 AMG
*Compatibility Chart 2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits. 3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).
Mercedes-Benz R-Class W251
*Platform Drive Layout: Base Model-Rear Wheel Drive Layout 4Matic Model-Four Wheel Drive Layout
*Installation Guideline:
*Warning & Notice: 1.When the air compressor being replaced, the matching relay must be replaced according to the corresponding vehicle. If there is something wrong with the relay which leads the compressor to continuous operation without any break, it will burn out the electric motor or other plastic part. 2.When the air compressor being installed, the critical parts such as rubber shock pad and damping spring must be fully fixed on the stand without short installation or missing installation (The air compressor is unequipped with parts). With the anti-vibration parts of short installation or missing installation, a loud noisy instance will happen when the air compressor is working for the sake of resonance. 3.Distribution valve, shock absorber, air tank and tube connector must be checked after air compressor installed to ensure air-tightness. The lifespan of the air compressor will be shortened if the leakage exists. 4.Increased noises while the compressor is running may be caused by a non-functioning compressor mounting. Change the rubbers and springs of the mounting in any case. 5.A porous intake hose often is the cause for a breakdown of the compressor. Change the intake hose and preferably also the filter and noise absorber, because we do not want the compressor to breakdown because of these. 6.Change the relays before installing the compressor even if it seems to still work. This is also a specification by the car manufacturer. Be sure to change the right relays. Relays look similar, that is why there is a risk to change the wrong relays. 7.Be sure to check whether the system is leakproof after repairing. The easiest way to do this is to park the vehicle. Wait for the system to automatically re-adjust if your car has this feature. Then measure the heights from the ground to the lower edge of the fender as exactly as possible and take notes. On the day after measure these heights again and compare them with the ones before. Even a small difference will lead to a damaged compressor and damaged valves in the long run.
*OEM Part Number: 2513201204,2513201304,2513202004,
