Auction Is for (1) New Altronix RB 7 and Din Rail Mount

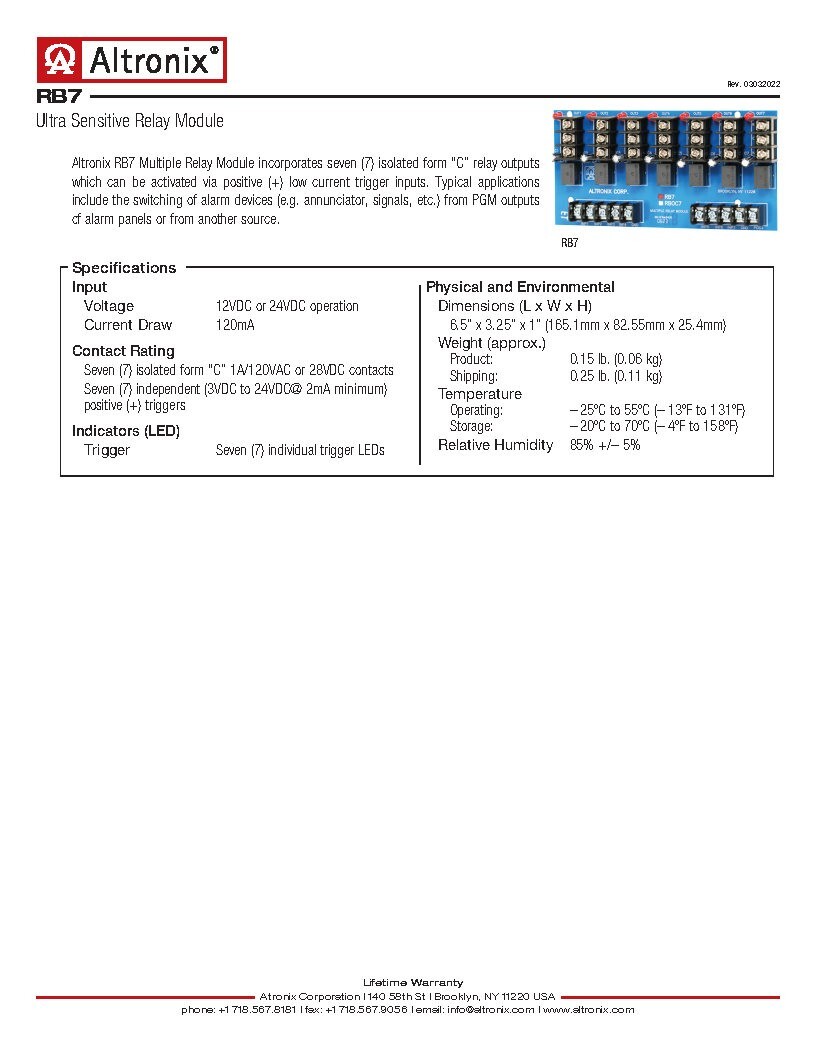

Product Information:Input Voltage
- 12VDC or 24VDC operation.
- Current draw: 120mA.
Contact Rating
- Seven (7) isolated form "C" 1A/120VAC or 28VDC contacts.
- Seven (7) independent (3VDC to 24VDC @ 2mA minimum) positive (+) triggers.
Temperature
- Operating: -25ºC to 55ºC ( -13ºF to 131ºF).
- Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity: 85% +/– 5%.
Dimensions (approximate):
- 3.25"W x 6.5"L x 1"H (82.55 mm W x 165.1 mm L x 25.4 mm H).
