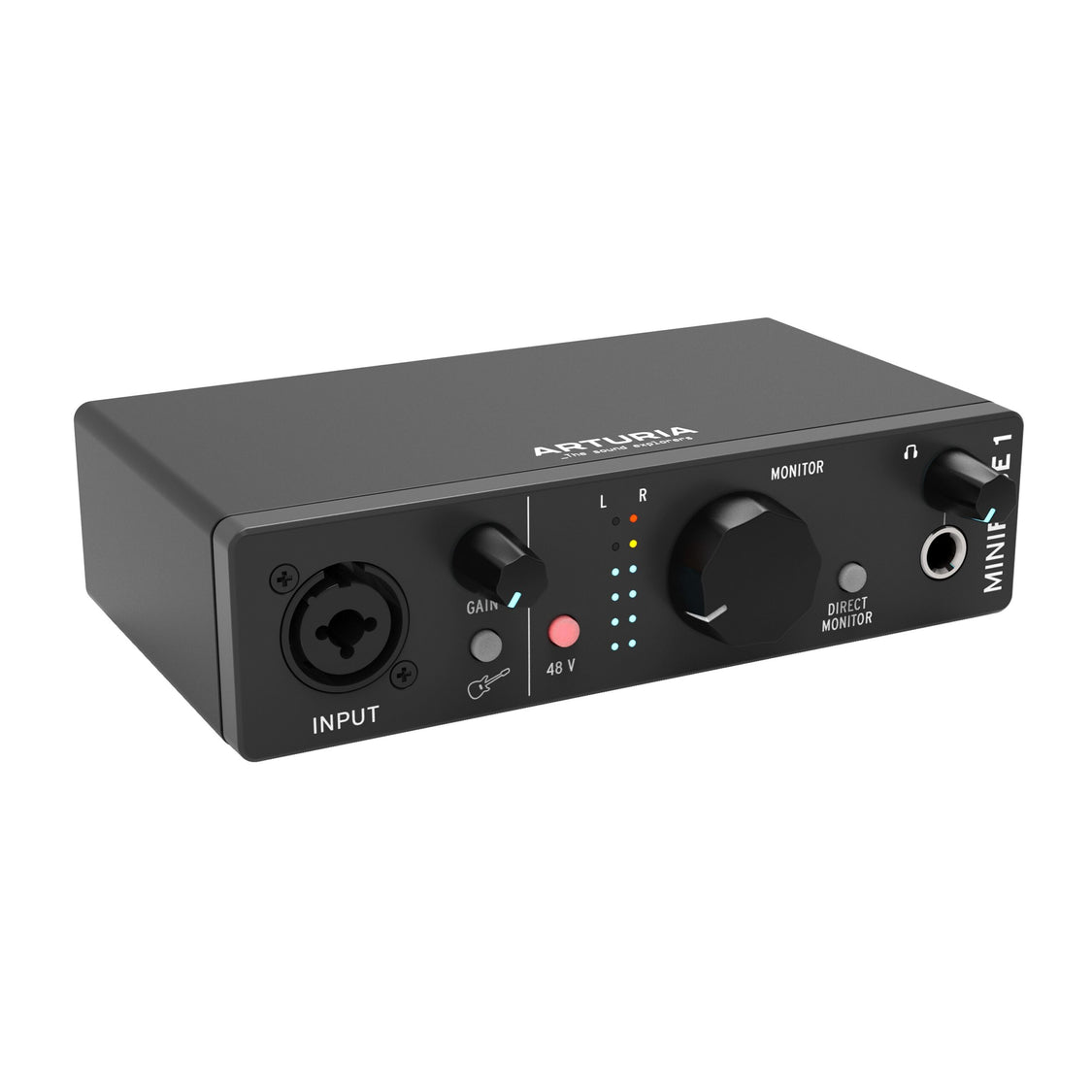

Arturia MiniFuse 1 USB-C Audio Interface

The Arturia MiniFuse 1 is your go-to portable audio interface that brings studio-quality recording wherever inspiration strikes. Whether you are a solo musician, a vocalist, or a budding content creator, this compact device is designed to transform your ideas into professional-sounding audio productions. Engineered by audio experts, the MiniFuse 1 offers an exceptional dynamic range, high-quality preamps, and a rugged, portable design to meet all your recording needs.

Experience easy recording with the MiniFuse 1, which features a straightforward set of inputs and outputs. Its single combo input accepts both XLR and 1/4" jack cables, fitting seamlessly into any setup. The USB-C compatibility allows quick and hassle-free connections to your PC or Mac, guaranteeing total recording freedom. The intuitive MiniFuse Control Center app lets you monitor inputs, outputs, settings, and firmware updates—everything you need in one place.

Built to withstand the mobile producer's lifestyle, the MiniFuse 1's robust aluminum casing ensures durability whether you're recording in a studio or the great outdoors. With its superior audio quality and innovative design, the MiniFuse 1 makes your sound happen, wherever you are.

Key Features

• 500 vintage & modern keyboard presets with Analog Lab Intro
• Included Arturia FX: Rev PLATE-140 reverb, Pre 1973 vintage preamp, Delay TAPE-201 echo, Chorus JUN-6 analog chorus
• Ableton Live Lite - compose, record, produce anything
• Comprehensive tutorials for beginners
• Exclusive content with tips and advice from industry experts
• Dedicated online portal for easy access to resources
• Complimentary subscriptions to world-class audio & mixing services
• 1 x combo Mic/Inst/Line XLR Input with 48V phantom power
• 2 x 1/4" TRS balanced line outputs with volume control
• 1 x stereo headphone output with volume control
• Direct Monitor switch
• 1 x USB2 type A hub (250mA max.)
• 1 x stereo virtual loopback channel
• USB-C interface compatible with PC and Mac, fully USB 2.0 compatible
• Bus-powered design

Specifications

• Line Inputs: Input impedance: 16k OHM, Maximum input level: +22dBu, Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
• Instrument Input: Input impedance: 1M OHM on Tip, Maximum input level: +11.5dBu, Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)
• Microphone Preamps: Input impedance: 2.5k OHM, Maximum input level: +9dBu, Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
• Speakers: Output impedance: 94 OHM, Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)
• Phones: Output impedance: 10 OHM, Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Supported Sample rates: 44.1kHz, 48kHz, 88.2 kHz, 96kHz, 176.4kHz, 192 kHz

Package Contents

• Arturia MiniFuse 1 USB-C Audio Interface
• USB-C to USB-A cable
• User manual
• Warranty card
• Software download instructions (Analog Lab Intro & Ableton Live Lite)
