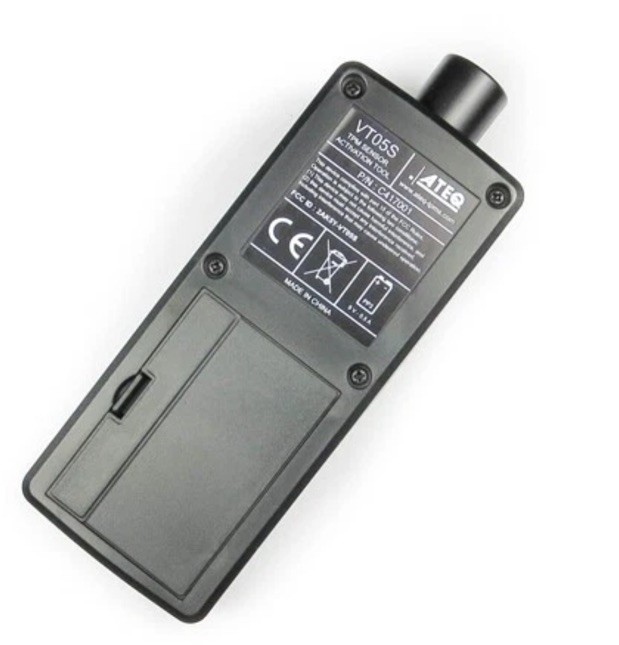

Ateq VT05s Trigger TPMS Sensor Activation Tool

The VT5s “wakes up” tire pressure monitoring system (TPMS) sensors mounted to the vehicle’s wheel

How It Works:
The VT5s sends a RF signal to the TPMS sensor mounted to the vehicle’s wheel to “wake up” the sensor. Once the tool triggers the sensor, the sensor is ready to communicate with the vehicle’s ECU.
The VT5s is compatible with ALL trigger TPMS sensors.

Instructions for use:
While holding the tool over the valve stem, press the button to activate the sensor. The tool will blink during this process.

to hold the button down until successful signal transfer to the
vehicle’s ECU, diagnostic station or until the vehicle’s horn “beeps”.

VT5s FEATURES

Easy to use
Activates ALL trigger TPMS sensors
Handheld and lightweight tool
Instructions:

1. Activate the TPMS relearn feature on the vehicle
2.

Starting with the LF wheel, hold the tool next to the side wall of the
tire above the sensor, press and hold the button to trigger the sensor
(You can also press the tool directly against the sidewall of the tire).
An orange light will illuminate on the tool.
Continue to hold the button down until successful signal transfer to
the vehicle’s ECU, diagnostic station or until the vehicle’s horn
“beeps”.
3. Repeat step #2 on the other wheels in the following order: RF, RR, LR until the vehicle’s horn “beeps”.
