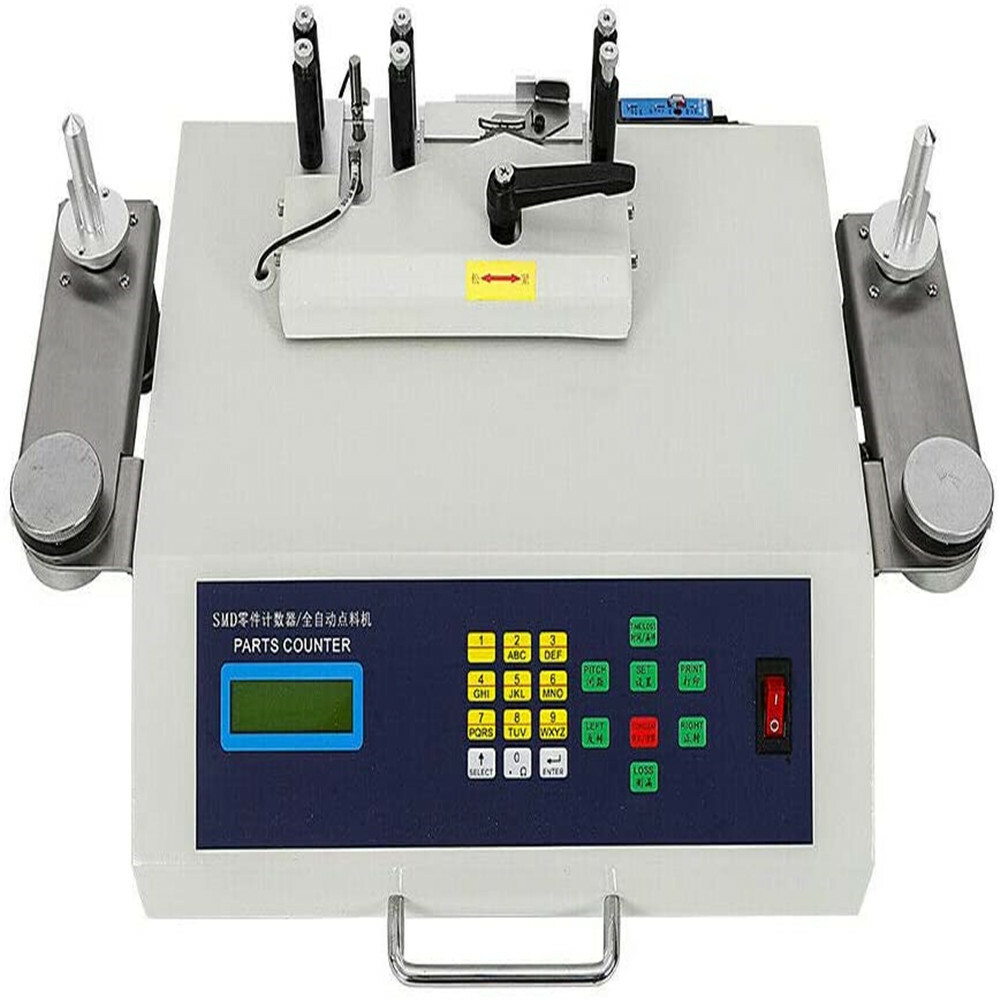

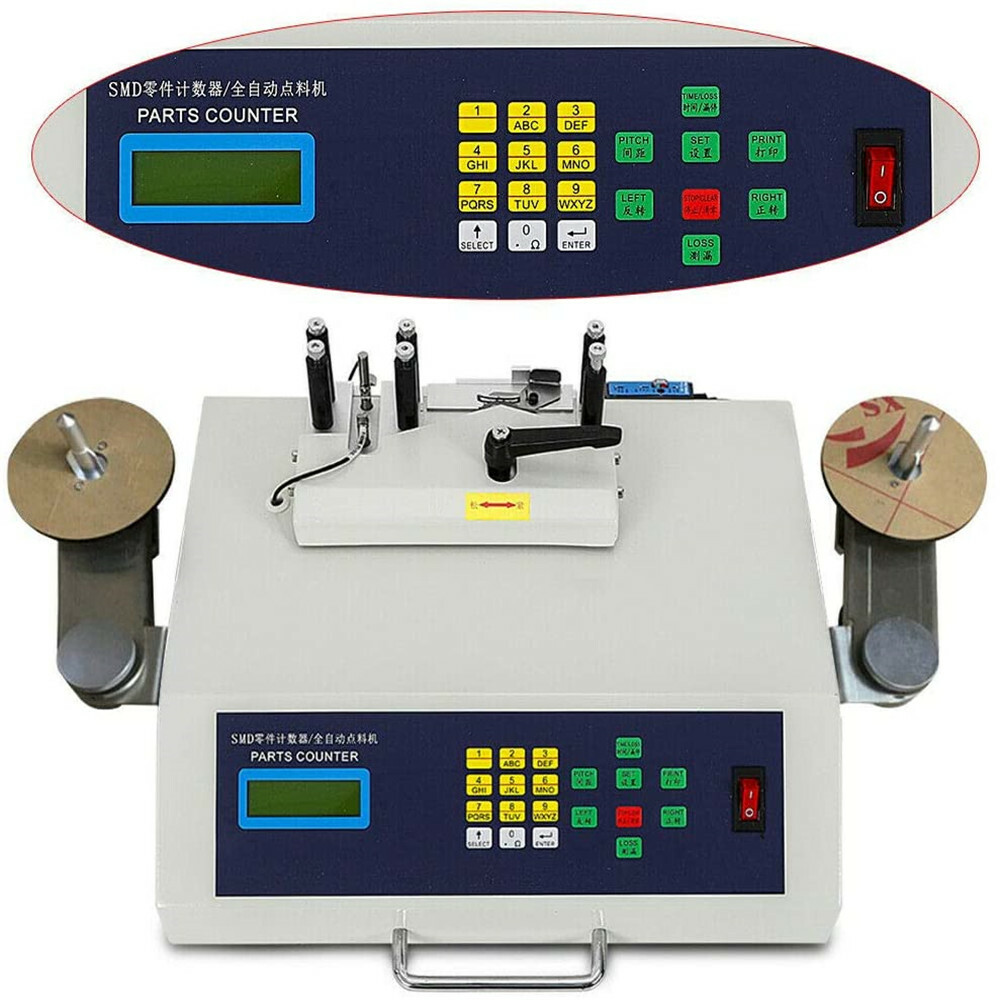

Auto SMT Parts Counter SMD Counting Machine SMT Component Counter Parts Counter

Description

Description:

The SMD counter adopts the principle of photoelectric sensing,and uses the corresponding relation between the guide hole and the part,through the special-purpose processing chip and the large-scale centralized circuit processing, accurately measures the number of SMD parts,can realize the convenient and quick count,is the high efficiency auxiliary equipment of SMT material management.

Application:

The SMD material belt type components are all suitable

Pitch: 1,2,4,8,10,12,16,24,32,44,56 mm

Width: 4,6,8,12,16,24,32,44,56 mm

Specification:

Power Supply: AC 110 V, 60 HZ

Power: 25 W

Counting Range: -99999- 99999 PCS

Outlook Size: L 470 * W 300 * H 180 mm

Weight:10 kg

Operation Methods:

1) press PITCH to set the spacing of parts to be counted and press "ENTER". Place the parts to count on the left side tray.

2) manually pull out the material belt and clamp it between the material plate and counting gear, and align the intermediate hole of the first part and blank space to the middle line of the material plate.

3) press the "stop/reset" button for 2 seconds to return the number to zero.

4) press the "setting" button to switch to manual and automatic mode. If you choose automatic mode, input the quantity you want to count. Otherwise, press "forward" .

5) pull the material belt by hand and wind it to the empty material plate. Press "forward /RIGHT" to count.

6) The motor will stop when the quantity arrives. The number of counts may be more or less than the set value of 1, which can be manually rotated to the LCD display set value in the direction of the material disk, that is, the number of parts.

7) Press "reverse /LEFT" tape and then roll it back to the original LEFT panel, and then stop rotating.

Packages:

1 x SMT/SMD Components Counter
