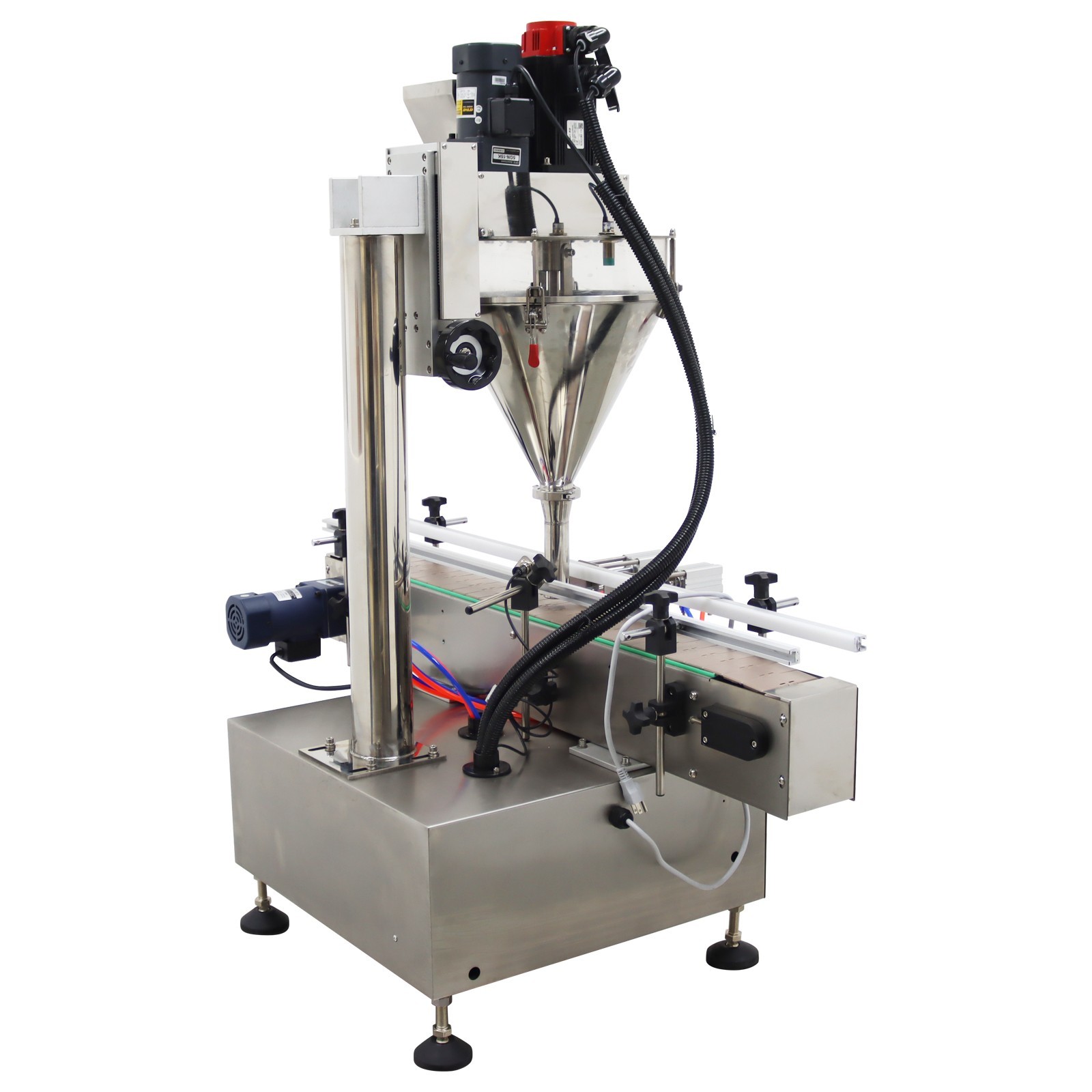

Auto Tabletop
Granular
Materials Filling Machine
w/Chain Plate Conveyor 1.6KW |
|

The desktop
automatic filling and packaging machine can automatically complete tasks
such as metering, filling, and mixing. It is suitable for packing
granule materials that are easy to flow or have poor fluidity, such as
feed, Rice noodles, white sugar, coffee, monosodium glutamate and
granule additives, etc.
|
|
Note:
1.The desktop filling machine is not equipped with
weighing mode (the display screen template shares a set of templates,
although there is an option for weighing mode, it is not actually
available on this machine.)
2.All
weighing related functions in the machine cannot be implemented, and
panel programming is a common set.
|
|
Product parameter |
| |
|
Voltage |
110V/60Hz |
|
Material |
The
surface is stainless steel |
|
Power |
1.6KW |
|
Measurement method |
weighing feedback tracking spiral rotation filling type |
|
Packaging weight |
10-200g
(If customers want to achieve different packaging ranges, they
need to change the screw accessories and purchase them
themselves.) |
|
Packaging accuracy |
Packaging
weight ≤ 100g, deviation ≤ ± 0.5-1g |
|
Product size(Exterior
sizes) |
23.6"x22.83"x55.9"
(60x58x142cm)(The
highest height is adjustable) |
|
Packaging speed |
15-30bags/min |
|
Bin
volume |
15L |
|
 |
| |
|

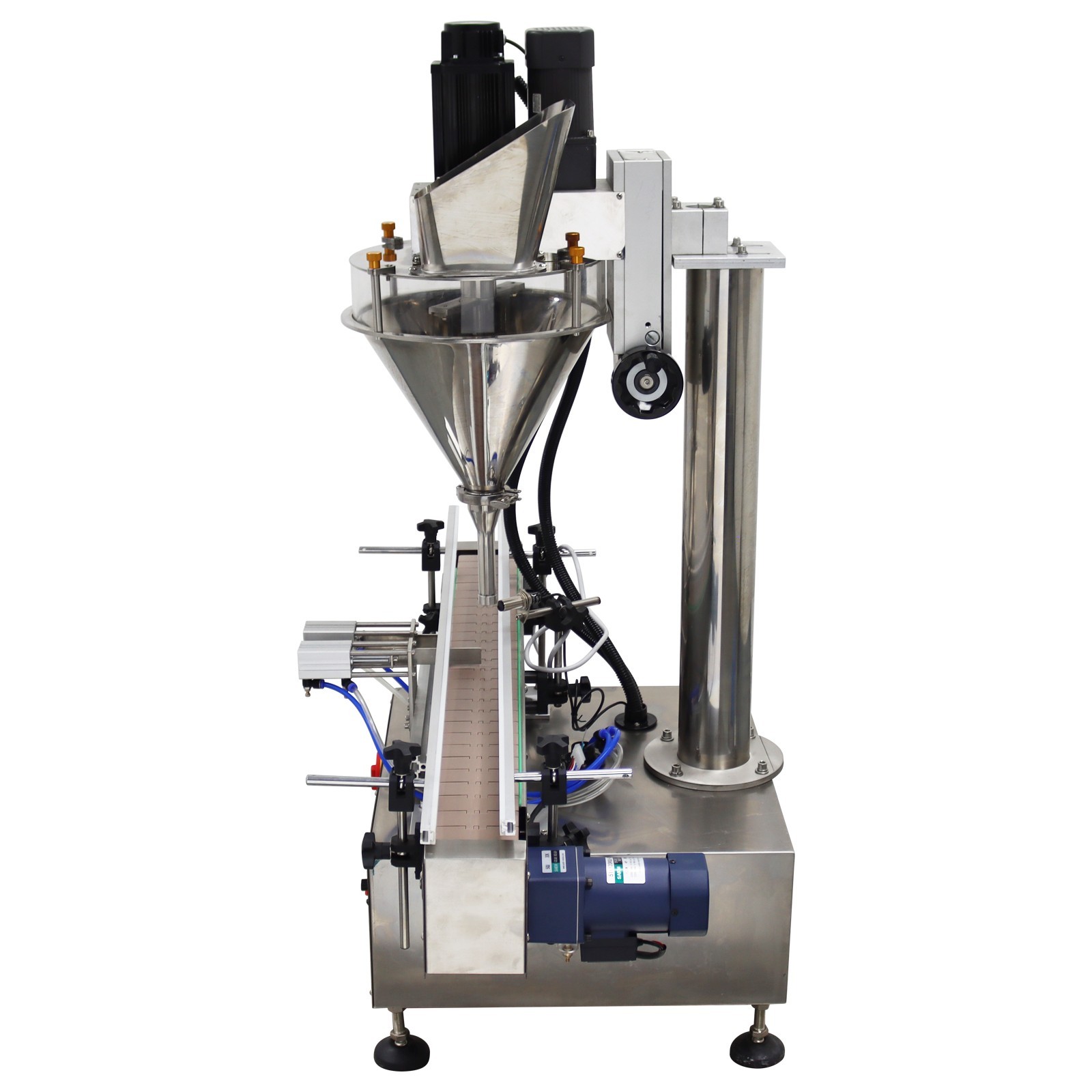

Product analysis |
|

1. Power switch
2. Touch screen
3. Indicator lights
4. Emergency stop switch
5. Conveyor belt speed controller
6. Barometer
7. Adjustment knob for conveyor belt guardrail
8. Conveyor motor
9. Guardrail
10. Discharge nozzle
11. Hand wheel for adjusting the lifting and lowering of the machine
head
12. Mixing silo
13. Feed inlet
14. Material driven motor
15. Storage bin visual window
16. Conveyor belt chain plate
17. Resistance cylinder
|
|
Usage steps |
| Step
1, add material.
Step 2,Turn on the power, confirm the voltage and connect the machine to
110V power supply.

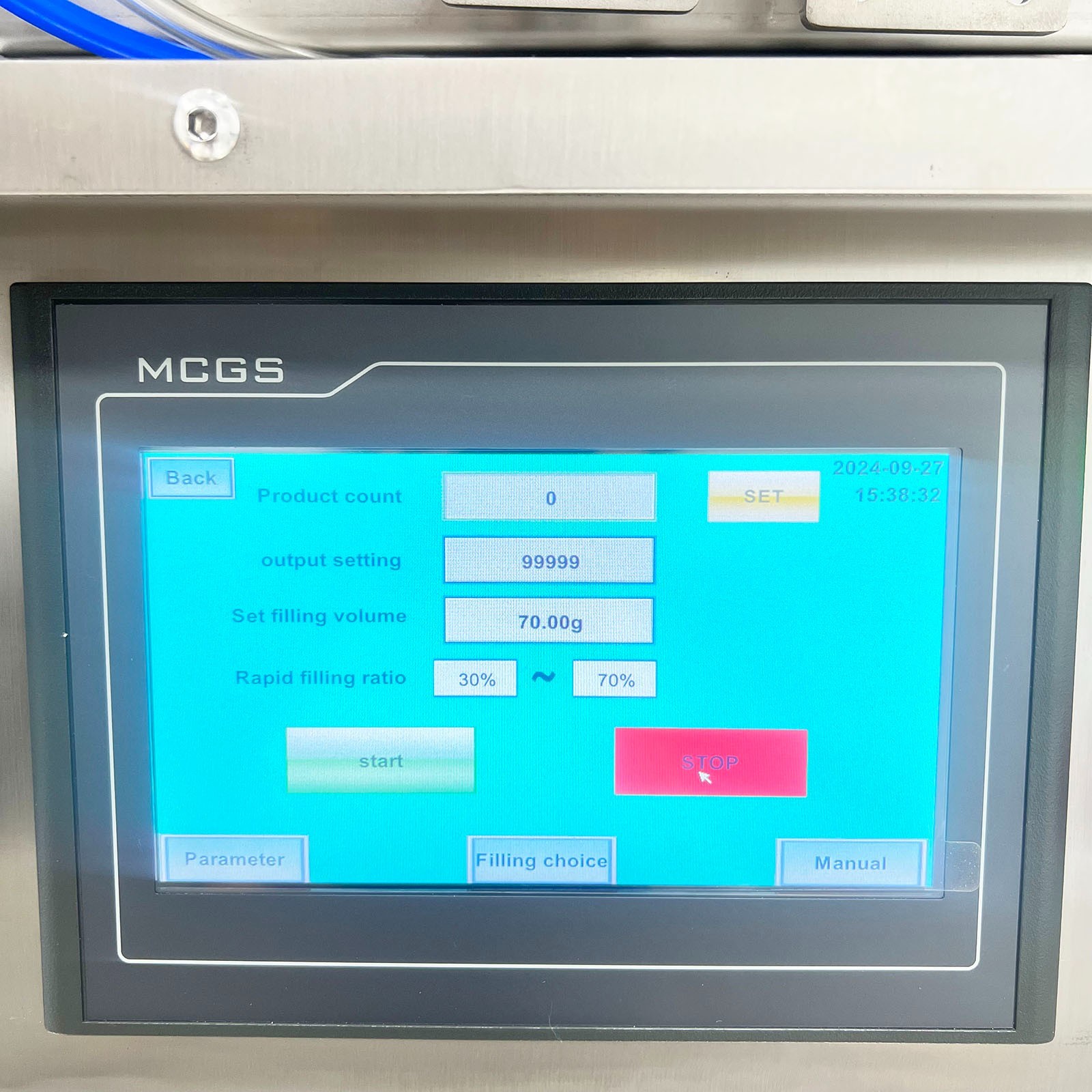

Step 3, rotate the emergency stop switch, and then set the parameters on
the operation panel.
Step 4, prepare the container for filling, start the machine for
filling.
Step 5, turn off the power in time after the filling is finished.
|
|
Feature |
|
There are
three
filling modes:
Automatic mode
(after being turned on, the next filling will continue after the
completion of one filling)
Fine adjustment
mode (slowly increase the weight, such as 200 grams. When filling to 190
grams, use fine adjustment, and the material will be slowly filled bit
by bit)
Quantitative
mode (after setting the filling weight, each filling weight will be
equal)
Note:The desktop filling machine is not equipped
with weighing mode (the display screen template shares a set of
templates, although there is an option for weighing mode, it is not
actually available on this machine.)
There are three
options for mixing modes:
Mixing normally
open: The mixing leaves in the hopper will continuously stir without
stopping, including when not filling
Mixing followed
by filling: the mixing function will only be automatically started
during filling
Mixing normally
off: turn off the mixing function
Note:
To
use automatic mode, it is necessary to connect the supporting equipment
conveyor belt, which cannot be achieved by a separate filling machine.
|
|
Product
safety precautions |
| To ensure safe production, please
carefully read the following precautions:
1. Use a power supply that meets the requirements of this device, and
ensure that the voltage is stable.
2.After turning off the power switch, there is still voltage in the
electrical control circuit of this machine. When repairing the control
circuit, be sure to unplug the power cord.
3. Do not put your hands into the mixing bucket while working, and pay
attention to personal safety.
4.When there is a problem with the machine, directly press the emergency
stop button to stop all work.
|
|
Details |
|



|
|
Advantages |
|
1. The entire machine is made of stainless steel
and can be used for packaging various products.
2. Touch screen man-machine interface: stable operation,
anti-interference, convenient and intuitive operation.
3. The filling adopts a stepping motor moving screw, which has the
advantages of accurate positioning, high accuracy, fast speed, large
torque, long service life, adjustable rotational speed, and good
stability.
4. Mixing adopts high-quality motor: low noise, long service life.
5. High quality material box, clear movement and static of materials at
a glance, and no dust leakage.
6. The replacement of screw accessories can adapt to a variety of
materials, from superfine to large particles. (Our matching screw can
be used for 10-200g.This machine is equipped with a 26MM caliber
discharge screw as standard. If customers have other requirements, they
can consult us to purchase separately.)
|
