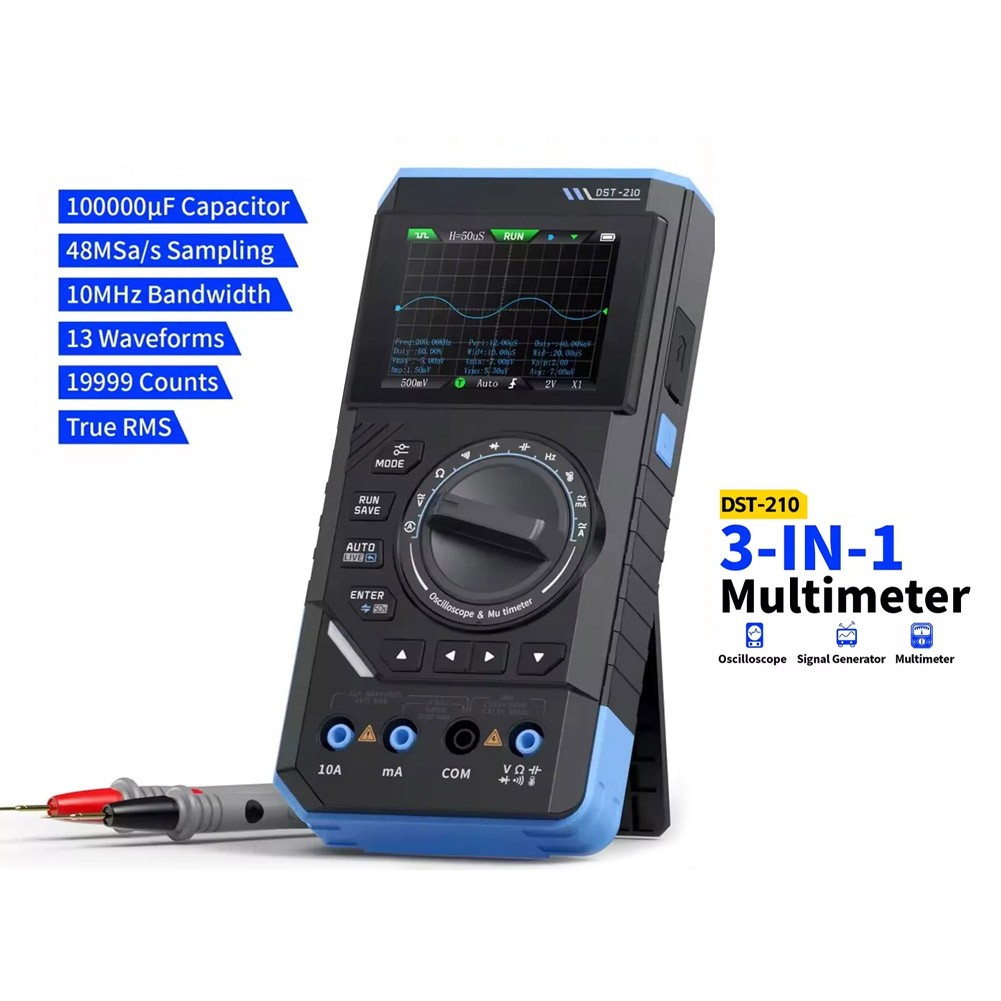

Features:

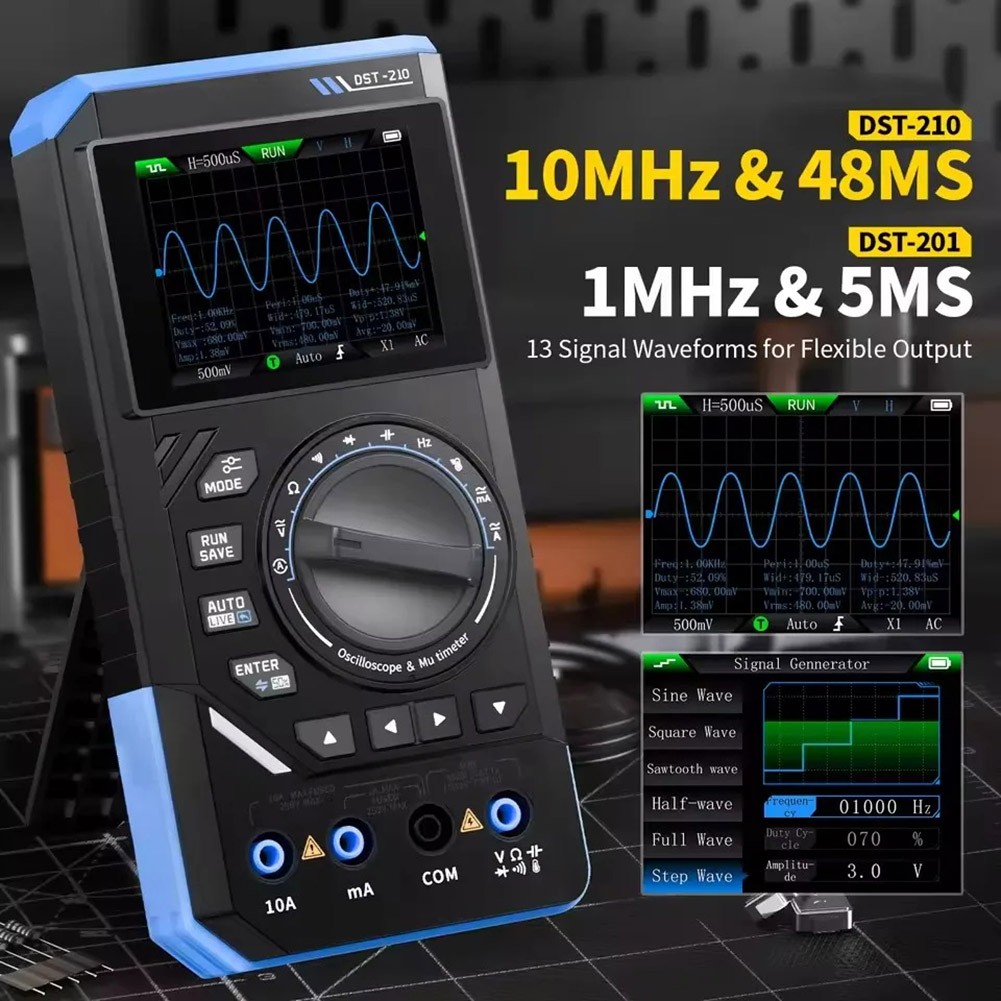

1. High-precision oscilloscope function:
DST-210 provides 48 MSa/s sampling rate and 10 MHz analog bandwidth to for ensure waveform analysis. It is equipped with voltage for protection up to ±400V for a wide range of applications.
2. Multi-function signal generator function:
Supports 13 waveforms, frequency range 0-10KHz, and output voltage adjustable 3V. Frequency, amplitude and duty cycle can be adjusted to meet various test needs.

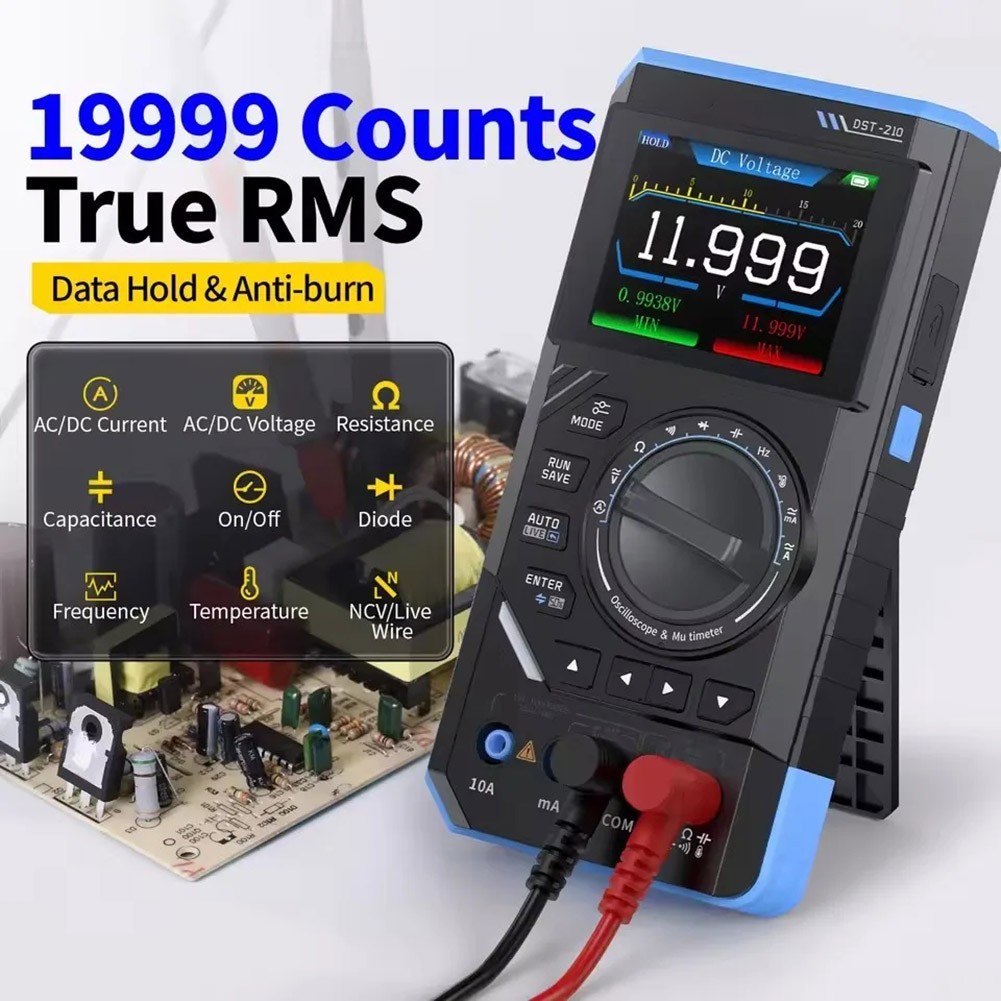

3. Integrating multimeter function:

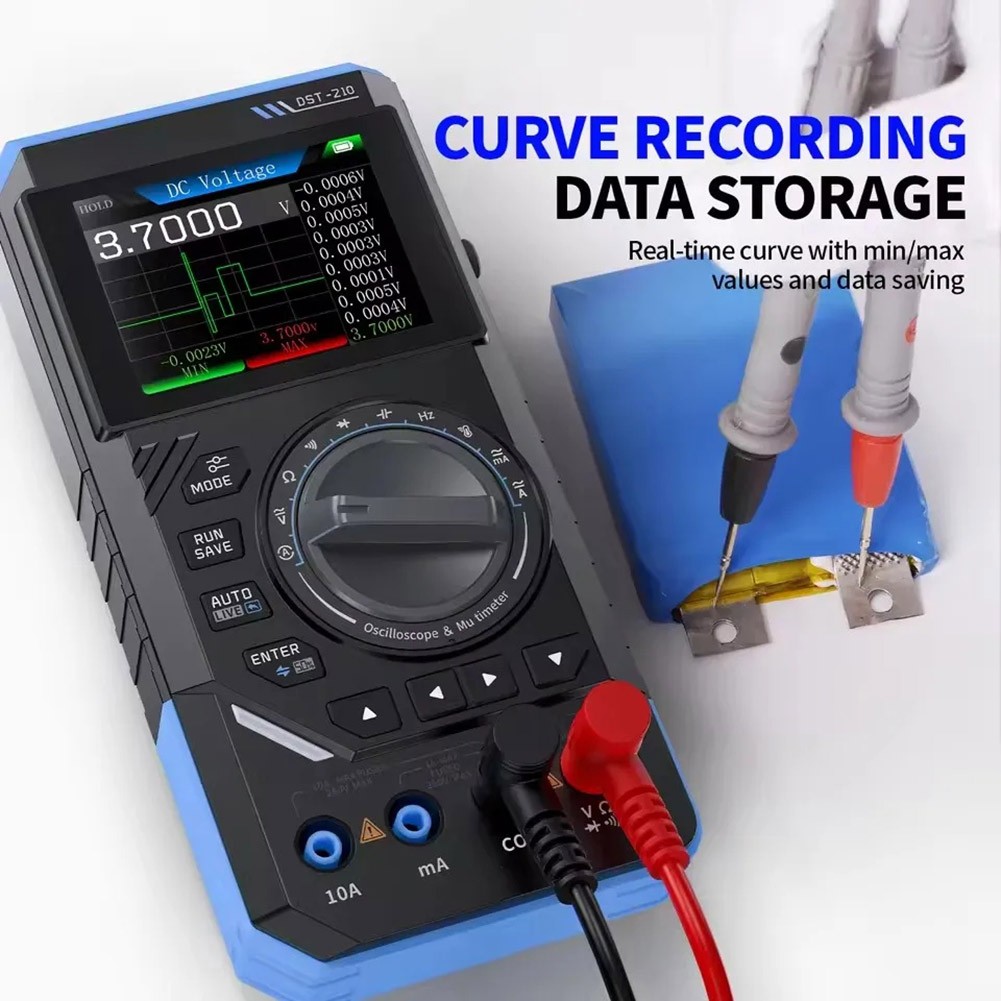

DST-210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and zero/live line. Provide powerful functions for various measurements.
4. Overload for protection and portable design:
The device is equipped with overload for protection and low battery for added safety. Its compact and lightweight design and 2.8-inch color TFT display for ensure clear and intuitive visual effects. The built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, making it for ideal for mobile use.
5. Easy to use and versatile:
Powerful, flexible, and easy to operate, the DST-210 is an for ideal multi-functional instrument for professionals, factories, schools, hobbyists, and home users.
Specifications:
Part name: DST-210 oscilloscope signal generator
Material: as shown
Color: black

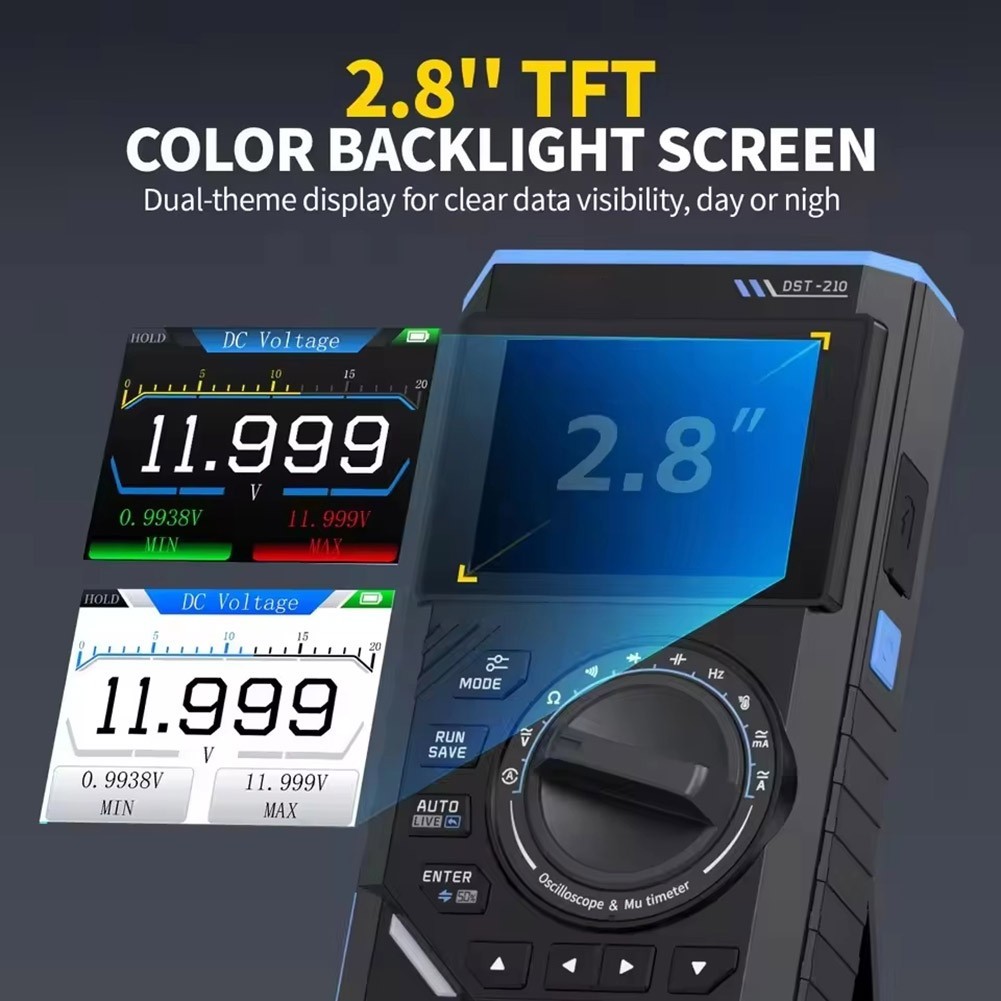

1. Screen material: 2.8-inch TFT color screen
2. Backlight: adjustable backlight brightness
3. Charging power supply: TYPE-C (5V 1A)
4. Battery: 3000 mAh
5. Language: Chinese/English
6. size: ≈177.43×87.47×34.5 mm
7. Net weight: ≈300g
Parameter 1

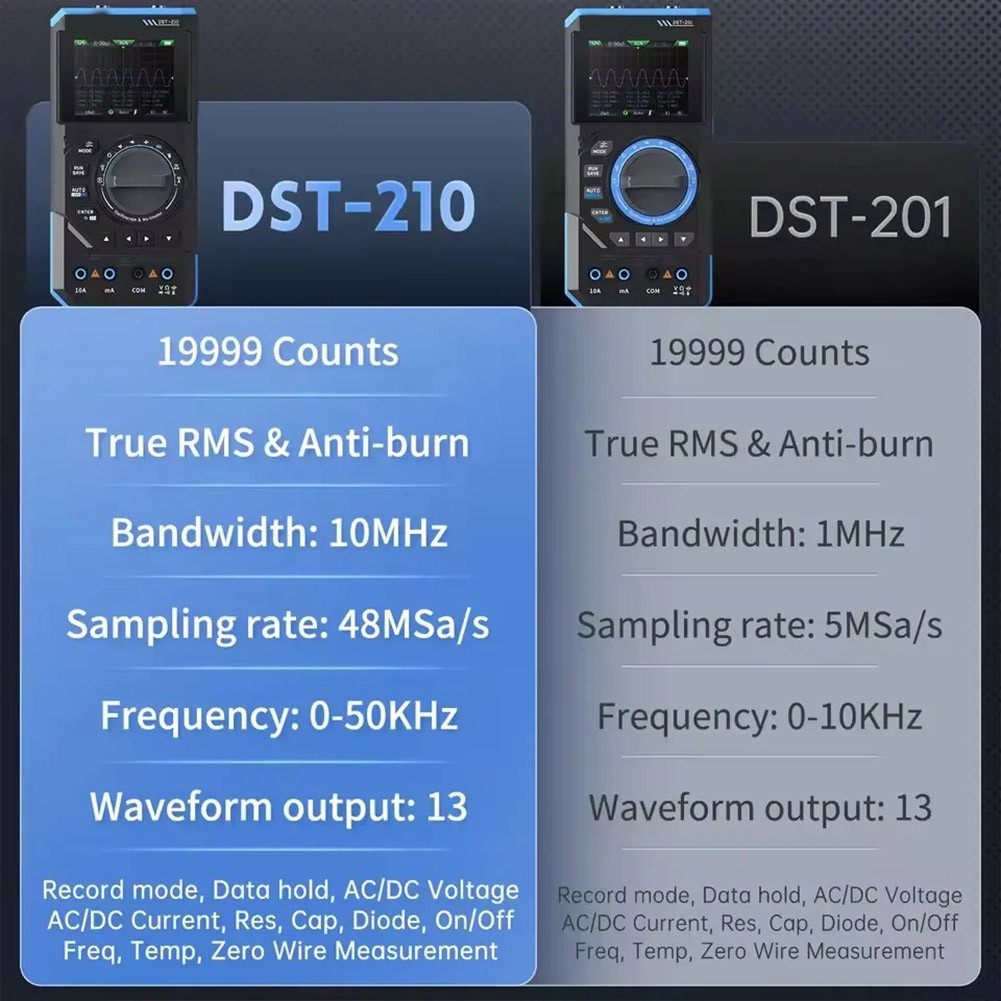

1. Real-time sampling rate: 5MSa/s (DST-201); 48 MSa/s (DST-210)
2. Analog bandwidth: 1MHz (DST-201); 10 MHz (DST-210)
3. Input impedance: 1MΩ
4. Coupling mode: AC/DC
5. Test voltage range: 1:1 probe: 80Vpp (+40V), 10:1 probe: 800Vpp (+400V)
6. Vertical sensitivity: 10mV/div-10V/div
7. Vertical movement: adjustable, with indicator light
8. time base: 500ns~20s
9. mode: automatic/normal/single
. Trigger type: rising edge, falling edge
11. Trigger level: adjustable with indicator light
12. Waveform freeze: support (HOLD function)
13. Automatic measurement: maximum, minimum, average, RMS, PPV, frequency, period, duty cycle
Parameters 2
1. DC voltage: 1.9999V/19.999V/199.99V/1000V——±(0.5%+3)
2. AC voltage: 1.9999V/19.999V/199.99V/750.0V——±(1%+3)
3. DC current: 19.999mA/199.99mA/1.9999A/9.999A —— ±(1.2%+3)
4. AC current: 19.999mA/199.99mA/1.9999A/9.999A —— ±(1.5%+3)
5. Resistance: 19.999 MΩ/1.9999 MΩ/199.99 KΩ/19.999 KΩ()——±(0.5%+3)
1.9999KΩ/199.99Ω —— ±(2.0%+3)
6. Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF——±(2.0%+5)
9.999mF/99.99mF —— ±(5.0%+20)
7. Frequency: 9.999MHz/999.9KHz/99.99KHz/999.99Hz/99.99Hz/99.99Hz/9.999Hz——±(0.1%+2)
8. Temperature: -55~1300℃/-67~2372℉——±(2.5%+5)
9. Diode/conductivity: √
10. Neutral and live wires: √
Parameter 3
1. Output waveform: 13 types are supported
2. Waveform frequency: 0-10KHz
3. Square wave duty cycle: 0-100%, square wave and sawtooth wave are adjustable
4. Waveform amplitude: 0.1V-3.0V

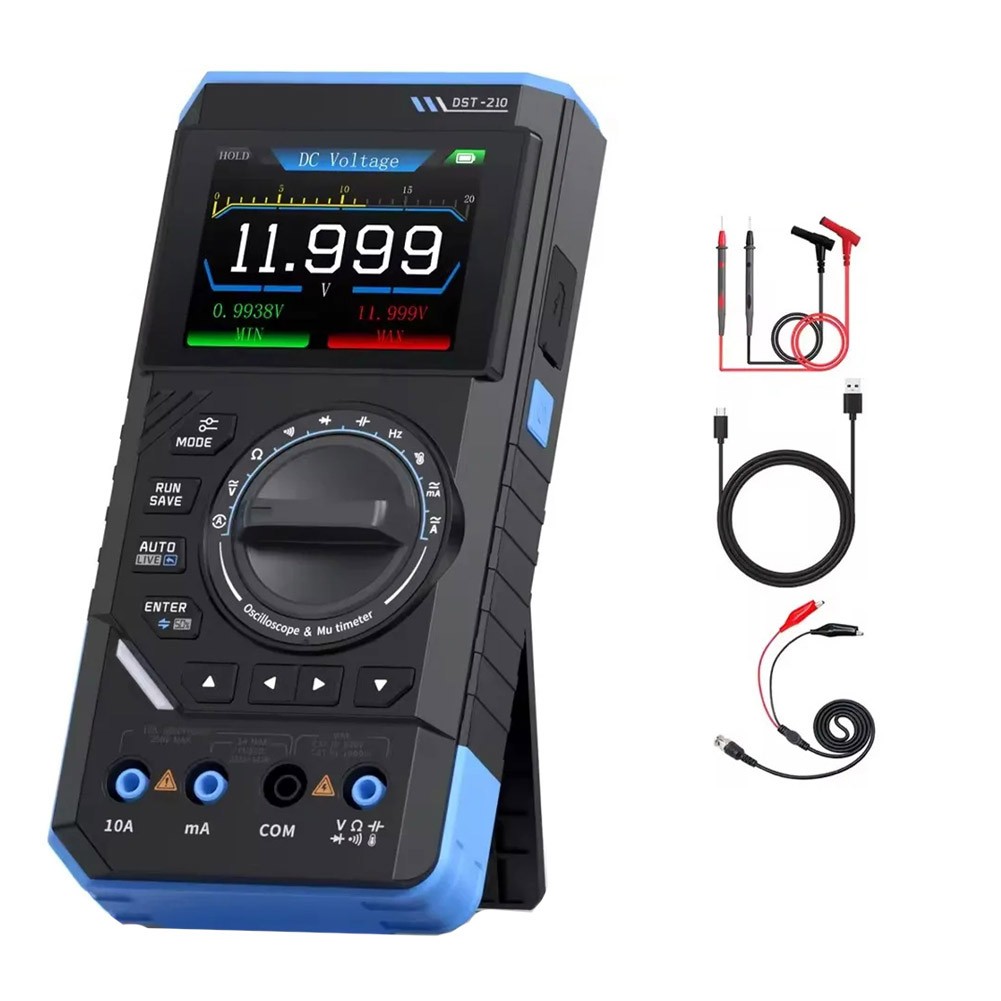

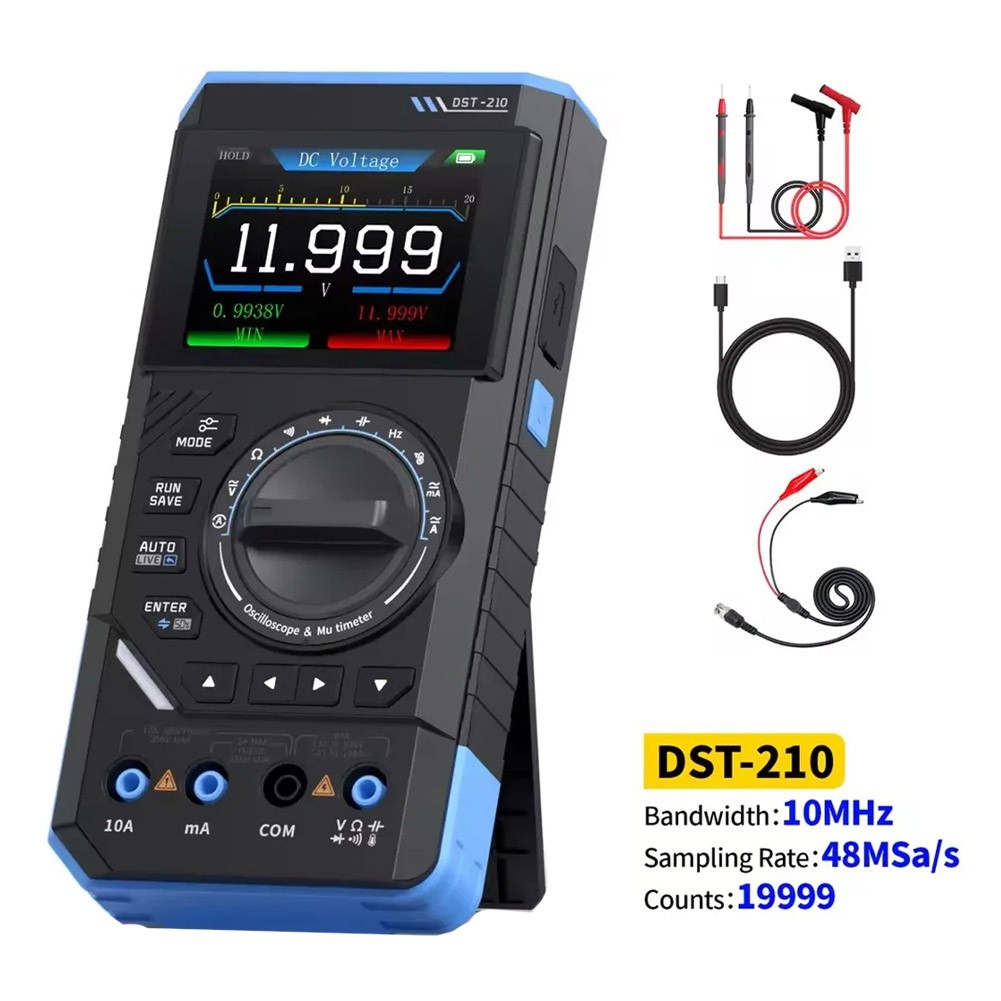

Package content:
1. DST-210 host *1
2. for Alligator clip probe *1
3. Multimeter probe *1
4. Charging cable *1
5. User manual *1
6. Packing box *1
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
