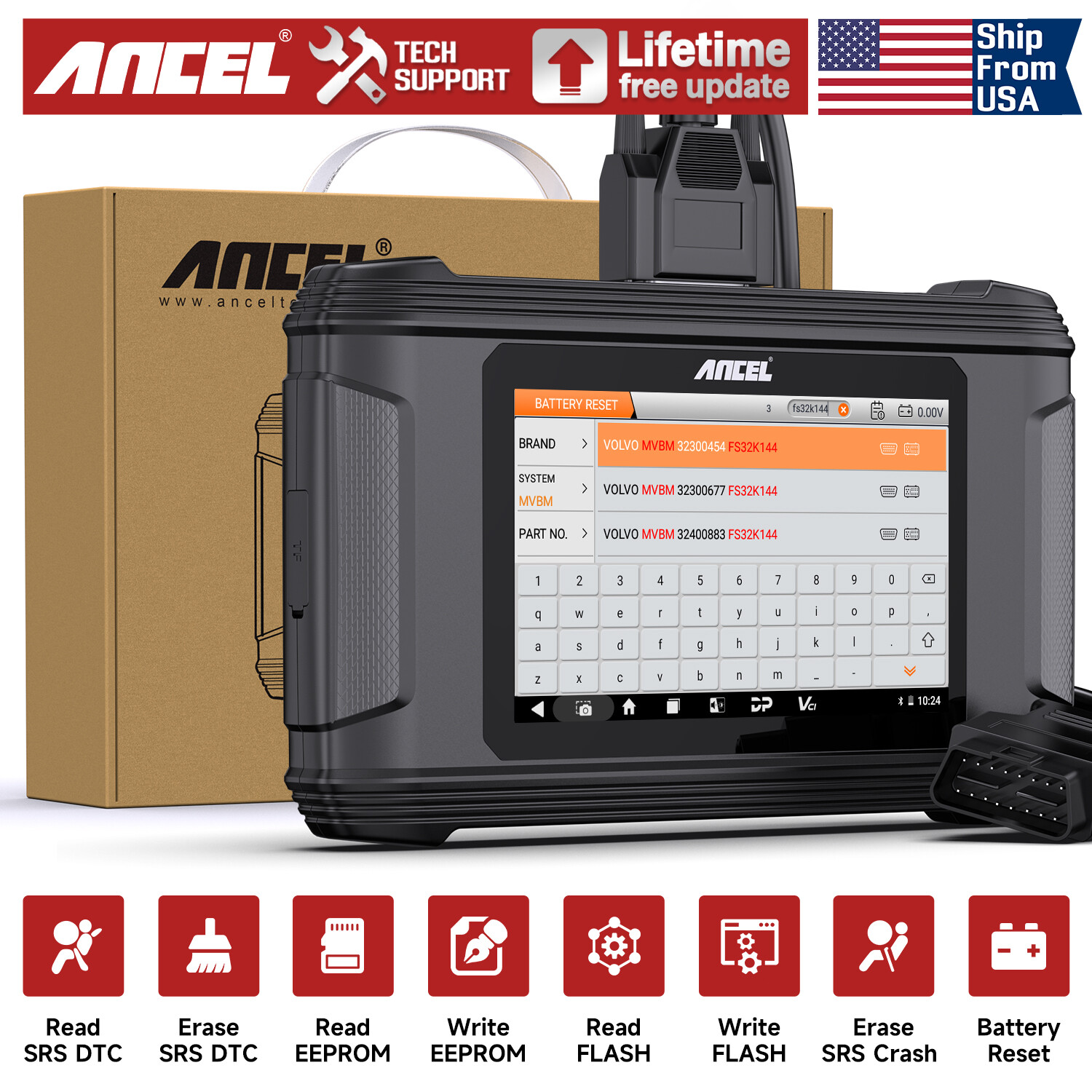

Ancel AR500 is a professional automotive air-bag SRS computer repair tool.
It supports reading air-bag SRS computer information, clearing air-bag SRS Crash data records, reading fault codes, clearing fault codes, reading/writing EEPROM/FLASH and other functions.
Moreover, AR500 also supports automobile battery module repair, which can clear the fault code of battery module lock-up caused by automobile collision. This is rarely available in other air-bag SRS computer repair equipment. It is one of the product features.
All of the above are realized through OBD or workbench mode, which makes air-bag SRS computer repair easier.
ANCEL AR500 SRS Air-bag Service Tool Function
Read SRS airbag computer information
Clear SRS airbag Crash data
Read SRS airbag Crash data
Read SRS fault codes
Clear SRS fault codes
SRS airbag Reset
Read EEPROM/FLASH
Writing EEPROM/FLASH
Unlock ECU
Read ECU informtion
Battery module repair
Operate via OBD
OBD/BENCH reconditioning
About Car air-bag SRS Computer Repair
The air-bag SRS computer is known as air-bag SRS control unit, which can be understood as a miniature computer system, when a collision occurs through the collision sensor data to obtain the collision information, and then according to the computer calculates the need to pop out the airbag, if necessary, it will trigger the air-bag SRS gas generator, generating instantaneous high-pressure gas to pop out the airbag.
After the air-bag SRS computer triggers the collision will store the collision fault code, in the early days due to technical limitations can not clear the fault code, resulting in the air-bag SRS computer is almost disposable, as long as the collision must be replaced, the maintenance cost is very high. With the development of the times, the auto repair industry in order to reduce the cost of repair, so the birth of the air-bag SRS repair technology.
Airbag computer repair refers to the air-bag SRS computer failure due to collision and other reasons by using specialized equipment, the air-bag SRS collision fault code removal, restore to the state before the collision, so that it can continue to load the car to use.
| Notice : These function is not suitable for all cars models, please provide the VIN with us to confirm the suitability before purchase ,thank you ! |
SRS air-bag SRS Computer Repair Automotive Compatible List
SRS Airbag Reset Service
Fit for Toyota, Fit for Honda, Fit for Nissan, Fit for Mitsubishi, Fit for Suzuki, Fit for Mazda, Fit for Volkswagen, Fit for Volvo, Fit for BMW, Fit for Mercedes-Benz, Fit for PAS, Fit for GM, Fit for Ford, Fit for Chrysler ... and other 72 brands.
Battery Repair
Fit for Volvo, Fit for Audi
Erase Crash :
Fit for ASTONMARTIN , Fit for LEXUS , Fit for SUBARU , Fit for TOYOTA , Fit for VOLVO
Read FLASH
Fit for ASTONMARTIN ,Fit for LEXUS ,Fit for SUBARU , Fit for TOYOTA ,Fit for VOLVO
Write FLASH :
Fit for ASTONMARTIN ,Fit for LEXUS ,Fit for SUBARU , Fit for TOYOTA ,Fit for VOLVO
| Notice : These function is not suitable for all cars models, please provide the VIN with us to confirm the suitability before purchase ,thank you ! |
Battery Function
Battery Reset
Battery Repair
Product Features
1.Support OBD/BENCH reconditioning
No need to open the cover and welding harness, can complete the repair, simple operation, easier to get started.
2.Support battery module repair function
Support battery module reconditioning, repairing battery module can bring high pay for customers.
3.With its own wiring definition diagram
BENCH repair, comes with wiring method diagram. Customers do not need to find the wiring diagram by themselves.
4.Regular update
Equipment will be regularly updated every month, each update will add new part number support and repair known problems. More protection for long-term use of the user
AR500 Specification
Operation system : Android 5.1.1
CPU : RK3128 quad-core ARM cortex A7
Battery : 2600mA, rechargeable polymer lithium battery
Extension memory card: 32G micro SD (TF) card supported
LCD :5.0 inch
LCD resolution :800*480
Touch screen : Capacitive touch screen
Wifi Supported
Working temperature: -20℃~55℃ (14℉~131℉)
Storage temperature: -20℃~70℃ (-4℉~158℉)
Weight: About 700g
Dimension: 198mm*115mm*31mm
Package List
1* Main cable
1* P004 adapter
1* P004 jumper
1* 12V 2A charger
Frequently Asked Questions and Answers
Q: Do I need to open the cover and weld the air-bag SRS to repair it ?
A: Most of the air-bag SRS computers supported by the device can be repaired by OBD or BENCH wiring. There is no need to open the cover and weld the wires.
Only a few air-bag SRS computers need to be uncovered, such as Toyota and Volvo, etc.
Q:Does it support to change VIN ?
A: At present, only some air-bag SRS computers support the function of writing VIN code.
Q: I don't have ECU, can I use the device to modify the data directly?
A: At present, some part numbers need to read the EEPROM when repairing, and then generate a new EEPROM to write into the airbag. These types can support generation.
Q: After selecting the air-bag SRS computer, it shows that CANFD connector is needed, but I don't have it.
A: The CANFD connector is not standard and customers want to purchase it separately.
It is required when fixing some of the newer Toyota and Hyundai Kia air-bag SRS computers.
Q: Will the software upgrade be affected after the battery module is repaired?
A: No, the device only removes the mechanically stuck fault codes. It will not affect the normal software upgrade of the module.
Q: Why are there still fault codes after BENCH repair?
A: Because the air-bag SRS computer is only connected to the power and communication lines when repairing under the car, some pins are not powered or connected, resulting in open circuit, short circuit and other fault codes. This is normal, when the ECU is installed back into the car, this part of the fault code will disappear.
