DESCRIPTION
Product features
1、New generation of simple UI interaction, GPU Turbo faster response and faster display
2、New silicone buttons.
3、Three high brightness indicator lights.
4、Buzzer can be manually adjusted.
5、Backlight brightness can be manually adjusted.
6、Two customizable shortcut keys
1、New generation of simple UI interaction, GPU Turbo faster response and faster display
2、New silicone buttons.
3、Three high brightness indicator lights.
4、Buzzer can be manually adjusted.
5、Backlight brightness can be manually adjusted.
6、Two customizable shortcut keys

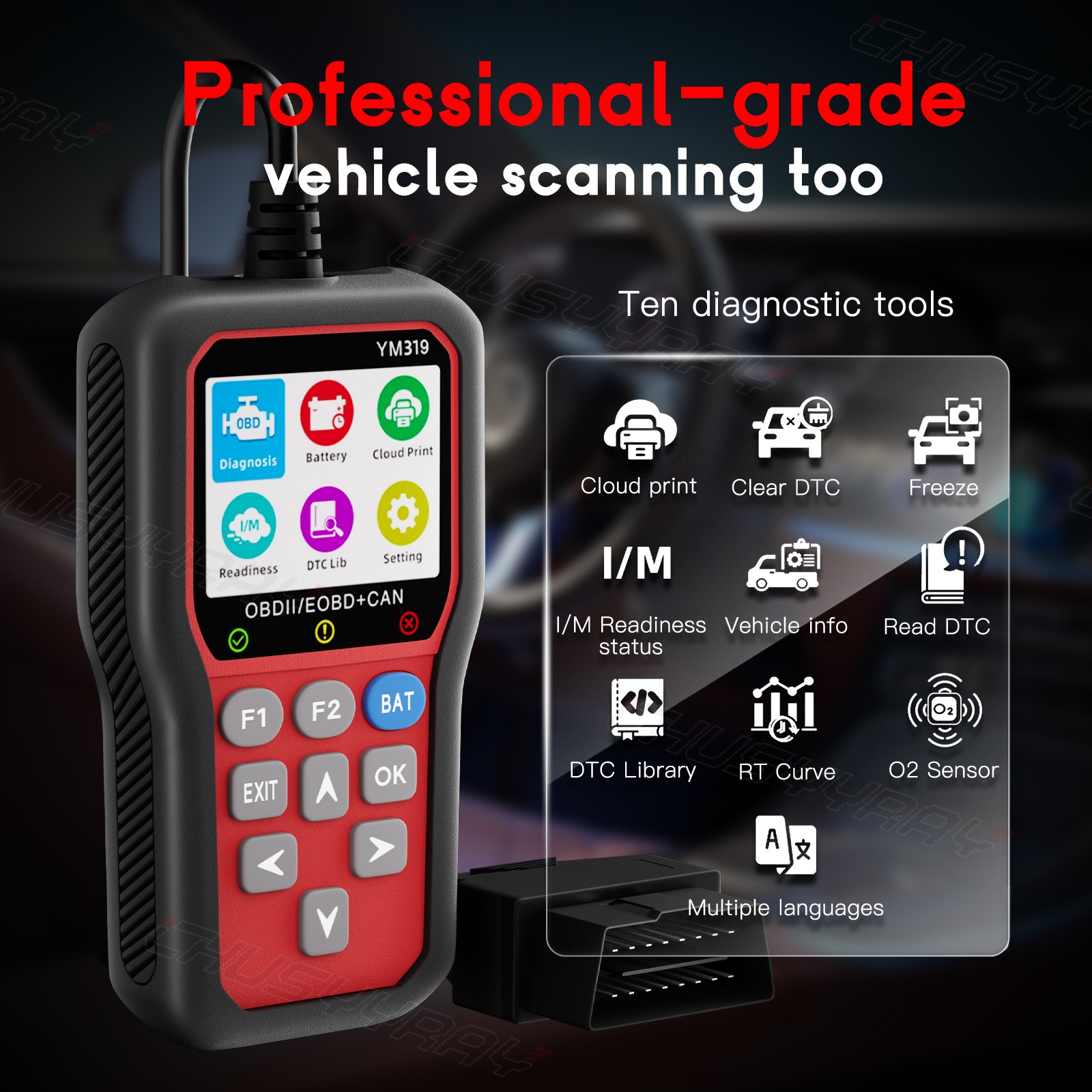

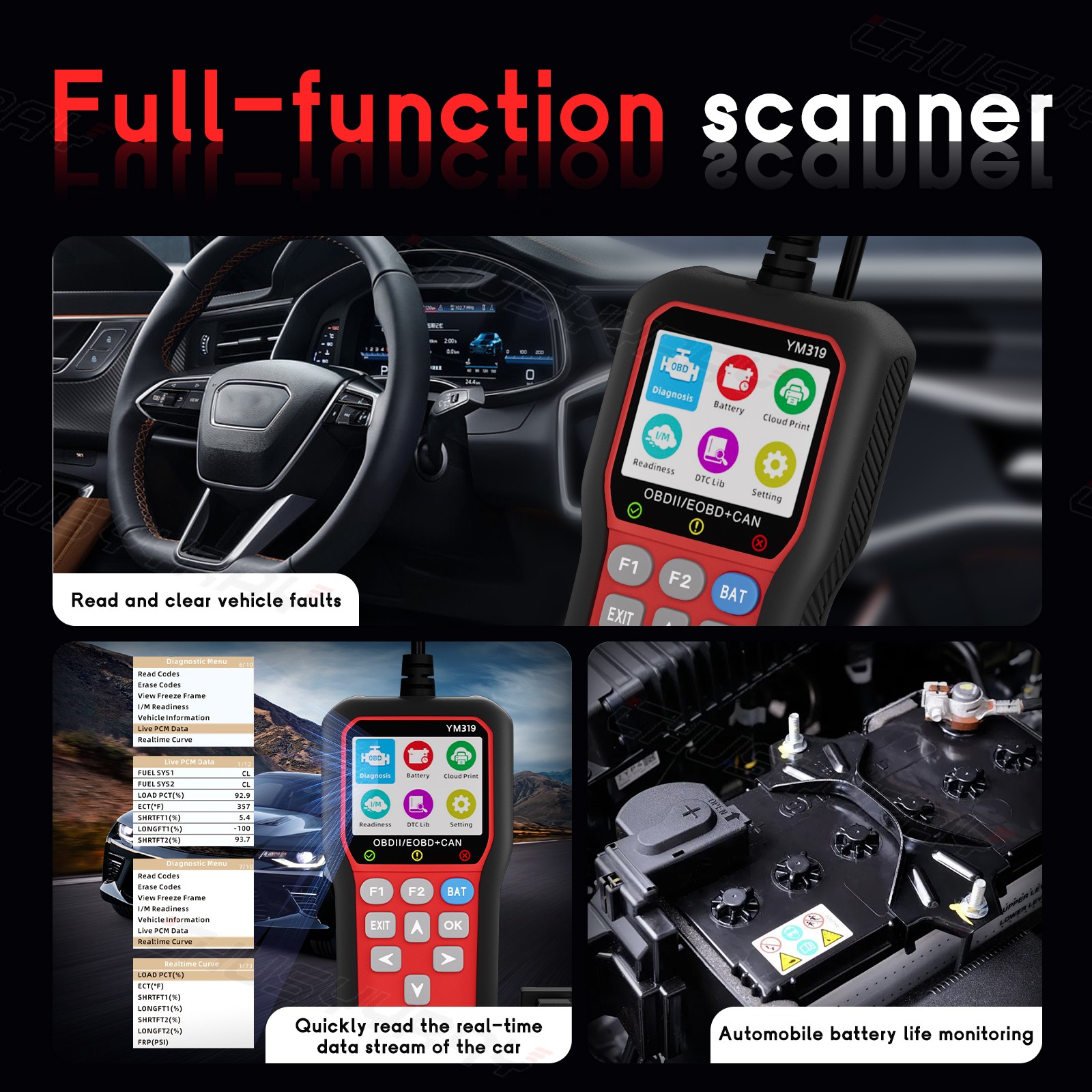

SCANNNG FUHNCTIONS
1、Support OBDII/EOOBD nine standard protocols to read the car engine fault code
2、Clear the engine fault code
3、Freeze frame of automobile fault
4、I/M readiness status
5、Vehicle information
6、Automobile real-time data flow
7、Real-time curve of automobile data
8、Mode 6 test (component system test)
9、Oxygen sensor test
10、Parts test (EVAP)
11、Fault code query
12、Vehicle battery voltage reading
13、vehicle battery voltage monitoring
14、Vehicle battery life assessment (exclusive features)
15、Support cloud printing (real-time data stream, freeze frame, fault code analysis)
Automatic recognition and translation of data in 25 languages according to the language of the cell phone system
16、 the product built-in 13 languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)
1、Support OBDII/EOOBD nine standard protocols to read the car engine fault code
2、Clear the engine fault code
3、Freeze frame of automobile fault
4、I/M readiness status
5、Vehicle information
6、Automobile real-time data flow
7、Real-time curve of automobile data
8、Mode 6 test (component system test)
9、Oxygen sensor test
10、Parts test (EVAP)
11、Fault code query
12、Vehicle battery voltage reading
13、vehicle battery voltage monitoring
14、Vehicle battery life assessment (exclusive features)
15、Support cloud printing (real-time data stream, freeze frame, fault code analysis)
Automatic recognition and translation of data in 25 languages according to the language of the cell phone system
16、 the product built-in 13 languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)
Supported models：
Supports most models in Europe after 2003 and in the United States after 1996 (requiring 12V gasoline vehicles that comply with international OBD agreements)
Supports most models in Europe after 2003 and in the United States after 1996 (requiring 12V gasoline vehicles that comply with international OBD agreements)
Support protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 251 Kbaud)
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 251 Kbaud)
Remarks
The back of the product comes with an electronic manual that matches the language of the manual to the user's cell phone system, which can be read by scanning the QR code.
The back of the product comes with an electronic manual that matches the language of the manual to the user's cell phone system, which can be read by scanning the QR code.
Package:
1 x OBD2 Scanner
1 x OBD2 Scanner
