Automotive Power Circuit Probe Tester Leads AC DC Diode Resistance Relay Tester

ancel-tool

$59

CONTACT SELLER SEE ON EBAY

ancel-tool

$59

DESCRIPTION

12V Car PowerScan Circuit Tester Probe Electrical Power AVOmeter Diagnostic Tool

What In The World Is A PB100 Probe Tester?
The ANCEL PB100 test probe is the revolutionary circuit tester with test all 6-30 volt vehicle electrical systems. It's like a detective for your car's electrical system, with four super-accurate diagnostic modes (✅DC Voltage, ✅AC Voltage, ✅Resistance, ✅Diode). You can zip through all kinds of tests, from a speedy self-check to hunting down short circuits. it's the ultimate sidekick for car owners, get ready to solve any electrical mystery under the hood!

ANCEL PB100 All-In-One Power Circuit Probe Tester Kit

Hey there, car machinist and DIY auto wizards! Get ready to meet the ANCEL PB100 circuit tester automotive, the ultimate gadget for your vehicle's electrical jungle. It supports ⚡Circuit Breaker/Open Test ⚡Tracing Wire ⚡AC/DC Voltage Test ⚡Diode Test ⚡Resistance Test ⚡Polarity Test ⚡Continuity Test ⚡Ground Test ⚡Activate Components ⚡Signal Circuit Test ⚡Relay, Fuse, Trailer Light Test. So, what are you waiting for? Grab it and start your electrical adventure today!

Features

1. Easy to read AV0 meter allows you to read voltage, current and resistance at the fingertip.
2. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
3. Simultaneously uses the hot lead and the found lead to activate components right in your hand.
4. Instantly identifies positive, negative and open circuits.
5. Circuit breaker protected.
6. Bulit-in flashlight enables you to work in the dark.
7. 20+20ft (extendable) cable provides excellent accesssiblity to test along the vehicle.
8. Extremely easy to use and highly reliable.
9. PB100 PowerScan Electrical System Diagnostics Circuit Tester is used as Po-wer Pro-be for testing vehicle electrical circuit.

Product Properties:

- DC voltage range: 0-65V; Resistance range: 0-100 kΩ; Rated current: 1-10 amps; Frequency response of sound passage: 0Hz to 10Khz.
- Perform current injection, measurement, ground test, polarity test, continuity test and component activation.

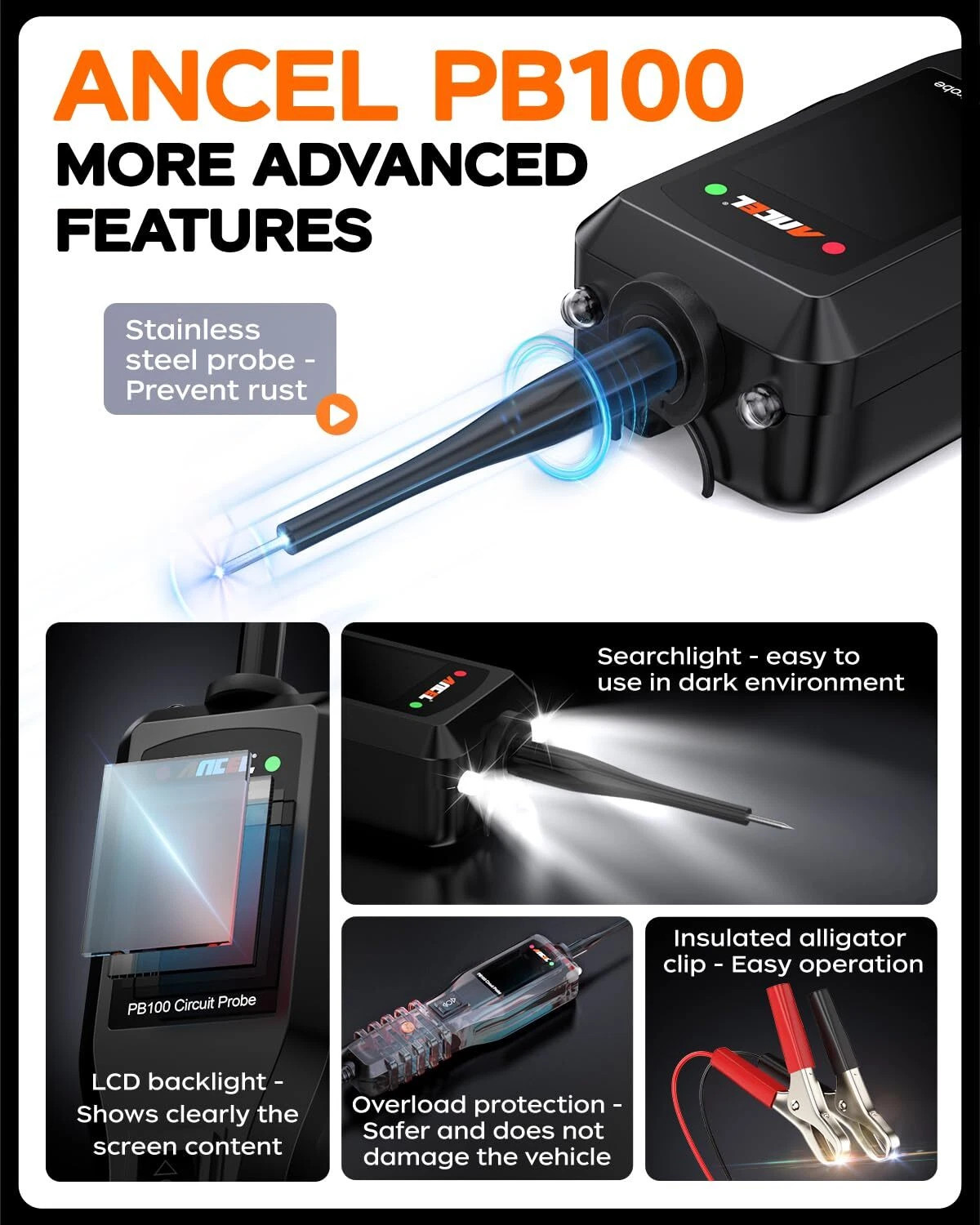

- Ergonomic housing design with waterproof, rugged, blow-molded housing, easy to handle and store.
- There are 4 modes to diagnose the electrical systems.(DC voltage, AC voltage, Resistance, Diode)
- AC- RMS, AC peak to peak, frequency and pulse width for signal testing.
- High voltage capability: displays up to 60 volts, 0.1 volt resolution.
- 8-amp circuit breaker, automatic reset, no button to press.
- Three additional modes: MIN / MAX / audible monitoring.
- Automatically detects positive, negative and open circuit.
- Large color screen LCD with easy to navigate user menu.
- Comes with an additional 20ft extension cable.
- Find shorts to ground and to voltage.

Ancel PB100 Functions

1. Find The Short Circuits:In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device.Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.

2. Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.

3. Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.

4. Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle’s electrical system.

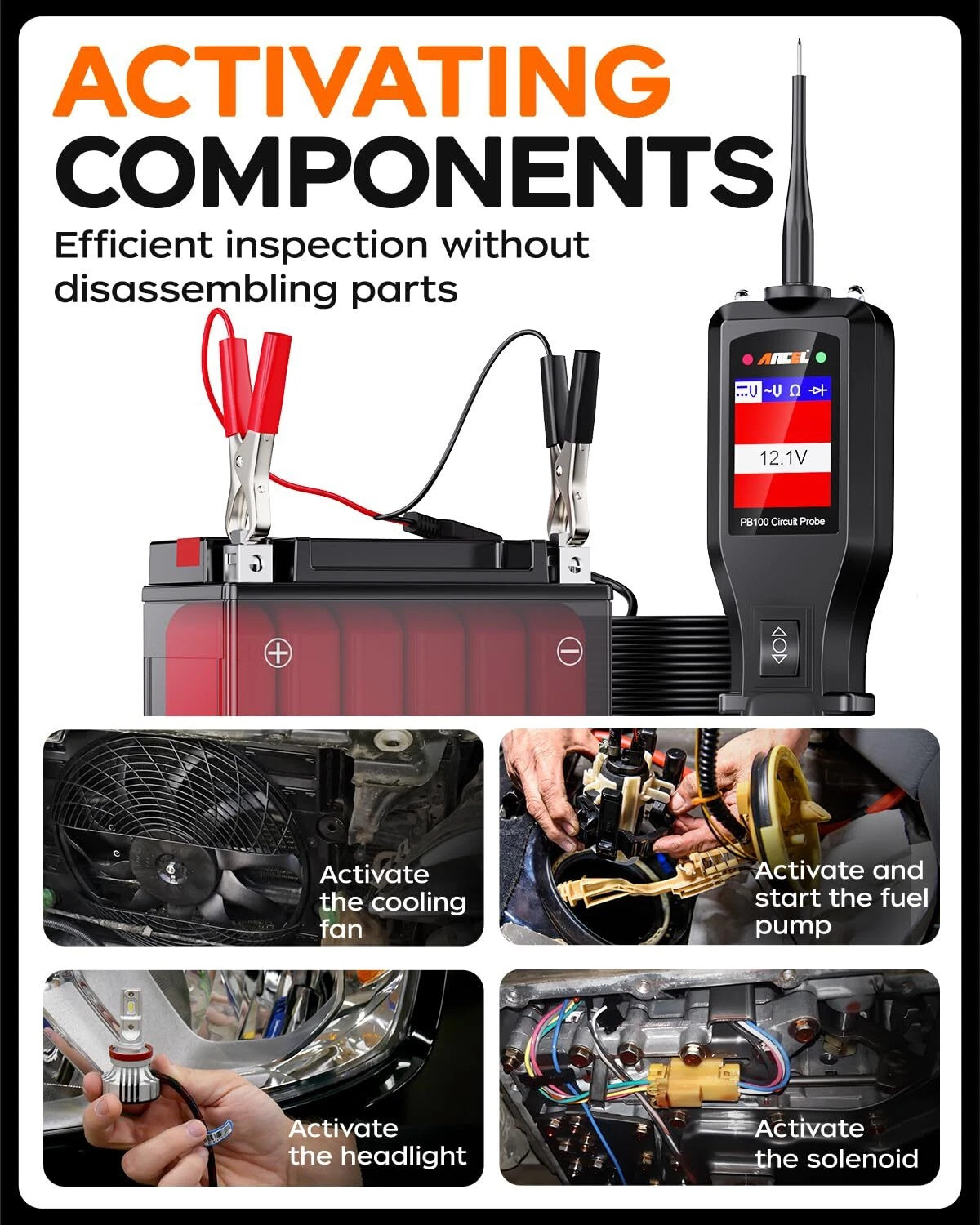

5. Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.

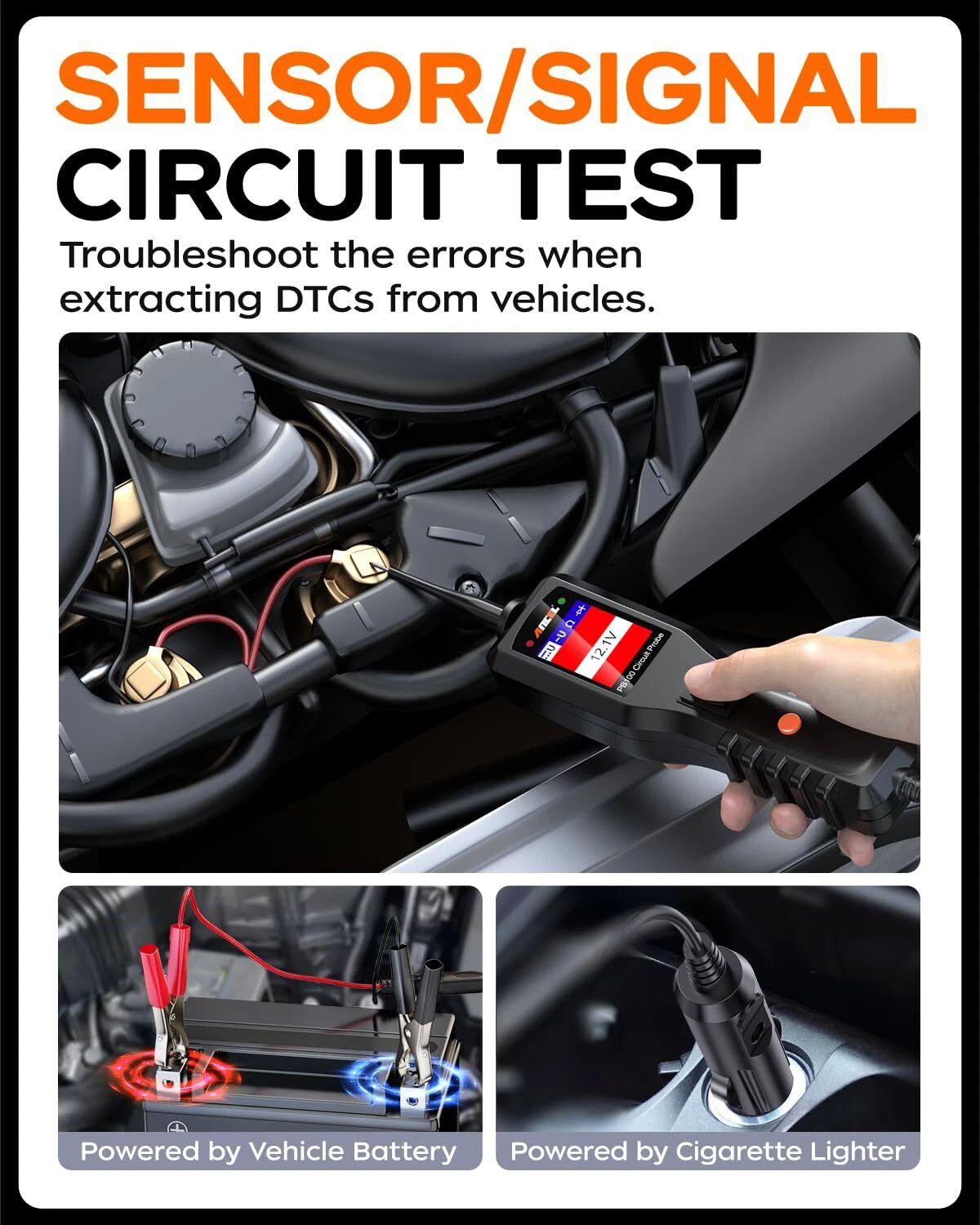

6. Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.

7. Voltage & Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a POSITIVE circuit. If contact the probe tip to an OPEN circuit, neither of the LED will light.

PB100 Electrical System Circuit Tester Functions:

1. [ Perform these functions ]: power injection, measuring, ground testing, polarity checking, continuity testing and component activation.

2. [ Multimeter ]: Read the AVO meter, voltage, current, and resistance easily.

3. [ energize the electrical components ]: Press the power switch lightly and get the instant heat ground lead to energize the electrical components, such as the cooling fan, relay etc.

4. [ Activate the components ]: by using the hot wire and ground lead simultaneously.

5. [ Test the positive and negative ]: Determine the positive, negative and open circuit quickly.

6. [ Test the hort circuits Location ]: Test the bad ground contacts quickly, follow and locate short circuits without wasting the fuse.

7. [ Test diode ]: Test the continuity of the power switch, relay and diode quickly.

8. [ Protect overload ]: Protect the tool from overload through the inner circuit breaker.

9. [ with LED light ]: Allow you to work in the dark area by using the built-in head light.

10. [ with extension cable ]: Operate the tool without looking at the menu once users are familiar with the tone. Test along the vehicle by the long cable.

Ancel PB100 Specifications:
1. The Ultimate in Circuit Testing.
2. PB100 Circuit tester with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps.
3. Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing.
4. Includes Case and extension Lead cable for 12 Volt Power Port Adapter.
5.External Power: 12.0 or 24.0 V power provided via vehicle battery.
6.Display: TFT color display (160 x 128 dpi).
7.Operating Temperature: 0 to 60°C (32 to 140°F).

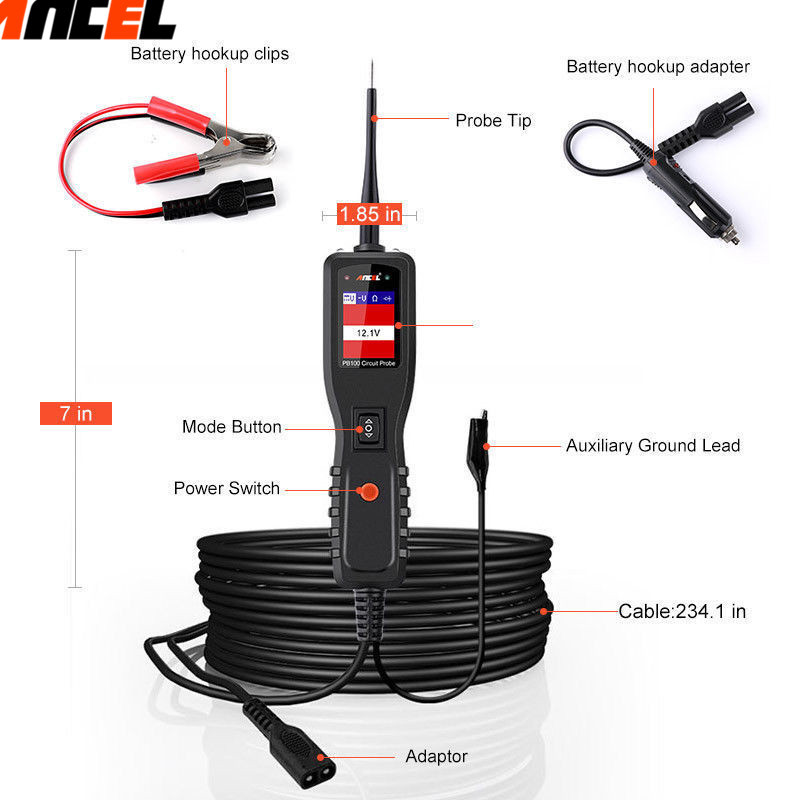

Package Included

1 × Ancel PB100 PowerScan Main Unit

1 × Rugged Blow Molded Case

1 × 20ft. Extension Cable

1 × Probe

1 × Battery Hookup Clips

1 × Cigarette Lighter Adapter

1 × User Manual

FAQs

Q: Where can I find the probe tip?

A: We keep the probe above the back of the device. (Warm note: Be more careful when operating because of the sharp probe tip.)

Q: Why can not the probe tip itself stay engaged? It keeps falling out.

A: You need to push it a little harder until you hear a "CLICK" sound, then it will stay engaged.

Q: Why should I buy an ANCEL PB100?

A: Our products are designed to help you save time and money in electrical diagnostics.

Q: Where can I find training videos?

A: You can learn by browsing the video on the page or the YouTube.

Q: Where can I buy replacement parts?

A: You do not need to purchase replacement parts, we will provide replacement parts free of charge.

Q: What do I do if my ANCEL PB100 is broken?

A: No need to return, we will send for a new product for you.
