Features:

1. Analog voltage sensors: accelerator pedal sensor, throttle position sensor, oxygen sensor, fuel rail pressure sensor, for boost pressure sensor, oil pressure sensor, intake pressure sensor, air conditioning pressure sensor, etc.

2. Analog resistance sensors: coolant temperature sensor, intake temperature sensor, oil temperature sensor, exhaust temperature sensor, fuel temperature sensor, evaporator temperature sensor, ambient temperature sensor, etc.

3. Oxygen sensor signal 0.1-0.9V automatic jump.

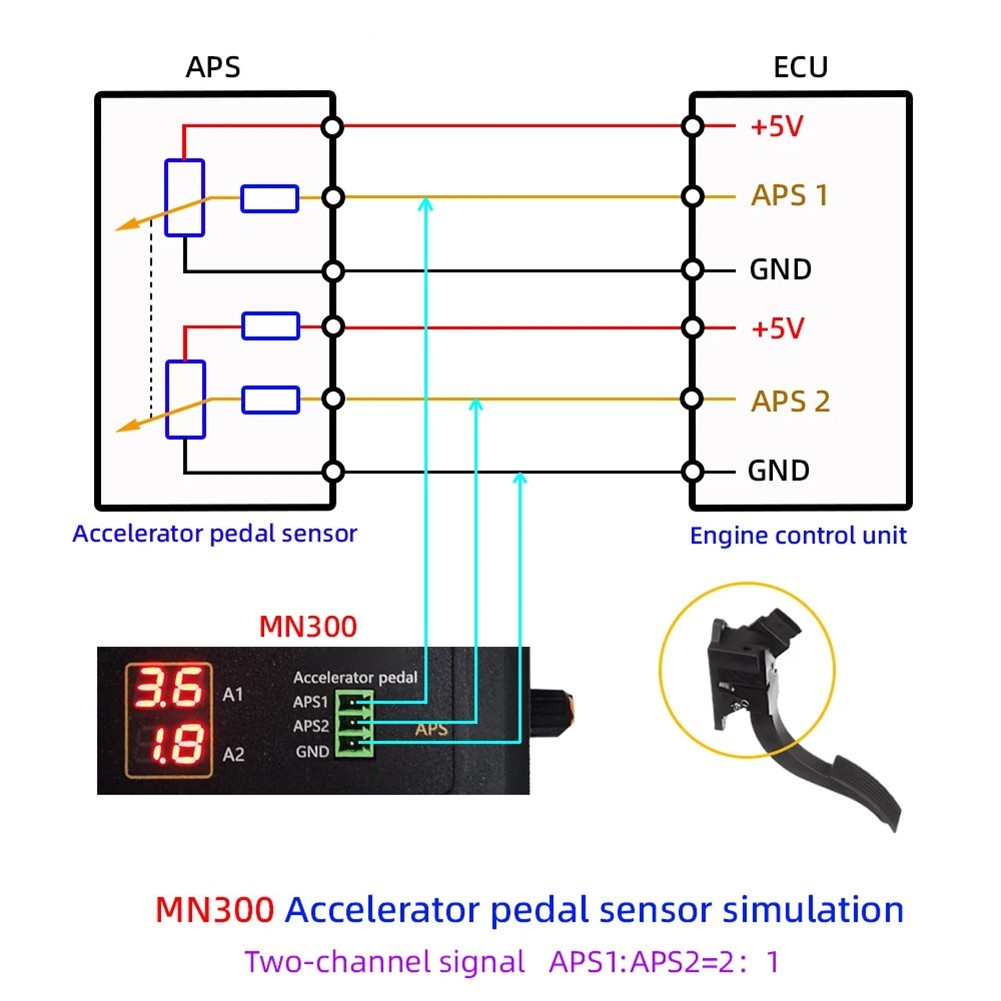

4. The ratio of the two signals of the accelerator pedal sensor is 2:1.

5. The sum of the two signals of the throttle position sensor is 5V.

6. Built-in for  multi-turn wirewound potentiometer.

7. Multiple sensor signals are output simultaneously, and each signal is adjusted independently without interfering with each other.

MN300 throttle position sensor simulation

Dual channel signal TPS1+TPS2=5V

MN300 voltage sensor simulation

V1 and V2 dual voltage signal simulation

Oil rail pressure sensor, for boost pressure sensor, oil pressure sensor, intake pressure sensor, air conditioning pressure sensor.

Three-wire throttle position sensor.

MN300 oxygen sensor signal simulation

Signal voltage 0.1-0.9V automatic jump

MN300 resistance sensor simulation

Built-in for  multi-turn wirewound potentiometer

Coolant temperature sensor, intake temperature sensor

Oil temperature sensor, exhaust temperature sensor

Fuel temperature sensor, evaporator temperature sensor

Ambient temperature sensor. Automotive sensor simulator.

Specifications:

Part name: MN300 automotive signal generator sensor

Model: MN300

Material: abs

Size: 156.5*107*29mm

Color: black

Product parameters:

1. Power supply: DC 12-24V

2. Voltage signal: 0-5V

3. Resistance signal: 0-10kΩ.

4. Oxygen sensor signal: 0.1-0.9V.

5. The sum of the two signals of the throttle position sensor is 5V.

6. The ratio of the two signals of the throttle pedal sensor is 2:1.

Package Contents:

1* host.

1 *power cord.

3* for alligator clip wires.

4 *wires.

4* connectors.

1 *instruction manual.

Notes:

1. This instrument requires an external power supply, which the user needs to prepare. A battery or a 12-24V DC regulated power supply can be used.

2. This instrument is a special equipment for automobile maintenance. Non-professionals should use it under the guidance of automobile maintenance technicians.
