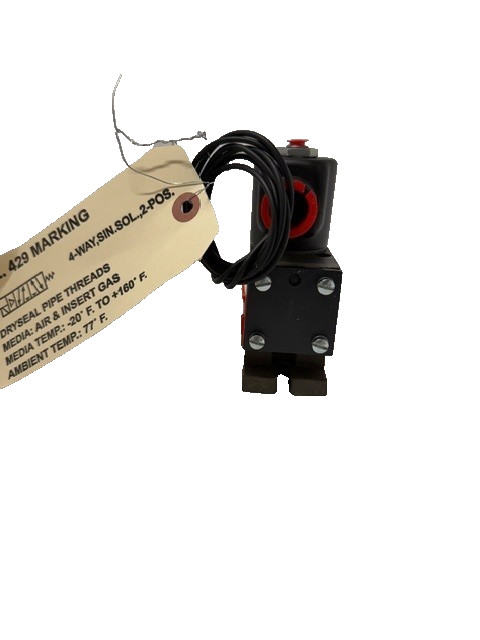

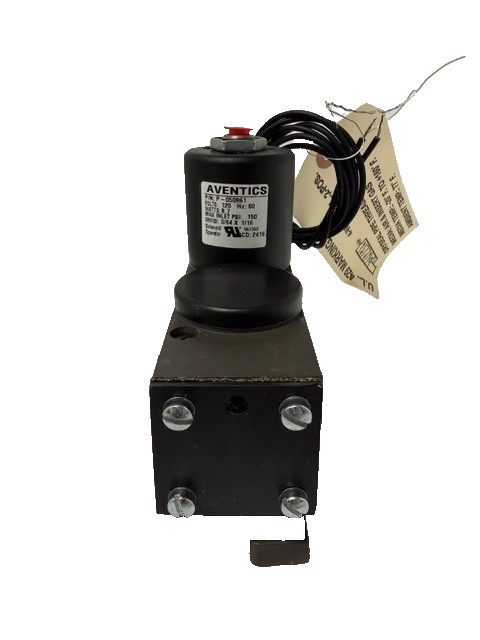

Solenoid Operated, 2 Position Subbase Mounted
Single or Double Solenoid OperatedTECHNICAL DATA:Port Sizes: 1/4" & 3/8" NPTFWorking Pressure:Valve inlet: 200 psi (13.8 bar) maximum with external pilot
150 psi (10.3 bar) maximum with internal pilot
Minimum Pilot Pressure: 2 position: 15 psi (1 bar), Spring return models: 25 psi (1.7 bar)Flow: Cv 1.0 (1000 Nl/min)Temperature Range: -20ºF to +160ºF (-29ºC to 71ºC)Media: Air and inert gases (In service higher than 18 cycles per minute or with continuous air flow, a lubricator is recommended.)Materials:Body, subplate and operators: Die cast anodized aluminum
Spool: Machined from high-tensile anodized aluminum
Seals: Buna-N specially treated
Manual Override: Non-Locking
PJ 022711PJ 22711PJ022711PJ-022711-00000PJ22711
Note: Other coil voltages are available - selection will be done at checkout.
