The BMI160 is a small, low power, low noise 16-bit inertial measurement unit designed for use in mobile applications like augmented reality or indoor navigation which require highly accurate, real-time sensor data.
In full operation mode, with both the accelerometer and gyroscope enabled, the current consumption is typically 950 μA, enabling always-on applications in battery driven devices.

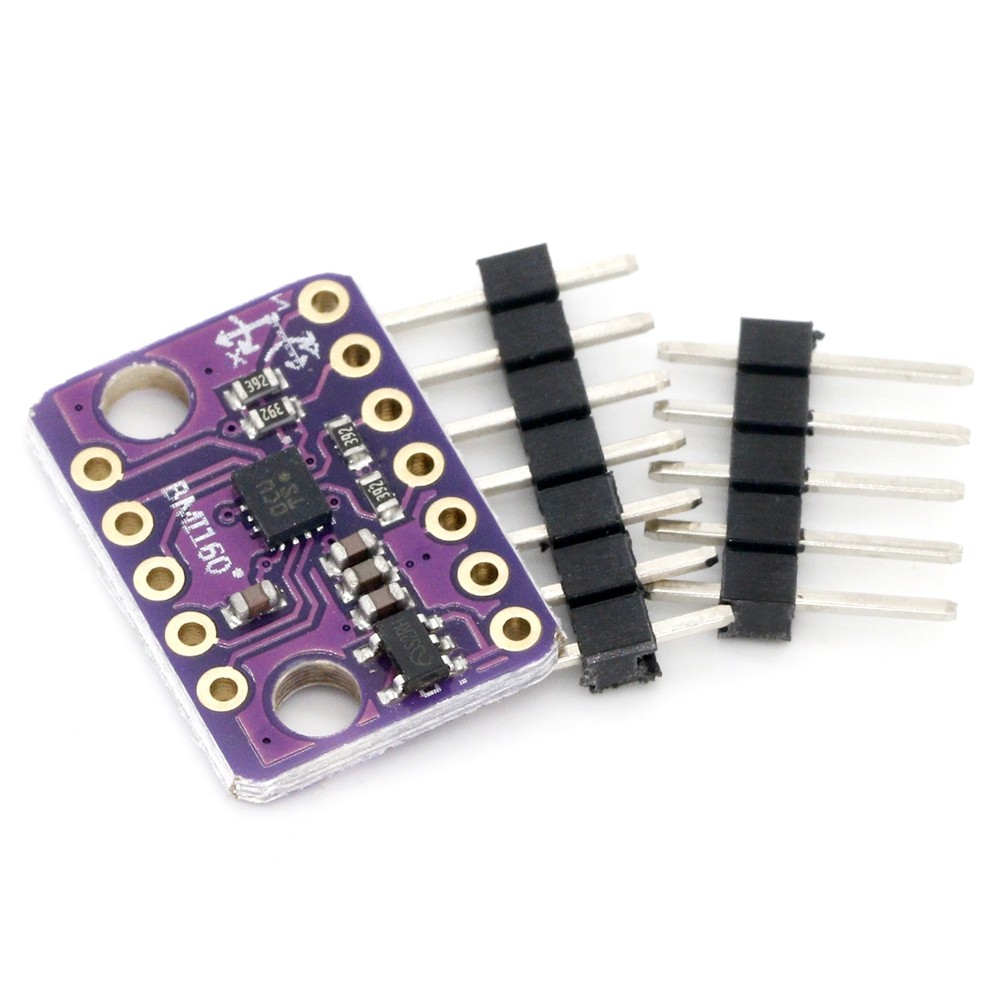

The module uses for 's new BMI160 6- inertial motion sensor in a MEMS sensor package that integrates the top 16-bit 3- accelerometer with an ultra-low-power 3- gyroscope. The module can output acceleration data (acceleration values detected by the device in the X, Y, and Z directions) and gyroscope data (the speed at which the device rotates around the X, Y, and Z axes).
Designed for smartphones, tablets, and wearable devices, the BMI160 includes a built-in smart step counter algorithm that reads the number of steps directly through the registers. The built-in 3- acceleration and 3- gyroscope enable motion detection such as running and fitness.

Applications:
Augmented reality and immersive gaming
3D-scanning and indoor mapping
Indoor navigation, pedestrian dead-reckoning, step-counting
6 and 9- sensor fusion, air mouse applications
Technical specifications:
-BMI160 module (three- gyroscope + three- acceleration)
Chip used: BMI160
Power supply: 3-5v (internal low pressure difference voltage regulator)
Communication mode: Standard IIC/SPI communication protocol
Chip built-in 16bit AD converter,16 bit data output
Gyro range: ±125 ±250 ±500 ±1000 ±2000 °/s
Acceleration range: ±2±4±8±16g
Metal-sunk PCB, machine welding process to quality
Pin spacing 2.54mm
Color:
Material:PCB

Package Contents:
1 * BMI160
