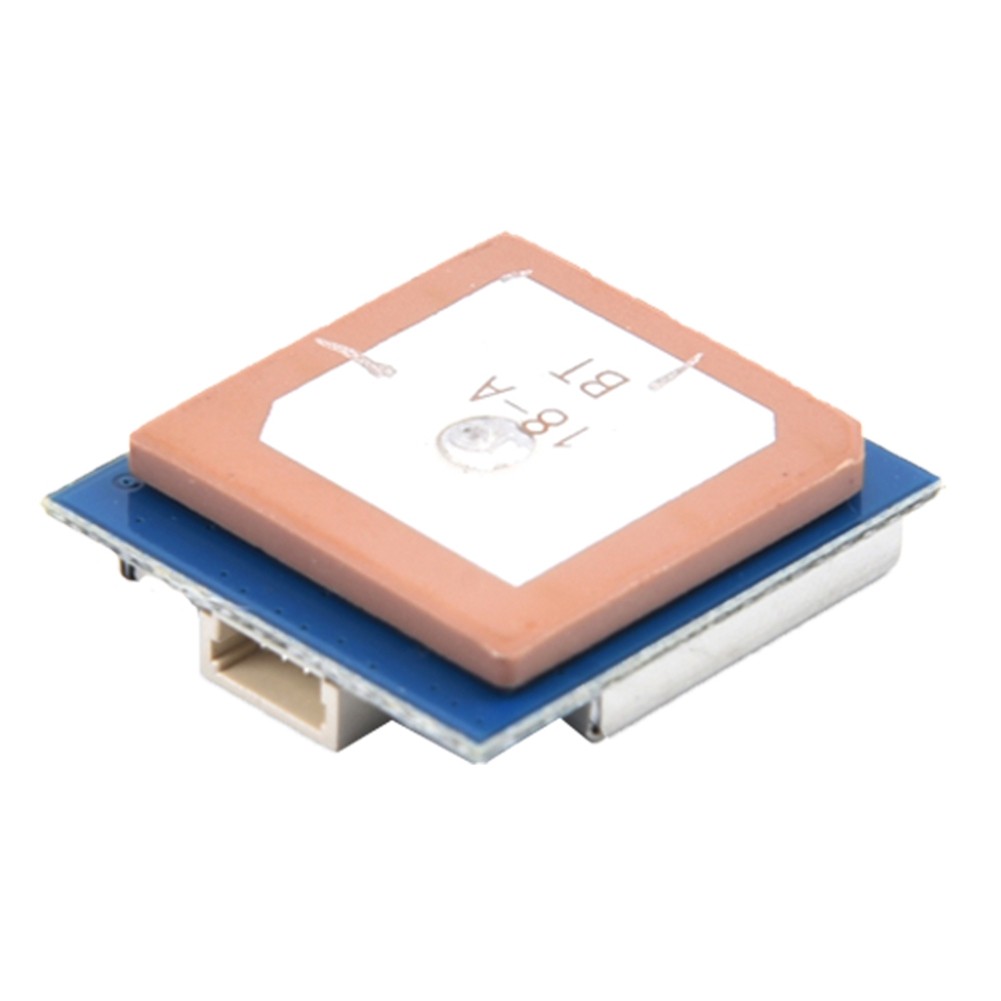

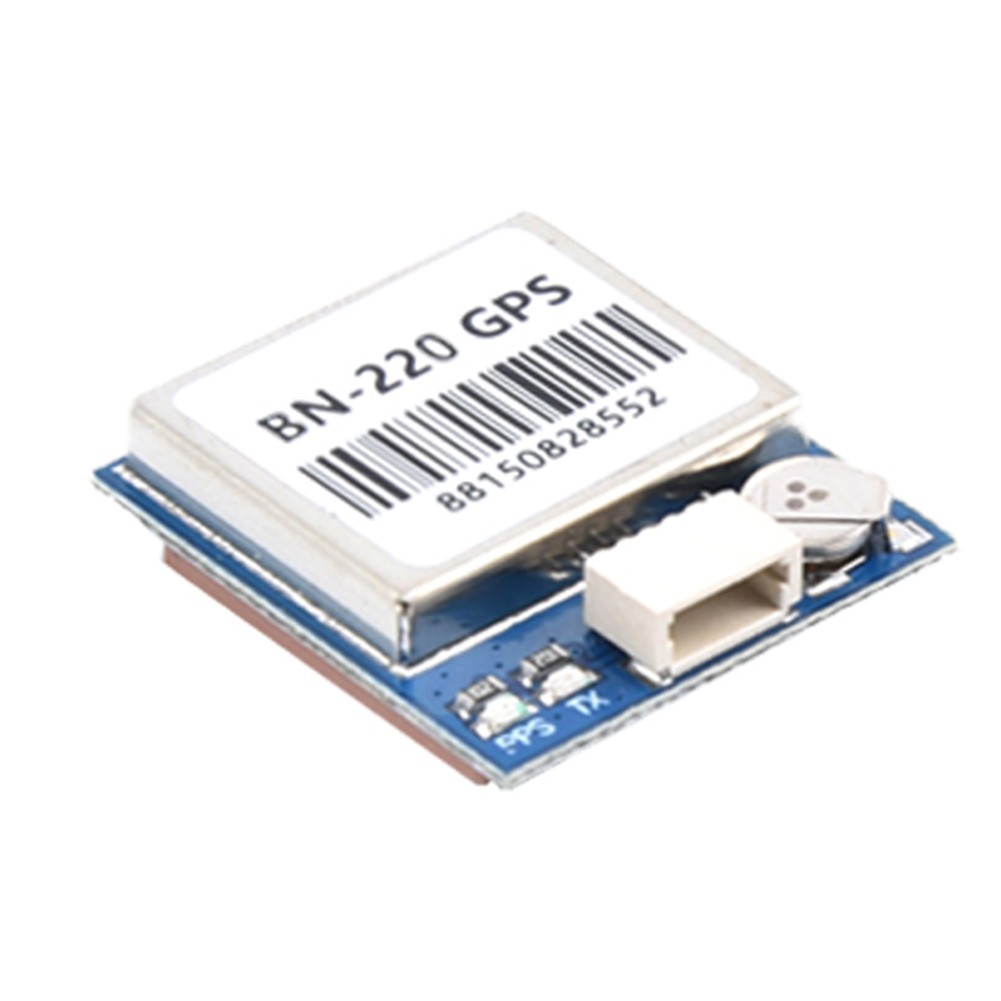

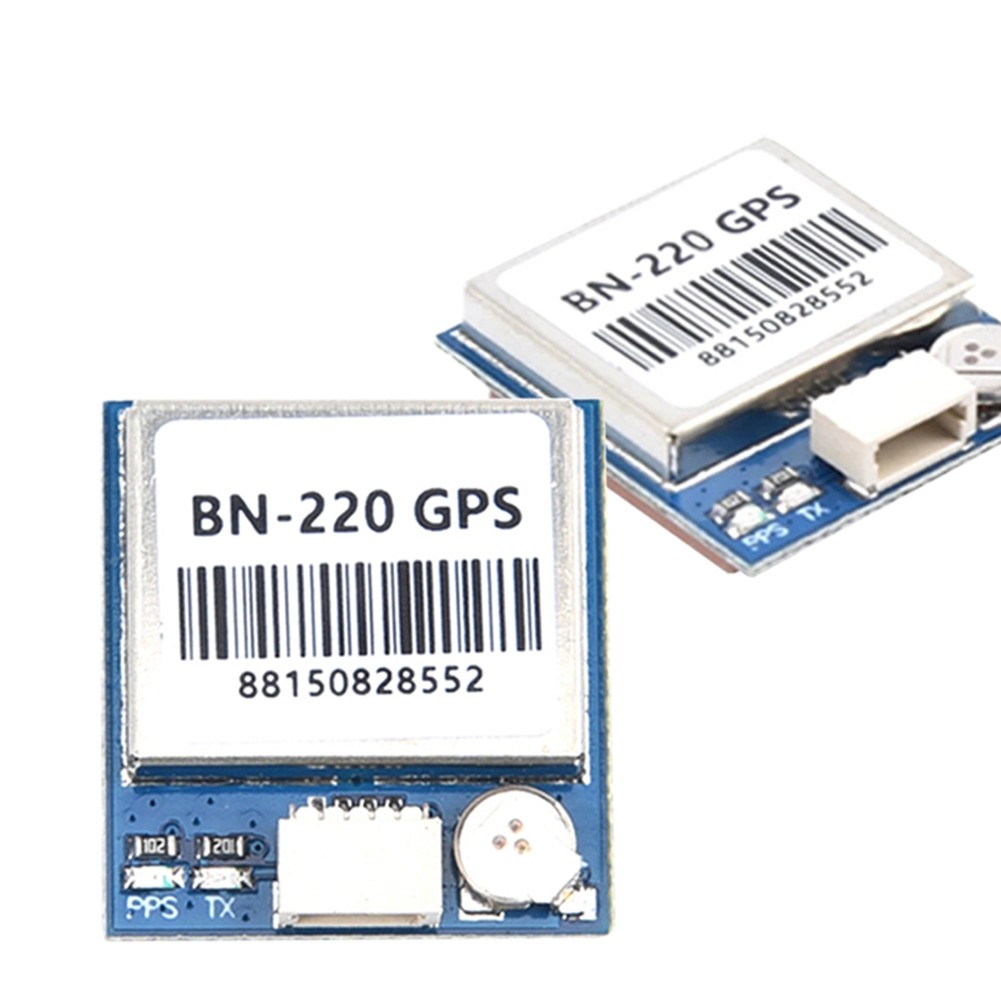

BN-220 Dual GLONASS Antenna Module TTL Level for RC Racing FPV Drone5206
Type:BN-220 GPS Module
Dimension: 22mmx20mmx6mm
Weight:5.3g
Connector:1.00mm spacing between the 4pins patch seat
Electrical Characteristics:
Chipset:M8030-KT
Receiving Format:GPS,GLONASS,BeiDou,QZSS and SBAS
Frequency:GPS L1,GLONASS L1,BeiDou B1,SBAS L1
Channels:72 Searching Channel
Sensitivity:
Tracking:-167dBm
Reacquisition:-160dBm
Cold :-148dBm
Hot :-156dBm
Accuracy:
Position Horizontal: 2.0 m 2D RMS SBAS Enable (Typical Open )
Velocity:0.1m/sec 95% (SA off)
Timing:1us synchronized to GPS time
Acquisition Time:
Cold :26s
Warm :25s
Hot :1s
Data and Update Rate:
Support Rate:4800bps to 921600bps,Default 9600bps
Data Level:TTL or -232,Default TTL level
Data Protocol:NMEA-0183, Default NMEA-0183
Single GNSS:1Hz-18Hz
Concurrent GNSS:1Hz-10Hz,Default 1Hz
Operational Limits:
Altitude: 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g
Power consumption:
VCC:DC Voltage 3.0V-5.5V,Typical:5.0V
Current:Capture 50mA/5.0V
Operating temp:-40℃ - +85℃
Storage Temp:-40℃- +105℃
Indicator:
TX LED:blue.The data output, TX LED flashing
LED:red. LED not bright when GPS not fixed,flashing when fixed
Wiring:GND,TX output,RX input,VCC(3.0v-5.5v)
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC
Package Contents:
1 * Antenna Module
