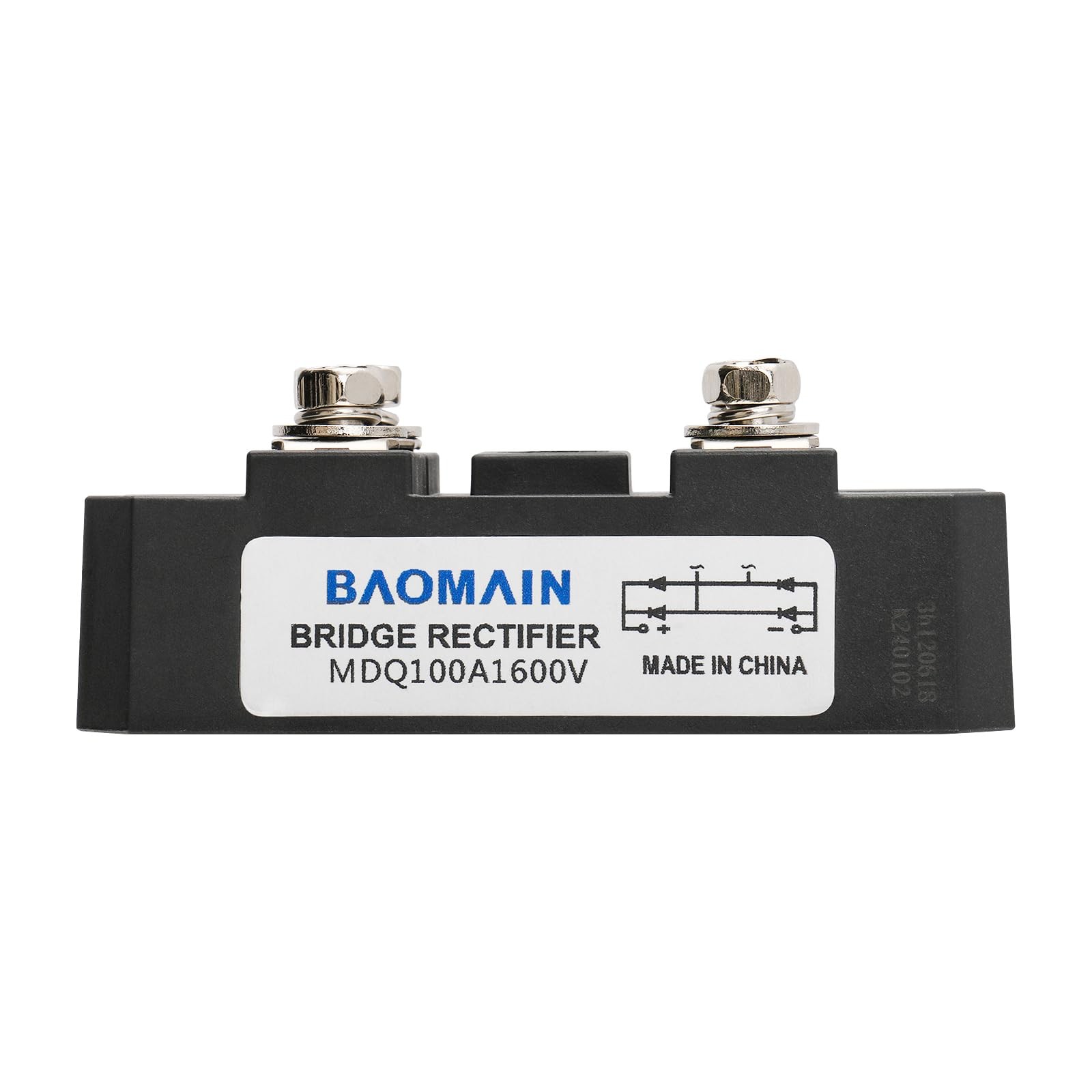

MDQ-100A is designed for single phase full wave rectification, which has four diodes connected in a one phase bridge configuration.

Output DC current is 100Amp Repetitive peak reverse voltage is up to 1,600V. Isolated mounting base, High reliability by unique glass passivation.

Applications: DC power supply for instrument equipment , Input of PWM frequence converter rectifying power supply , Excitation power supply for DC motor, Input of switch power supply and auxiliary current Inverter current.

Max. Average Forward Rectified Current : 100A
Repetitive Peak Reverse Voltage : 1600V

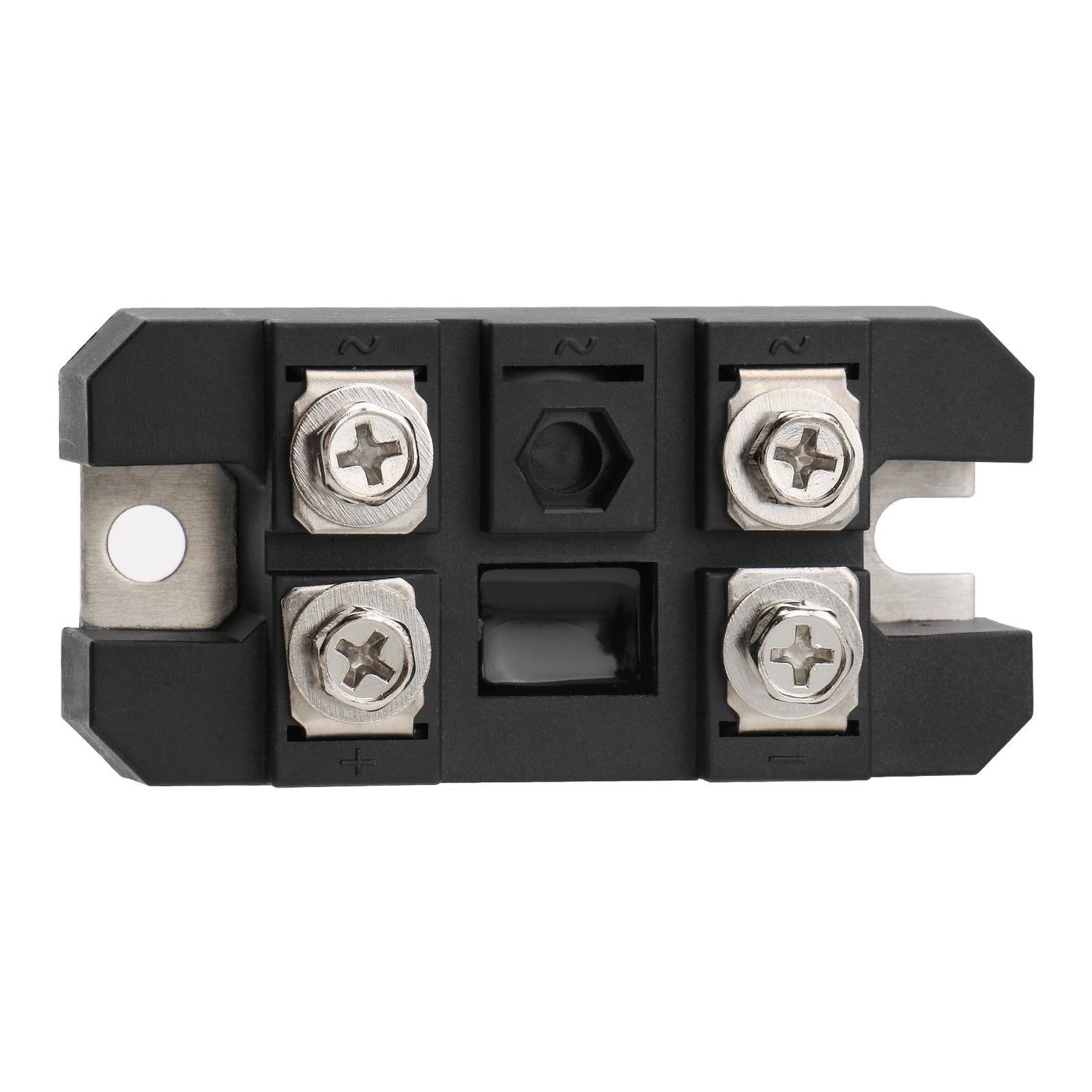

Phase : Single Phase; Terminals : 4

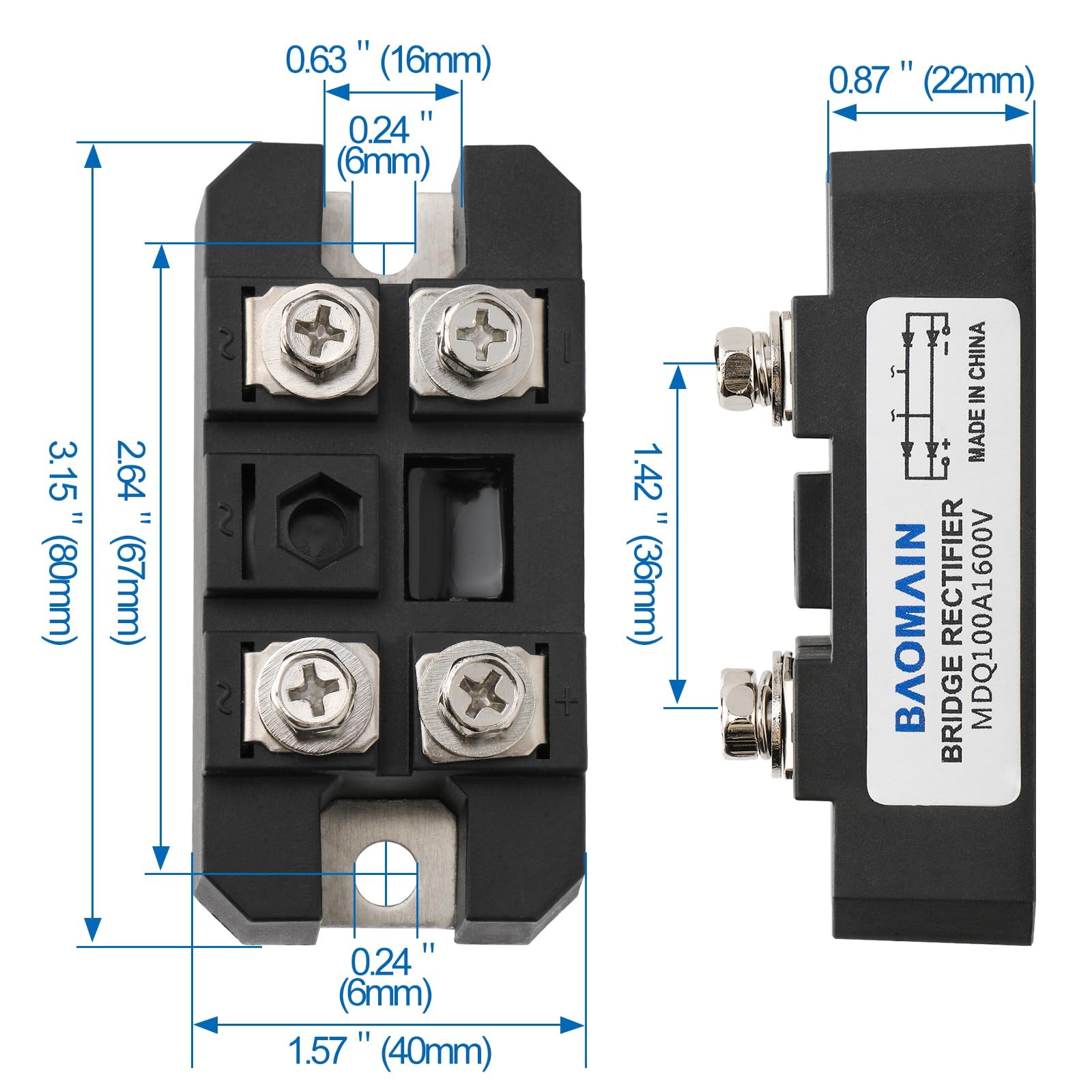

Production Size: 80 x 40 x 32mm/ 3.1" x 1.6" x 1.2" (L*W*T); Mounted Hole Dia. : 6mm / 0.24"
Net Weight : 158g
