Product Features
1. Support for windows XP, WIN7, WIN8, WIN10, support for tablet PCs, support for 64-bit systems
2. Peripheral wide voltage input, with anti-reverse function.
3. All input signals are isolated by optical coupling, and can be connected to emergency stop, knife, limit, return to zero, etc., to protect the safety of the computer.
4. 4 output ports can be connected to relay module with optocoupler to control water cooling and spraying.
5. At the same time, provide 5-axis interface line socket (HX2.54), convenient to connect the stepper motor driver.

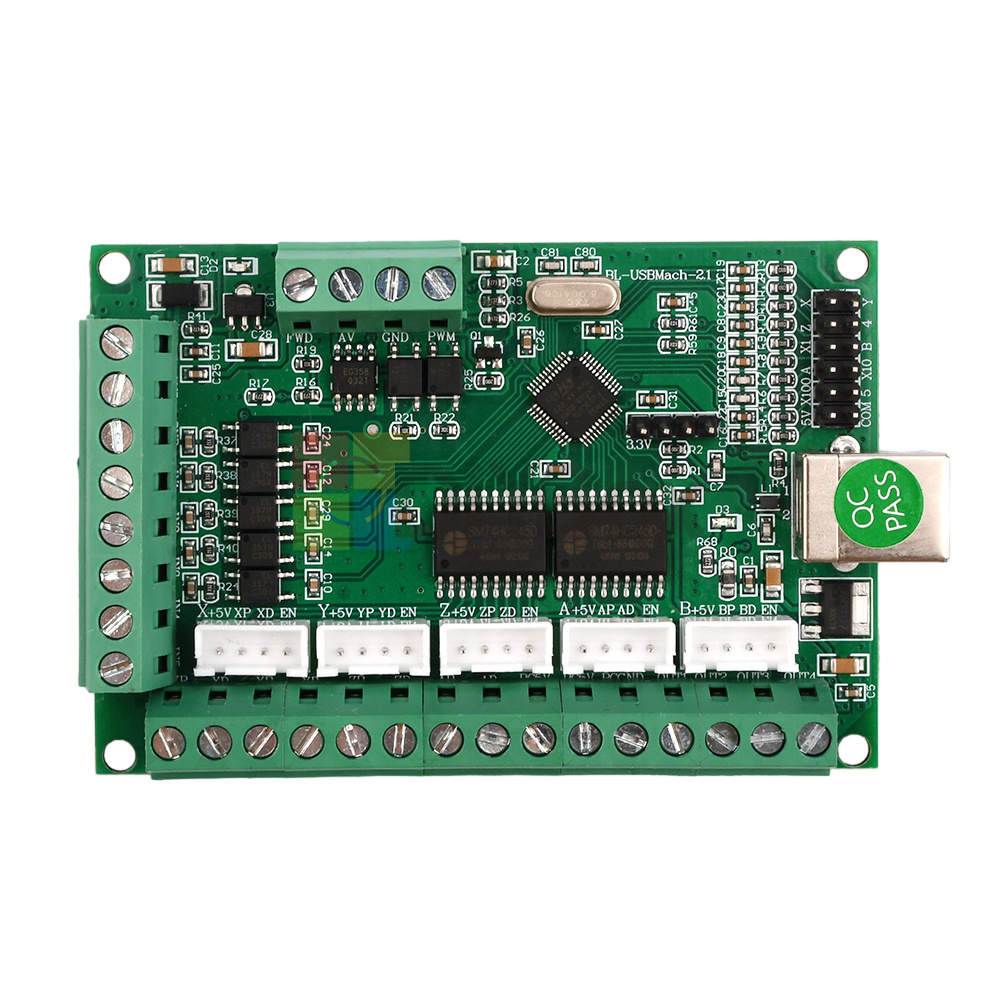

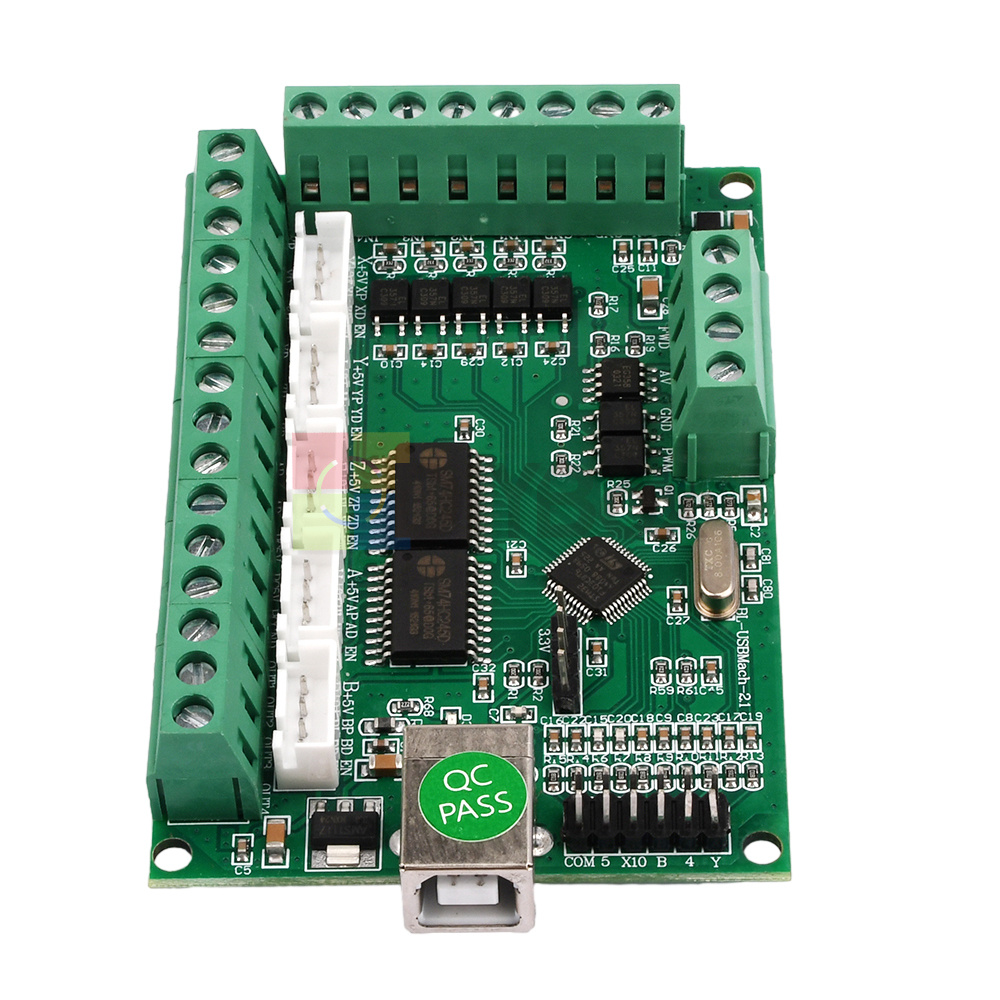

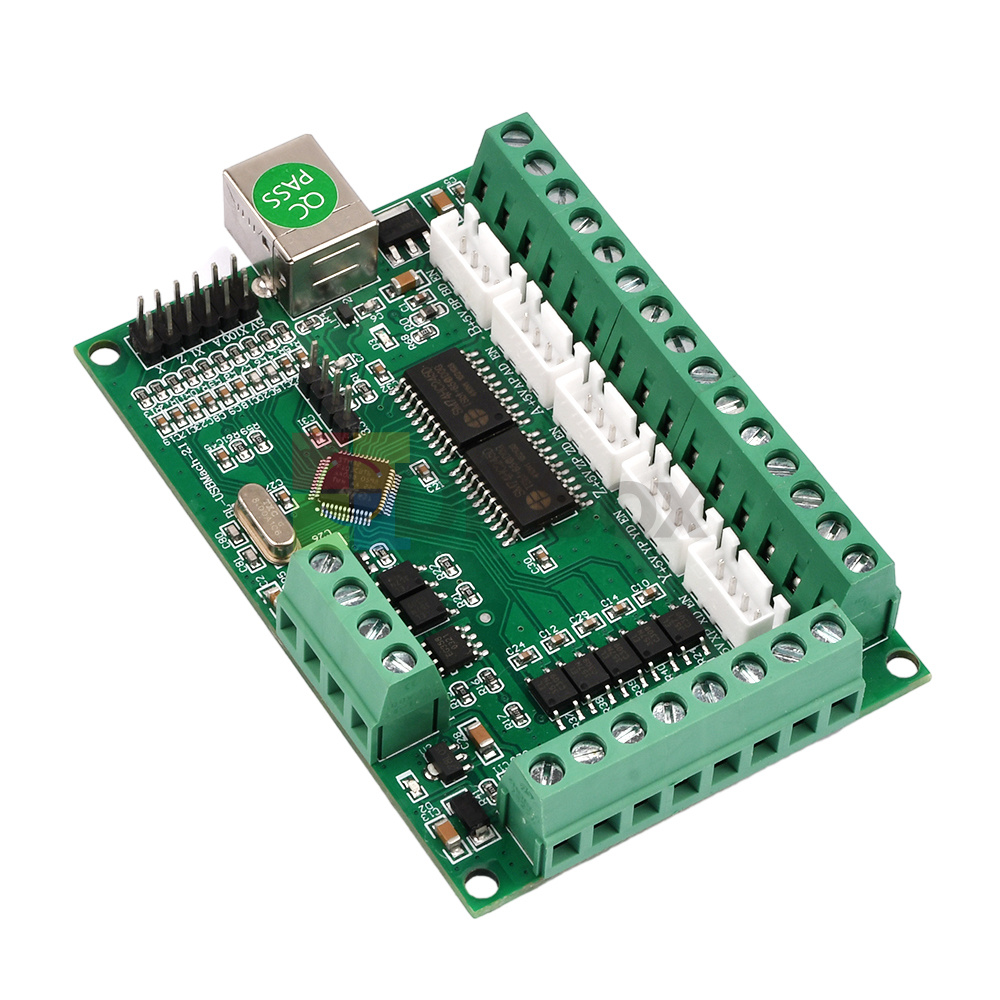

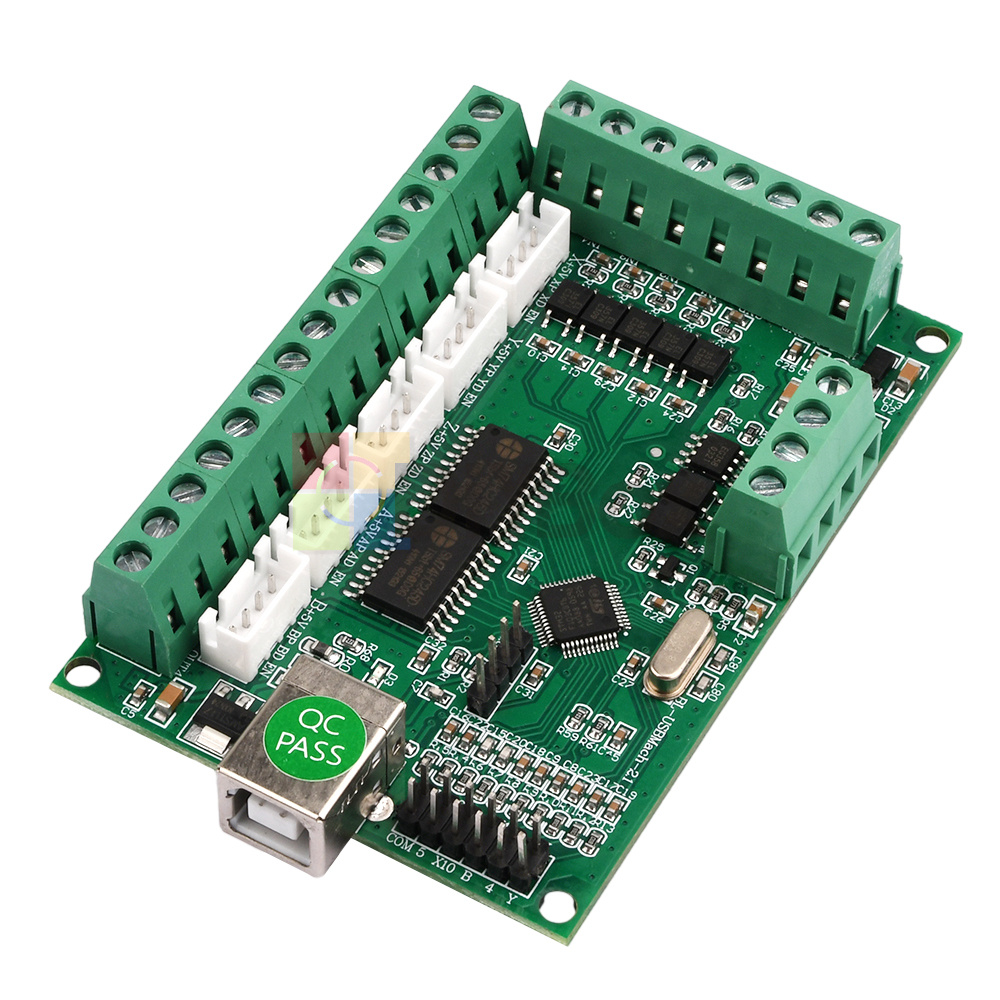

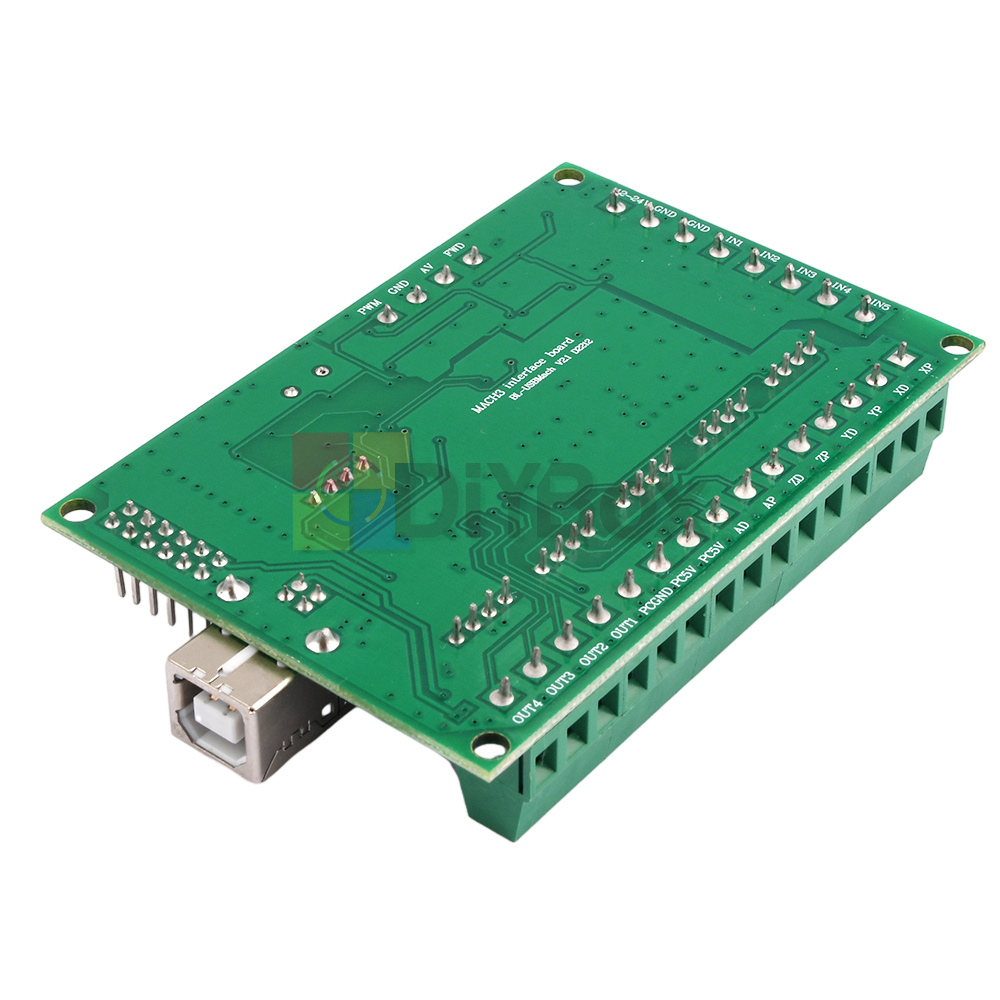

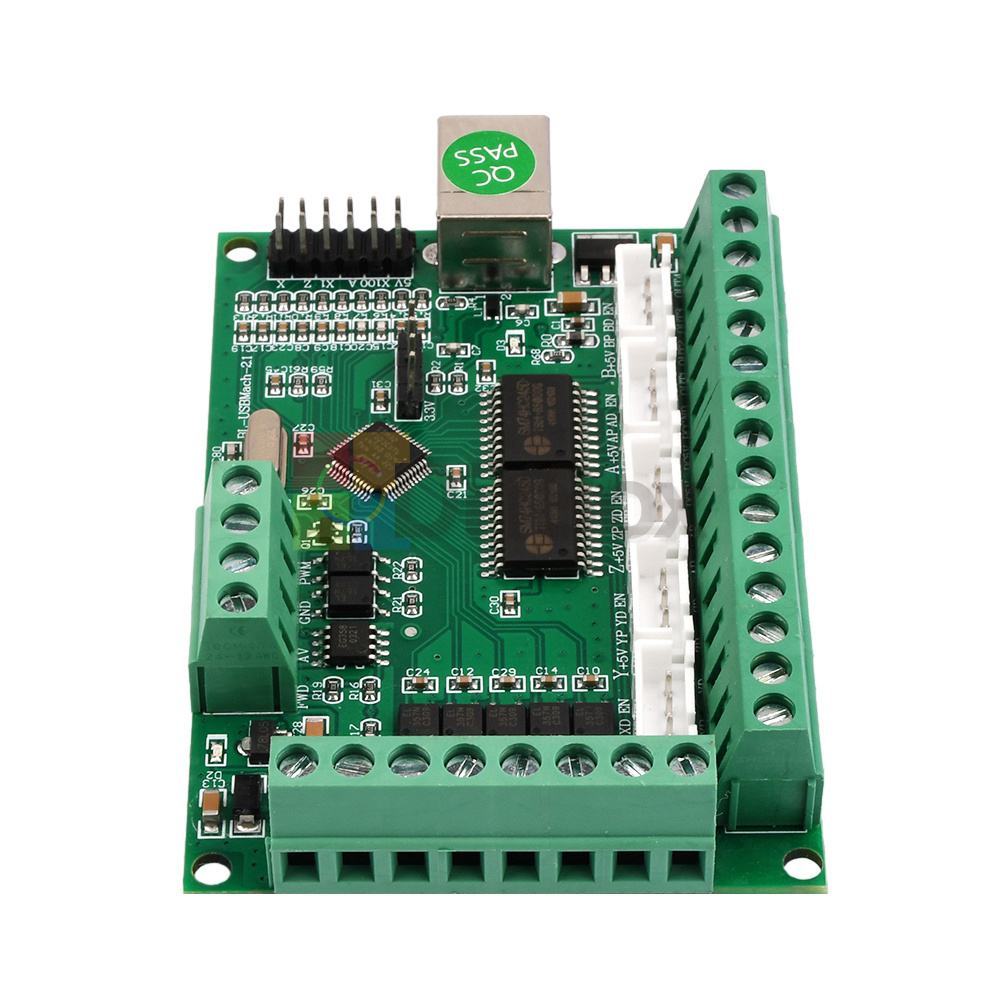

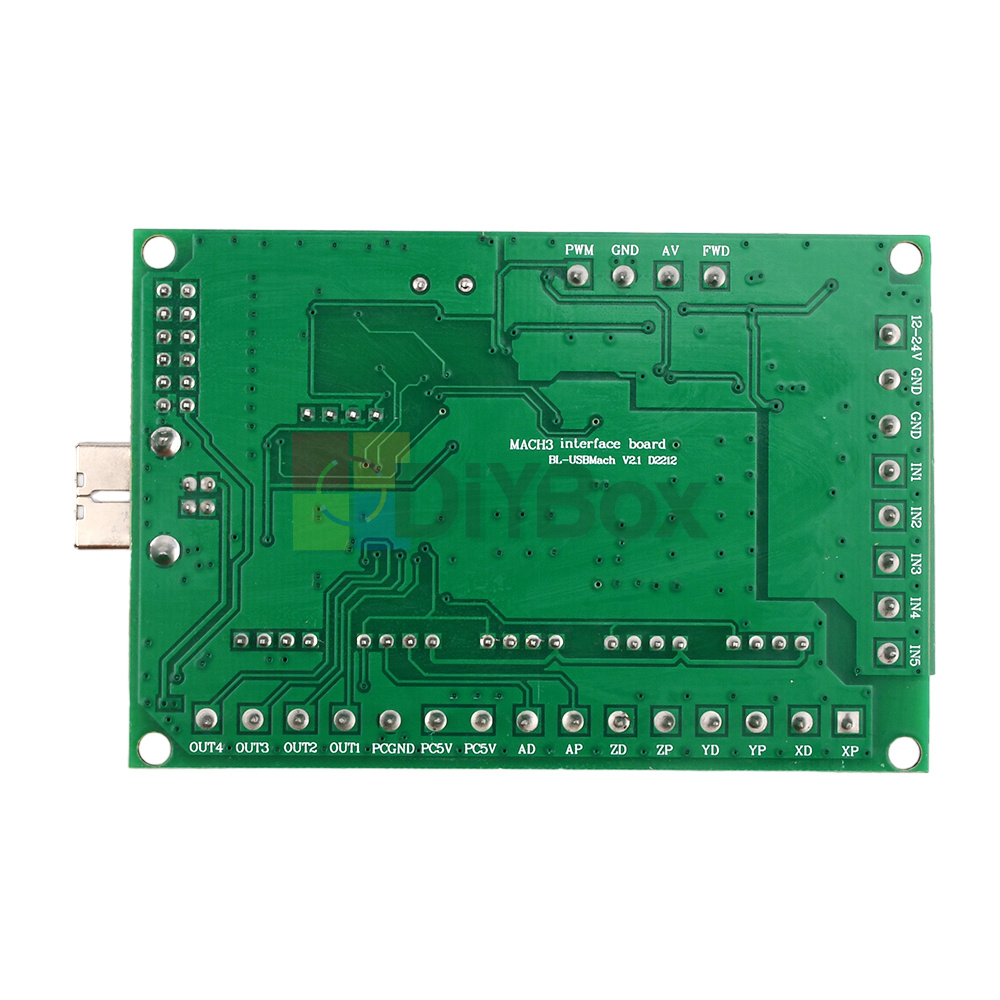

Product introduction:
1、Fully support MACH3 software.
2, support for windows XP, WIN7, WIN8, WIN10, support for tablet PCs, support for 64-bit systems.
3, peripheral wide voltage input, 12-24V, and anti-reverse function.
4、All input signals are isolated by optocoupler, which can be connected to emergency stop, knife, limit, return to zero, etc., to protect the safety of the computer.
5、Provide 0-10V analog voltage output isolated by optocoupler, which can control the inverter with 0-10V analog voltage input to control the spindle speed. 6、Provide opto-coupler isolated PWM output (5V level) to control other PWM controlled spindle speed controller.
7、Provide 4 output ports (5V level), which can be connected with relay module with optocoupler to control water cooling and spraying.
8, can be connected to the common positive or common negative input, level of 5V, with optocoupler input stepper motor driver.
9, at the same time to provide 5-axis interface line socket (HX2.54), convenient to connect the stepper motor driver.
10, the main control chip for the APM domestic chip
The inverter is generally to be set:
1、Set the frequency converter as external terminal start.
2, set the frequency control mode of the inverter to analog (0-10V) input control.
Quick test inverter is not already set up:
1, the inverter is not connected to the interface board first.
2, the inverter FWD and COM short, the inverter 10V and VI short. Connect the spindle. (Of course, according to the figure with a potentiometer to the inverter)
(of course, according to the figure with a potentiometer to the inverter 10V, VI and GND is better).
3, power on, if the inverter can run at maximum speed, the spindle rotation is normal, basically means that the settings are correct. (If you use a potentiometer, the speed is adjustable).
4, so you can according to the above method and interface board wiring!
Note: General inverter has a variety of control methods, so it is generally necessary to set it to run. Light wiring without setting is basically impossible, so check the inverter manual and set up is a necessary step!

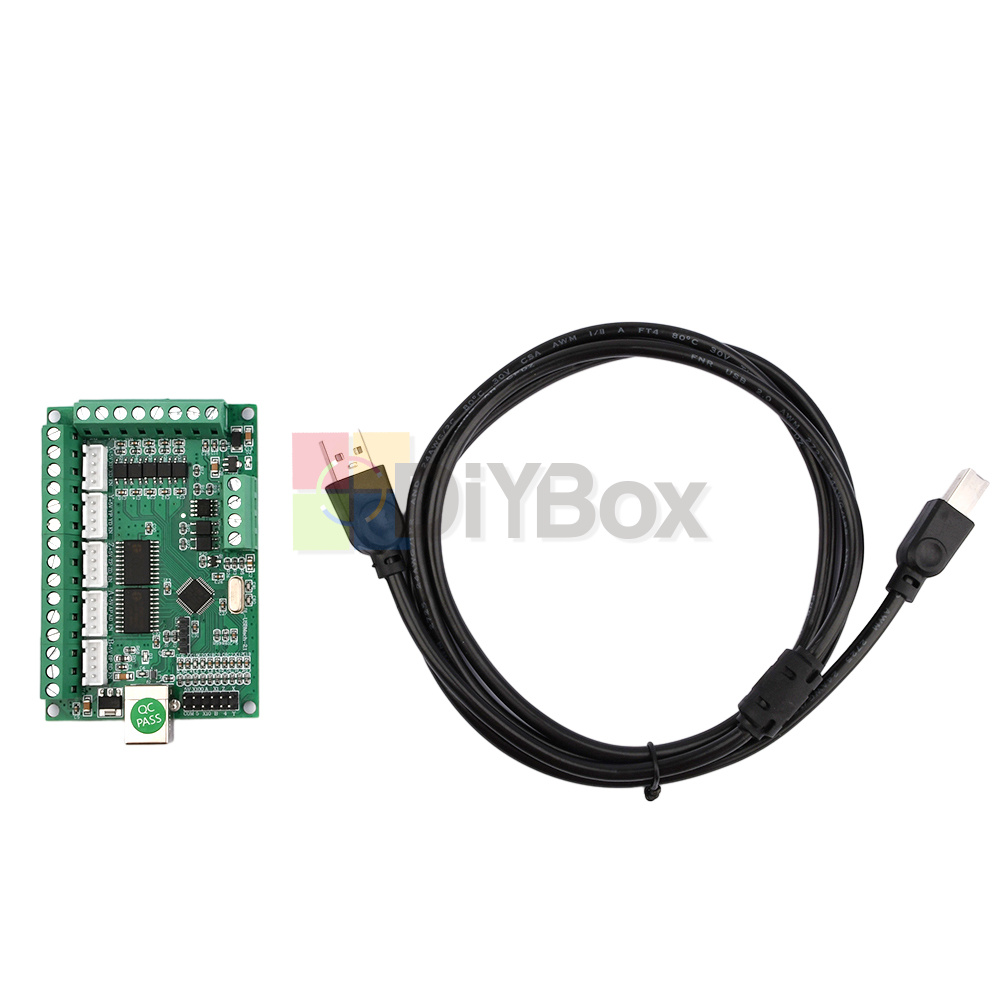

Package Includes:
Engraving machine motherboard X1
USB data cable X1
