Packaging: Tray
Series: 302
Part Status: Active

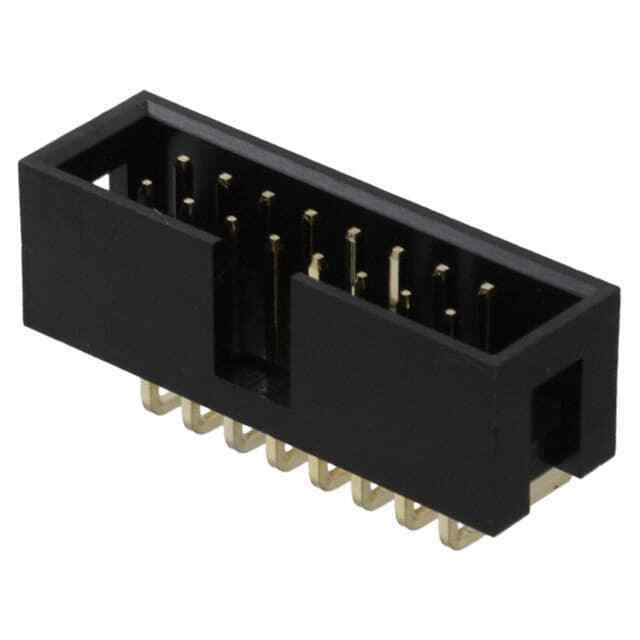

Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100 (2.54mm)
Number of Positions: 16
Number of Rows: 2
Row Spacing - Mating: 0.100 (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: -
Contact Length - Post: 0.122 (3.10mm)
Overall Contact Length: -
Insulation Height: 0.358 (9.10mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: Gold
Contact Material: Brass
Insulation Material: Polyester Glass Filled
Features: Keying Slot
Operating Temperature: -40°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 250V


302-R161
