Features:

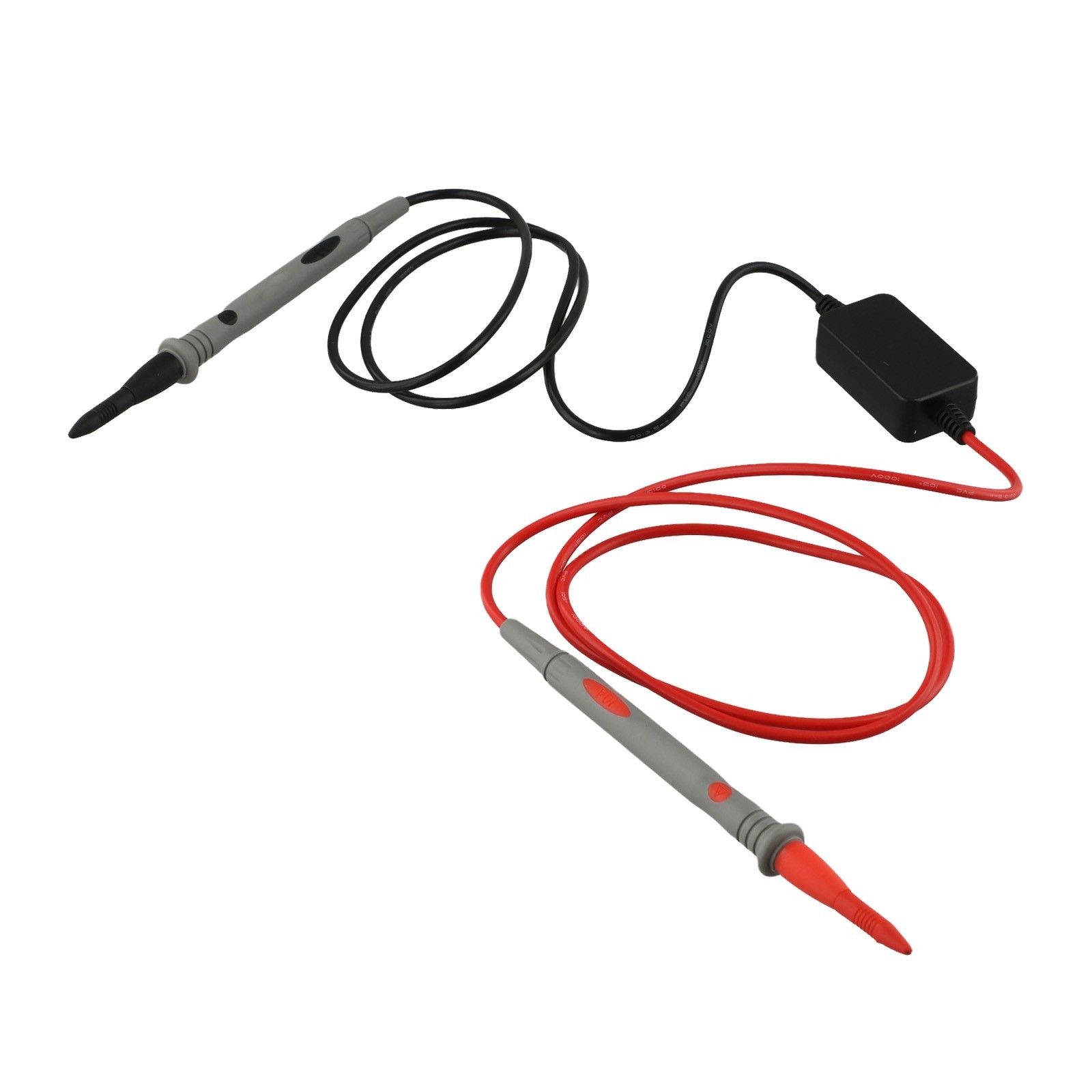

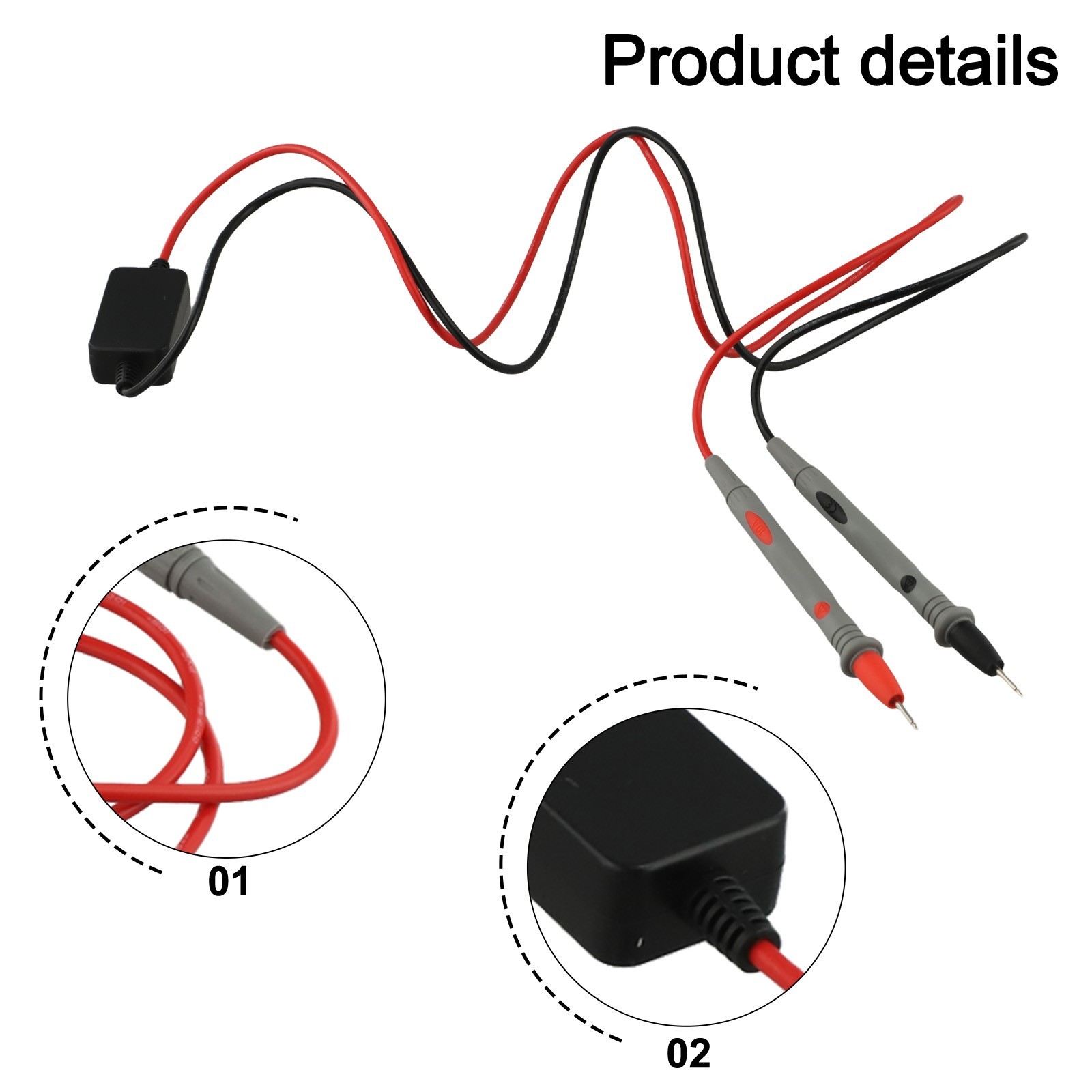

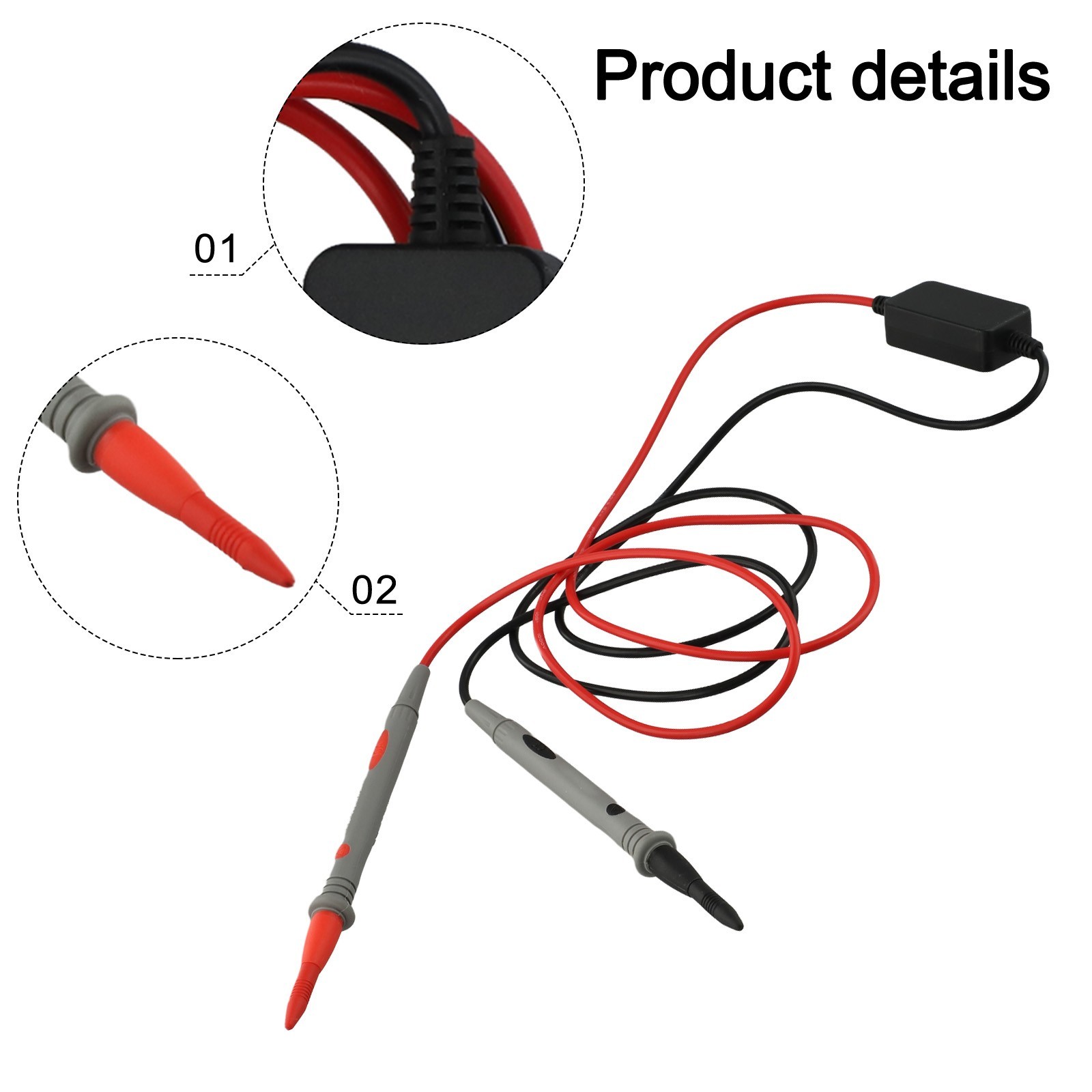

High-voltage capacitor discharge pen, adopts constant current discharge design, can be used for both AC and DC without distinguishing between positive and negative poles, and has a gold-plated special tip probe, which can flexibly meet the needs of various occasions. During normal discharge, the green status indicator light will be on. If the indicator light goes off, it indicates that the energy storage capacitor has been discharged below the safe energy. Power supply maintenance, high-voltage energy storage capacitor safe discharge practical tool

1200V withstand voltage high-power IGBT tube, regardless of positive and negative constant current fast discharge, no spark;

Discharge current 80-100mA, 4700uF large capacitor is discharged once without pressure (320V 1000uF is discharged in about 6S, 320V 2000uF is discharged in about 10S), and so on;

Warm Tips: This version supports stable operation within DC 1000V/4700uF. If the circuit is complex and there are multiple energy storage capacitors in parallel, it is necessary to superimpose the capacitance value estimation. It is not recommended to use it for continuous discharge

Specifications：

Part name: Capacitor discharge pen

Size: as shown

Material: Plastic + Metal

Color: as shown

Voltage measurement range: 0 V ~ 750 V

Package Contents:

1 x Capacitor Discharge Pen

Only the above package contents are included, other products are not included.

Note:

Light reflection and different monitors may cause the color of the item in the picture to be slightly different from the actual item. The allowed measurement error is +/- 1-3 cm.
