DESCRIPTION

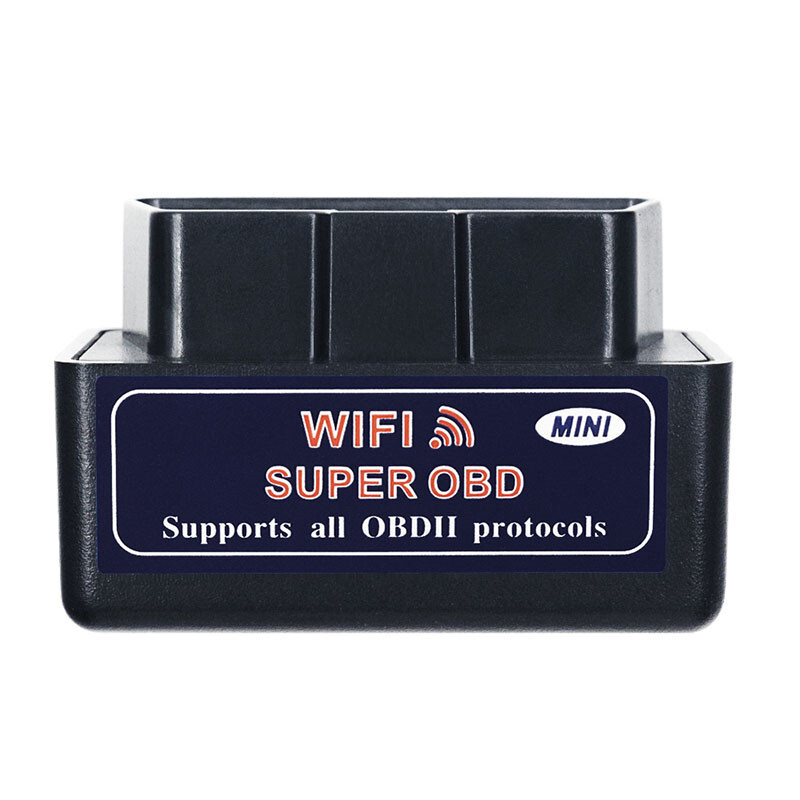

Super Mini OBD2 OBDII WIFI Adapter Auto Scanner Torque Tools Automotive Diagnostic Testing V1.5
Add our listing to Watchlist Or Add to Cart , you will get more discount
Features:
WIFI-OBD supports 9 protocols:
1）SAE J1850 PWM（41.6Kbaud）
2）SAE J1850 VPW（10.4Kbaud）
3) ISO9141-2 (5-baud rate initialization, 10.4Kbaud)
4) ISO14230-4 KWP (5 baud rate initialization, 10.4 baud)
5) ISO14230-4 KWP (fast initialization, 10.4 baud)
6) ISO15765-4 (11 digit number, 500 kilobaud)
7) ISO15765-4 (29bit number, 500 baud)
8) ISO15765-4 (11 digit number, 250 baud)
9) ISO15765-4 (ID of 250 baud, 29bit)
Technical Specifications
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Support OBDII protocols:
1）SAE J1850 PWM（41.6Kbaud）
2）SAE J1850 VPW（10.4Kbaud）
3) ISO9141-2 (5-baud rate initialization, 10.4Kbaud)
4) ISO14230-4 KWP (5 baud rate initialization, 10.4 baud)
5) ISO14230-4 KWP (fast initialization, 10.4 baud)
6) ISO15765-4 (11 digit number, 500 kilobaud)
7) ISO15765-4 (29bit number, 500 baud)
8) ISO15765-4 (11 digit number, 250 baud)
9) ISO15765-4 (ID of 250 baud, 29bit)
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
Package list:
WIFI-OBD supports 9 protocols:
1）SAE J1850 PWM（41.6Kbaud）
2）SAE J1850 VPW（10.4Kbaud）
3) ISO9141-2 (5-baud rate initialization, 10.4Kbaud)
4) ISO14230-4 KWP (5 baud rate initialization, 10.4 baud)
5) ISO14230-4 KWP (fast initialization, 10.4 baud)
6) ISO15765-4 (11 digit number, 500 kilobaud)
7) ISO15765-4 (29bit number, 500 baud)
8) ISO15765-4 (11 digit number, 250 baud)
9) ISO15765-4 (ID of 250 baud, 29bit)
Technical Specifications
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Support OBDII protocols:
1）SAE J1850 PWM（41.6Kbaud）
2）SAE J1850 VPW（10.4Kbaud）
3) ISO9141-2 (5-baud rate initialization, 10.4Kbaud)
4) ISO14230-4 KWP (5 baud rate initialization, 10.4 baud)
5) ISO14230-4 KWP (fast initialization, 10.4 baud)
6) ISO15765-4 (11 digit number, 500 kilobaud)
7) ISO15765-4 (29bit number, 500 baud)
8) ISO15765-4 (11 digit number, 250 baud)
9) ISO15765-4 (ID of 250 baud, 29bit)
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
Package list:

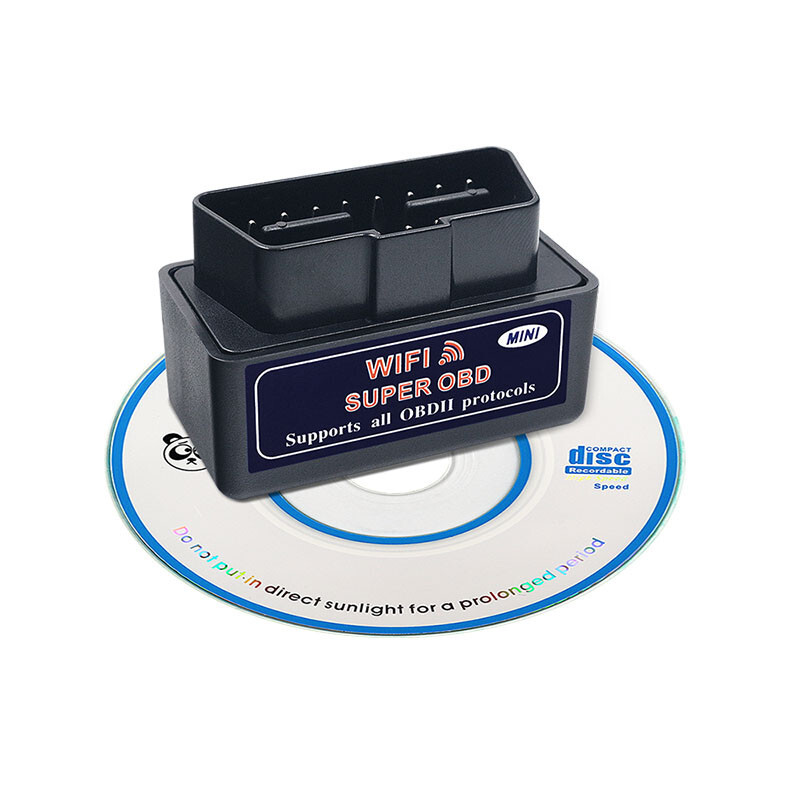

1 x WIFI ELM327
1 x CD software
1 x CD software
