Basic parameters
Model : B5319R
Type : Rearview mirror recorder (streaming media)
System : Allwinner melis system
Software solution : F133
Radio transmission frequency Preset frequency : 88.60, 89.50, 91.50, 93.00, 93.90, 95.10 Optional frequency range 87.5~108.0MHz
Radio transmission IC : AB5301B
Amplifier IC : CS8571E
Output power : Built-in 1W speaker
Working voltage : USB 5V
Working temperature : -10~60℃
Bluetooth version : 5.0 version (default name: SWL-BT)
CPU : F133
Running memory : 1Gbit DRAM
Display resolution : 1280x320
Screen size : 9.36 inches 2.5D rearview mirror touch screen
Installation size : 275x130MM
Host depth : 35MM
Function parameters
Mobile phone interconnection Wireless mobile phone mirroring screen projection; Wireless Android AUTO; Wireless Apple CarPlay
Reversing image : Support( Not included Rear camera )
Driving recorder : Support (built-in)
Built-in speaker : Support
TF card: Support driving record storage ( Not incluced TF card)
Bluetooth audio switching : Support

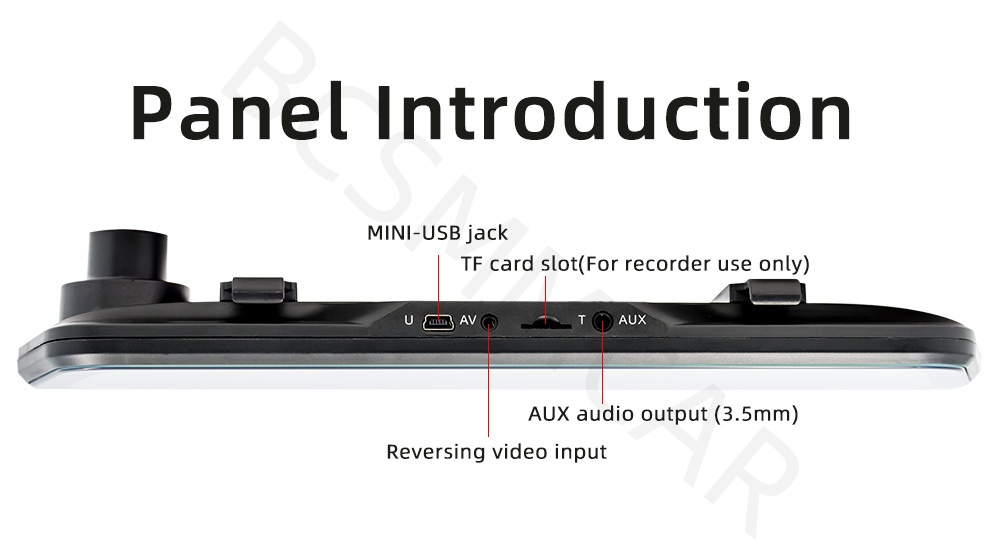

Four-way audio switching: AUX/BT/FM/SPK
Audio output : Support
Audio format : MP3/AAC/APE/OGG/M4A/RA/WAV
Video format : H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT
Image format : JPEG/PNG/BMP/GIF/TIFF
Language parameters:English, Chinese, Traditional Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean, Greek, Dutch
Recorder resolution : 720P
Accessories
1. Host
2. Instruction manual
3. Cigarette lighter+mini USB power cord
4. Reverse video cable
5. AUX audio adapter cable

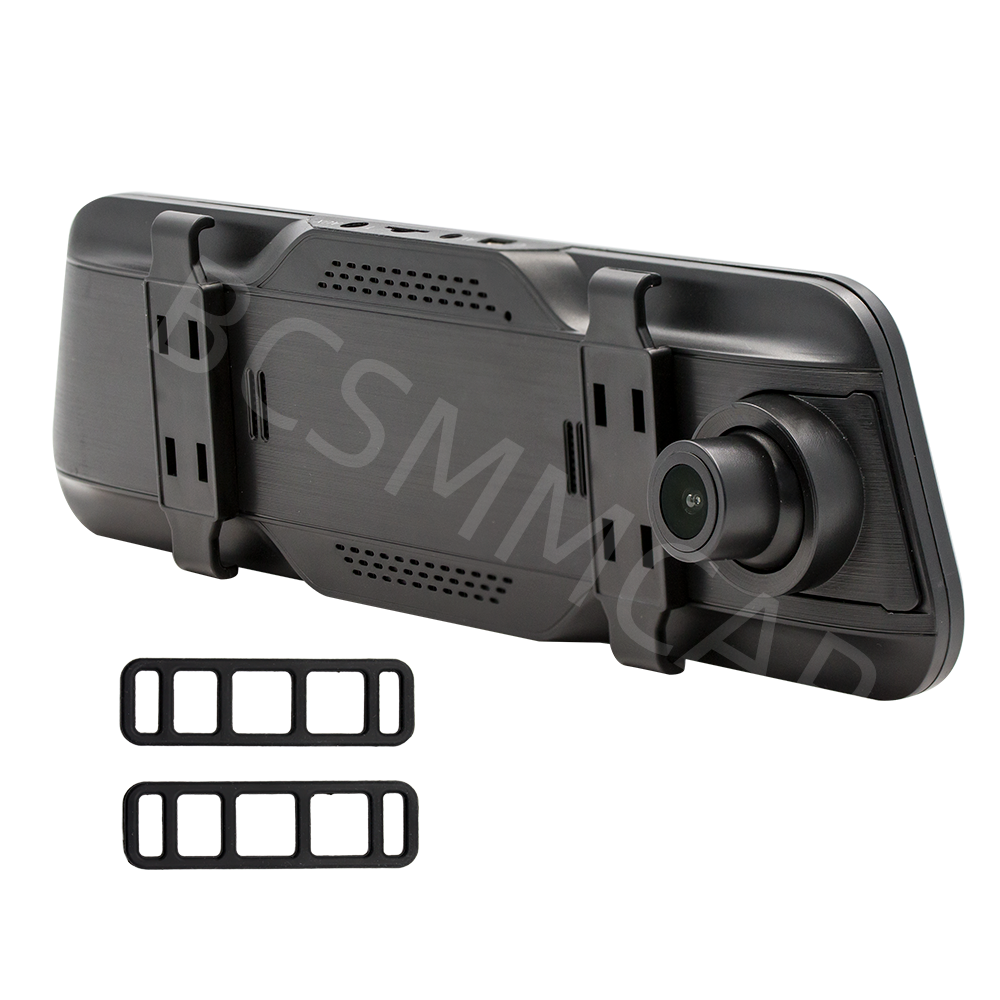

6. Rubber bandage x2 (accessories, instructions, packaging may be updated from time to time, subject to actual receipt)
Basic functions
1. Radio frequency transmission function
2. Bluetooth function
3. Wireless mobile phone mirror projection; Wireless Android AUTO; Wireless Apple CarPlay
4. Reverse rearview function（not included rear camera )
5. Driving recorder 6. Audio output optional (AUX/BT/FM/SPK)
