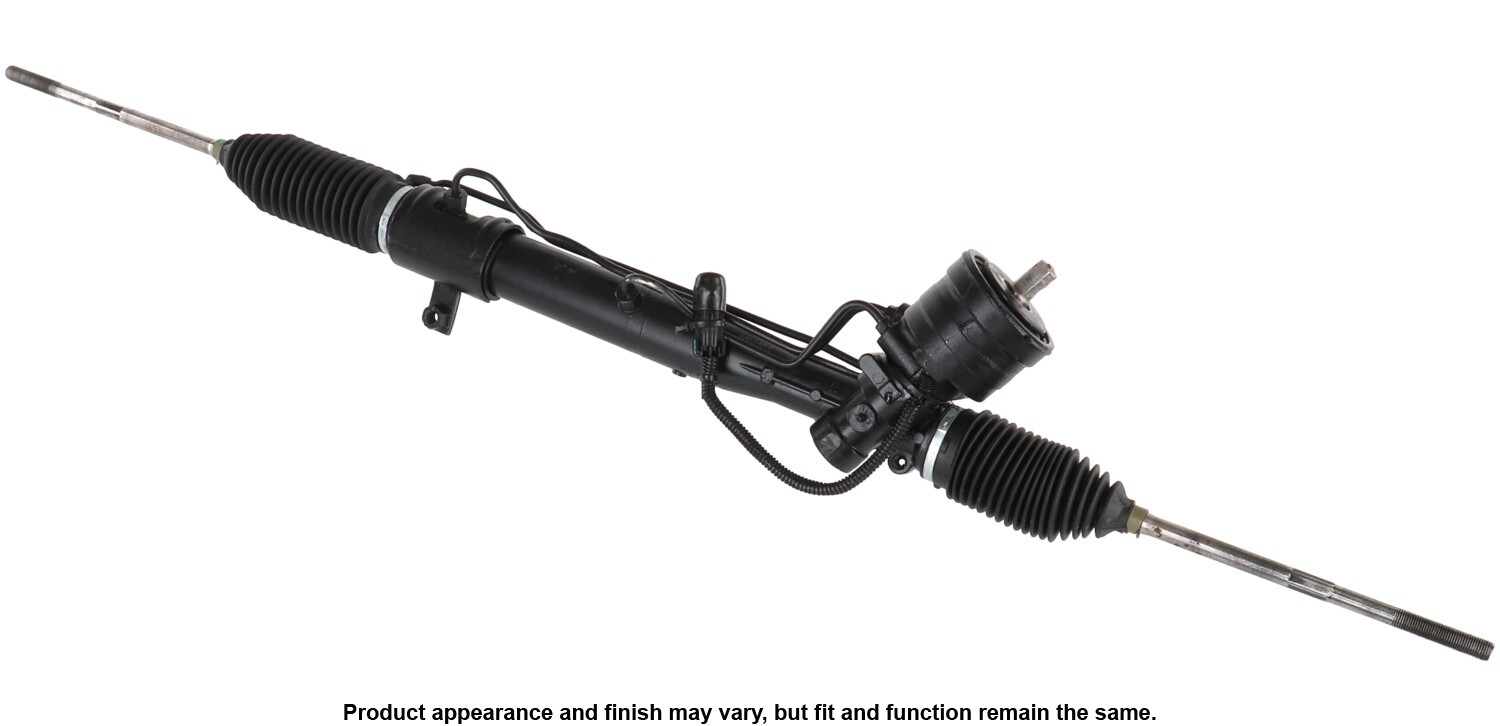

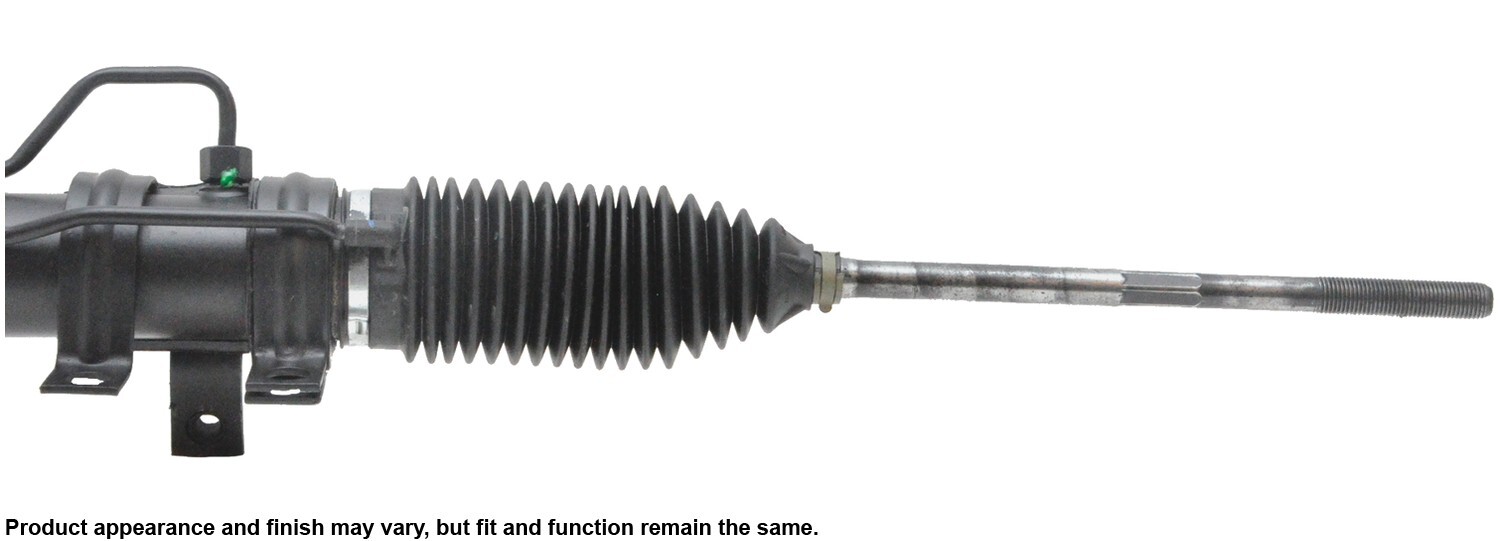

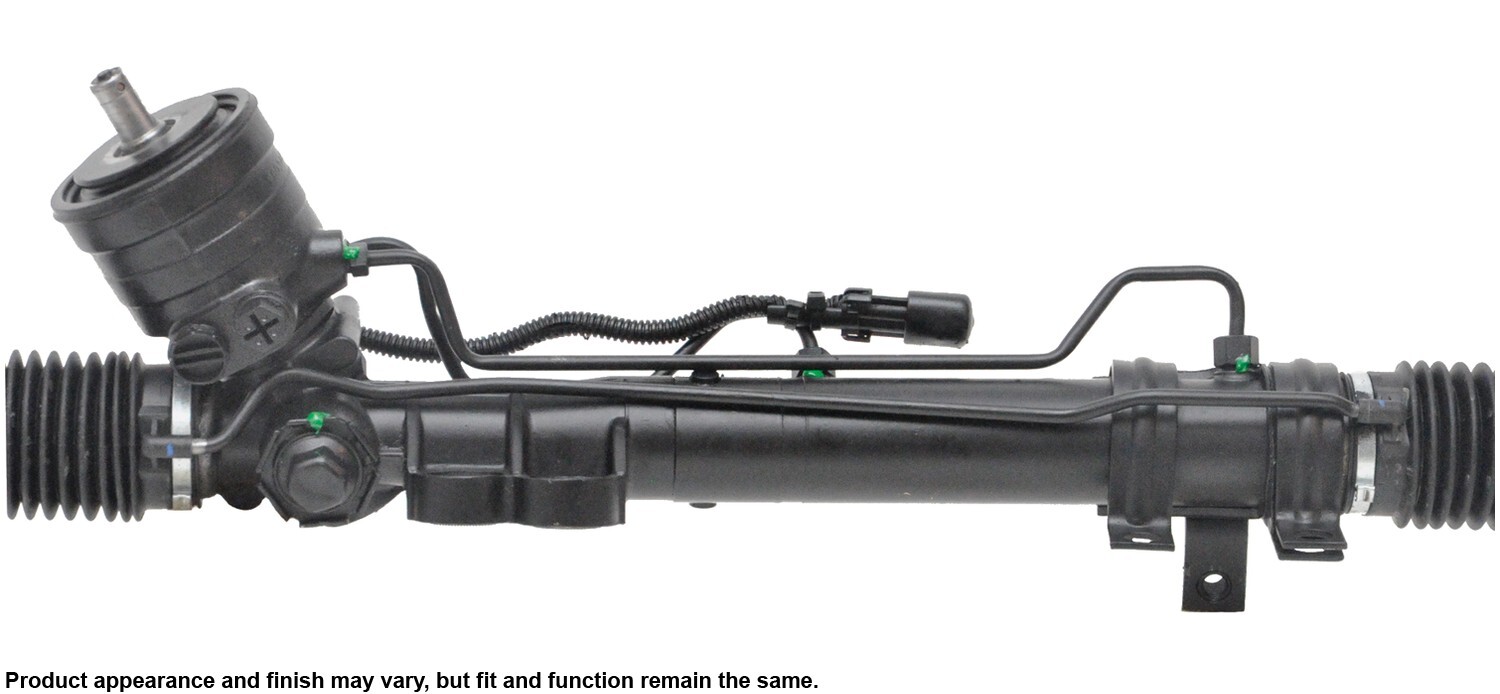

Cardone Rack and Pinion Assembly for Cadillac 22-159
Fitment Chart:
| Years | Make | Model | Notes |
|---|
| 1997-1999 | Cadillac | DeVille | without Limo Package (V4U); Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power |
| 1997-1999 | Cadillac | DeVille | without Hearse Conversion Package (B9Q); Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; Option Codes are on the Service Parts Identification Sticker; with Hydraulic Power |
| 1996 | Cadillac | DeVille | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power |
| 1996-2002 | Cadillac | Eldorado | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power |
| 1996-1997 | Cadillac | Seville | Includes Inner Tie Rods; In-Line Filter available; For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system; with Hydraulic Power |
Specifications:Part Category: Rack and Pinion Assembly
Brand: Cardone
Manufacturer Part Number: 22-159
Label: Rack and Pinion Assembly
Product Type: Factory Replacement
Type: Rack and Pinion Assembly
Number of Pieces: 1
Casting Material: Steel; aluminum
Distance Between Mounting Holes (in): 1.69
Distance Between Mounting Holes (mm): 42.85
E-Waste: Yes
Hose Port Type: O-ring
Input Shaft Diameter (in): 0.66
Input Shaft Diameter (mm): 16.79
Input Shaft Length (in): 1.13
Input Shaft Length (mm): 28.58
Number of Mounting Holes: 5
Package Contents: Rack and pinion, sealing kit, instruction sheet
Pressure Port Thread Size: M18 x 1.5
Product Condition: Remanufactured
Rack Length (in): 49.75
Rack Length (mm): 1263.65
Return Port Thread Size: M16 x 1.5
Steering Rack Color: Black
Thread Length (in): 2.45
Thread Length (mm): 62.23
Tie Rod Ends Included: Yes
Total Turns Lock to Lock: 2.69
Interchange Part Number: 26042745 26042766 26077019
