Experience Unmatched Reliability with trueCABLE’s 12 Port Toolless Patch Panel
Unlike generic, mass-produced patch panels, trueCABLE’s 12 Port Toolless Patch Panel’s are:
- Individually Certified: Exceeds industry standards with rigorous testing, ensuring peak performance and consistent quality. Backed by our Forever Warranty and RoHS compliance.
- Perfect for Diverse Applications: Cat6A Component Rated 3D stagger design for ultra speed unshielded Ethernet (backwards compatible with Cat6 and Cat5e). Ideal for 5G and 10G networking speeds.
- Built to Last: 12 easy snap-in keystone ports. Accepts all standard keystone jacks, keystone couplers, and blanks.
- Simple & Efficient: Easy two screw installation. Simply screw in a bracket and snap in the patch panel face.
Key Features:
- ANSI/TIA 568-2.D Component Rated for 10G networks
- Unique 3-D staggered design helps mitigate alien crosstalk (ANEXT) at the patch panel
- Designed for Cat5e through Cat6A unshielded keystone jacks and U/UTP (unshielded) Ethernet cable
- Meets EIA-310-E, FCC part 68-F & IEC 60603-7. RoHS Compliant & UL Listed
Invest in quality, and choose trueCABLE’s 12 Port Toolless Patch Panel for a reliable and future-proof network.
[Reliable Performance] Supports 10G ethernet with unique 3-D staggered port design to reduce alien crosstalk (ANEXT). Cat6A Component Rated performance when combined with trueCABLE Cat6A Component Rated unshielded keystone jacks.

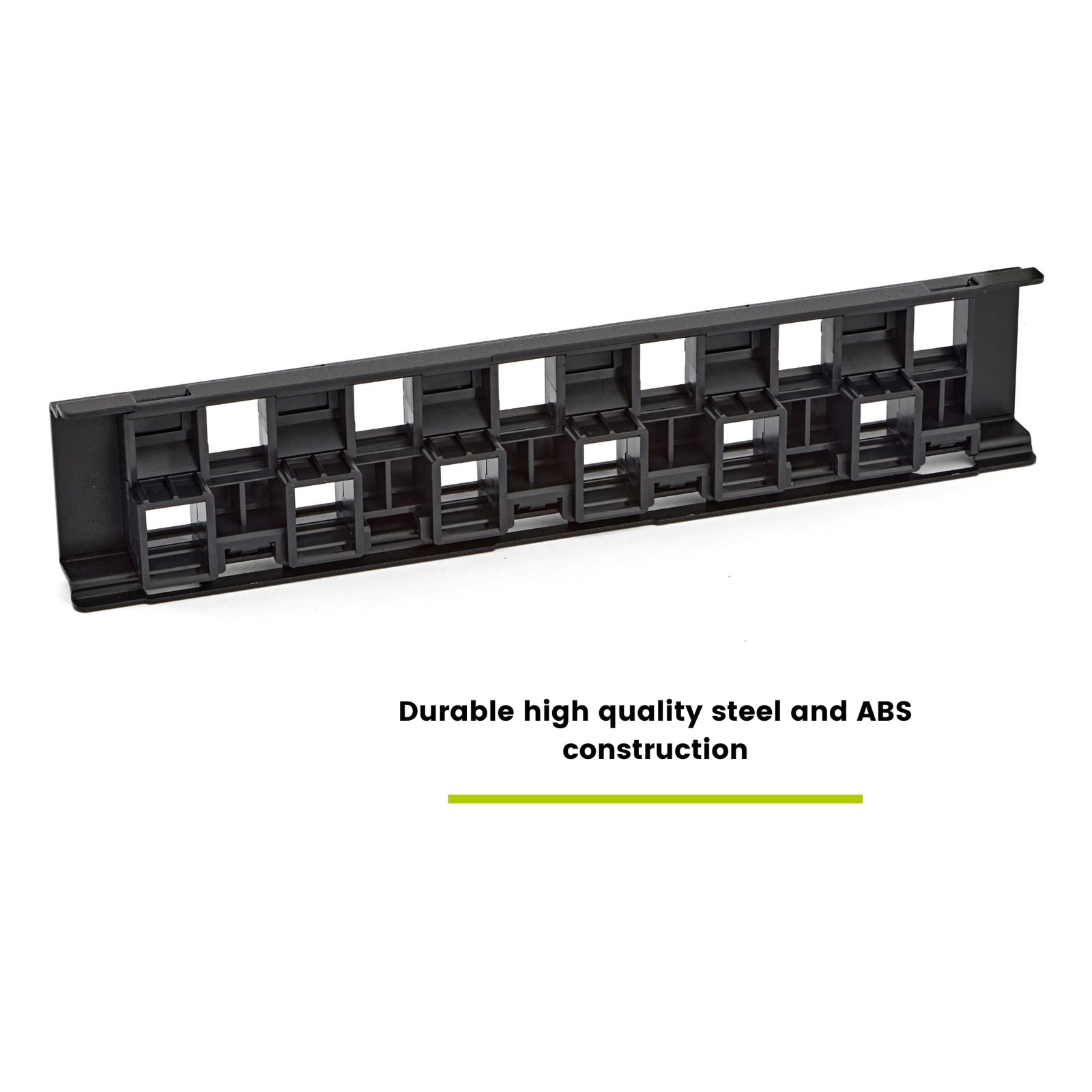

[Quality Guaranteed] Individually numbered ports with spacing provided for permanent labeling or temporary write-on port identification. 89D bracket and frame are ABS UL94V-0 rated. The panel is SECC 1.6t cold rolled black powder coat steel.
[Versatile] Compatible with Cat5e/Cat6. Accepts tool-less & 110 punch down style jacks. Accepts BNC, RCA, HDMI, USB, fiber optic & snap-in Coaxial couplers. Note: certain non-trueCABLE brands may not be compatible due to 3D stagger recessed design.

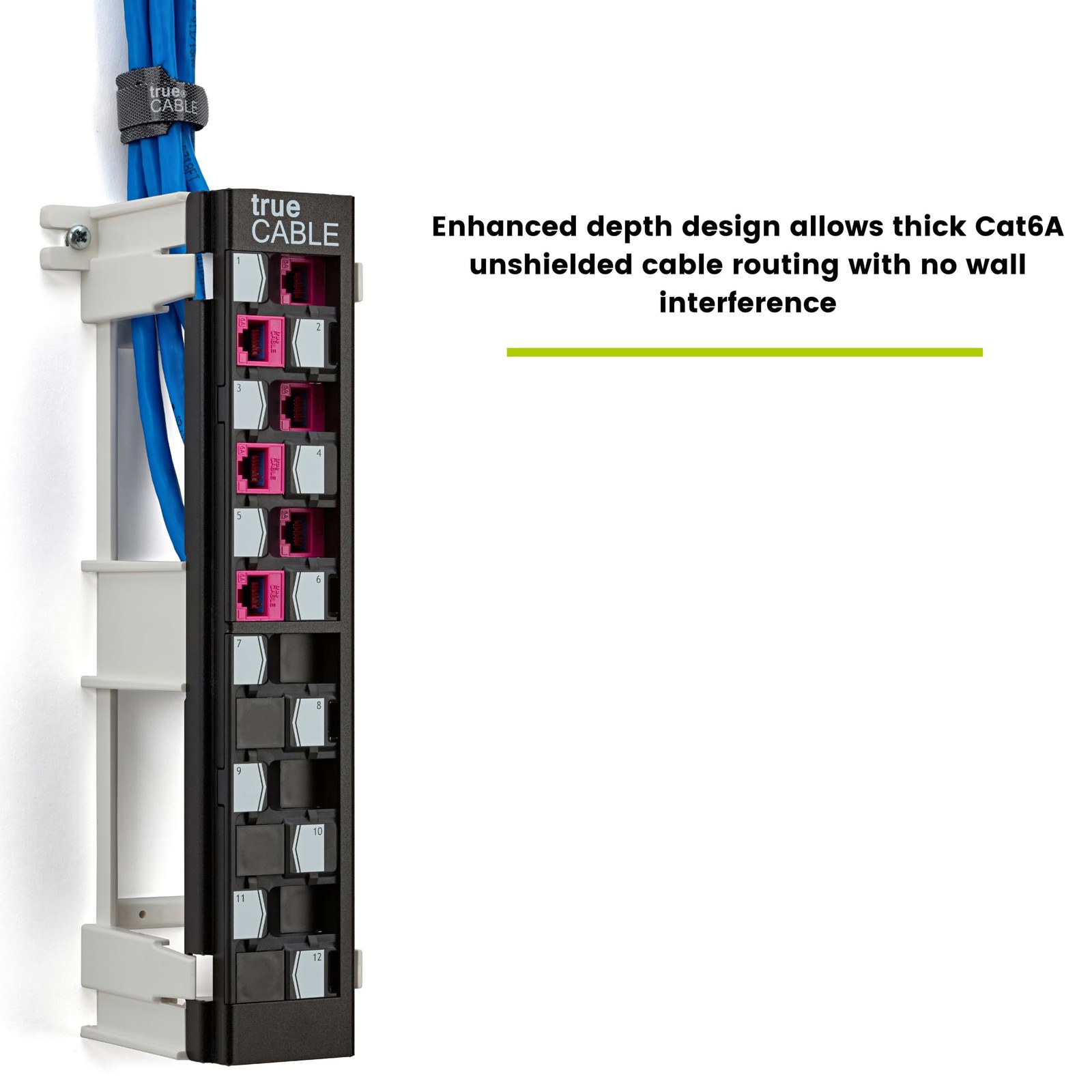

[Thoughtfully Designed] Engineered for Cat6A unshielded keystone jacks & U/UTP Ethernet cable. Works with industry standard snap-in HD Ethernet keystone jacks & couplers. High-density mounting: easy cable management and futureproofs your network.
[✓ Field Tested, Customer Approved] Meets ANSI/TIA 568-2.D, EIA-310-E, FCC part 68-F, IEC 60603-7 standards. RoHS compliant, UL listed, and TAA compliant. Supplied with (2 each) drywall anchors and screws. Backed by our outstanding customer support.
