 DescriptionComplete Dual Axis Solar Tracking Tracker &DC Linear Actuator &LCD Controller Here for sale is Complete Dual Axis Solar Tracker Kit, items Include the Linear Actuators&Mounting Brackets, and the Electronic LCD Controller you need for a dual axis solar panel tracking system. Build your own frame and you will get a professional grade dual axis solar tracker! About the Linear Actuators:

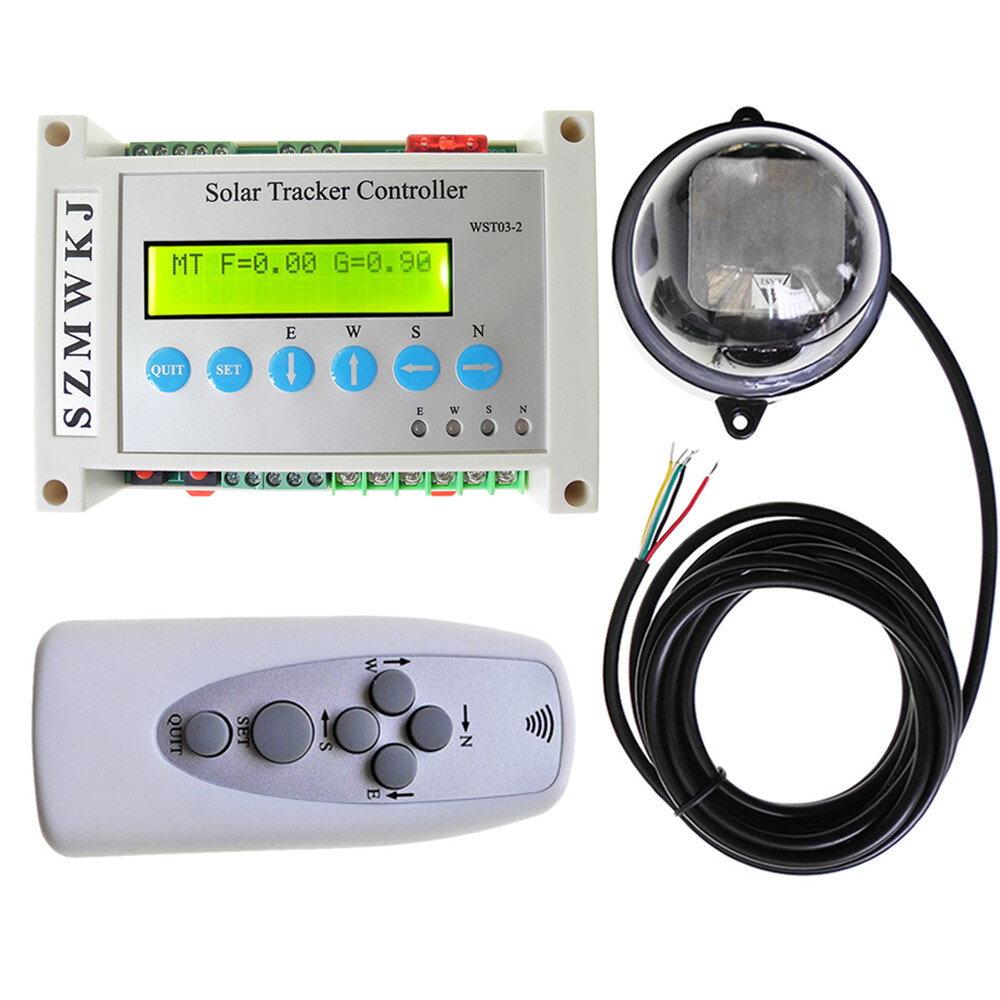

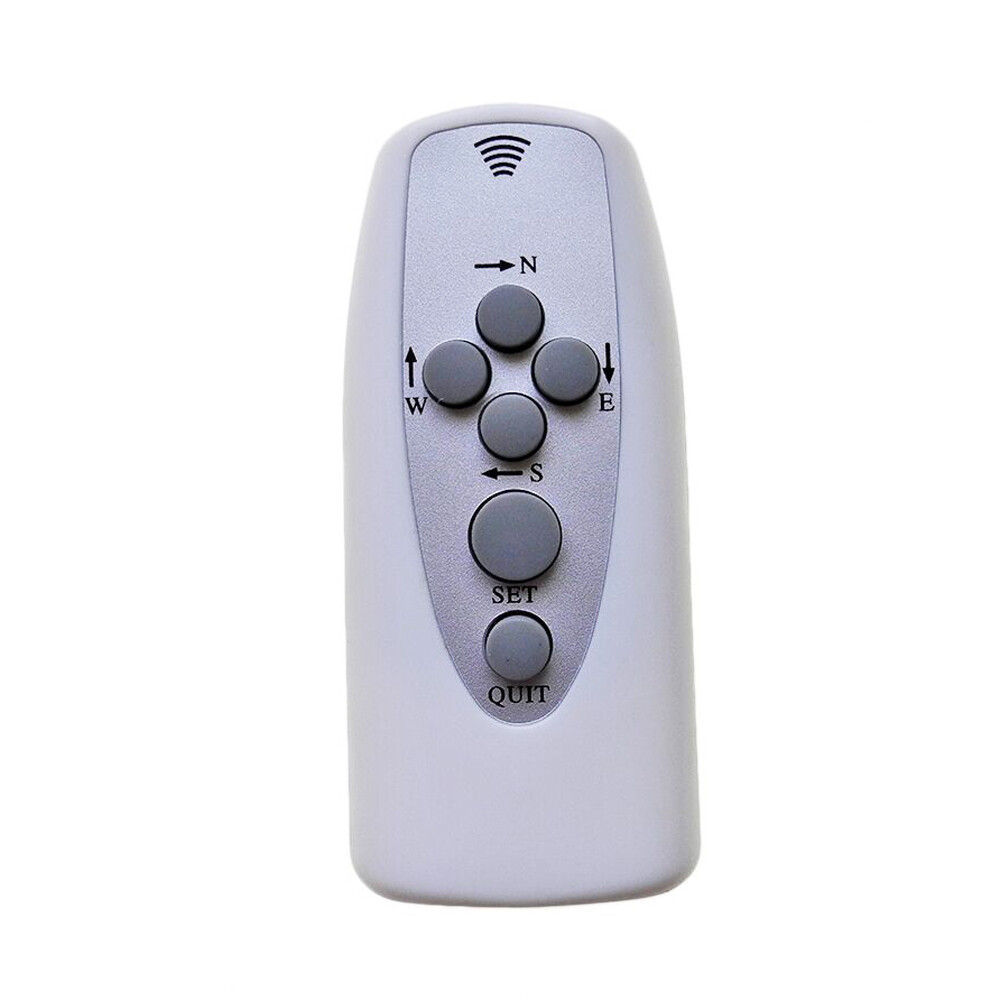

  For more details of the linear actuators, Pls Click Here About the Solar Tracker Controller: This is WST03-2 dual axis solar tracker controller, it includes the Controller Box, Light Sensor W/ 3 Meters Wire and IR (infrared) Remote control. The controller can detect North/South/East/West directions and control the linear actuators to move, and thus make the solar panels to track the sun. There are 3 Modes for the controller's auto working: Sunny Day Auto Tracking Mode, Night (Cloudy Day) Mode, Strong Wind Protection Mode, the controller will automatically switch the 3 Modes according to different conditions.  Users can set the parameters and working modes by the LCD screen for actual needs. There is an IR Remote for manual control, it can be used for testing when you assemble/use the controller the first time. Extra Limit Switch and Wind Speed Sensor (Anemometer) can be matched with the controller for actual needs. We do provide the matching Wind Speed Sensor, if you need, Pls Click Here Specification:
Features: 1. High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed); 2. The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging; 3. With LCD display which can show multiple working modes and parameters; 4. Many of the parameters can be set (Tracking accuracy, threshold value of the light-sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...); 5. With strong wind protection mode (Wind speed sensor is required); 6. Can set the platform stay at any position at night (or cloudy day); 7. Can connect limit switch; 8. Can be operated by IR remote control or the buttons on the controller box; 9. Reverse battery protection, over-current protection; standby current ≤15mA. For more details of the Dual Axis Solar Tracker Controller, Pls Click Here Caution: * The Input Voltage for the whole system should be DC 12V. * Never approach a solar tracker while the Solar Tracker electronics are “on”.* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death. * Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker. Package Included: * 1PCS 150mm (6") 12V DC North/South Linear Actuator and 1PCS 300mm (12") 12V DC East/West Linear Actuator. * 4PCS Silver Mounting Brackets W/ 4PCS Bolts and 4PCS Cotter Pins for the linear actuators. * 1PCS Electronic LCD Controller Box. * 1PCS Light Sensor with 3 Meters Wire. * 1PCS IR Remote Control (No Battery Included). * 1PCS English User's Manual. Want more information? Additional information and detailed instructions can be found in the User's Manual Payment
