Product Description

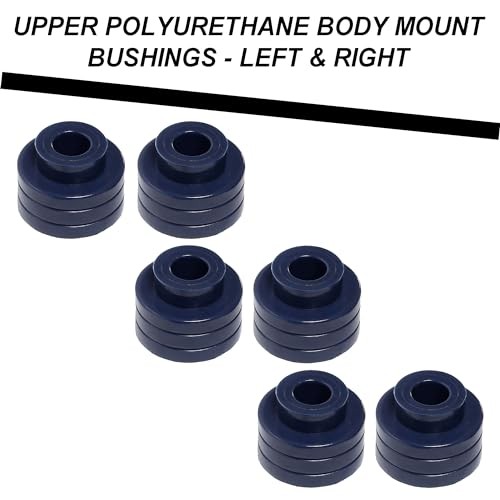

Kit Contents: Includes 12 pieces in total, comprising 6 upper body mount polyurethane bushings and 6 lower body mount polyurethane bushings.
Vehicle Compatibility: Compatible with 1994-2001 Ram 1500 2WD/4WD, 1994-2002 Ram 2500 2WD/4WD, and 1994-2002 Ram 3500 For Standard Cab 2WD/4WD models.
Polyurethane Material: High-quality polyurethane bushings, known for superior performance compared to OE rubber bushings.
ASSEMBLY NOTES: Support the vehicle body properly before removing the mounts, start working from only one side of the vehicle at a time. Remove mounting bolts and raise body only high enough to replace mounts, never too high.

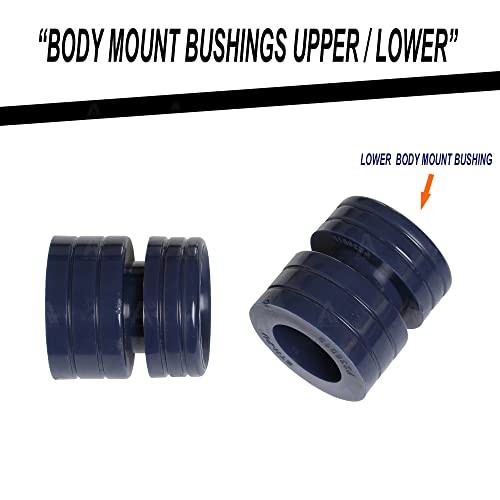

The bushings consist of upper and lower halves and the assembly process is similar for each. T are six points of the frame, left and right side. See the graphic picture to understand the positioning of each bushing.
Place the upper half on top of the frame lip and lower half below it. Clean the original bolts, install but don't tighten until all mounts have been replaced.
Now same way on the other side of the frame. Then align subframe to body and tighten bolts to factory specifications
