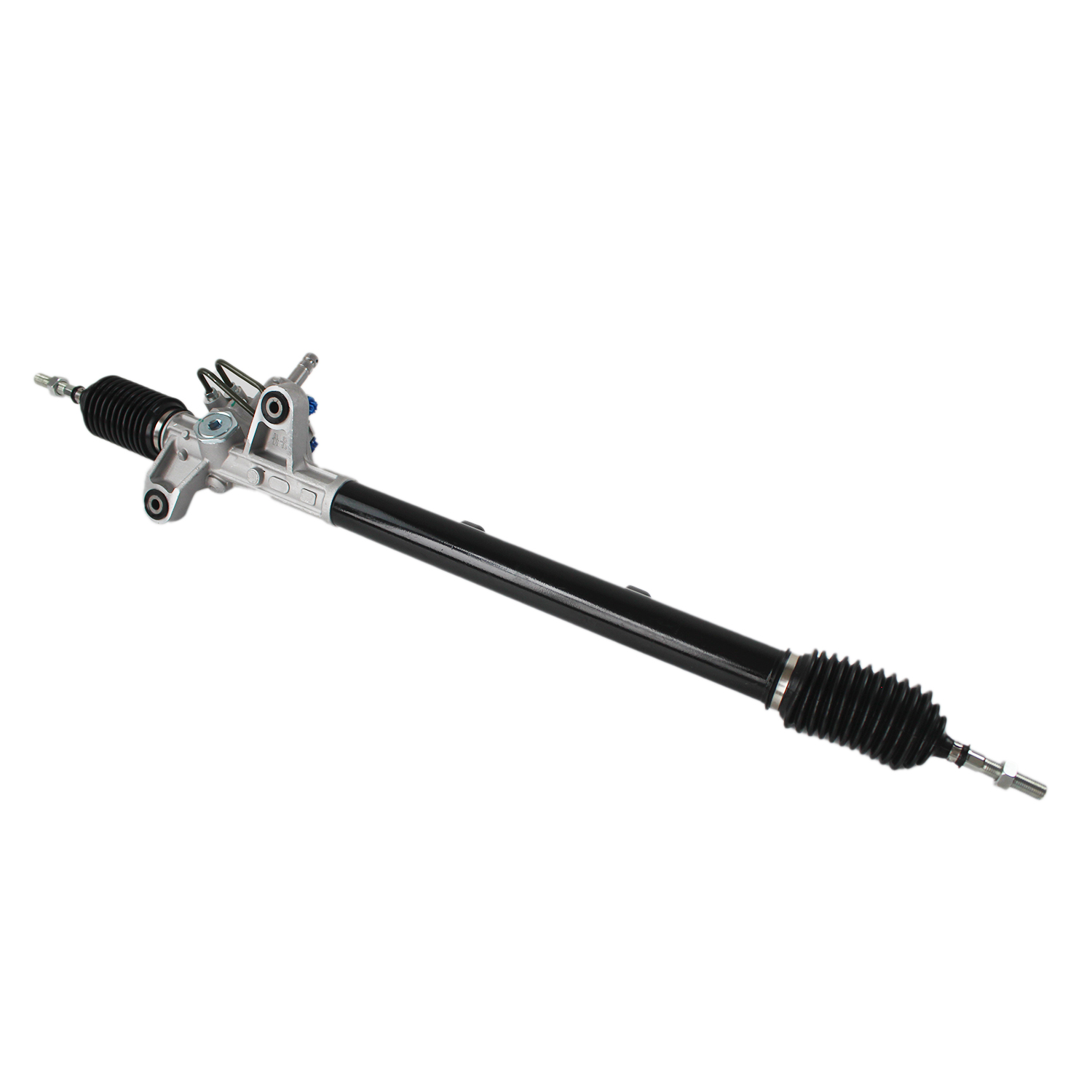

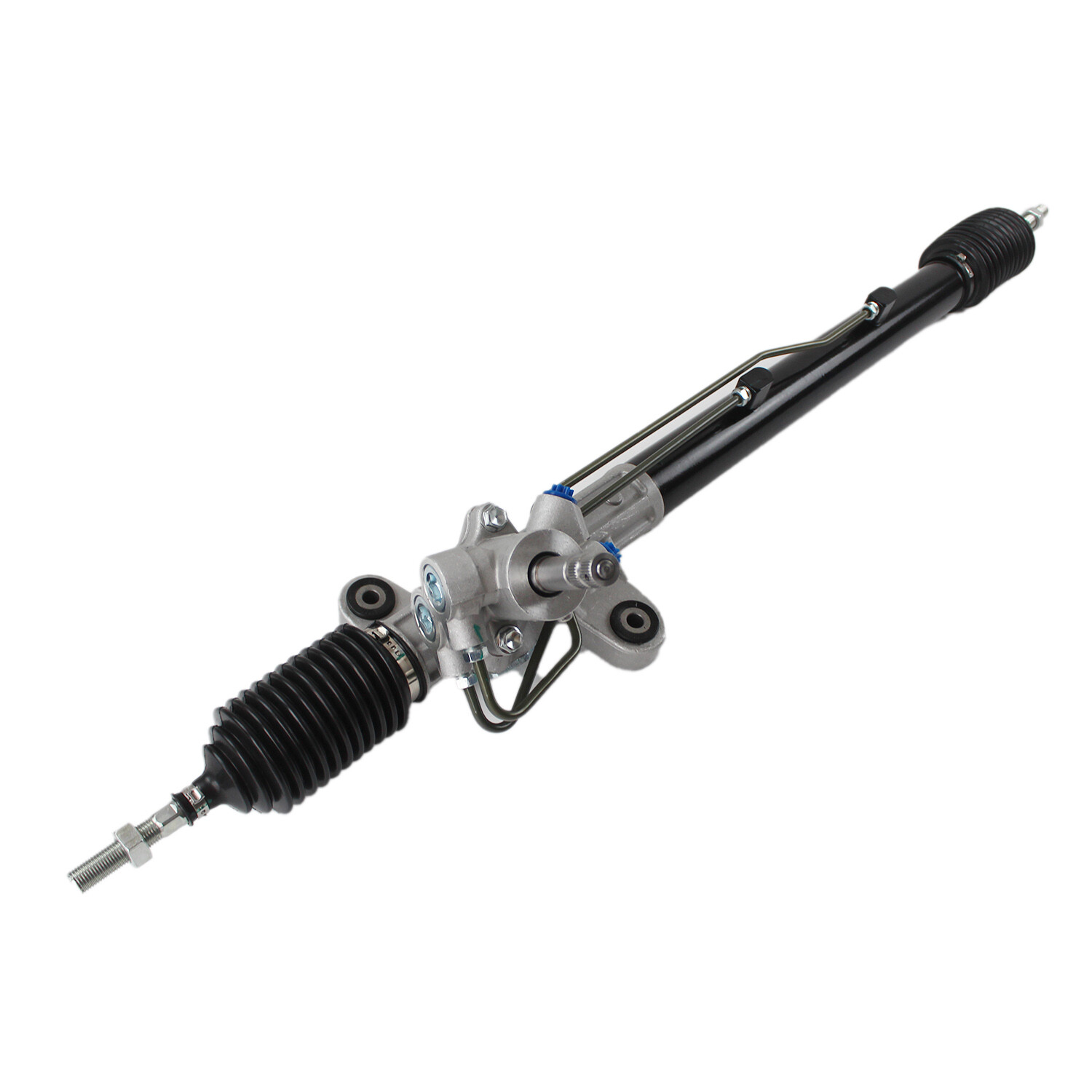

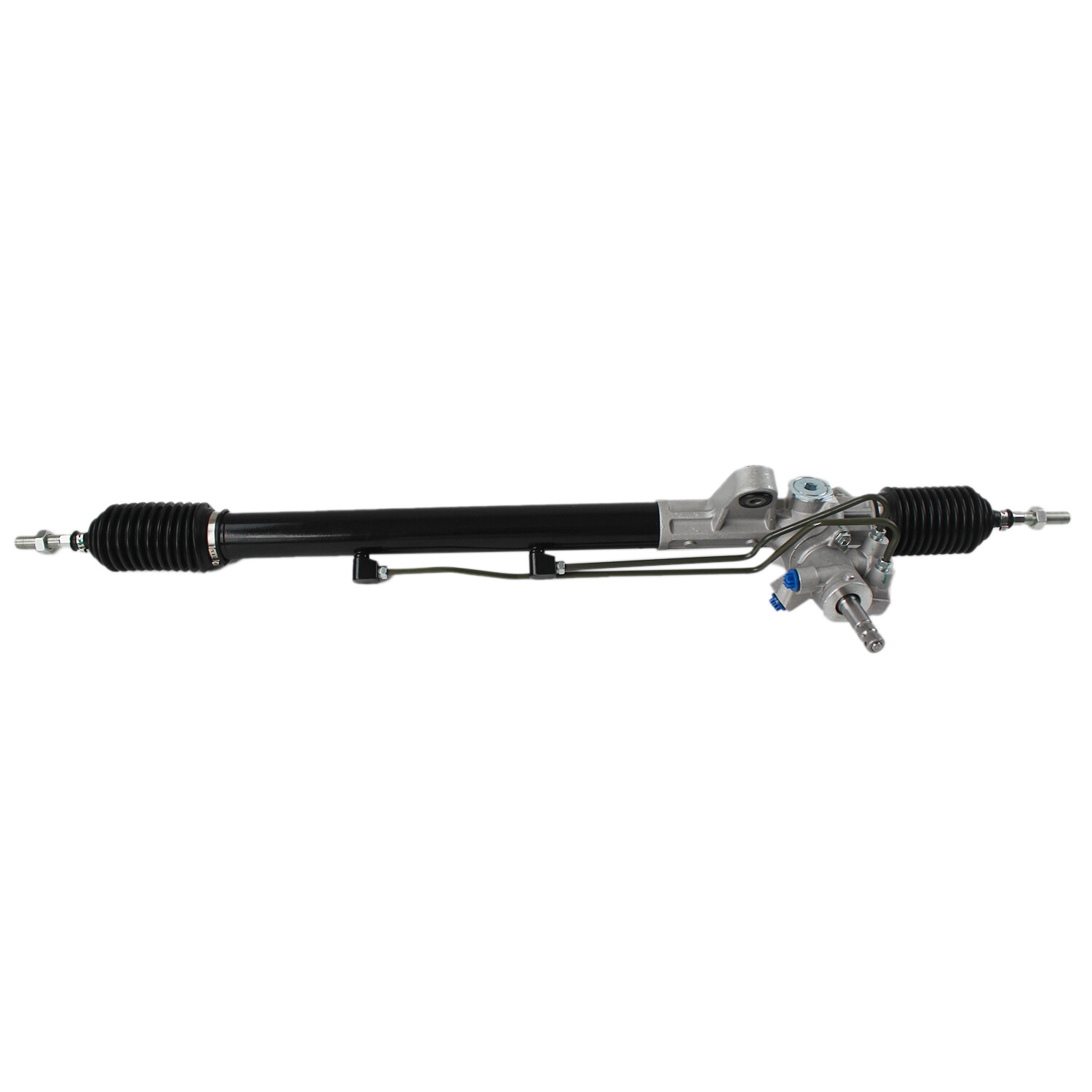

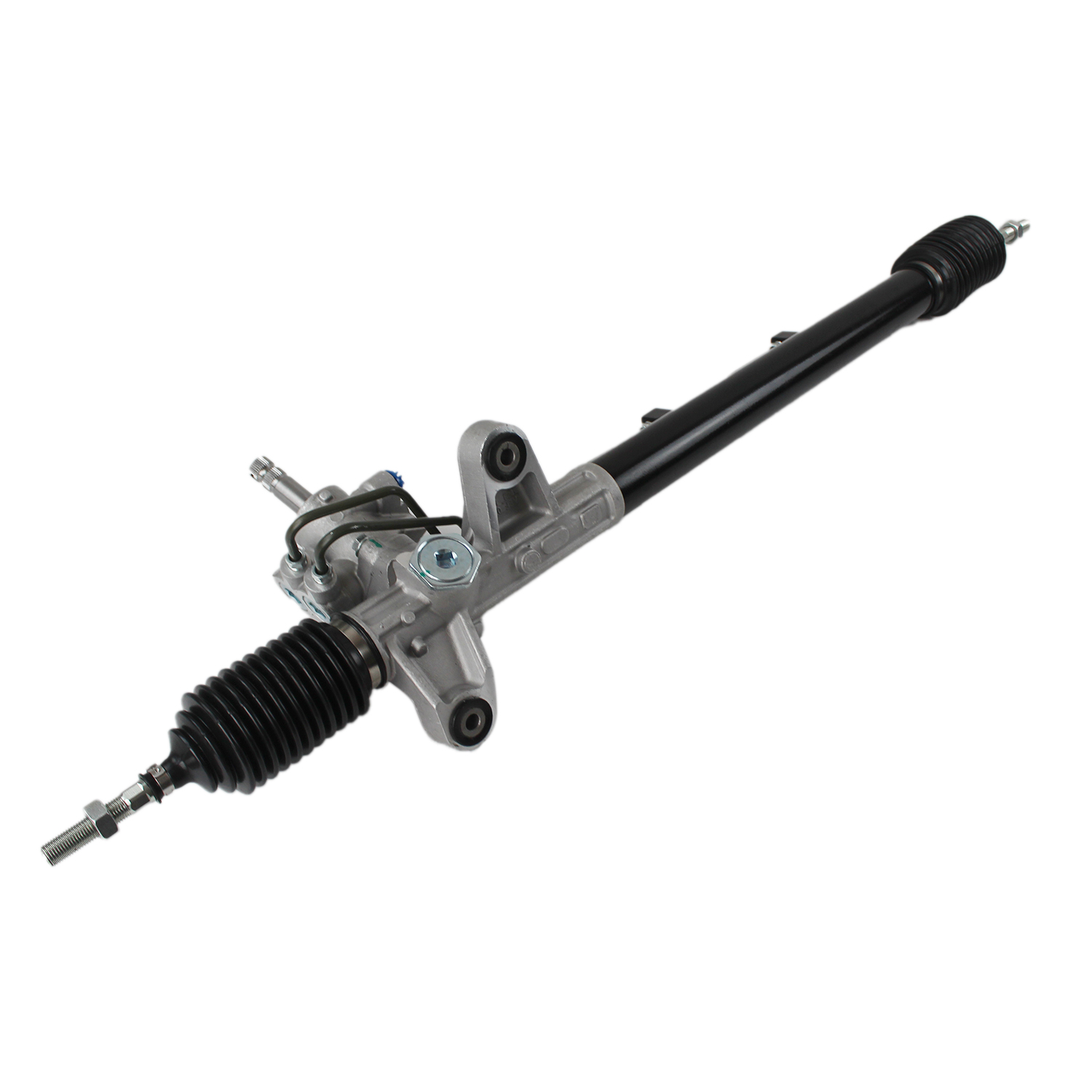

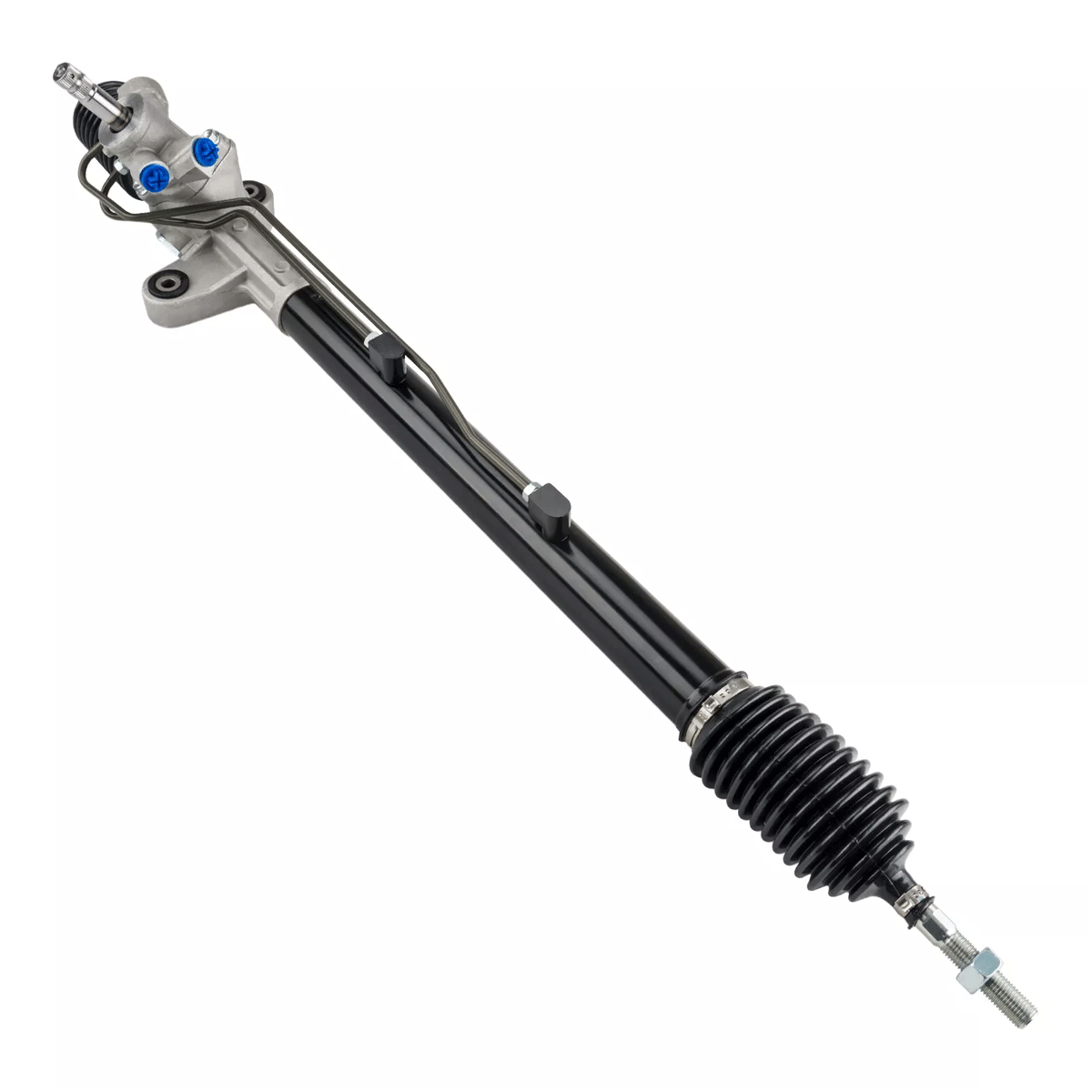

1PC Power Steering Rack and Pinion For Acura TSX 2004-2008 26-2720
①Product Specifications
Size: 115x17x26(cm)
Weight: 9.3kg
Material: Steel/Aluminum
Color: Black
Placement on Vehicle: Front
Input Shaft Diameter(in): 0.68in
Input Shaft Length(in): 2.24in

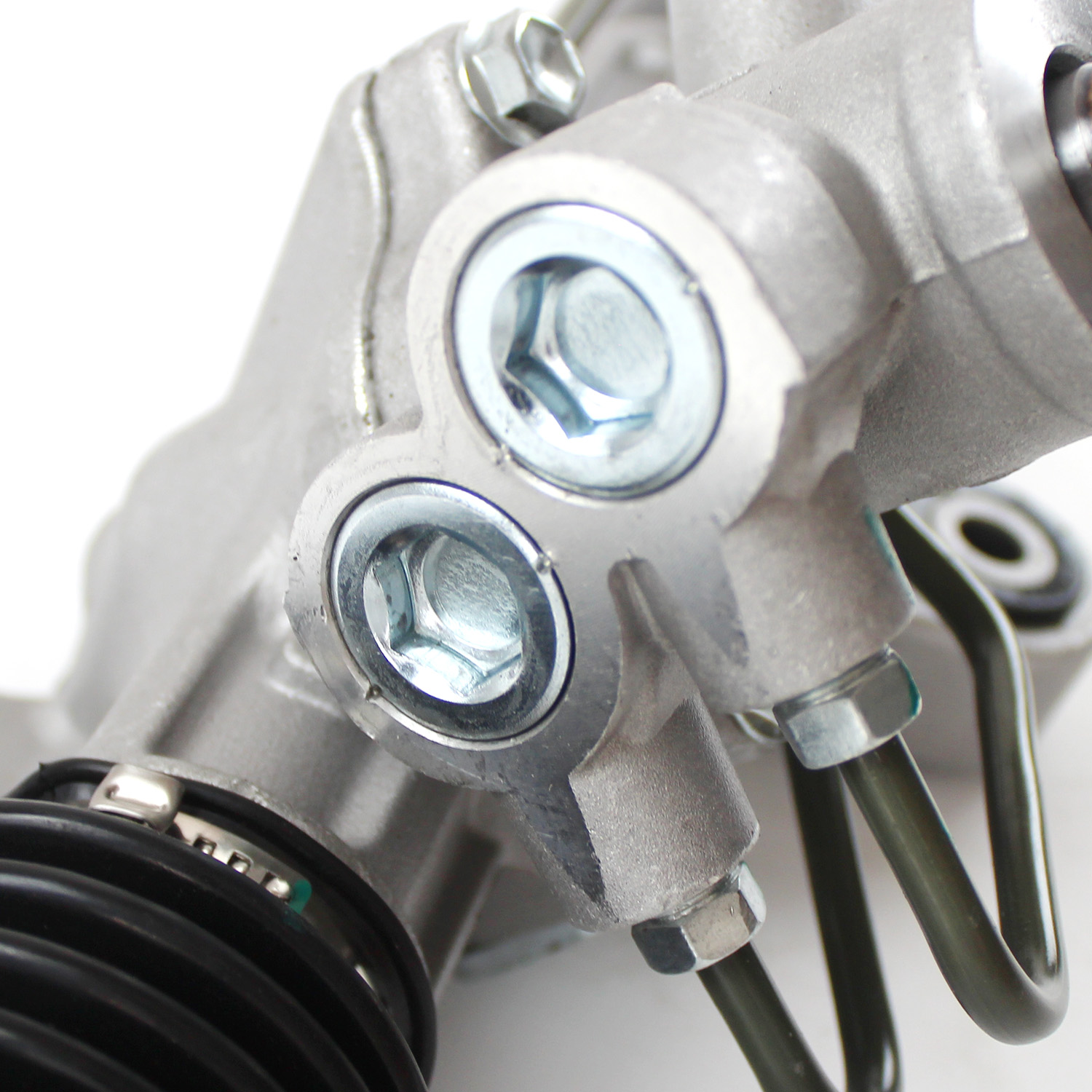

Pressure Port Thread Size: M16*1.5
Return Port Thread Size: M16*1.5
Number of Mounting Holes: 2
Distance Between Mounting Holes (in): 3.94in
Rack Length (in): 41.33in
②OEM/Interchange Part Numbers
97-2720, 26-2720, 3010SDAA01, 53601SECA02, 53601SECA03, 53601SECA04, 53601SECA05
③Fitment
Acura TSX 2004-2008 L4 2.4L with Hydraulic Power Steering
④Features
Built to strict quality control standards 100% factory tested
IATF16949
Easy Installation，100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards
High Performance
The steering rack solves abnormal noise and oil leakage problems, ensures that the steering wheel rotation angle is proportional to the tire rotation angle, and reduces the steering wheel's control force when turning, which makes driving safer.
2 in 1 Function
Conversion of the steering wheel's rotationalmotion into the linear motion needed for thevehicle's wheels to turn
Reduction of gears, which makes it easierfor the steering wheel to turn the wheels
Premium Material
With the premium aluminum alloy and steel construction, this steering rack assembly has a great anti-rust and anti-corrosive quality for its long service life.
We put moderate lubricating oil into this assembly so that it can prevent rust and oxidation.
Humanized Design

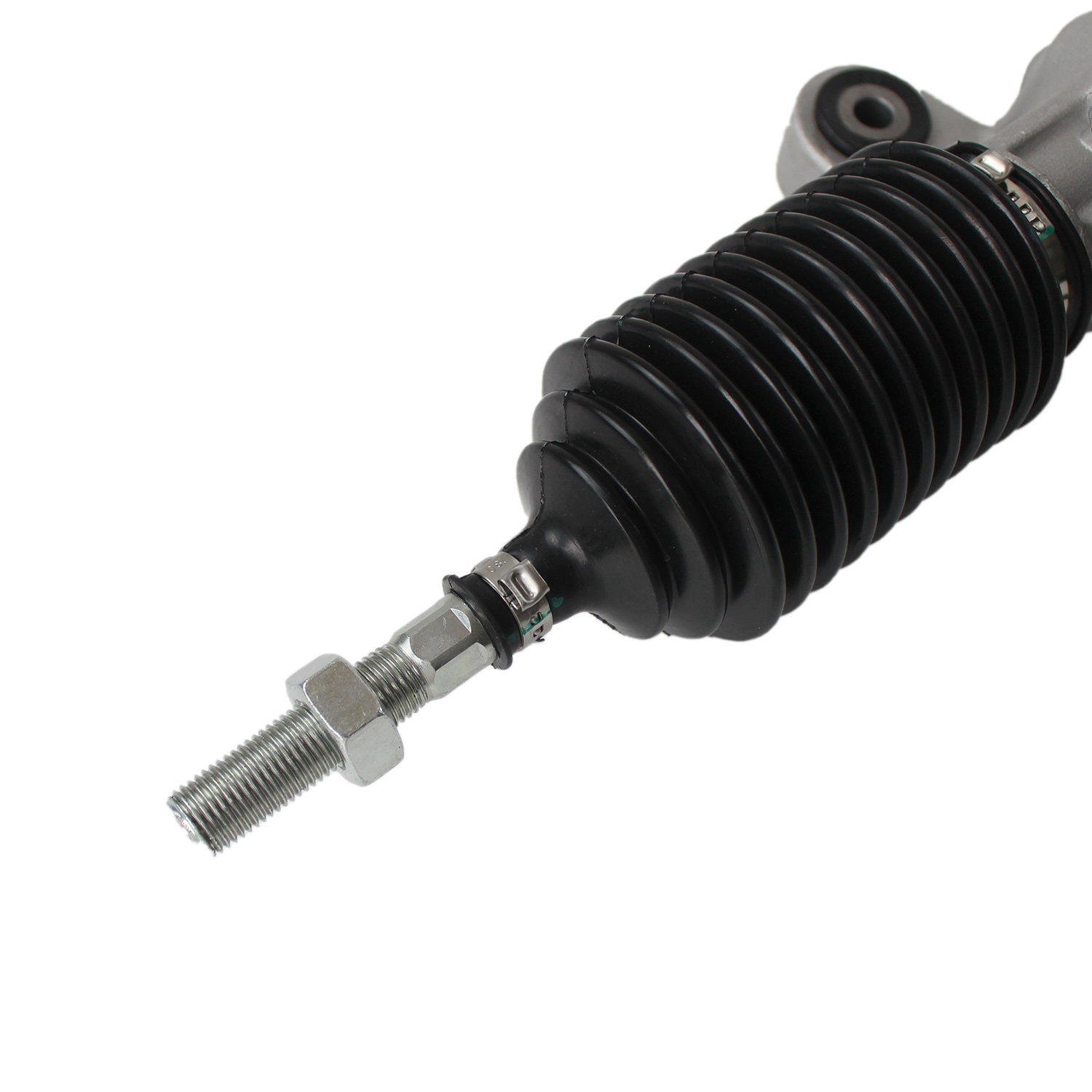

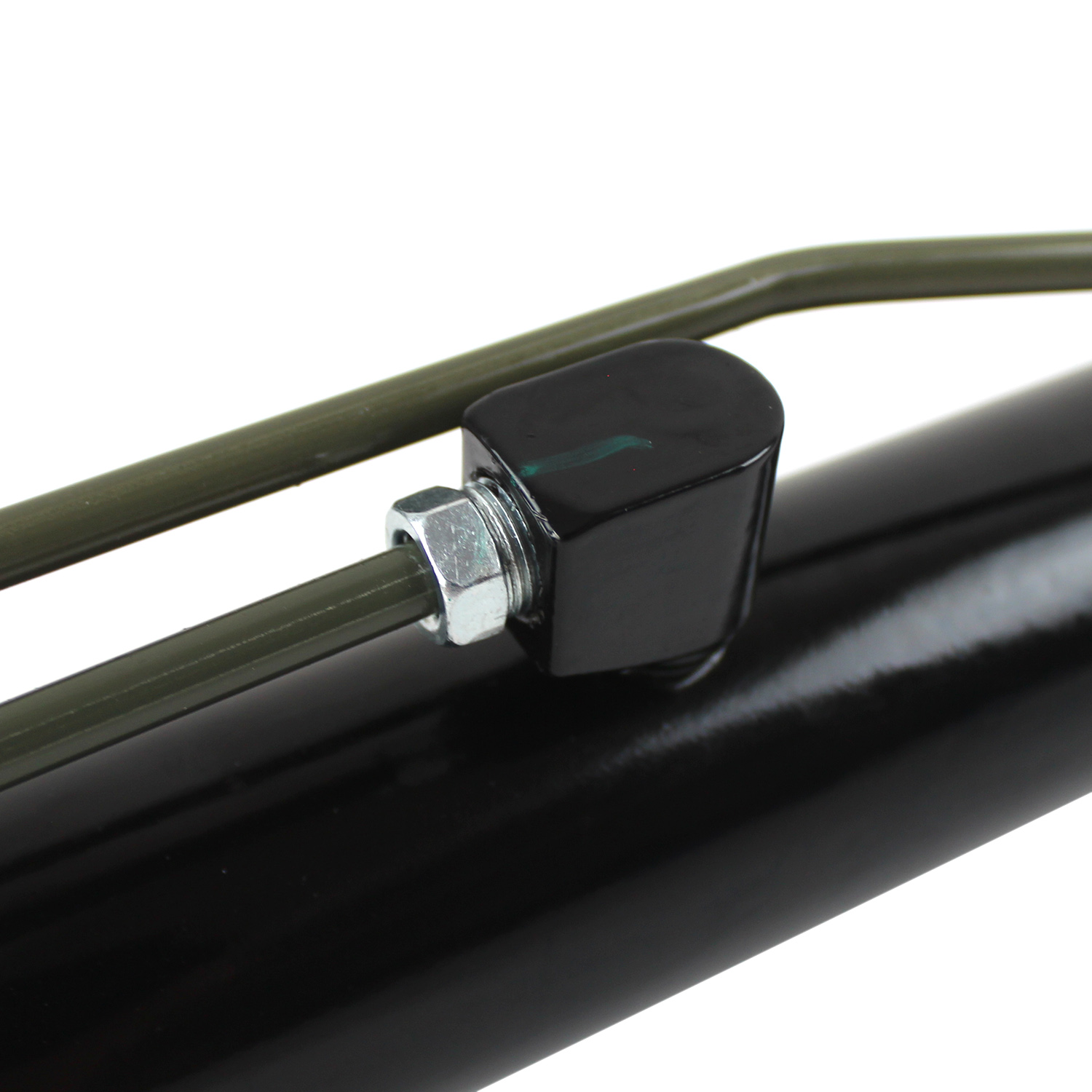

Ensure a tight seal and smooth steering operation. The hydraulic lines are fully fluid tested at high pressure. And the steel clamps and rubber bellow boots improve steering efficiency.
⑤Package Include
1PC Power Steering Rack and Pinion
⑥Attention
1. Correctly select the model and size of the steering gear: The model and size of the steering gear must be consistent with the original parts of the vehicle, otherwise it will affect the steering sensitivity and stability;
2. Clean the surrounding area first: Before replacing the steering gear, it is necessary to thoroughly clean the surrounding area to prevent small debris residues from damaging new steering gear components;
3. Correct disassembly and assembly of the steering gear: When disassembling an old steering gear, be particularly careful to avoid damaging the original vehicle components, and lubricate the bearings and gears during installation;
4. Use of high-quality steering oil: For hydraulic power assisted steering machines, high-quality steering oil is required;
5. Correctly adjust the wheel angle: After replacing the steering gear, it is necessary to adjust the wheel angle to ensure vehicle stability and safety;
6. Attention to maintenance: Regularly inspect and maintain steering gear components to ensure good operation of the steering gear.
⑦Note
Oil leakage: The oil seal in the steering gear can break due to aging and wear, resulting in loss or leakage of hydraulic oil. Oil leakage can cause difficulty or malfunction in steering operation.
Abnormal noise: A snap, noise, or hiss may be caused by worn steering gear, pin shaft, or rack.
Excessive steering force: Blockage or wear of the steering gear oil pipes or passages can cause excessive hydraulic oil pressure, excessive steering force, or even steering failure.
Steering failure: Steering failure can be caused by reasons such as damage to the steering gear, blockage in the oil circuit, and failure of the oil pump, which will affect driving safety.
Shake or shake: Worn or loose parts in the steering gear can easily cause the vehicle to shake or shake during steering.
Dead center: When turning, if the steering wheel needs to be rotated for a long time until the vehicle turns significantly, this may be a dead center problem with the steering gear.
