DESCRIPTION

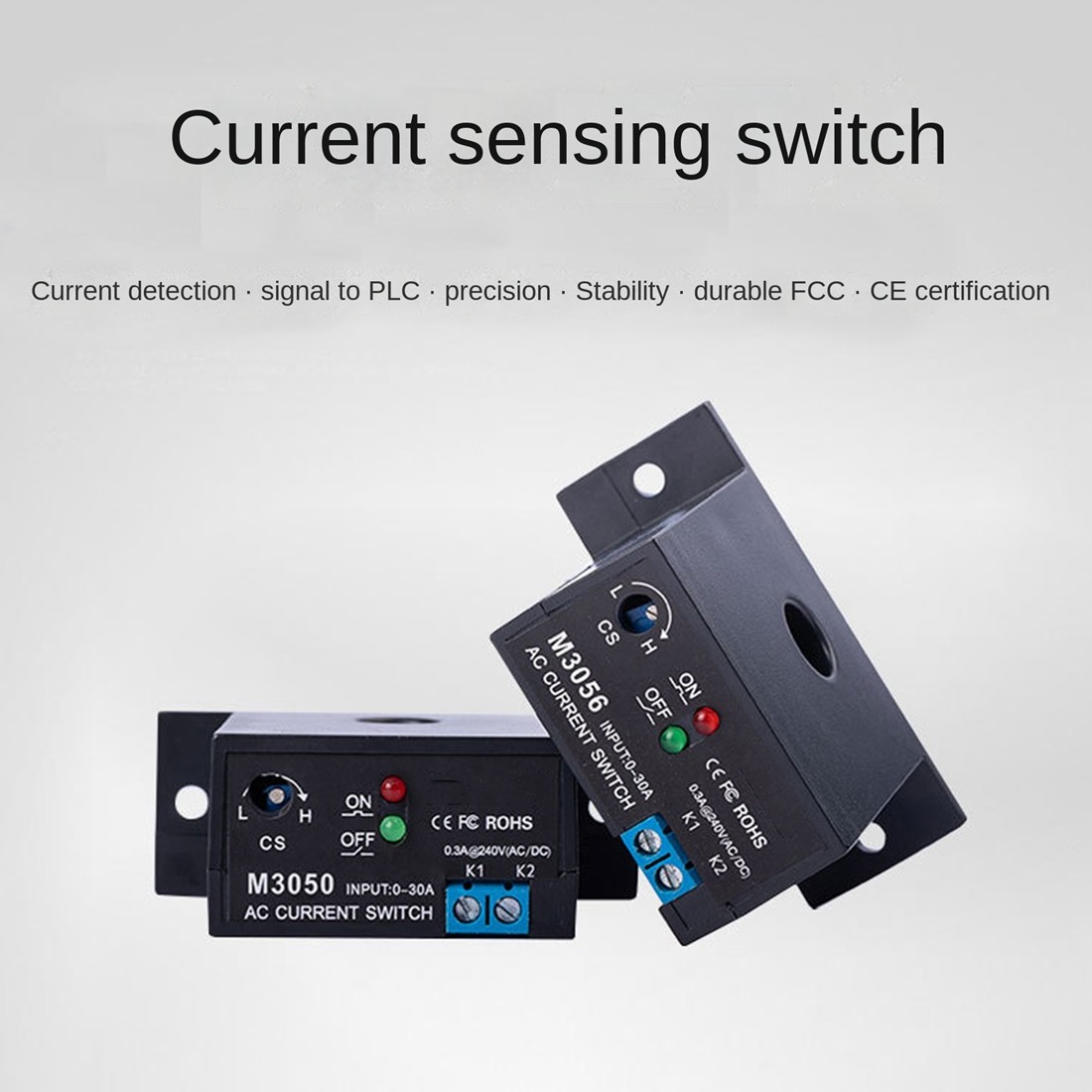

Current Sensing Induction Relay AC Linkage Device Plc over Limit Closed8559
Mutual inductance current monitoring, security isolation of input and output, self power
The range of the monitored current is up to 30A;the monitoring threshold is adjustable within 0.2-30A.
Hysteresis is less than 1%. It can be used instrong magnetic environment.
Non-contact electronic switch with fast reaction and unlimited number of on-and-off operations.
The shell is made of environmentally-friendly flame-retardant PC material.
Monitoring current: 0.2-30A AC
Contact capacity: 0.3A@240V
The diameter of the perforation line: 10MM
Dimensions: 65x25x47MM
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Operating temperature: -20-55Celsius
Hysteresis: less than 1%
Operating principle:

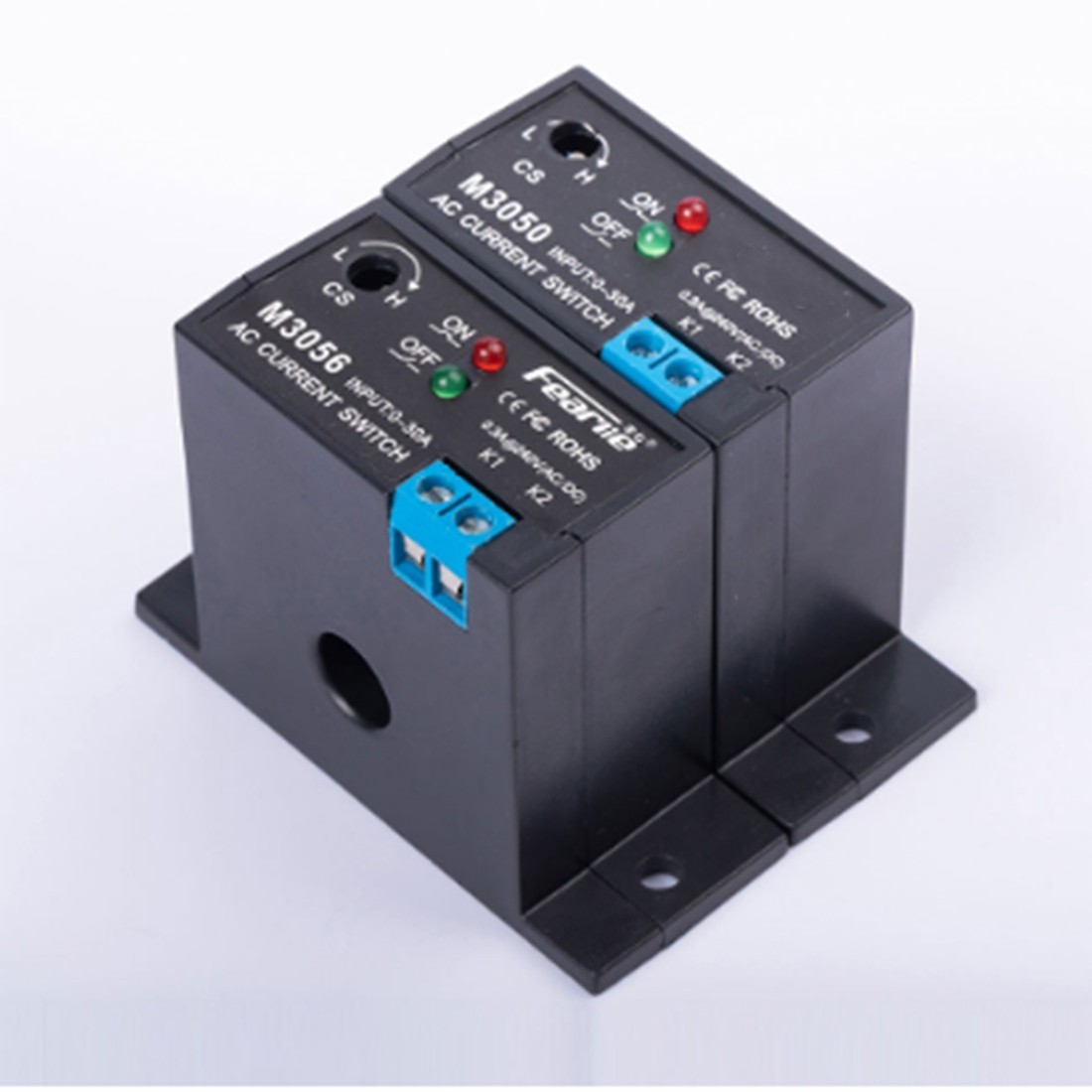

Normally closed: M3056
When the current of the perforation line exceeds the set value, the green light turn on and the output signal open ; when the current is below the set value, the red light turn on and the switchs close.
Colour:As shown
Material:plastic

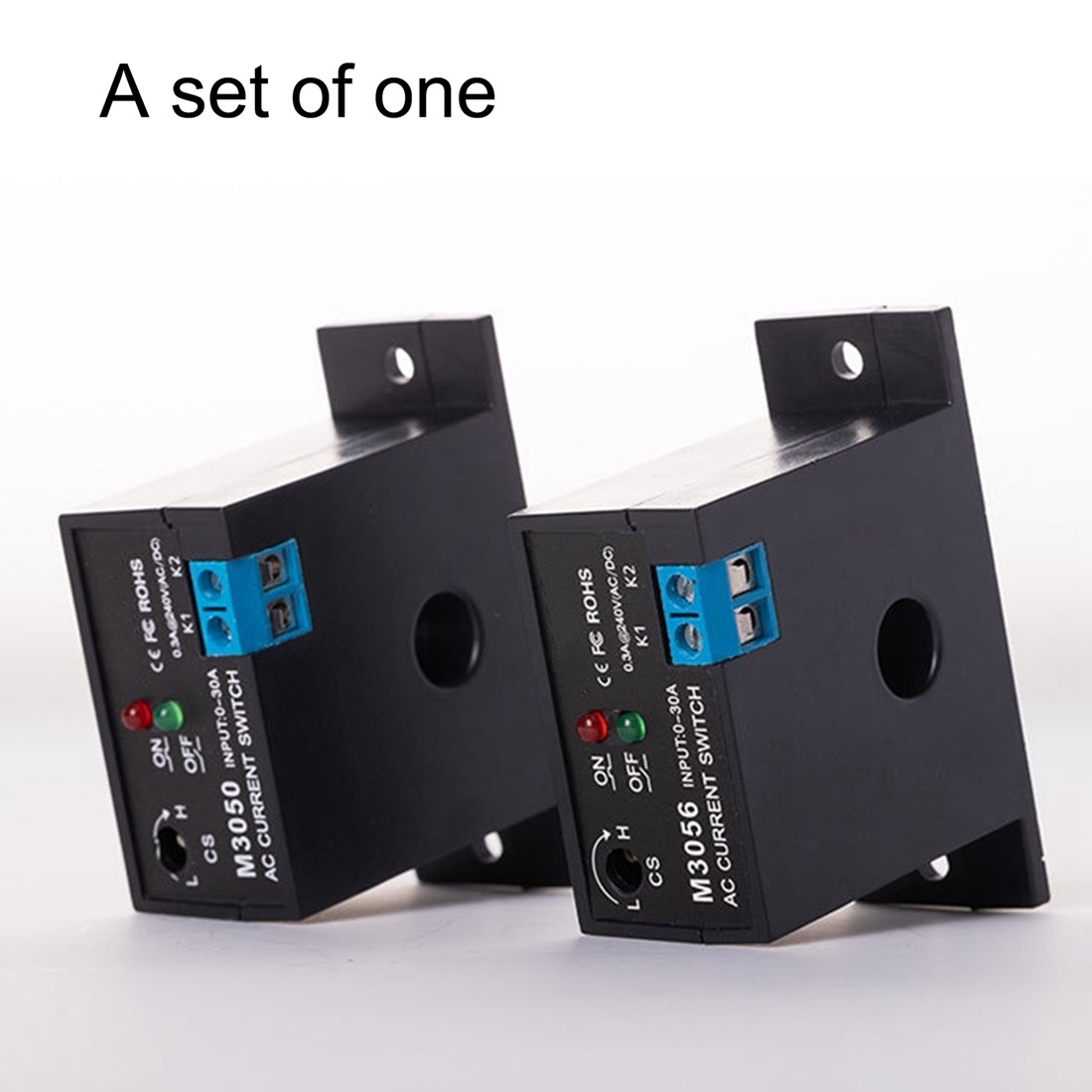

Package Contents:
1 x Current detection switch induction relay
The range of the monitored current is up to 30A;the monitoring threshold is adjustable within 0.2-30A.
Hysteresis is less than 1%. It can be used instrong magnetic environment.
Non-contact electronic switch with fast reaction and unlimited number of on-and-off operations.
The shell is made of environmentally-friendly flame-retardant PC material.
Monitoring current: 0.2-30A AC
Contact capacity: 0.3A@240V
The diameter of the perforation line: 10MM
Dimensions: 65x25x47MM
Maximum leakage value: 0.1MA
Maximum overload capacity: 100%
Operating temperature: -20-55Celsius
Hysteresis: less than 1%
Operating principle:
Normally closed: M3056
When the current of the perforation line exceeds the set value, the green light turn on and the output signal open ; when the current is below the set value, the red light turn on and the switchs close.
Colour:As shown
Material:plastic
Package Contents:
1 x Current detection switch induction relay
