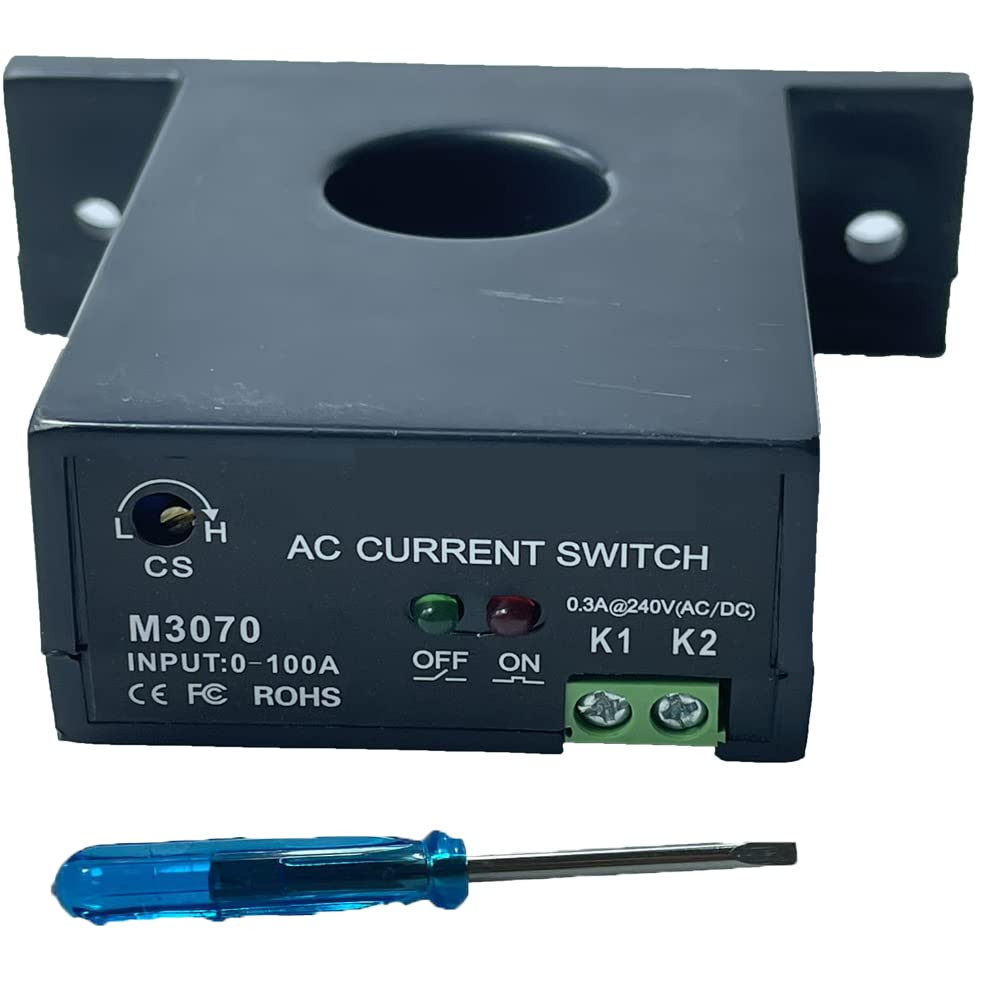

- Normally open current sensor: when the perforation line current exceeds the set value, the red light is on and the output signal is a closed; when the current is below the set value, the green light is on and the switch is open
- Mutual inductive current monitoring, safety isolation of input and output, self-current monitoring
- The range of the monitored current is up to 100 A, the monitoring threshold is adjustable
- Hysteresis is less than 1%. It can be used in devices to monitor strong magnetic environment.
- Non-contact electronic switch with fast response and unlimited number of on and off operations
Product parameters:
Monitoring Current: 0.2-100A AC
Contact capacity: 0.3A at 240V AC/DC
contactor, relay
Perforation Line Diameter: 10mm
Dimensions: 70x27x50mm.
Maximum overload: 100%
of the power switch [supply line switching signal
Operating temperature: -20 - 55 °C.
Hysteresis: less than 1%
package list:
Current Sensing Switch x 1
user's manual x 1
