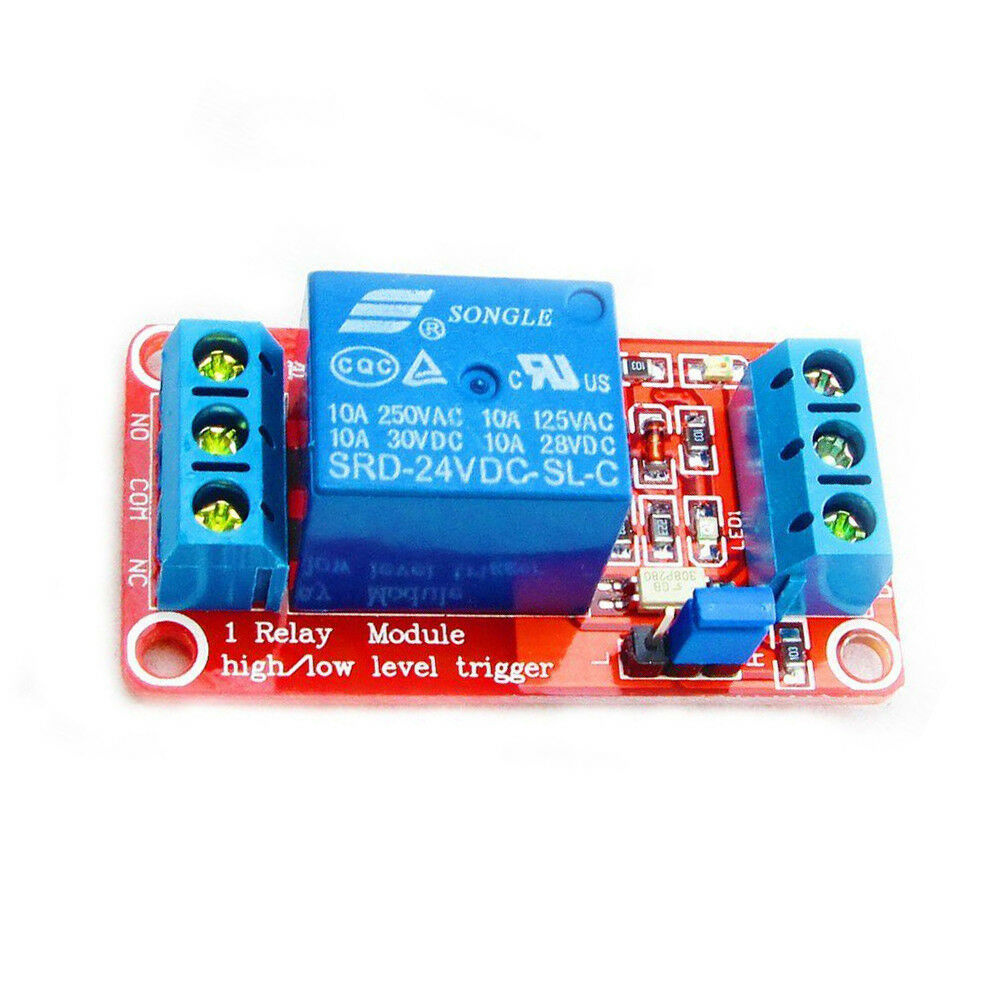

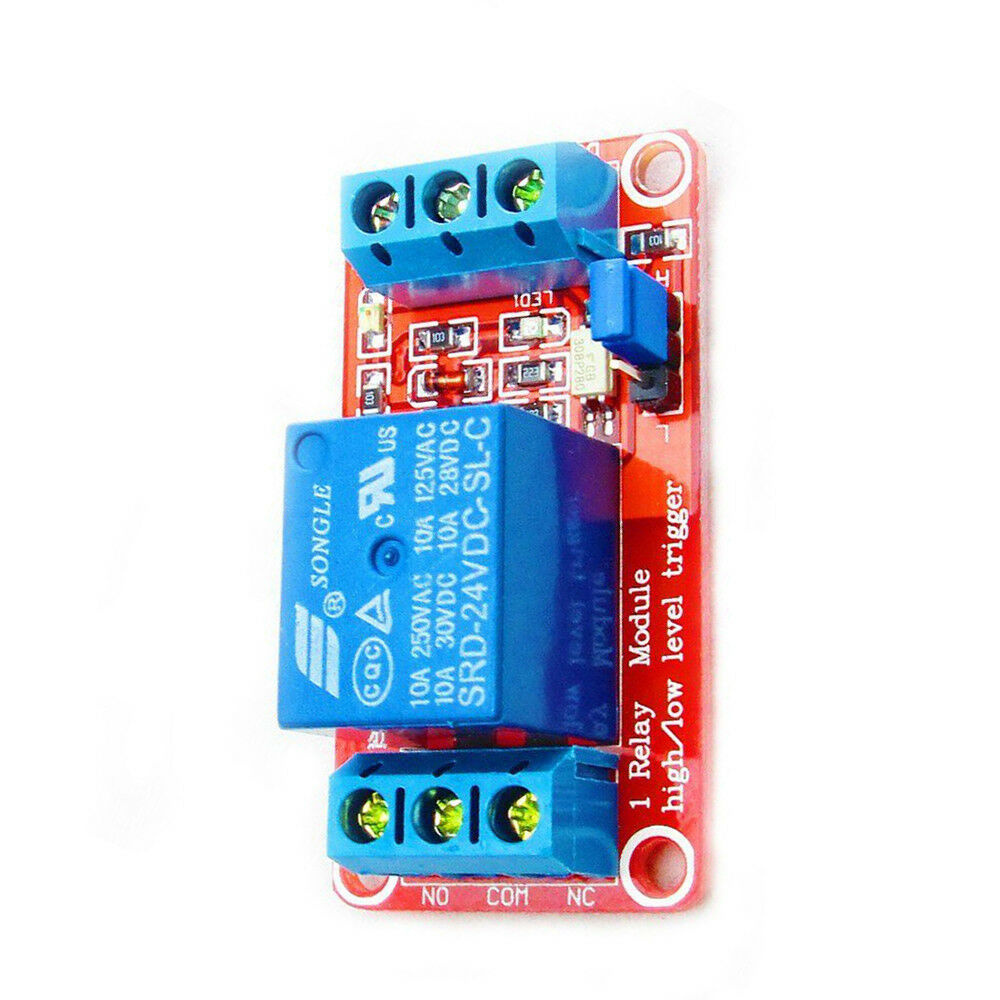

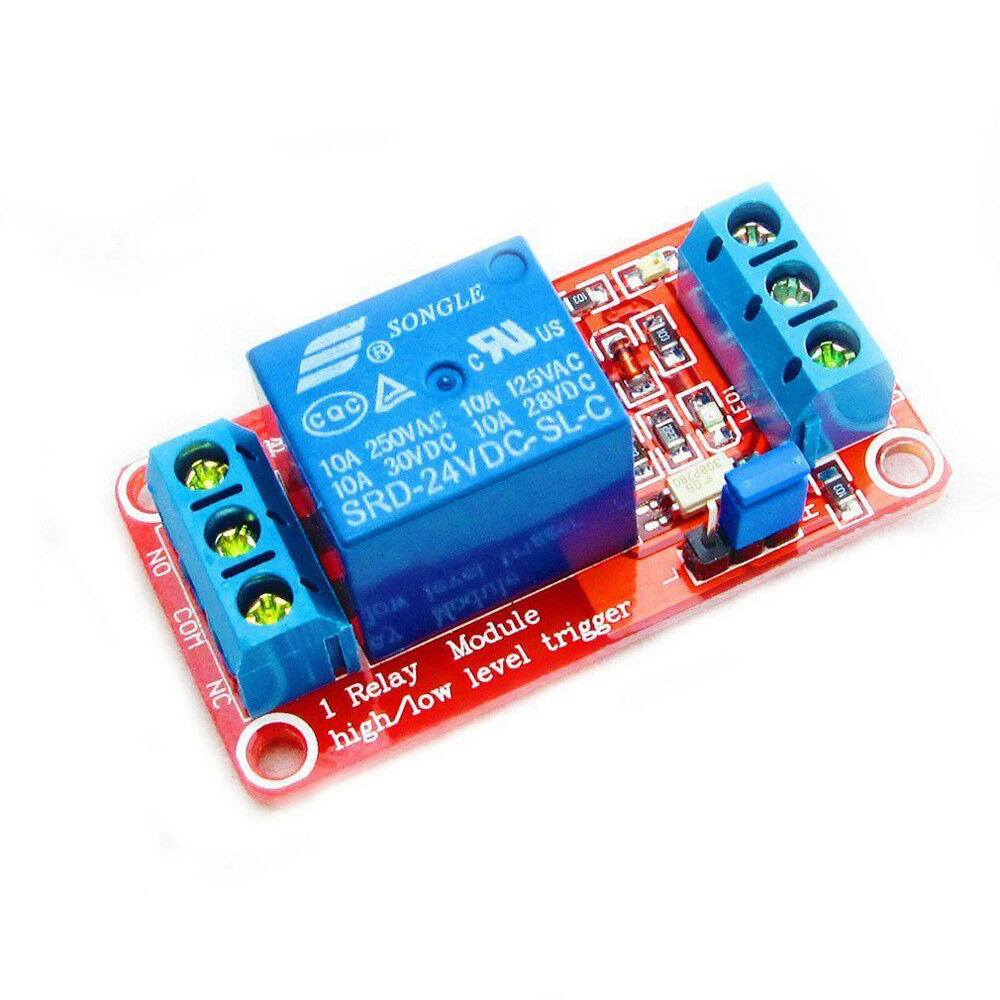

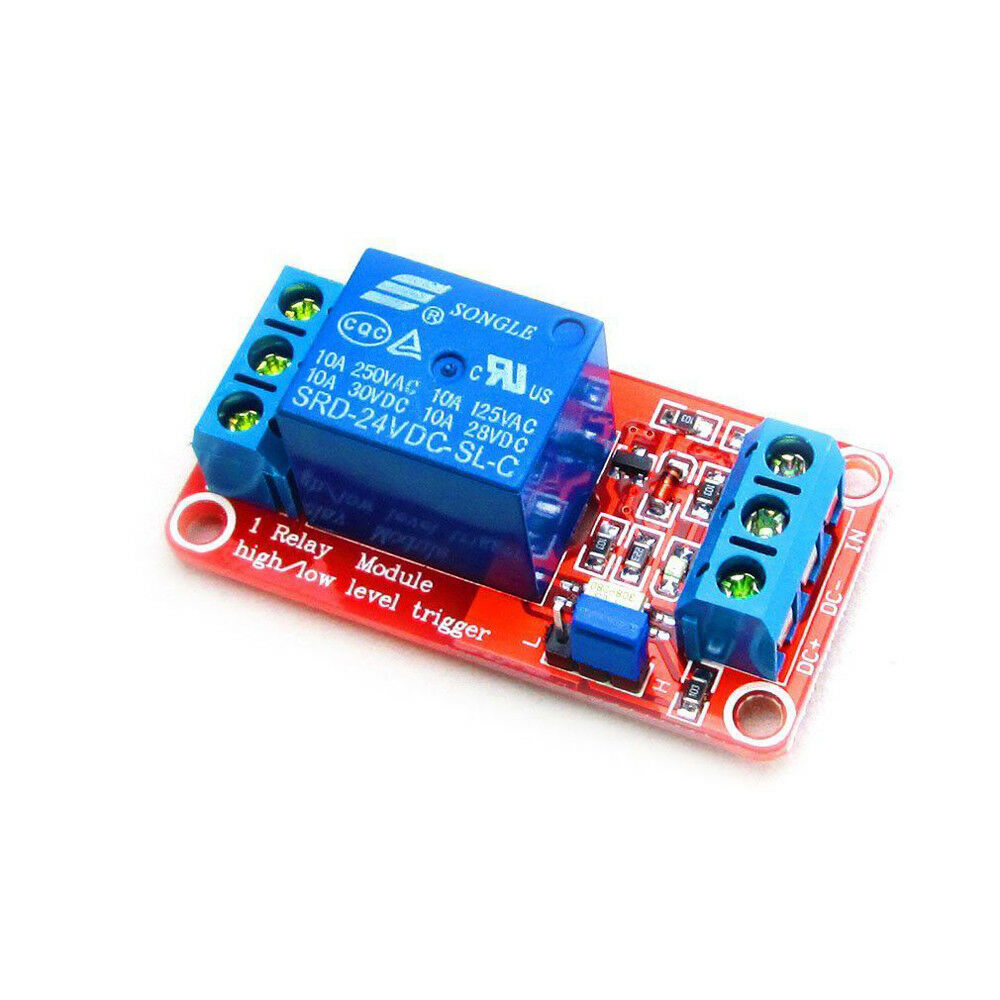

Description

1. ?NO? Pin Maximum load: AC 250V/10A, DC 30V/10A

2. Using SMD OPTOCOUPLER isolation, the trigger current only 5mA

3. The module have 5V, 9V, 12V and 24V are available

4. The module can be set to high or low triggered by jumper

5. Fault-tolerant design, even if the control line is broken, the relay will maintain;

6. Has the power indicator (green) and relay status indicator (red)

7. Size: 50*26*18.5mm

8. Has four mounting bolts holes, hole 3.1mm, 44.5*20.5mm pitch



Interface:

Input:

VCC: Relay power supply +

GND: Relay power supply -

IN: Signal trigger input (High or Low Level Signal, select via jumper)

Output:

NO: Relay normally open.

COM: Relay Common Pin

NC: Relay normally closed.

High or Low Level Trigger Select:

1. Use High Level Trigger

When ?IN? input High Level Signal, the ?NO? connect with ?COM?

When ?IN? input Low Level Signal, the ?NC? connect with ?COM?

2. Use Low Level Trigger

When ?IN? input Low Level Signal, the ?NO? connect with ?COM?

When ?IN? input High Level Signal, the ?NC? connect with ?COM?

3. High or Low Level Trigger Select

Jumper connect with L, Low Level Trigger

Jumper connect with H, High Level Trigger
