- Parameters: motor speed controller input voltage range is 9-60V, output current range is 0-20A, continuous power is 1200W.
- Application: the dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit.Note: The motor cannot be used in electric vehicles.
- Speed Control: our motor control board can regulate motor speed by potentiometer; what's more, it support clockwise/anticlock-wise rotation adjustment.

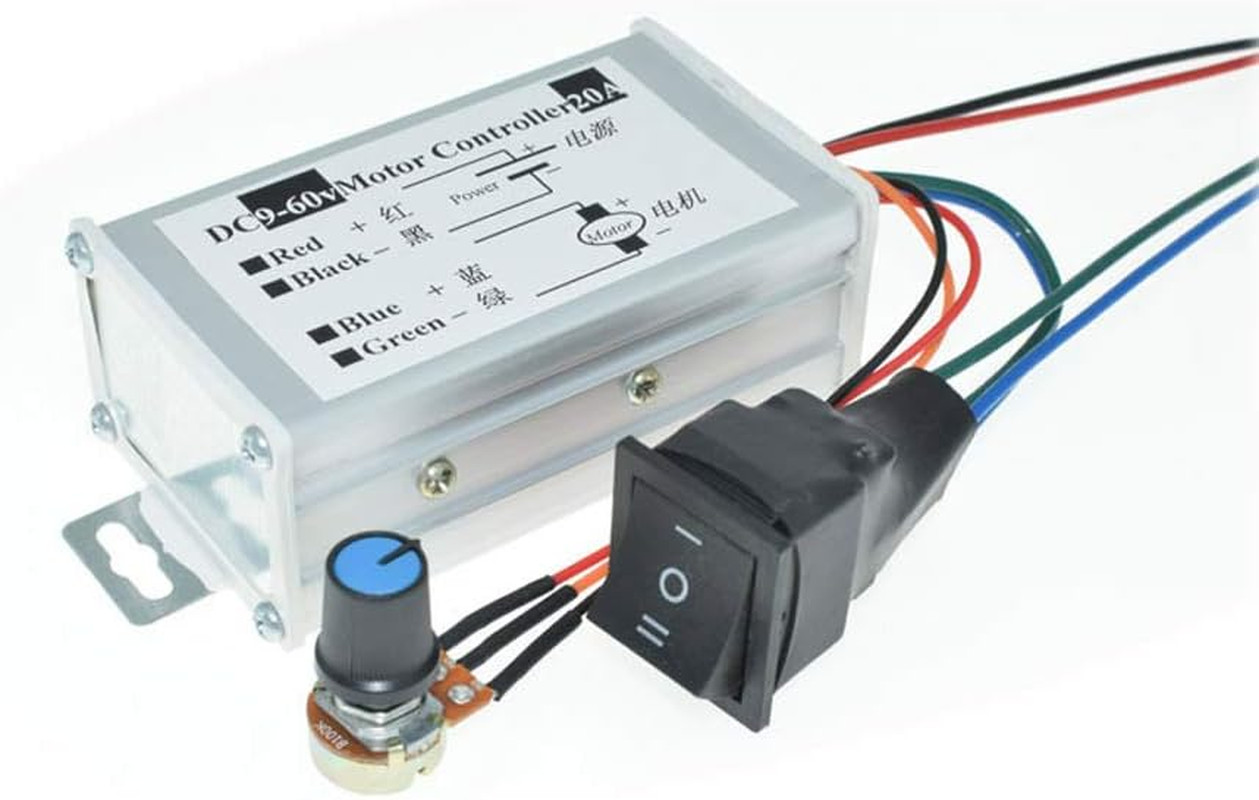

- Easy Wiring: thick red wire for the positive of the power supply, and thick balck for the negative; thick blue wire for the motor positive, and the thick green for the motor negative.
- PWM: the advantage of using a pulse width modulation (PWM) method for dimming / speed regulation is that the energy of the power supply can be fully utilized and the circuit is highly efficient.
Motor Speed Controller technical parameters
- Includes: 1x DC motor controller
- Note: The motor cannot be used in electric vehicles.
- Input voltage range: DC 9-60V output voltage
- Linear load output current: 0-20A
- Continuous power: 1200W
- Speed control mode: potentiometer (linear)
- Speed range: 0-100%
- Input current: requires more current than the motor
- Continuous current: within 18A
- The input voltage should be equal to the rated voltage of the motor.
- Control frequency: 25KHz clockwise / counterclockwise rotation; support Fit motor:

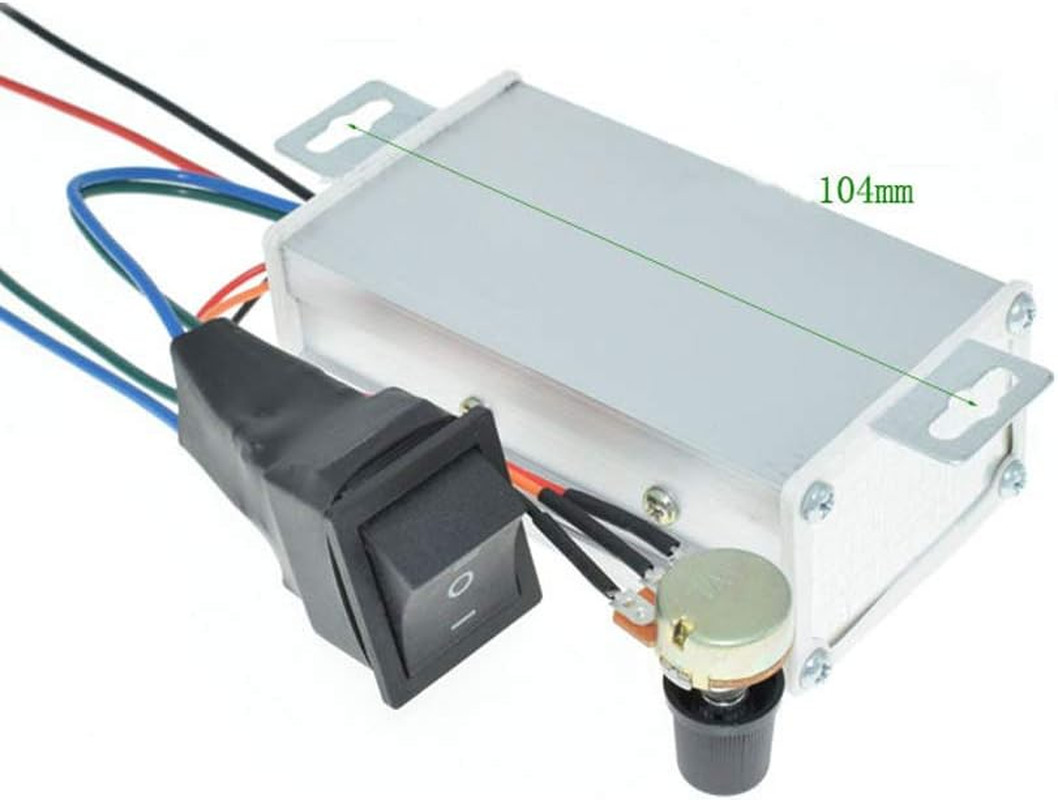

- DC brush size: 92x52x36mm
- Product net weight: 155 grams
- Potentiometer mounting hole diameter: 7mm
- Wiring connection: thick red line: power +, thick black line: power -, blue and green motor is not positive or negative
