Strong Anti-interference: Utilizes digital serial port pyroelectric sensor for stable performance
Automatic Light Detection: Activates lights based on both motion and ambient light conditions
Full Automation: Automatically turns lights on/off with human presence detection
Energy Efficient: Ensures lights are only on when needed

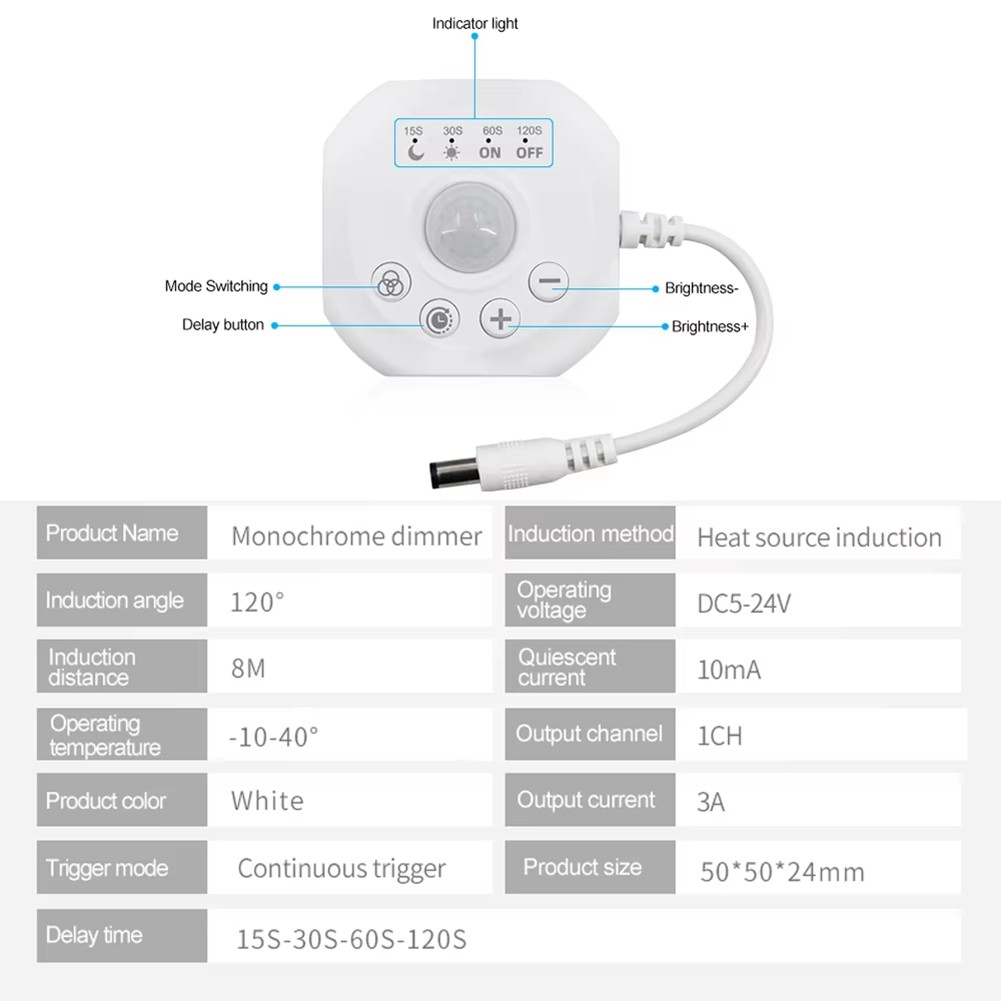

Technical Specifications:
Power Input:5-24V DC
Standby Current: 10mA
Output: 1 channel, 3A max
Detection Range: 8 meters
Detection Angle: 120°
Delay Settings: 15s/30s/60s/120s (adjustable)
Operating Temp: -10℃ to 40℃
Trigger Mode: Continuous (resets timer with movement)
Dimensions: 50x50x24mm
Adjustment Functions:
Mode Selection:
1. Night Mode: Only activates in darkness
2. Day Mode: Works regardless of light conditions
3. ON: Constant power (disables timer)
4. OFF: Complete shutdown
Delay Adjustment: Easily set shut-off delay (15-120s)
Brightness Control: Adjustable via +/-
Installation Notes:
1. Requires 10-20 second initialization at first use
2. Performance based on:
Object size
Movement speed
Environmental factors
3. Features motion memory function (continuously resets timer while movement detected)
4. Not waterproof - for indoor use only
5. Optimal installation considers 120° detection angle
Safety Precautions:
Always disconnect power before installation
Avoid moisture and humidity
Keep away from extreme temperatures
Do not expose to direct sunlight
Specification:DC head
Color:White
Material:ABS

Package Contents:
1 * PIR Motion Sensor
