Product Description
Remote Control
1. Operating voltage: DC12V (23A 12V battery, not include in the package, due to the safety reason in the airmail. )
2. Working Current: 25mA / 12V
3. Radiation power: 10mw /12V
4. Modulation: OOK
5. Transmission frequency: 315MHZ (SAW frequency stabilization)
6. Transmission distance: within 1000M (without barrier)
7. Encoder Type: Fixed code
8. Size: 108*49*18mm
Decoding receiver board
1. Working voltage DC 3V~5V ( 5V @ 6.0mA / 3.3V @ 4.8mA)
2. Receiver sensitivity:better than -112dBm(50Ω)
3. Leg 9 bits,respectively, VT,18,17,16,15,14,13,12,11,10,9, 8, 7, 6, 5, 4,3, 2, 1, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
4. PCB Board Size: 58*27*7mm
There are 16 buttons on the remote control, corresponding to the receiving board feet four data bits 1, 2, 3, 4, 5, 6, 7, 8,9,10,11,12,13,14,15,16,17,18. Press the button to transmit a signal, the corresponding data bit will output high.
Notes, If want to strengthen the receiving signal, can add a 23cm cable to the "ANT"

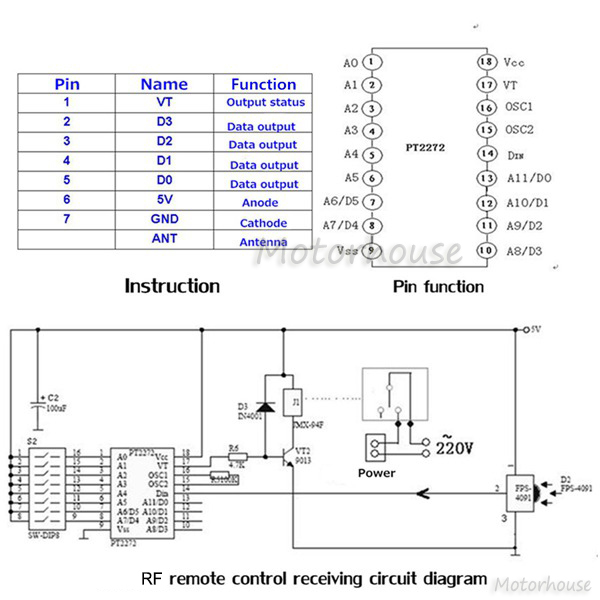

Wiring and application reference on 4-ch version:
Package Include:
1 x 16-ch Decoding receiver board
1 x far distance Remote control (for safety reason, we take away the battery.)
