Features
1. Stable performance
2. Small size
3. Indicator light display, easy to use
4. Easy to use
5. Wide range of applications, suitable for children's toy cars, digital cameras, solar charging, Bluetooth applications, audio equipment, digital cameras, electronic dictionaries, etc.

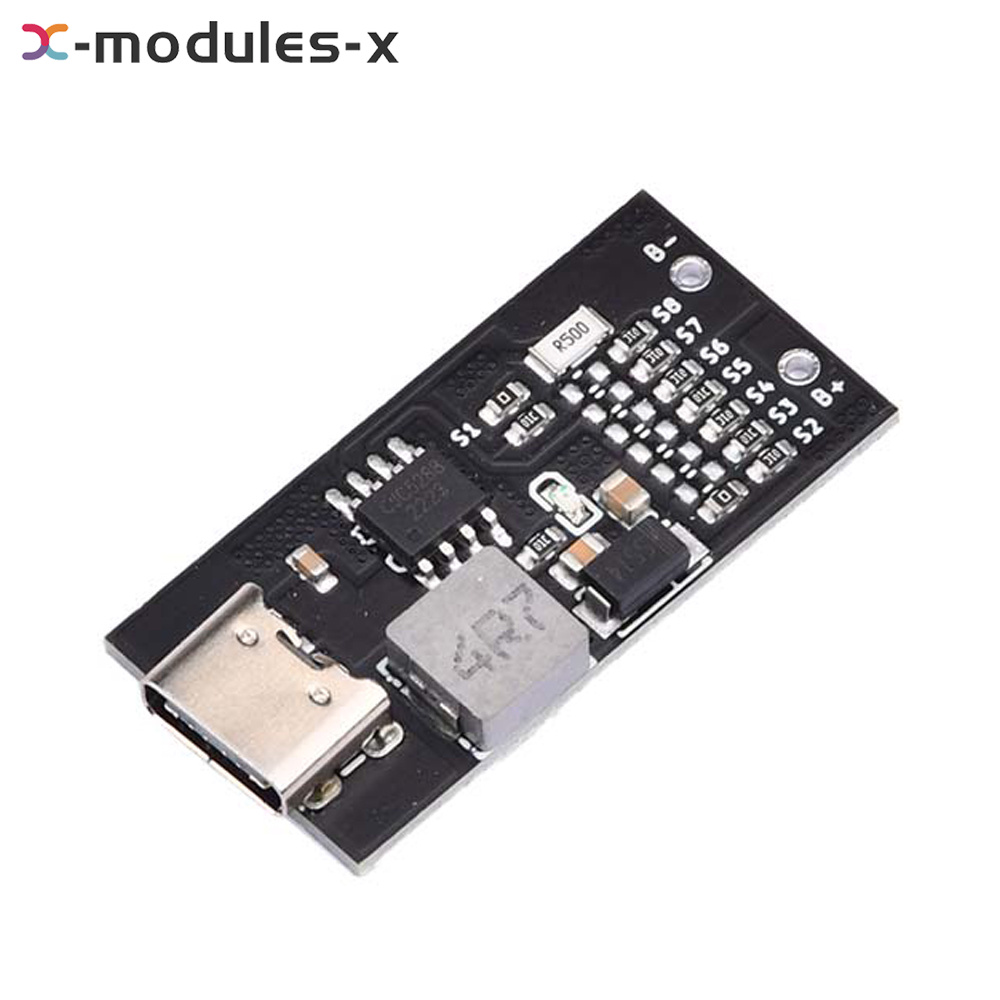

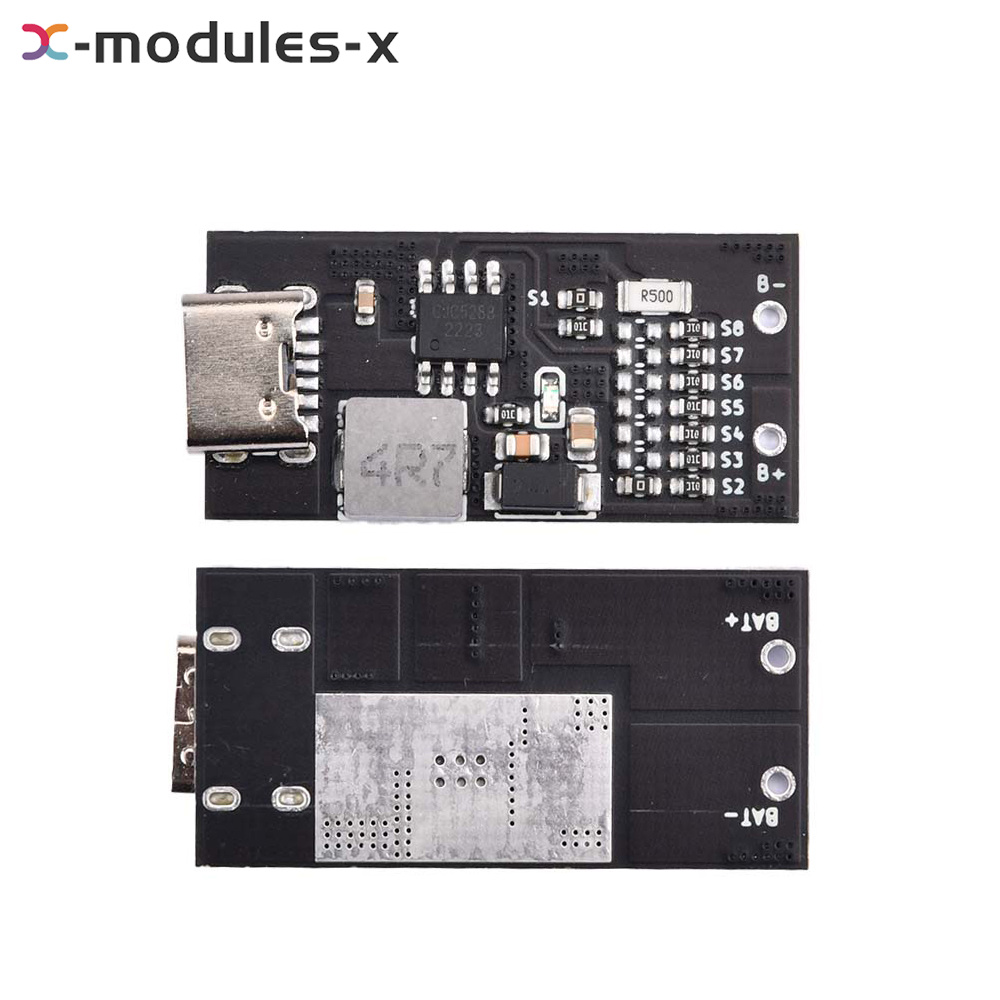

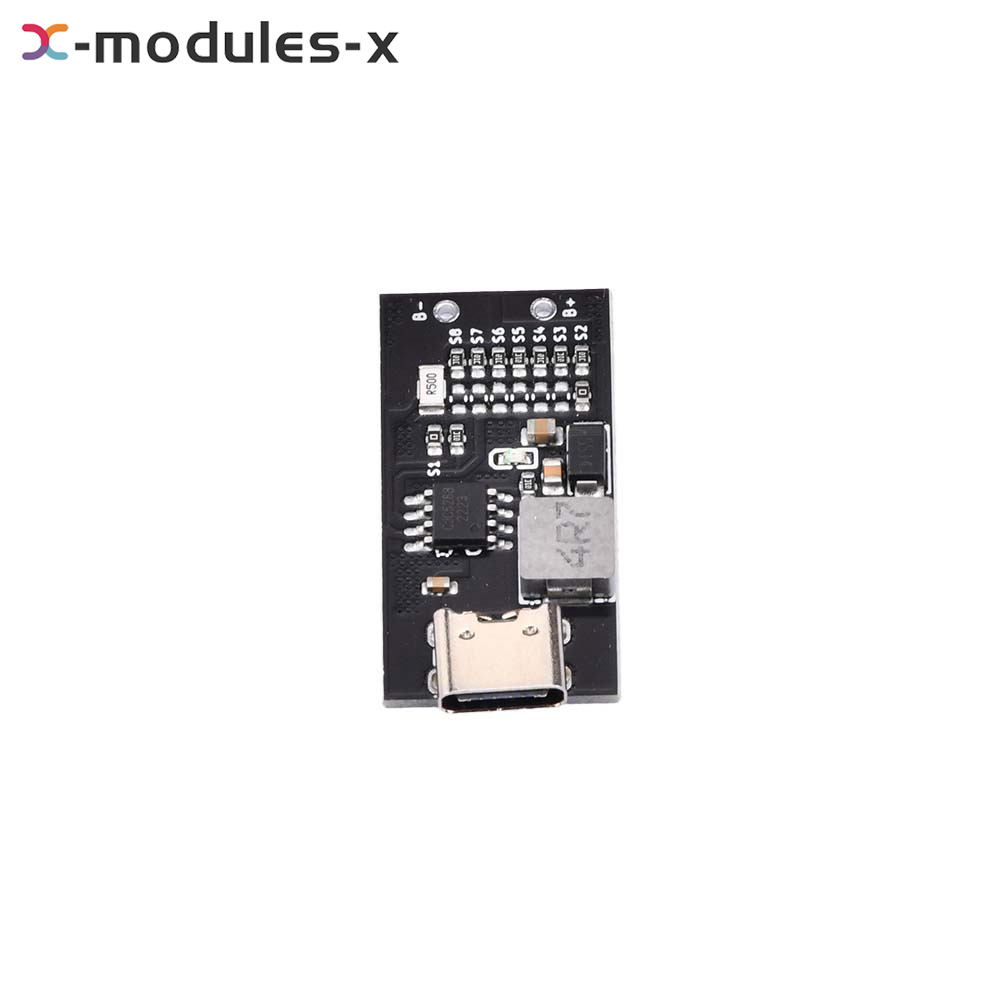

Module description:
One to eight batteries are charged in series, TYPEC interface DC input 5V, the default is S2 two batteries charging, when the power is turned on, the indicator light is always on when it is not charging; it is charging, the indicator light flashes slowly; the output short circuit or charging battery quantity and circuit If they do not match, the indicator light flashes quickly, and the battery full indicator light goes out.

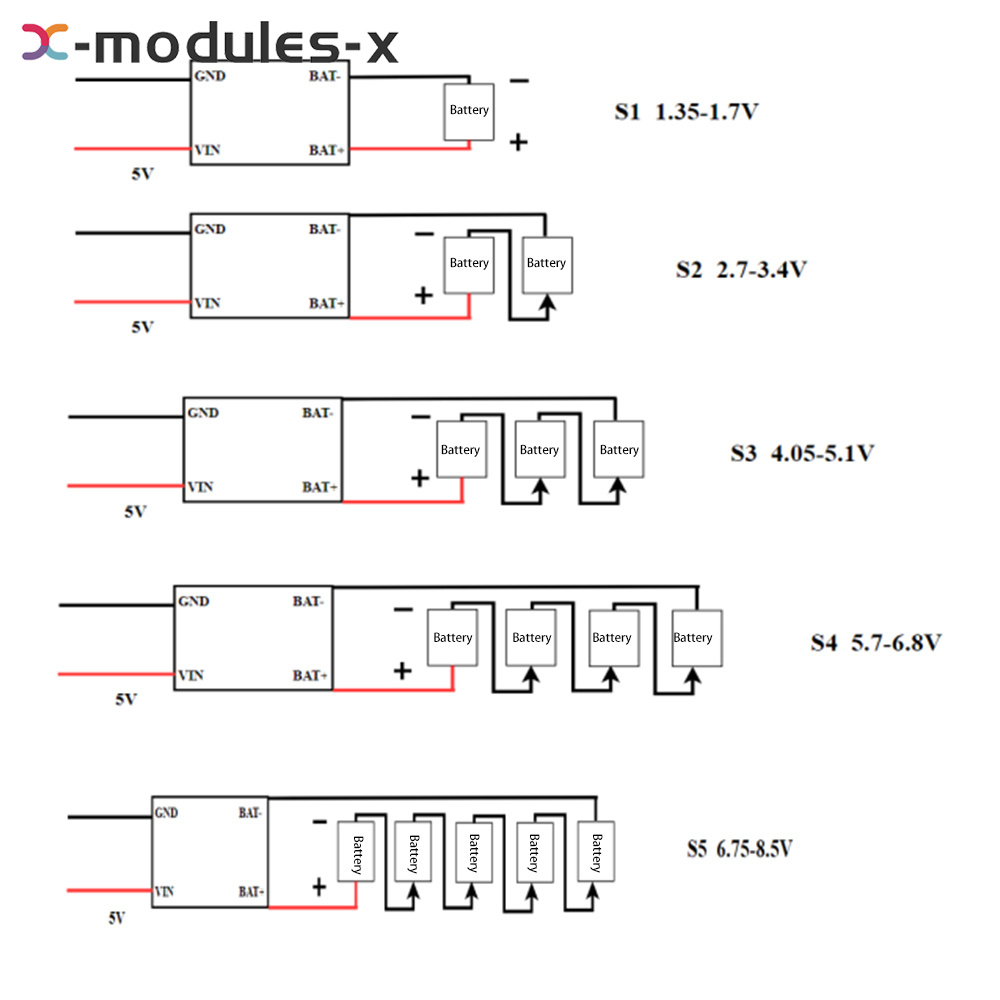

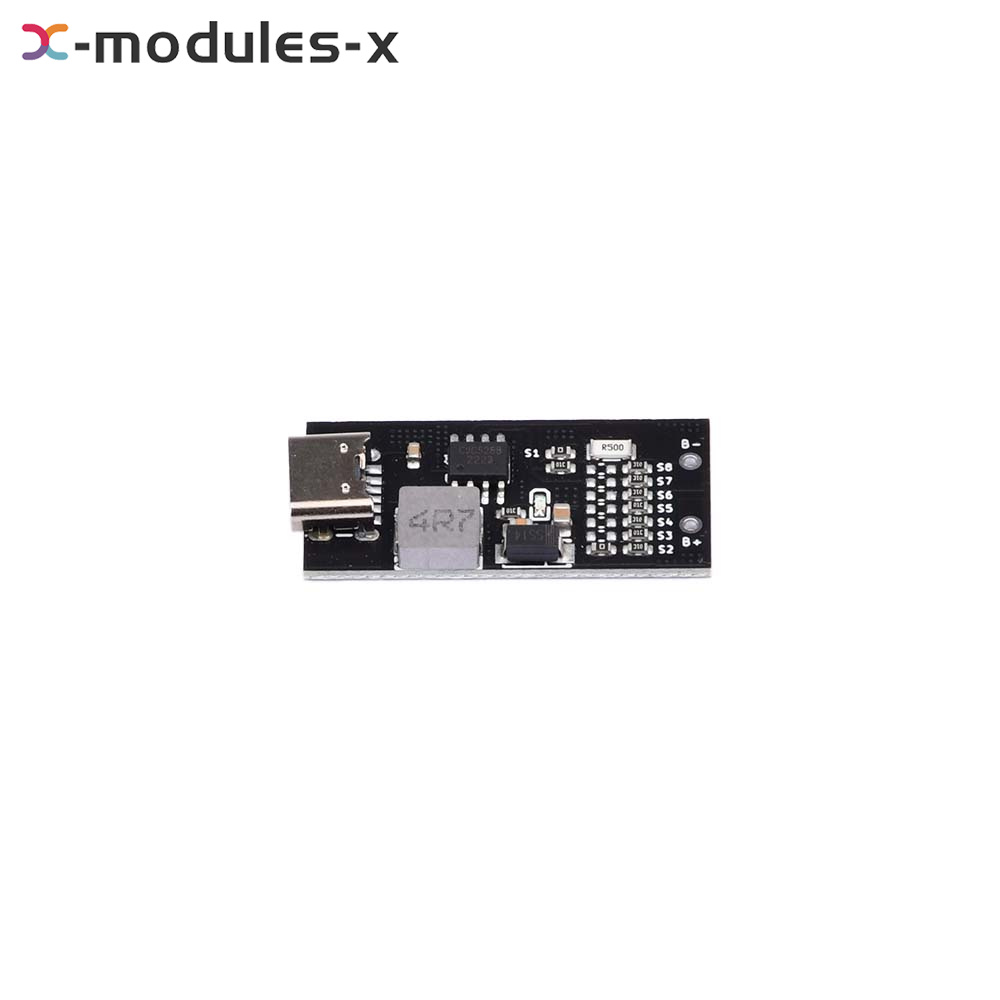

S1 charges a battery, the charging voltage range of S1 is 1.35 to 1.7V, and the current range is 230 to 240mA.
S2 charges two batteries, the charging voltage range of S2 is 2.7 to 3.4V, and the current range is 230 to 240mA.
S3 charges three batteries, the charging voltage range of S3 is 4.05 to 5.1V, and the current range is 230 to 240mA.
S4 charges four batteries, the charging voltage range of S4 is 5.7 to 6.8V, and the current range is 230 to 240mA.

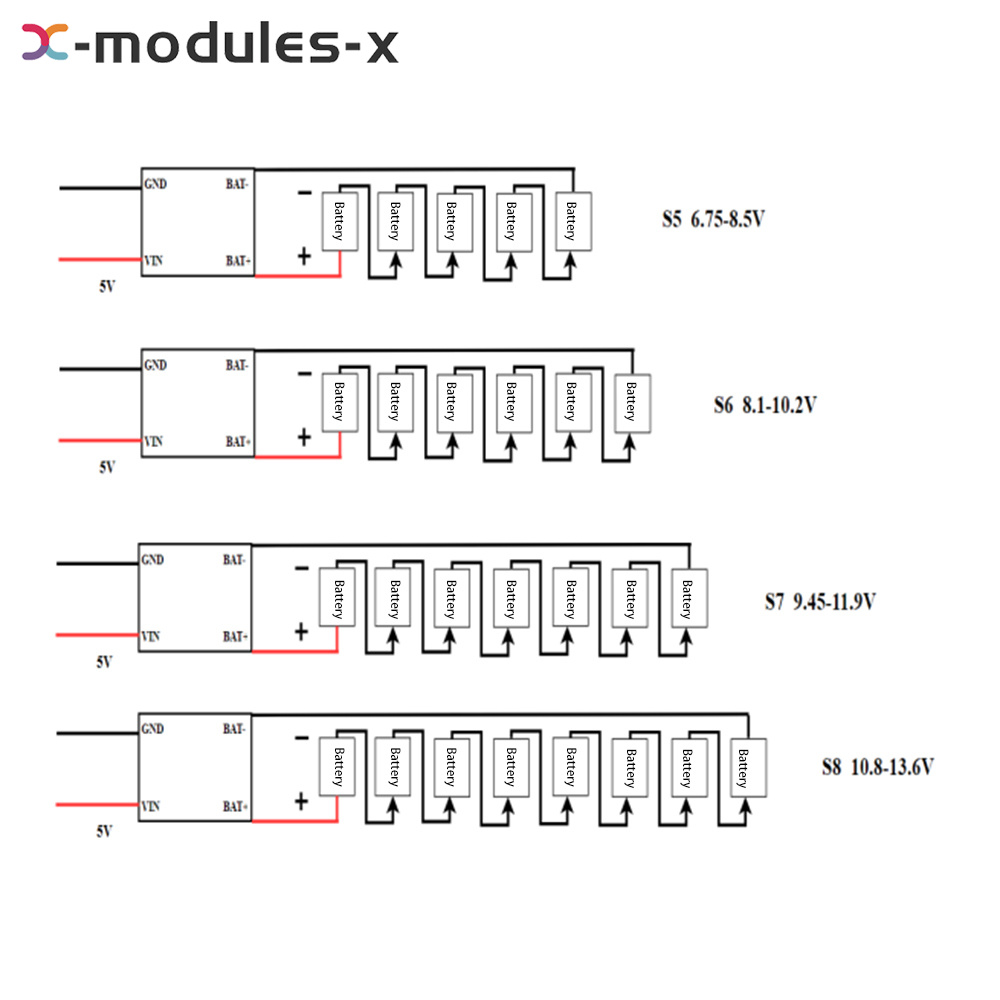

S5 charges five batteries, the charging voltage range of S5 is 6.75 to 8.5V, and the current range is 230 to 240mA.
S6 charges six batteries, the charging voltage range of S6 is 8.1 to 10.2V, and the current range is 230 to 240mA.
S7 charges seven batteries, the charging voltage range of S7 is 9.45 to 11.9V, and the current range is 190 to 210mA.
S8 charges eight batteries, the S8 charging voltage ranges from 10.8 to 13.6V, and the current range is 190 to 210mA.
Product parameters:
Operating ambient temperature: -40° to +85°
Storage temperature: -65° to +125°

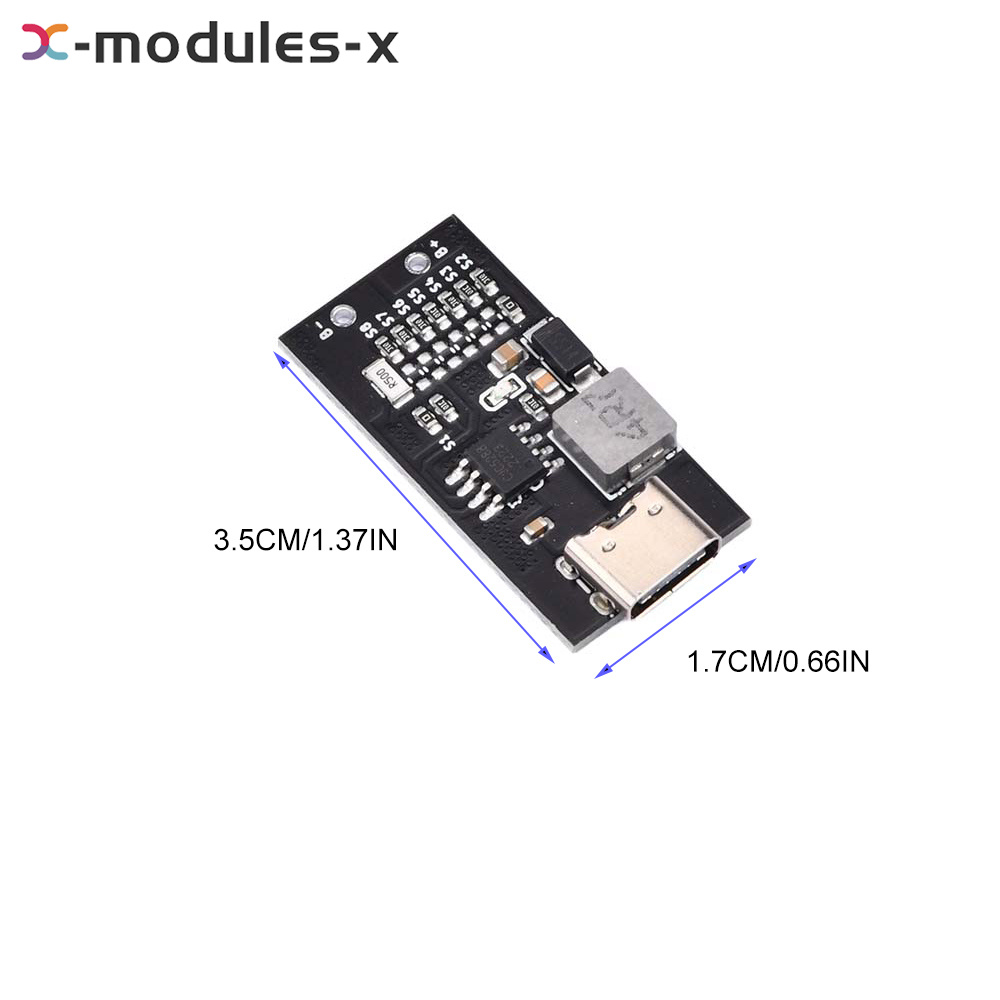

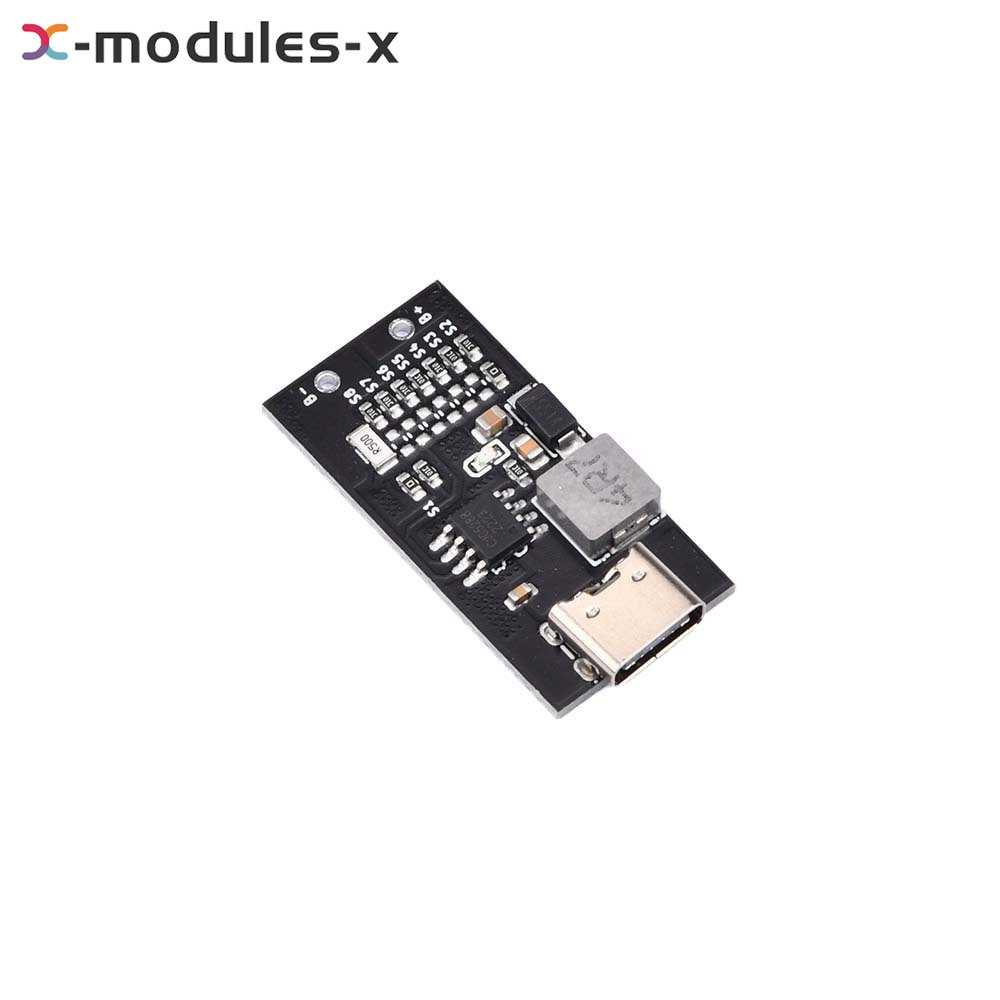

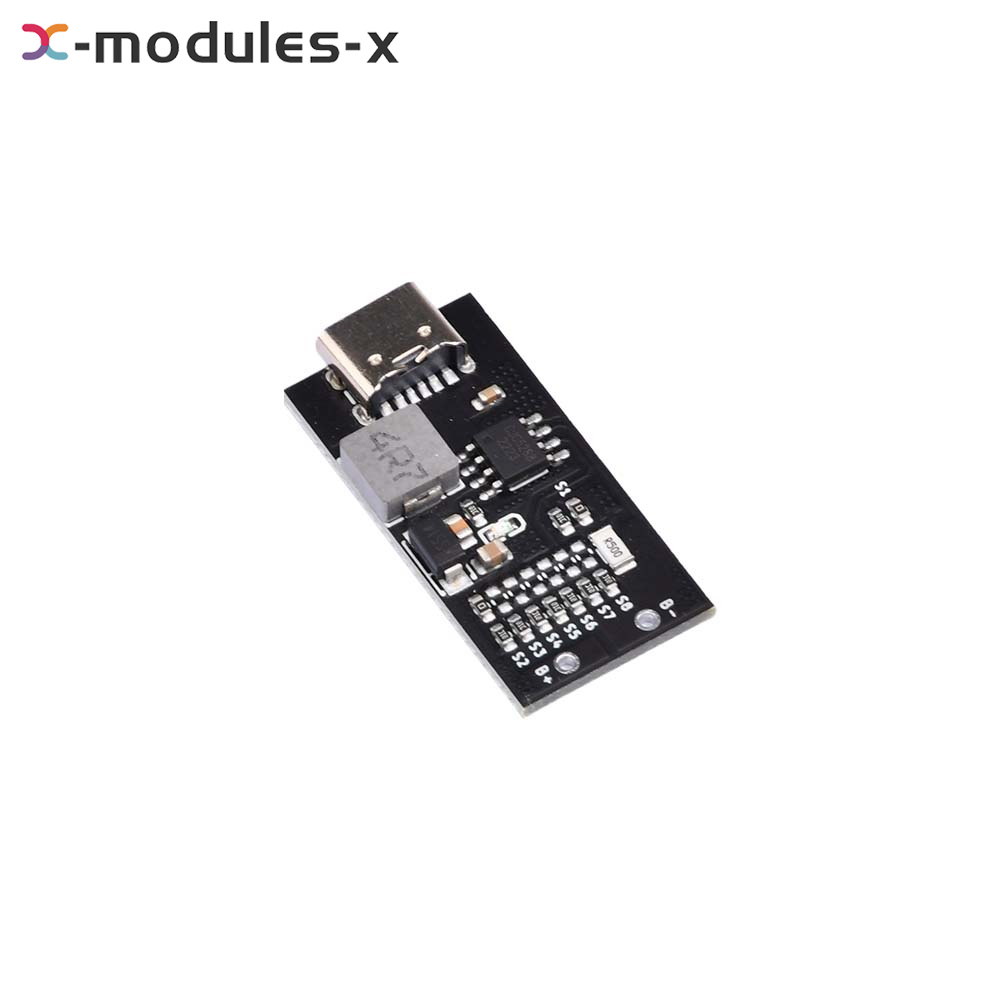

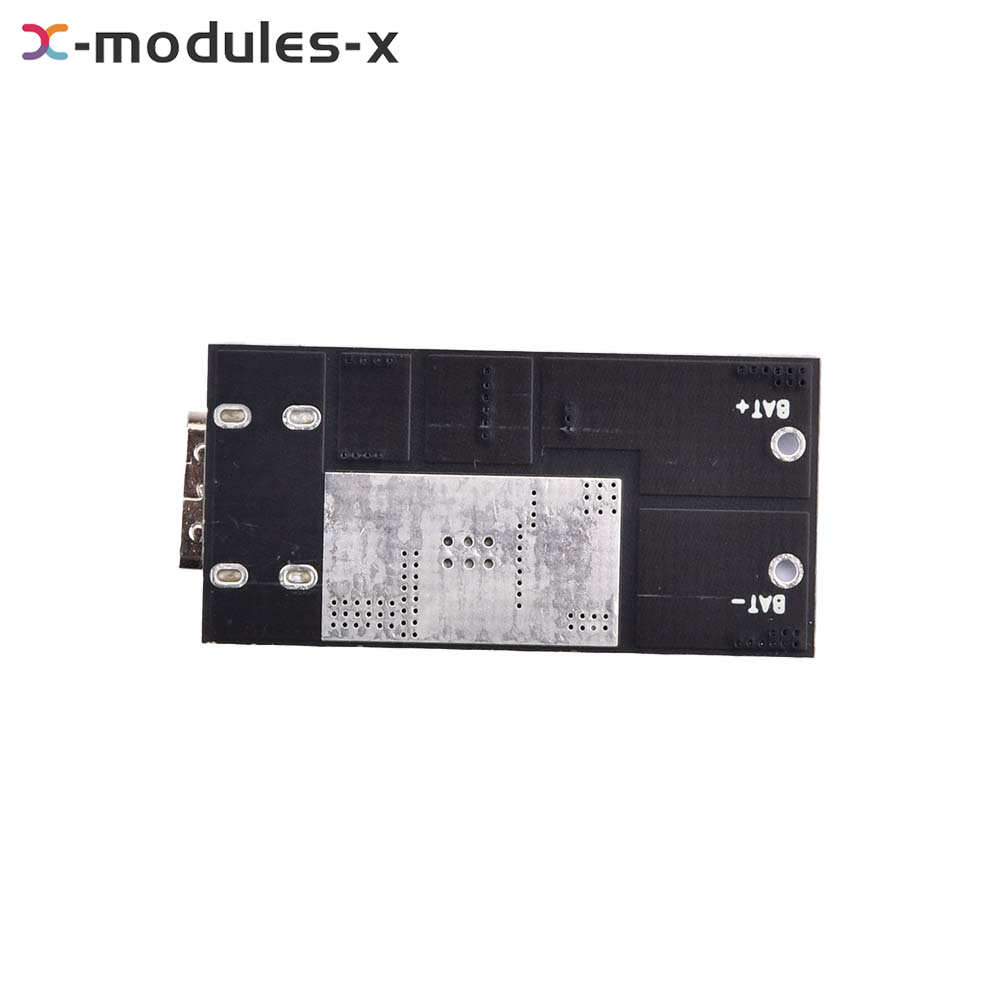

Module size 33.33mm x 16.61mm x 1.2mm
Applications: Children's toy cars Digital cameras Solar charging Bluetooth applications Audio equipment Digital cameras Electronic dictionaries
Portable device:
1-8 Ni-MH battery charger
1-8 NiCd battery charger

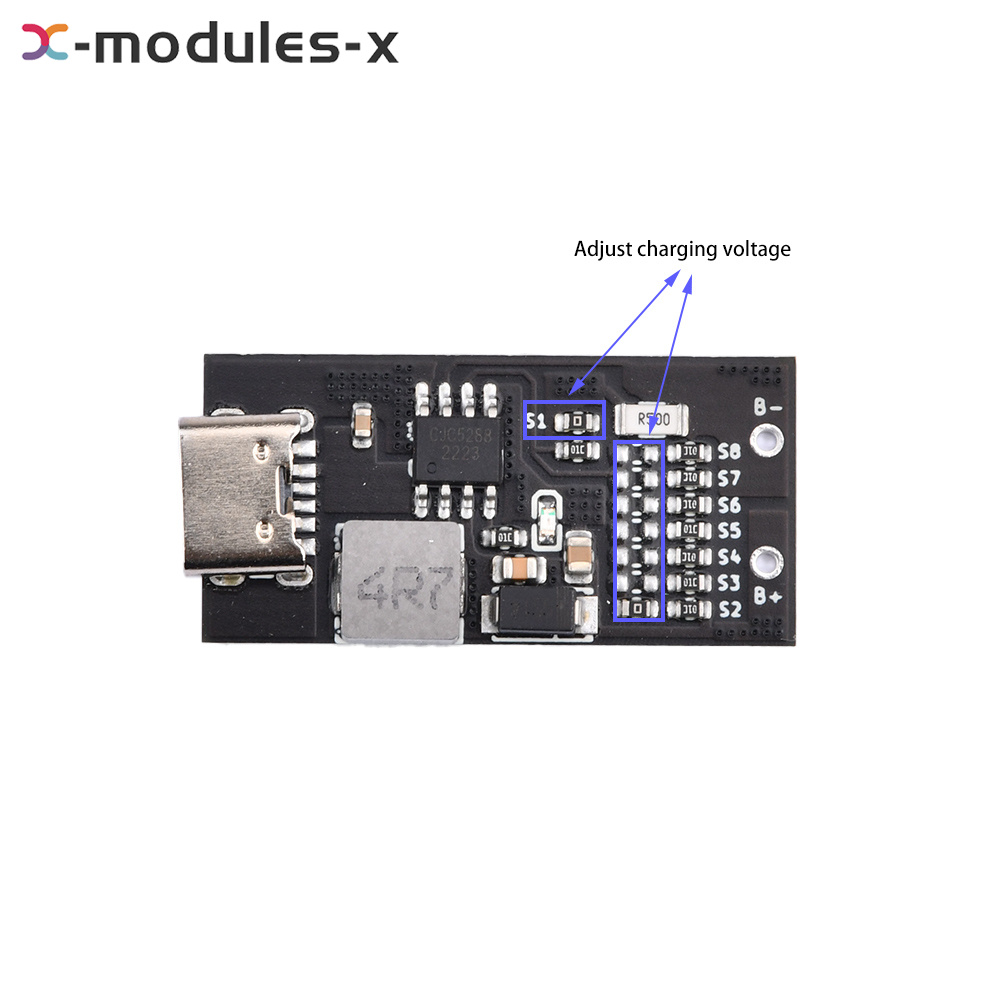

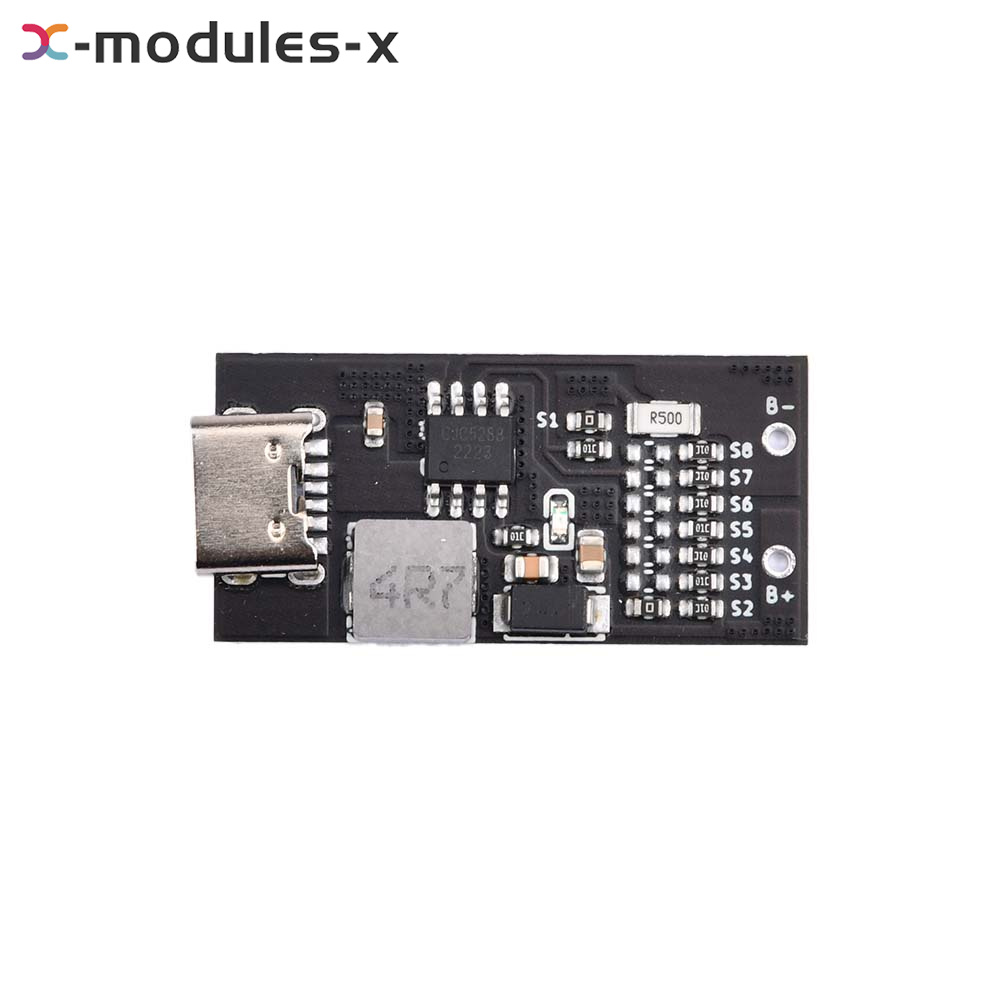

Instructions for switching the battery charging quantity:
Before charging S1, remove the resistor at S1 and keep the resistor at S2.
S2 charging, the default is to charge 2 batteries.
Before charging S3, keep the resistor at S1, and solder the resistor at S2 to the corresponding blank position of S3.
Before charging S4, keep the resistor at S1, and solder the resistor at S2 to the corresponding blank position of S4.
Before charging S5, keep the resistor at S1, and solder the resistor at S2 to the corresponding blank position of S5.
Before charging S6, keep the resistor at S1, and solder the resistor at S2 to the corresponding blank position of S6.
Before charging S7, keep the resistor at S1, and solder the resistor at S2 to the corresponding blank position of S7.
Before charging S8, keep the resistor at S1, and solder the resistor at S2 to the corresponding blank position of S8.
Product List:
1X module
