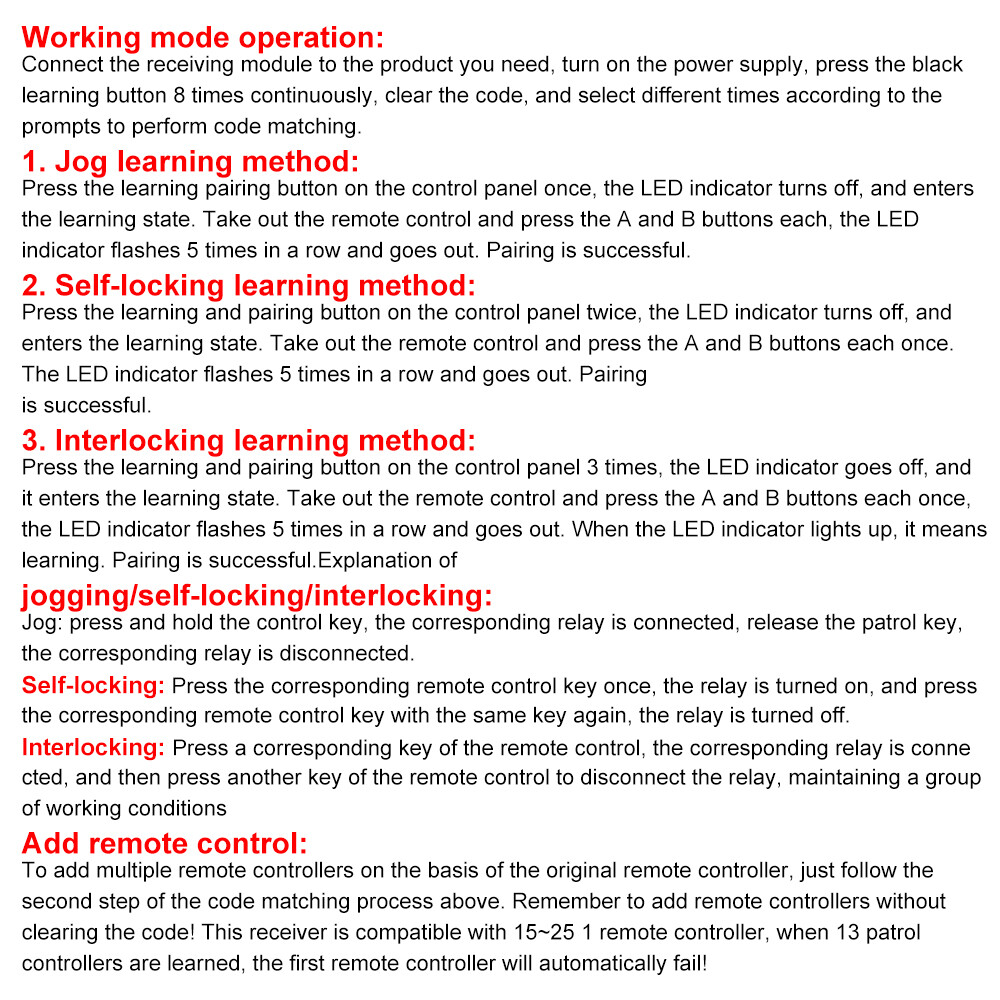

Product features and working mode operation:

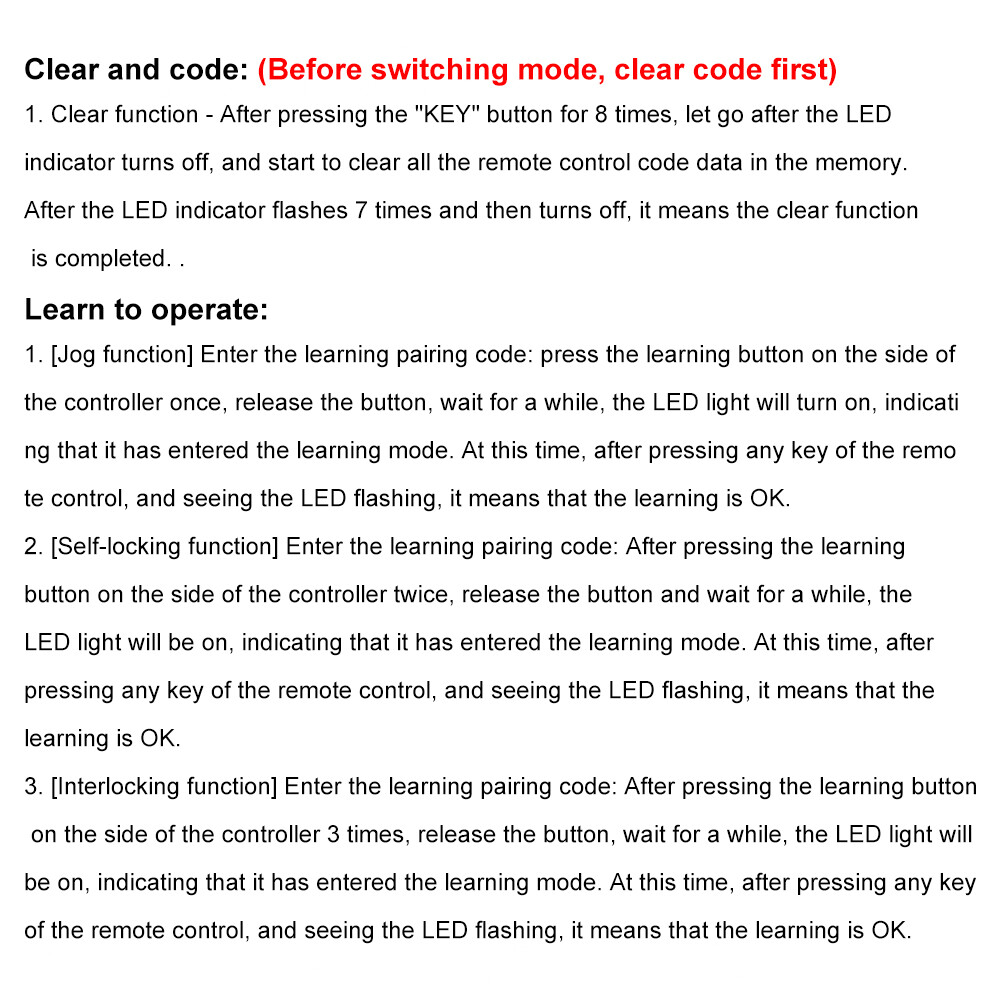

Connect the receiving module to the product you need, turn on the power supply, press the black learning button 8 times in a row to clear the code, and select different times according to the prompts to perform code matching.
1. Jog learning method:
Press the learning and pairing button on the control panel once, the LED indicator turns off, and enters the learning state. Take out the remote control and press the A and B buttons each once. The LED indicator flashes 5 times in a row and goes out. Pairing is successful.
2. Self-locking learning method:
Press the learning and pairing button on the control panel twice, the LED indicator turns off, and enters the learning state. Take out the remote control and press the A and B buttons each once. The LED indicator flashes 5 times in a row and goes out. Pairing is successful.
3. Interlocking learning method:
Press the learning and pairing button on the control panel 3 times, the LED indicator turns off, and enters the learning state. Take out the remote control and press the A and B buttons each once. The LED indicator flashes 5 times in a row and goes out. Pairing is successful.
Explanation of jog/self-locking/interlocking:
Jog: Press and hold the remote control key, the corresponding relay is connected, release the remote control key, the corresponding relay is disconnected.
Self-locking: Press the corresponding remote control key once, the relay is turned on, and press the corresponding remote control key with the same key again, the relay is turned off.
Interlocking: Press a corresponding key of the remote control, the corresponding relay is connected, and then press another key of the remote control to disconnect the relay, maintaining a group of working conditions.
Add remote control:
To add multiple remote controllers on the basis of the original remote controller, just follow the second step of the code matching process above. Remember that adding a remote controller does not require clearing the code! This receiver is compatible with 15~25 remote controllers. When 13 remote controllers are learned, the first remote controller will automatically fail!
Specification:

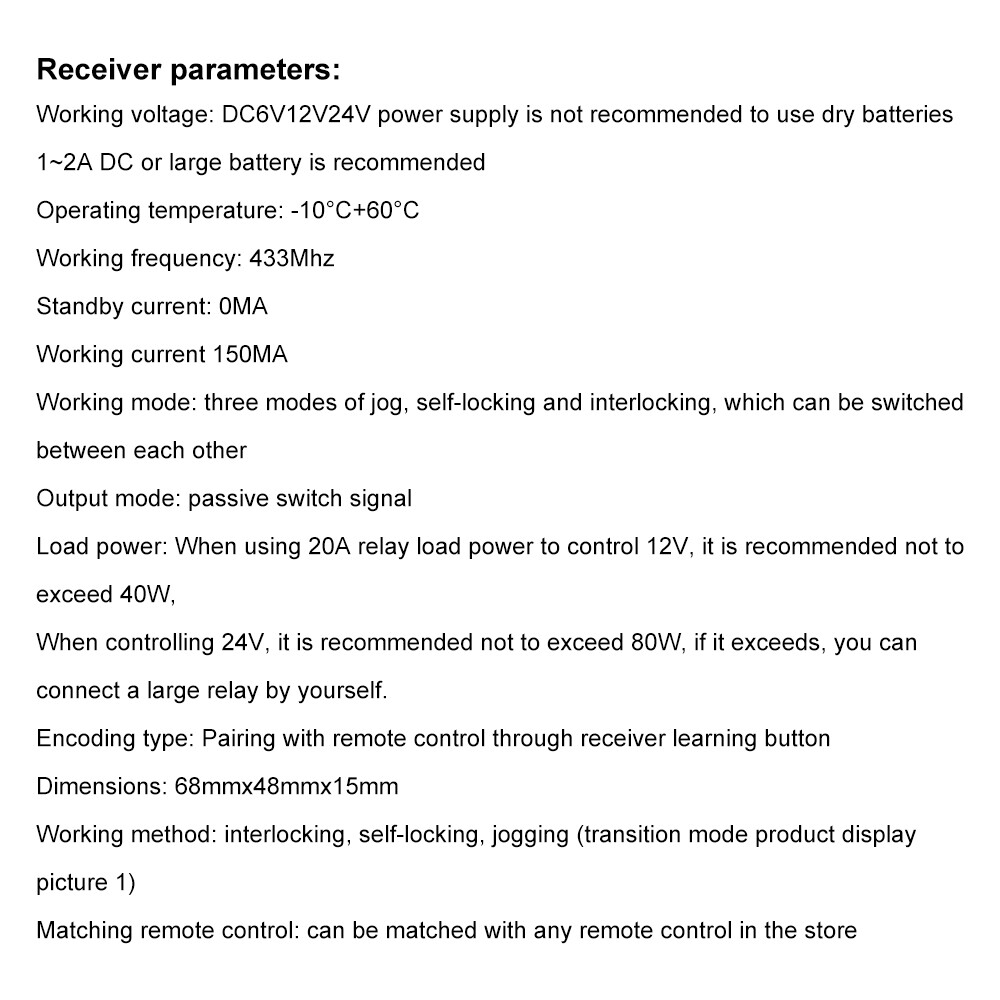

Receiver parameters:
Working voltage: DC6V 12V 24V power supply is not recommended to use dry batteries
1~2A DC or large battery is recommended
Working temperature: -10℃+60℃
Working frequency: 433Mhz
Standby current: 0MA
Working current 150MA
Working mode: three modes of jog, self-locking and interlocking, which can be switched between each other
Output mode: passive switch signal
Load power: When using 20A relay load power to control 12V, it is recommended not to exceed 40W, and when controlling 24V, it is recommended not to exceed 80W. If it exceeds, you can connect a large relay by yourself.
Encoding type: Pairing with remote control through receiver learning button

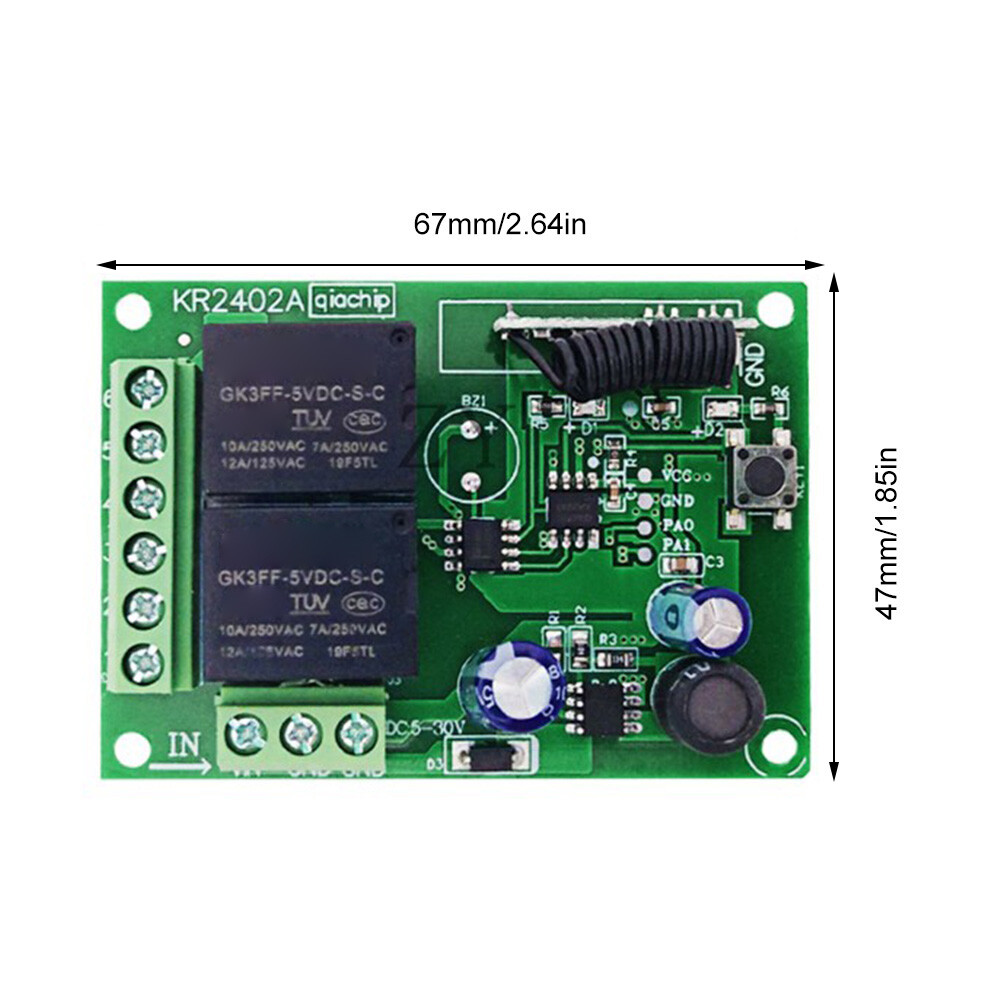

Dimensions: 68mmⅹ48mmⅹ15mm
Working mode: interlocking, self-locking, jogging (transformation mode product display picture 1)
Matching remote control: can be matched with any remote control in the store
Package List:

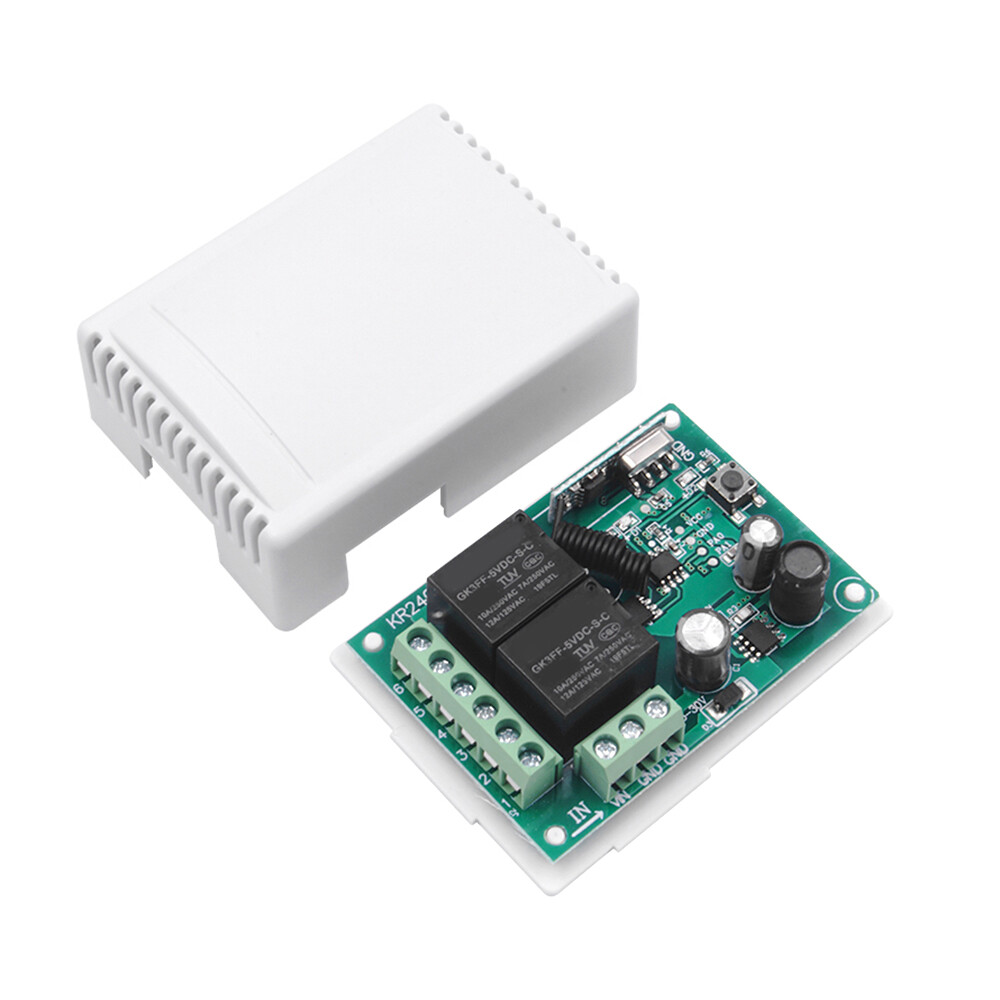

1x Module
2x Remote Control (battery not included)
