Feature:
1>.18pcs highlight LED
2>.Perfect simple circuit
3>.Two position brightness control
4>.DIY hand soldering
5>.Infrared Remote Control
Parameter:
1>.Product Name: RCN-1 IR Control Lamp DIY Kit
2>.Product Number: RCN-1
3>.Work Voltage: DC 9V-12V
4>.Work Current: 30mA
5>.Power Type: 5.5mm Power Socket or 9V Battery(Not Included!)
6>.Work Mode: Switch or Infrared Remote Control
7>.Color: White LED
8>.Work Temperature: -40℃~85℃
9>.Work Humidity: 5%~85%RH

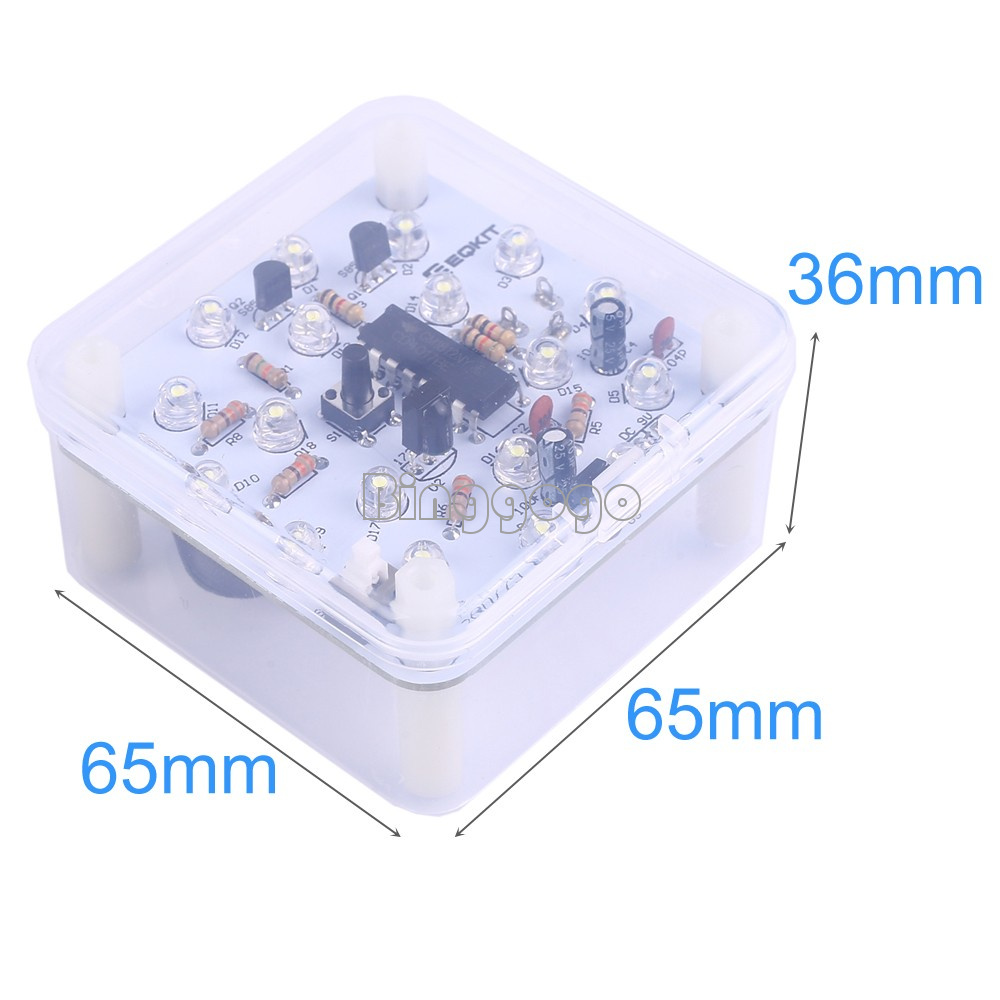

10>.Size(Installed): 65*65*36mm
Function:
1>.S1 black button is used to turn ON or OFF lamp.
2>.S2 self-locking switch is used to change led brightness. 18pcs LED turn ON.
3>.Any infrared remote controller to control the lamp on or off.
