Feature:
1. Small size, complete functions, simple operation and easy to carry.
2. It can be powered by an adapter or a lithium battery.
3. The good accuracy and frequency stability of DDS are suitable for oscilloscope scanning time factor calibration.
4. Square wave output, suitable for oscilloscope attenuator and probe pulse characteristic adjustment.
5. With the oscilloscope, it can be used for test and debugging electronic circuits, and the frequency of audio amplifiers.
Test and measurement of characteristics and impulse response.

Specification:
1. Frequency range: sine wave 1Hz-500kHz (where the output amplitude is flat to 200
kHz, as the frequency further increases, the output amplitude will decrease), other waveforms 1Hz-50kHz
(But the upper limit of the adjustable frequency is not limited. If the distortion and shaking requirements are not high, use the frequency can be further increased).
2. Resolution: 1Hz.
3. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave,
Electrocardiogram, noise wave.
4. Sine wave distortion: <1% below 1kHz, <0.5% above 1kHz.
5. Output amplitude: maximum ±10V (P-P).
6. Output impedance: 50 ohms.
7. DC offset: maximum ±10V, with shutdown function.
8. All setting parameters can be saved
9. There are filters that can be turned on and off, which can adapt to the output of sine and pulse waveforms.
10. Power supply: DC3.5-10V. Recommend to use DC5V adapter, or 3.7V lithium battery.
11. Size: 140x80x27mm
12. Output port specifications: bnc

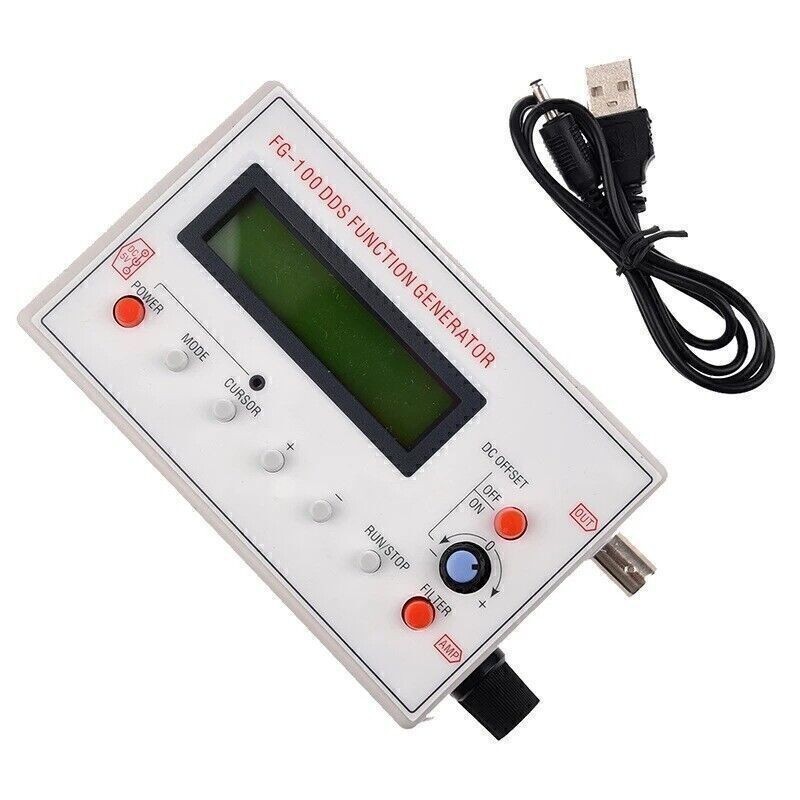

13. Button description:
MODE: Waveform switch button
CURSOR: Cursor steady movement button
RUN/STOP: start to output waveform
+: frequency plus
-: Frequency reduction
OFFSET adjusts the waveform offset
AMP modulation waveform amplitude
Output frequency range:
Sine wave: 1Hz-500KHz (effective range)
Square wave: 1Hz-20kHz (effective range)
Triangle wave: 1Hz-20KHz (effective range)
Sawtooth wave: 1Hz-20kHz (effective range)

Package include:
1 *DDS function signal generator
1 *USB to DC power cord

Note:
1. Please allow minor errors caused by manual measurement.
2. The colors may be different due to the different displays, please understand.
