DESCRIPTION

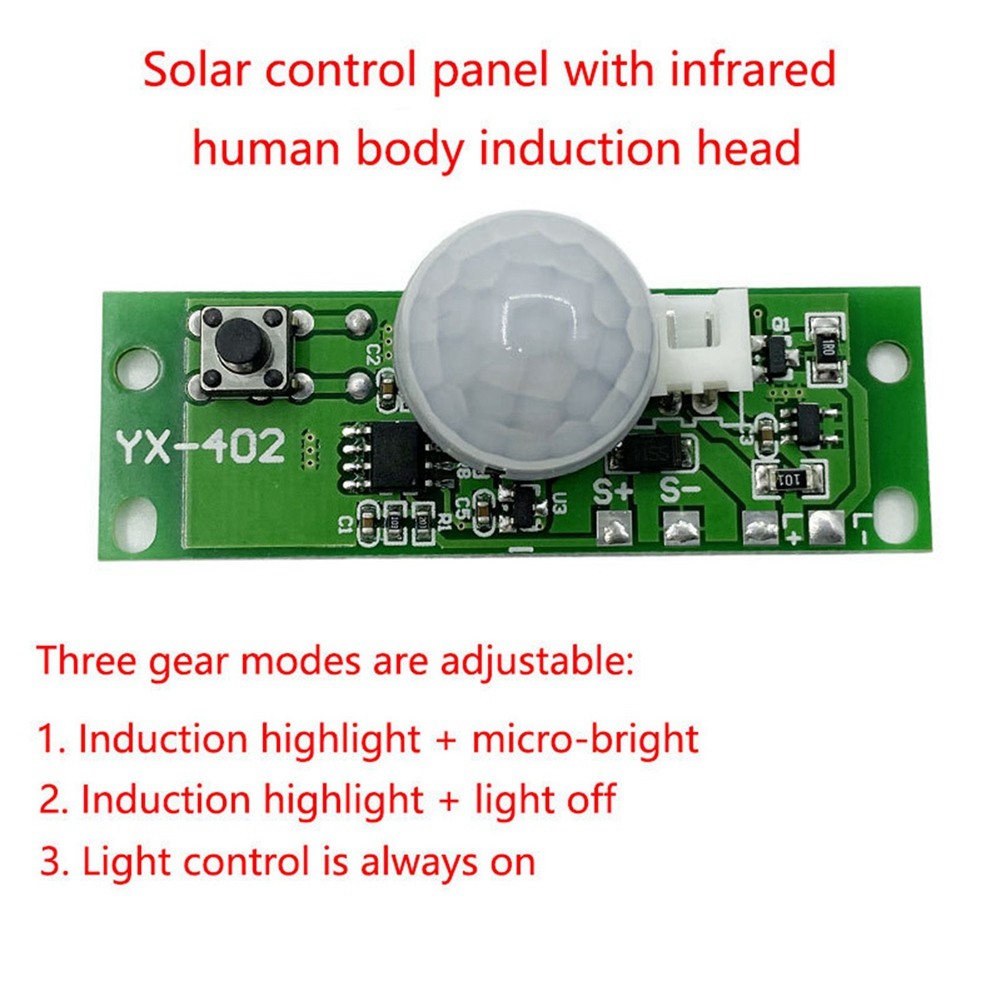

DIY Kits Solar Night Light Circuit Board Control Sensor Lithium Battery 9344
Solar panel input power:Less than 6V6W
LED power:Less than 3V5W
Sensing method:Human body infrared sensing
Sensing distance:about 2-5 meters (depending on ambient temperature)
Sensing time:25 seconds
Rated battery voltage:3.7V battery
When connected to a 3.7V battery, there is overcharge and over-discharge protection.
To connect a 3.2V battery, the battery must come with its own protection board.

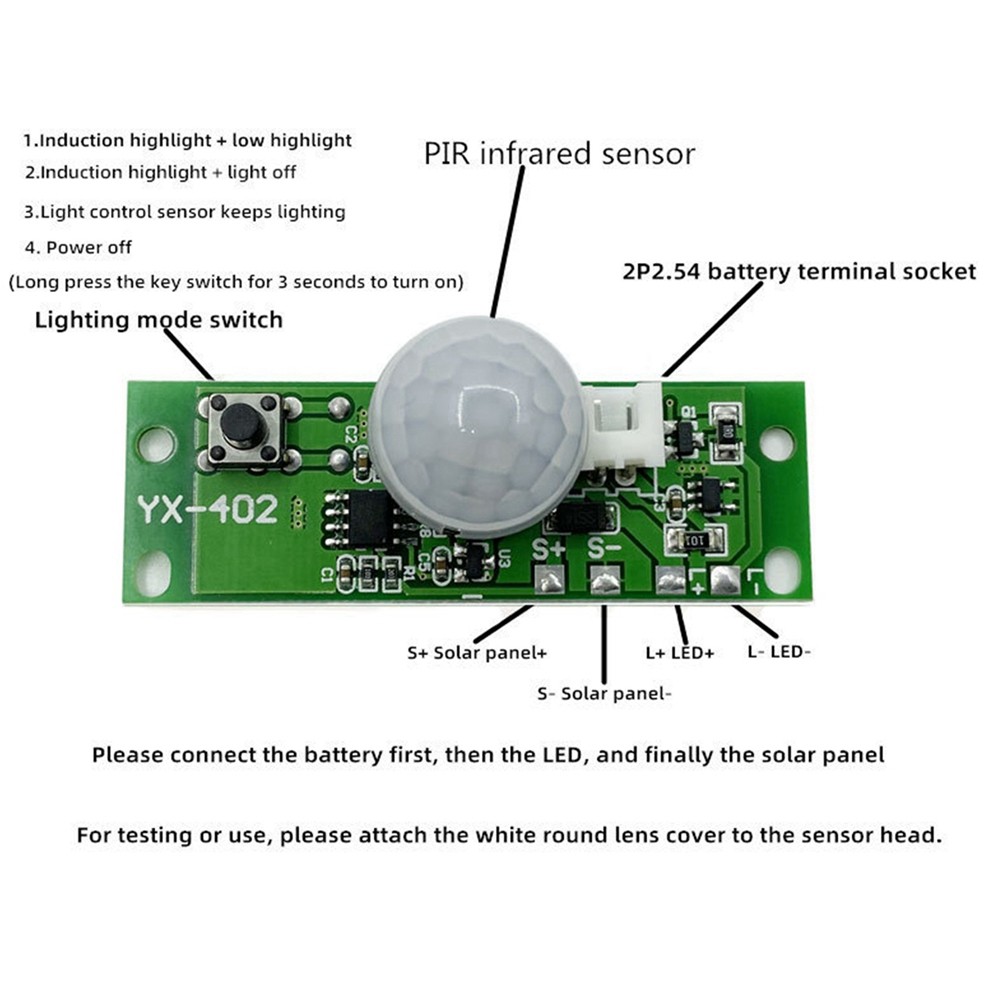

Three lighting modes:
1. Inductive highlight + micro-brightness
2. Induction highlight + light off
3. Light controlled and always on
It is the mode after powering on for the first time.
Short to switch to another gear
Short for the third time to shut down. To turn on again, you need to and hold the switch for 3 seconds.
Do not turn off the switch when charging under sunlight. The switch needs to be in the normally open state to charge.
Please put the white lens cover on the sensor head during testing or after installation.
Tips:The product may be updated constantly, The Actual Product May Have Slight Differences Or Color Differences the color and appearance may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.
Colour:As Shown
Material:PCB
Package Contents:
1 * Solar wall light control panel
