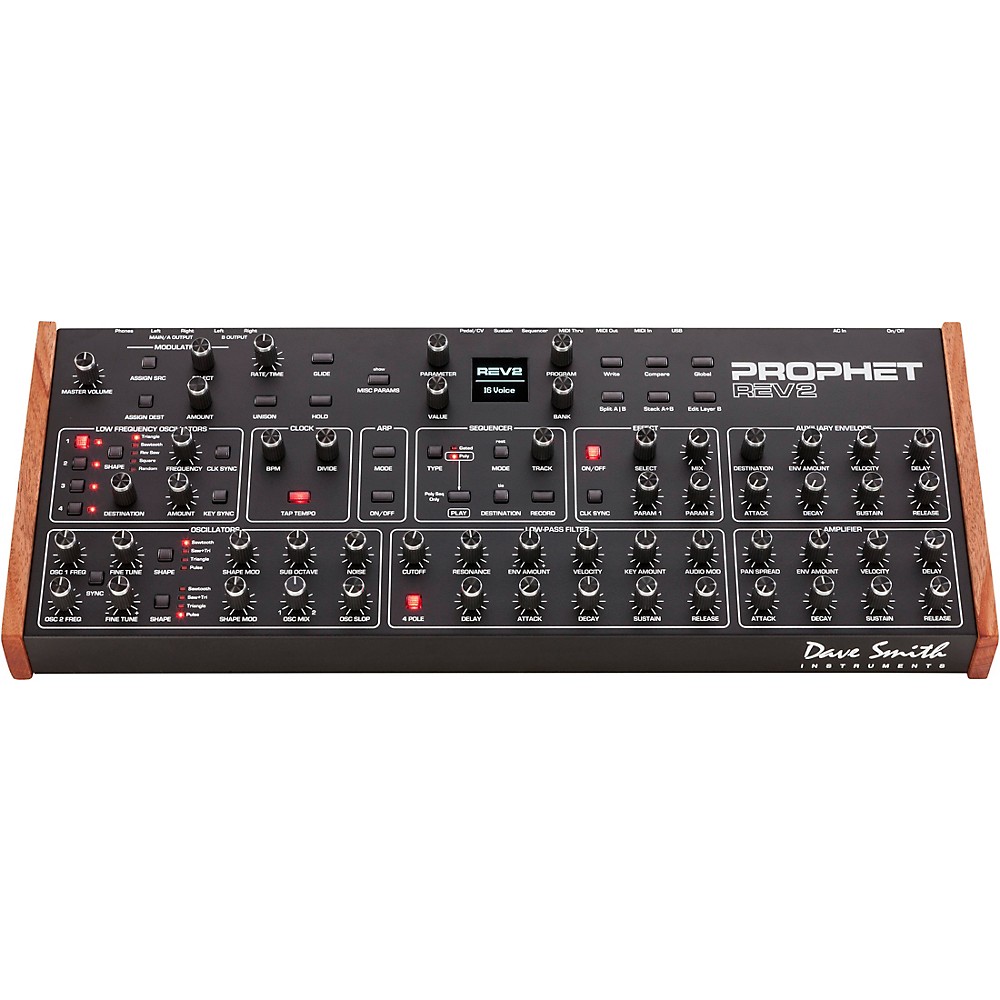

Dave Smith Instruments Prophet Rev2 Synthesizer Module 16 Voice

item# 1500000145799

New

The desktop module version of the Prophet Rev2 analog synthesizer features two DCOs per voice, Curtis filters along with digital effects, two types of sequencers, and other enhancements that make it even more powerful than its predecessor, the Prophet ’08.

The Prophet Rev2’s sound comes from two DCOs per voice with four waveshapes (sawtooth, triangle, sawtooth + triangle, and pulse), a sub-octave generator and a 2/4 pole low-pass, resonant Curtis filter per voice. These are the same filters used in the Prophet ’08, and also in many classic instruments of the ’70s and ’80s.

A new feature unique to the Prophet Rev2 is waveshape modulation. You can vary the “pulse width” of any of the four waveforms by manually dialing in a desired waveshape width or by using an LFO or other modulation source for continuously shifting timbre.

An effects section provides reverb, delays (standard and BBD), chorus, phase shifter, ring modulation and distortion, and iIn stacked or split voice mode, you can apply a different effect to each layer. Effects parameters can be modulated through the mod matrix, which is twice as extensive as its predecessor, with 8 individual slots and many more sources/destinations.

The new polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. A different sequence can be created for each layer when working in stacked or split voice mode. The sequencer also functions as a modulation source, allowing you to create up to 4 different 16-step sequences for complex modulation. Sequences allow ties and rests, and can sync to an external MIDI clock.

The arpeggiator features note repeats, re-latching, and can be synced to external MIDI clock, as well. Other improvments include a premium-quality, ve-octave, semi-weighted keyboard with velocity and channel aftertouch, an integrated power supply, USB support, and a crisp OLED display.

Features:

16-Voice polyphony
Bold, punchy sound
Waveshape modulation
Effects section
Extended Mod Matrix
Poly step sequencing
Per-Knob programmability

Specifications:

OSCILLATORS
2 DCOs per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
Glide: separate rates per oscillator
White noise generator
Analog VCAs
Hard sync

FILTERS
1 analog Curtis low-pass filter per voice
Selectable 2- and 4-pole operation (self-resonating in 4-pole mode)

ENVELOPES
3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay)
Envelope 3 can loop.

SEQUENCER
Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests
Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence

LFOS
4 LFO’s with key sync per LFO

MODULATION
8-slot modulation matrix
22 sources
53 destinations
5 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch

ARPEGGIATOR
Programmable arpeggiator with up, down, up+down, random, assign modes
Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
One, two, or three octave range
Re-latching arpeggiation
Note repeat

CONTROLS
5-octave keyboard with semi-weighted action, velocity, and aftertouch
55 knobs and 35 buttons enable deep and comprehensive editing
Spring-loaded pitch wheel and assignable mod wheel

MEMORY
512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program
IN/OUT
MIDI In, Out, Thru
Main stereo audio output: 1/4 in. unbalanced
Output B stereo audio output: 1/4 in. unbalanced
Sustain pedal input: accepts normally on or normally off momentary footswitch
Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages)
Headphone output: 1/4 in. stereo phone jack

POWER
IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration)

PHYSICAL SPECS
Oiled African mahogany wood end panels
Dimensions: 12.70 x 35.12 x 3.80 in.
Weight: 20.5 lbs. (9.3 kg)
