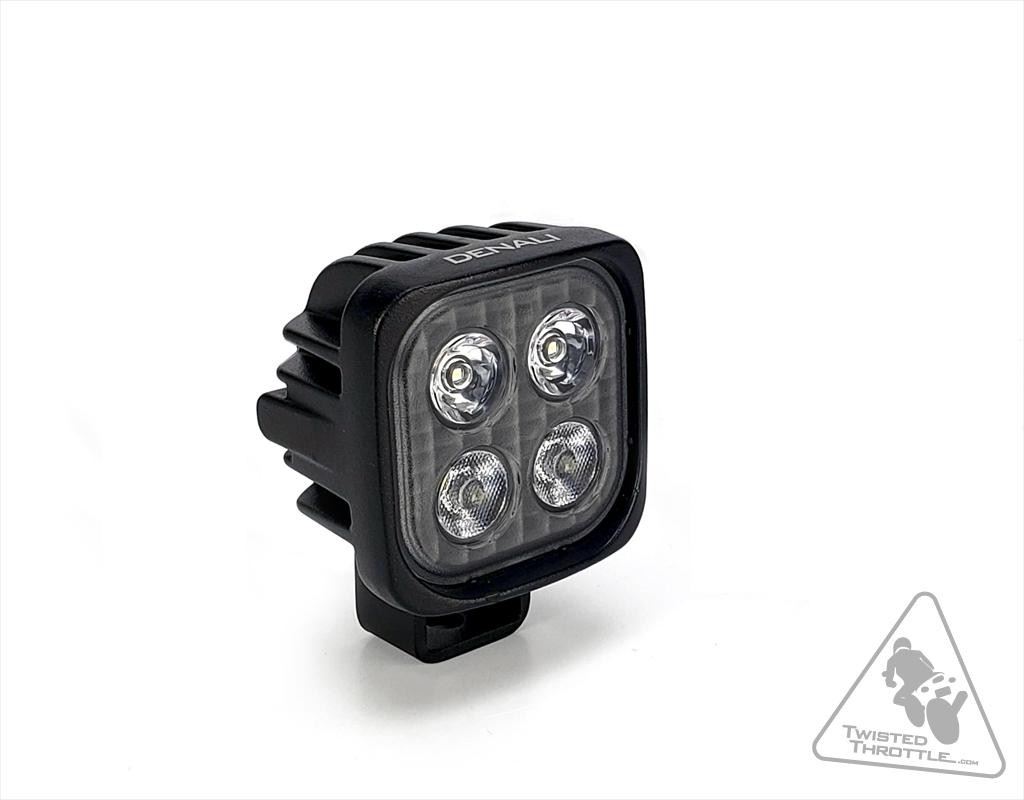

The S4 is the first light we developed as part of our new S-Series product line. At over 3000 lumens, the S4 provides more light per dollar than just about anything else on the market. The new S-Series lights were specifically engineered to reduce cost without sacrificing performance, quality or durability. In fact, the S4 features the same high intensity LEDs as the D-Series lights, but utilize a single-piece optic and sealed beam construction to reduce the number of unique components. The result is a super durable high performing light that won't break the bank. The fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing.

The super versatile hybrid lens and compact size make the S4 our go-to driving light for mid-sized motorcycles, roof/cargo lights for Side by Sides, and backup lights on Jeeps and trucks.

Consistent with D-Series lights, the S4 features DENALI’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller (DNL.WHS.11000) that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

More Flexibility, Maximum Control

For 2022 we have expanded on our standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options. Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!

• Standard Powersports Harness - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
• Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting
• Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit
• DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
• DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!
• CANsmart Controller - A complete accessory manager that has dozens of customizable settings for controlling the LED lights but can also be used to power and control any eletrical accessories from lighting and horns to heated grips, dash cams and GPS units.

S4 Light Pod Features

• High-Intensity Series Cree LEDs outputting 6132 lumens per pair
• Sealed beam lens increases durability and reduces cost without affecting light output
• DataDim™ equipped light pods enable plug and play connection, and integrated dimming, with DENALI dimming and lighting controllers.
• DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
• LiveActive Thermal Management keeps the LED's Cool
• Low Profile mounting bracket with stainless steel hardware included

S4 Pod Specs (pair)

• LED’s: (8x) 7 Watt Cree XPL HI
• Power Draw: 4.6 Amps
• Beam Distance: 540 Feet
• Beam Width: 100 Feet
• Raw Lumens: 6132
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC
• Pod Size: 2.75” Square x 1.97” Deep (each)
• Pod Weight: 0.8 lbs (each)
• IP67 Waterproof & Submersible

S4 Product Bundles - What’s Included?

This product page lets you customize your S4 light kit. Please note that the light pods and wiring harnesses are packaged separately.

S4 Light Pod Box Contents - DNL.S4.050

• (1x) LED Light Pod
• (1x) Hybrid Lens (Installed)
• (1x) M8 Mounting Hinge with Stainless Steel Mounting Hardware
• (1x) Wiring Pigtail

Product Details

• Variant: Default Title
• SKU: DNL.S4.050
• UPC : 810005872126
• Weight: 0.0 lb
• Product Type: Driving Lights
• Brand: DENALI Electronics
