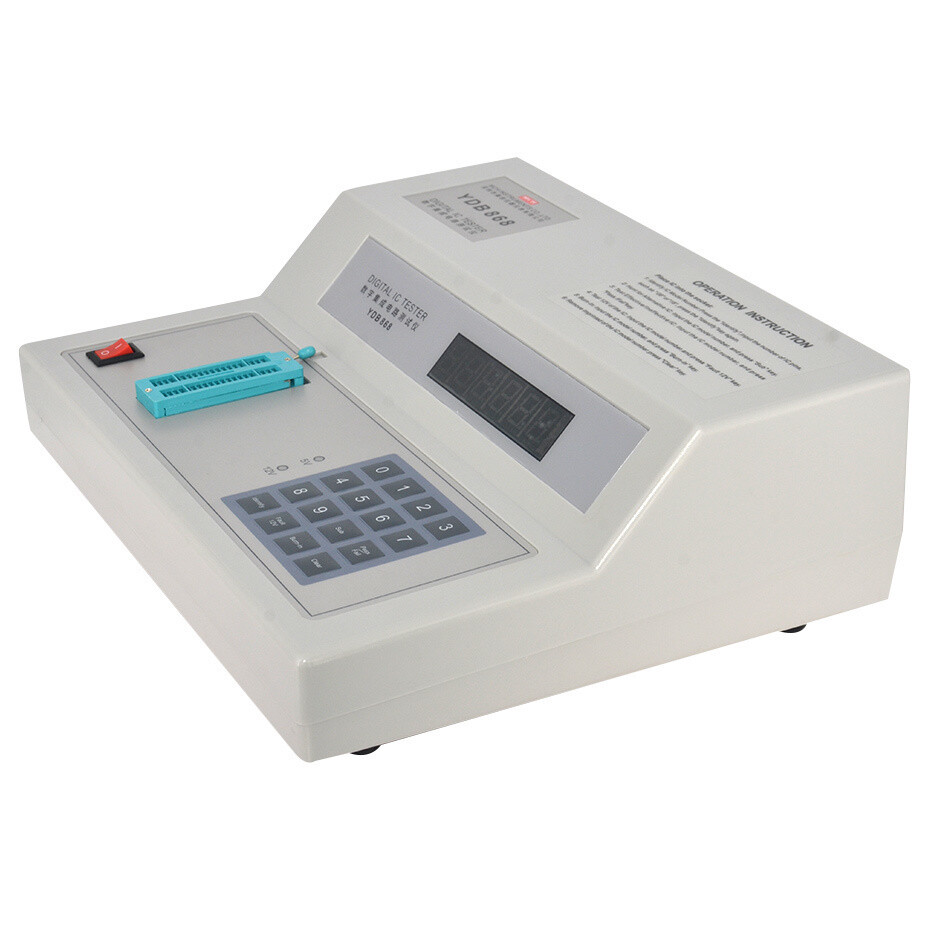

Upgrade Digital IC Tester Integrated Circuit Off Line Measuring-testing Instrument Desktop IC Chip Component Checking Machine

Feature Description:

After turning on the power, the instrument has the following reaction:

* There is a high single prompt

* Four LED light-emitting diodes are all bright

* After one second, the display is off, three LEDs are off, and only the 5V power indicator is on

* The instrument enters the self-test state

* Self test is normal, there are two high pitches, the display shows: PLEASE

* Self-test failure, there are two bass tips, the display shows: 1 - numerical or 2 - numerical

Note: When the power is turned on, there is no integrated block on the locking socket.



Technical Parameters:

1. Operating system: 16-position touch-sensitive stereo keyboard dual-tone prompt system, the device under test is installed with a locking socket.

2. Display System: The six-digit display shows the model number of the device under test or various function prompts. Four LEDs show the working status of the instrument.

3. Supply voltage: 220V or 110V

4. Total power consumption: 12VA

5. Applicable temperature: 0°C--+40°C

6. Working hours: Work for 1 hour, power outage for 5 minutes. If continuous operation, the power supply voltage ∠ 230V, the ambient temperature ∠ 25 °C.

7. Instrument Structure: Desktop Plastic Case

8. Size: 292*235*75 cubic centimeters

9. Weight: 4.0KG



Application area:

Widely used for maintenance, testing all types of computers, industrial automation equipment, large-scale medical equipment, CNC machine tools, computer peripherals, program-controlled switches, electronic instrumentation, digital communications equipment, electronic relay protection devices and various types of electronic products.



Can use to test over 2000 kinds of IC：

1.TTL54 series

2.TTL55 series

3.TTL74 series

4.TTL75 series

5.CMOS14 series

6.CMOS40 series

7.CMOS45 series

8.optical coupler series

9.LED display series

10.RAM series

11.SCM series

12.CPU peripheral series
