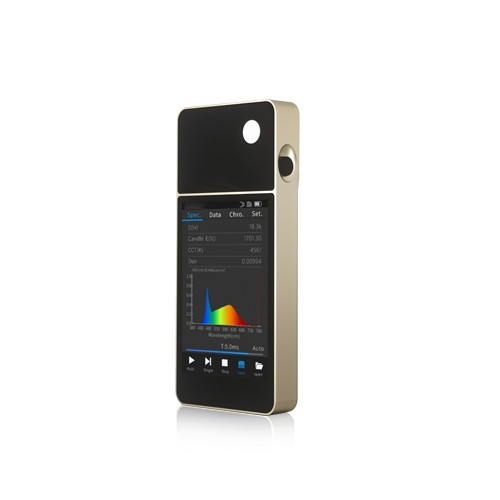

Digital Spectrometer Intelligent Optical Spectrum Analyzer Repeatability 0.2nm
Product Details
The optical spectrum analyzer uses high-precision CCD optical sensor . With light design , stable performance , good accuracy , high cost performance , convenient portable and other features , equipped with 3.5 inches touch display screen , which operate like using a mobile phone Sampling and measurement of light source can be performed real time and anywhere , with high-efficiency analysis and processing .Widely used in home , shopping malls , schools , indoor , outdoor and other on-site lighting testing . It can also be used in the research and development of light source products , production line quality monitoring , even used in the eyewear and jewellery industry . etc .
Model
/
Wavelength range
380-780nm
Light Splitting Mode
long focal cross section
Sensor
High precision CCD
Spectrai Bandwidth(FWHM)
2nm
Spectral Resolution
0.2nm X,Y repetitive ±0.0005
Wavelength Accuracy
±0.5nm
Lliuminantion Accuracy
(±4% Reading +1 Digital)
Lighting Area
10mm
Integrating Time
50us~10000ms
CHromaticity Coordinate Accuracy
±0.0025
CCT Range
1.000K~100,000K
Stray Light
≤0.3%
Lliuminance Range
5lx-200klx
