DESCRIPTION

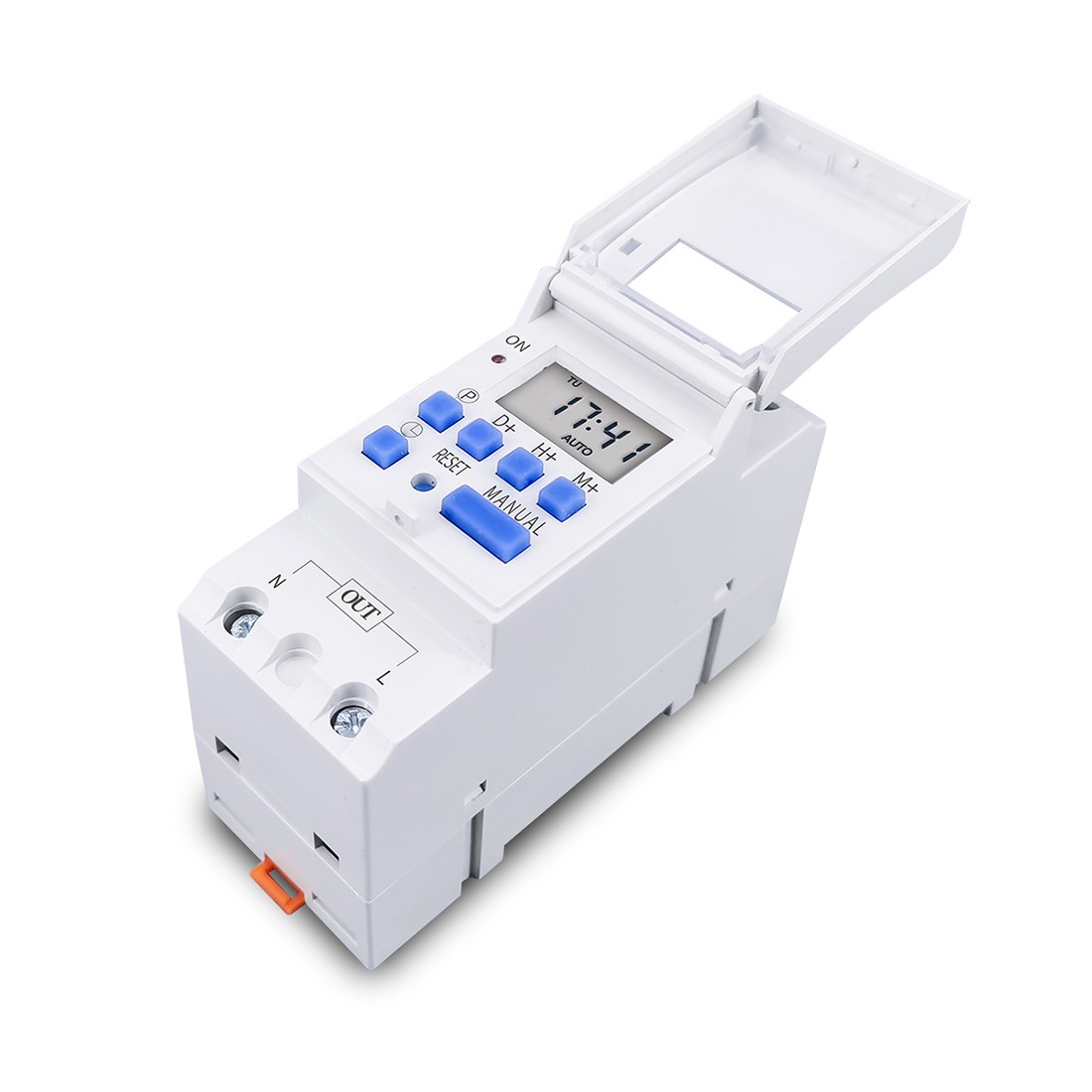

Din Rail 2 Wire Weekly Programmable Digital TIME Relay Timer8394
Product : AC means the products only work with AC current.
Panel mounted.
Advanced pre-setting one week before.
Digital electronic timer switch with daily and weekly programs.
Repeat programs with 16 on/off setting and manual override. NiH battery power reserve when electric supply cut off.
Color: gray white
Material: plastic

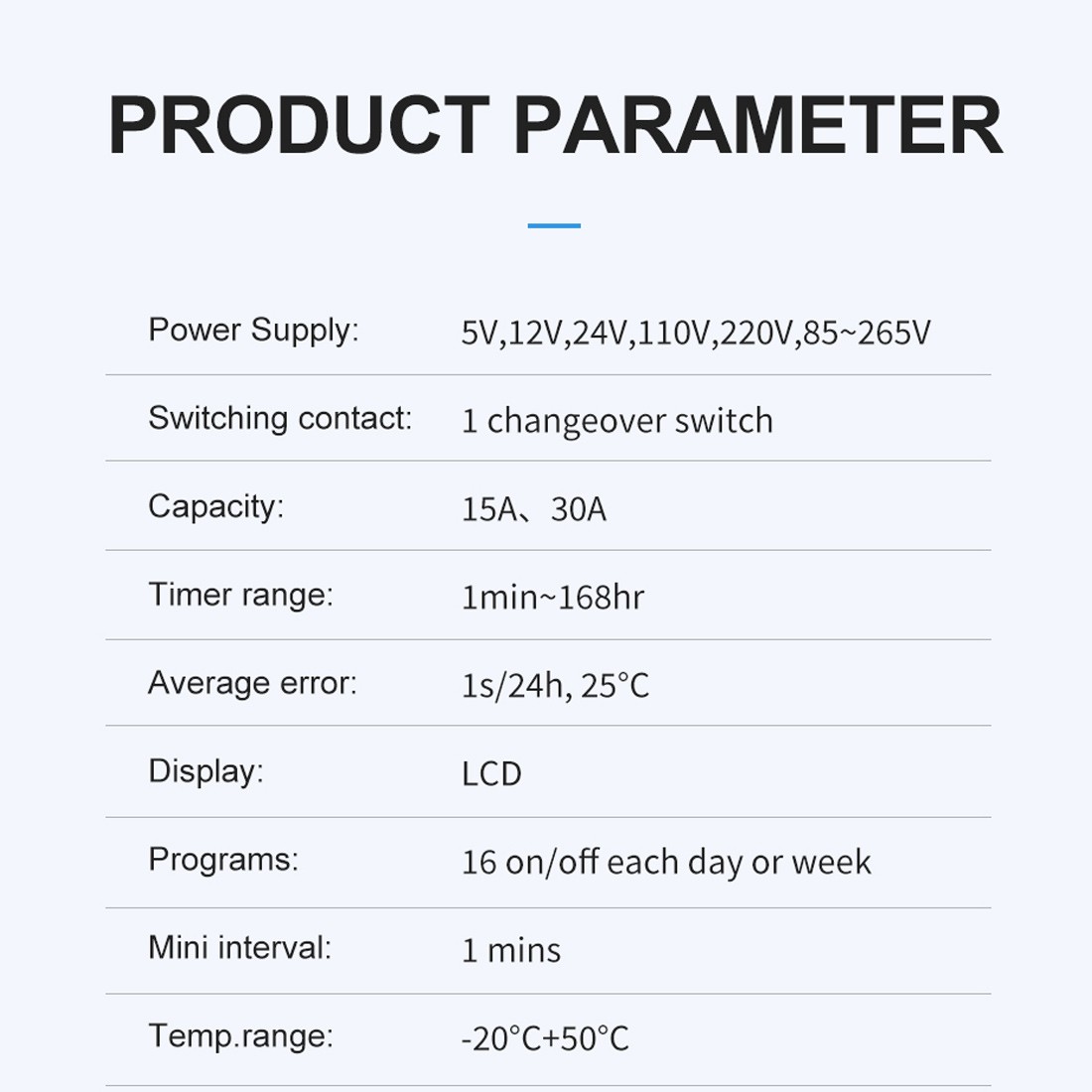

Technical Data:
Model: AHC30A
Temp.range: -20°C+50°C
Power Supply: AC 220V 30A
Power consumption 4.5 VA (MAX)
Display: LCD
Switching contact: 1 changeover switch
Programs:16 on/off each day or week
Hysteresis 2 sec/day (25°C)
Mini interval: 1min
Capacity: 16(8) 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C
Weight: 0.15kg
Package Contents:
1 x SWITCH Relay
Panel mounted.
Advanced pre-setting one week before.
Digital electronic timer switch with daily and weekly programs.
Repeat programs with 16 on/off setting and manual override. NiH battery power reserve when electric supply cut off.
Color: gray white
Material: plastic
Technical Data:
Model: AHC30A
Temp.range: -20°C+50°C
Power Supply: AC 220V 30A
Power consumption 4.5 VA (MAX)
Display: LCD
Switching contact: 1 changeover switch
Programs:16 on/off each day or week
Hysteresis 2 sec/day (25°C)
Mini interval: 1min
Capacity: 16(8) 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C
Weight: 0.15kg
Package Contents:
1 x SWITCH Relay
