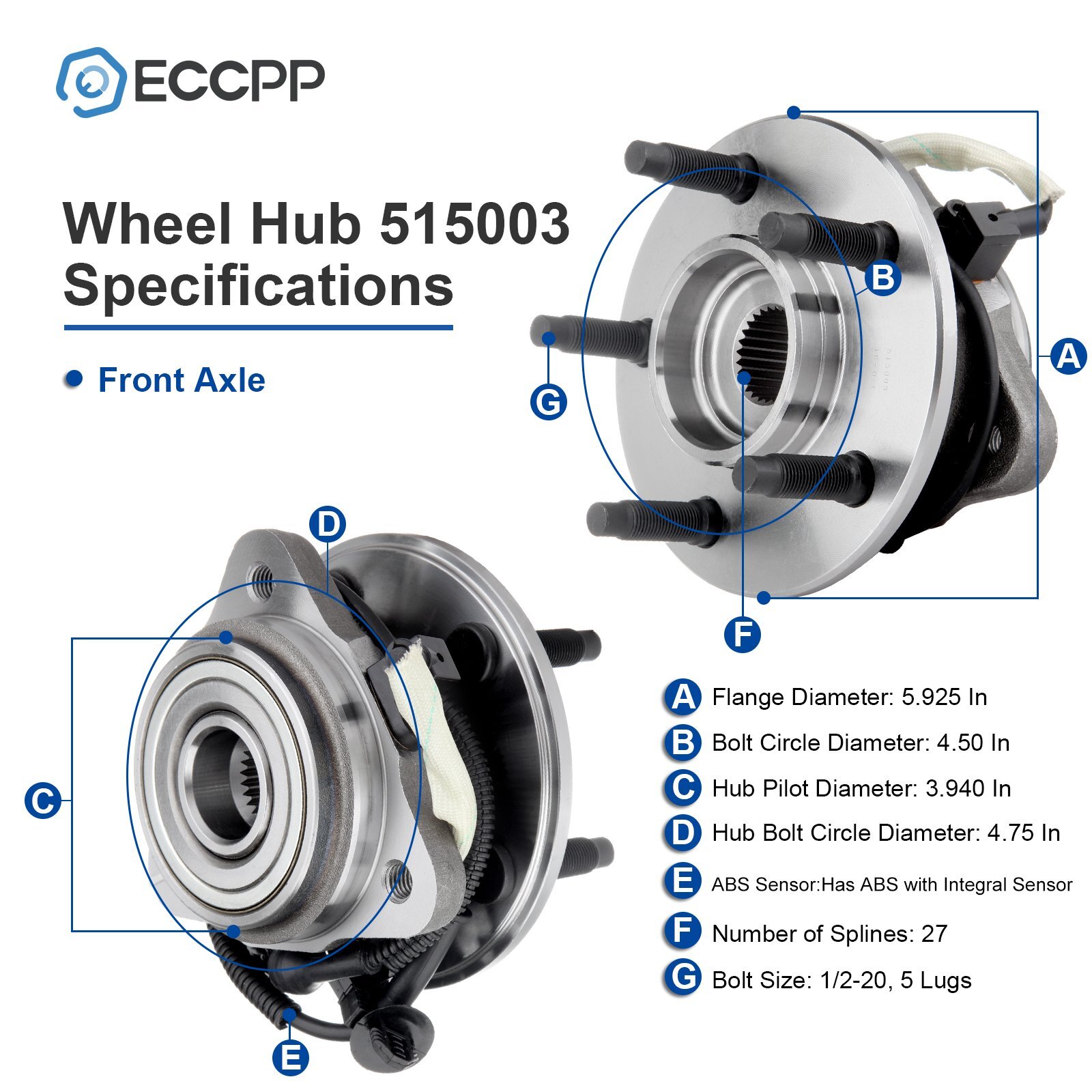

ECCPP 2Pc Wheel Hub Bearing Front 4WD For Ford Explorer Ranger Mazda B3000 B4000
$77
DESCRIPTION
|
|
||||||
|
|
|
|
|||
|
|
|
|
|||
ECCPP 2Pc Wheel Hub Bearing Front 4WD For Ford Explorer Ranger Mazda B3000 B4000
Product Features:
- Fits LH (Driver Side) & RH (Passenger Side) Front
- Fits 5 Lugs Wheels
- Wheel studs already installed
- ABS Type: Sensor Wire
- Drive Type: 4WD AWD
Item Description:

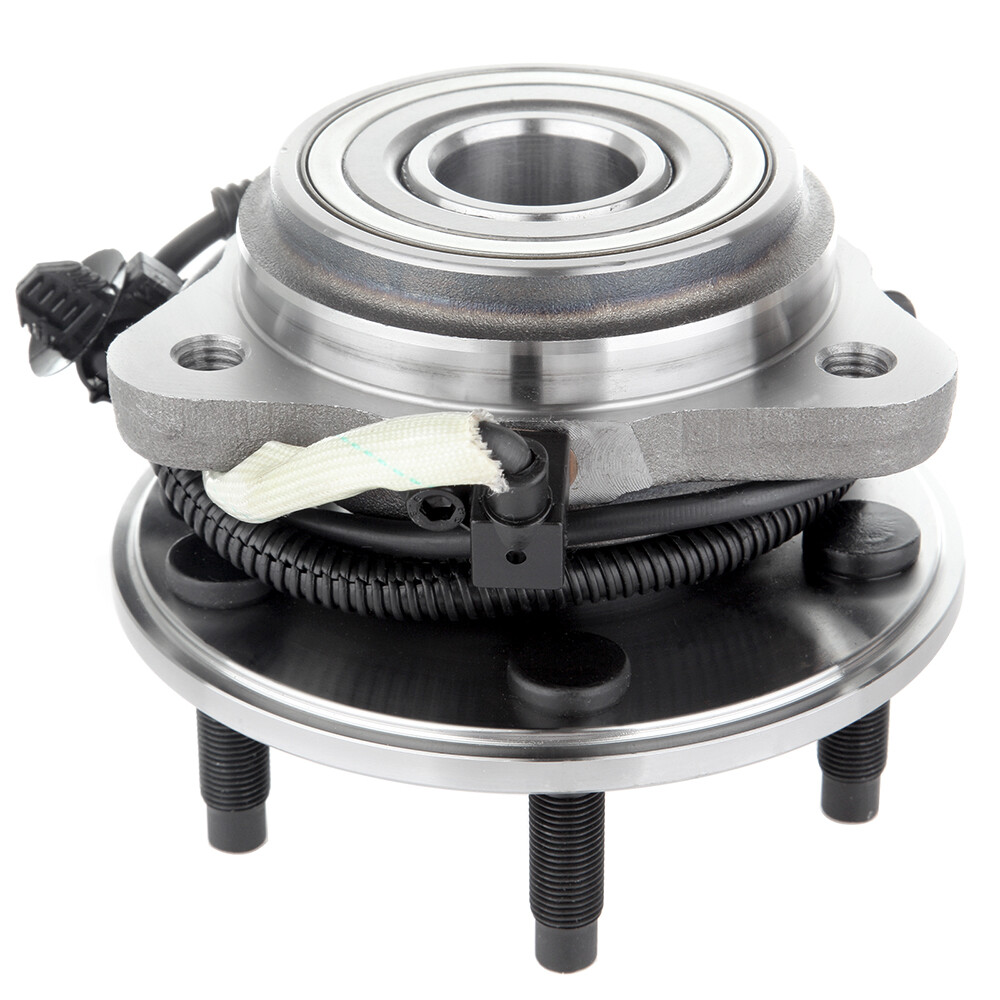

- Brand New Wheel Hub Assembly
- Direct replacement
- Built to strict quality control standards
- Replaces dealer part numbers: 515003, 40265010E, WH515003, H515003, P15515003, 116003, SP450200, TMSP450200, BR930252, WA515003, WA515003HD, 725-0010, AX2003, 1411-45586, 402.65010, SK951010, 715003, 102385, 29515003, 40265010, WE60766, 515051, 515052, YL241104BA, XL241104BA, F87A1104CB, F87A1104CA, F67Z1125BA, F67A1125BA, F5TZ1104A, F57A1104CC, F57A1104CA, 6L5Z1104B, 6L5Z1104A, 6L541104BA, 6L541104AA, 3L5Z1104AA, 3L541104AB, 3L541104AA, 3L2Z1104AA, 3L241104AC, 3L241104AB, 1F8033061, 1F6033061, H515052, 116051, WA515051, SP450202, BR930452, 799-0165, 715051
Vehicle Fitment:
- For Ford Explorer 1995-2001 AWD 4WD Models Only
- For Ford Explorer Sport 2001-2003 4WD, 4-Wheel ABS
- For Ford Explorer Sport Trac 2001-2005 4WD, 4-Wheel ABS
- For Ford Ranger 2000 4WD - After 06/22/2000 Manufacture Date
- For Ford Ranger 2001-2009 4WD Only - Round ABS Wire Connector
- For Mazda B2300 2003-2009
- For Mazda B3000 2001-2002 4WD Only
- For Mazda B4000 2001-2009 4WD Only
- For Mercury Mountaineer 1997-2001 AWD 4WD Models Only
Package Include:
- (2) Wheel Hub Bearing
Exploded View:
- Wheel hub and bearing
- Cotter pin
- Nut retainer
- Wheel hub lock nut
- Hub bolt
- Splash guard
- Steering knuckle
Removal:
- Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.?
- Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.
- Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.
- Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.
- Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.
- Remove the engine side cover.
- Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.
- Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.
- Remove the wheel hub and bearing bolts using power tool.
- Remove the splash guard and the wheel hub and bearing from the steering knuckle.
NOTE:
- Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
- Pull out the front wheel sensor, being careful to turn it as little as possible.
- Do not pull on wheel sensorharness.
Inspection after removel : Check components for deformationy,cracksy,and other damagey,and boots of transverse link ball joint for cracksy,axial end play,and swing torque.

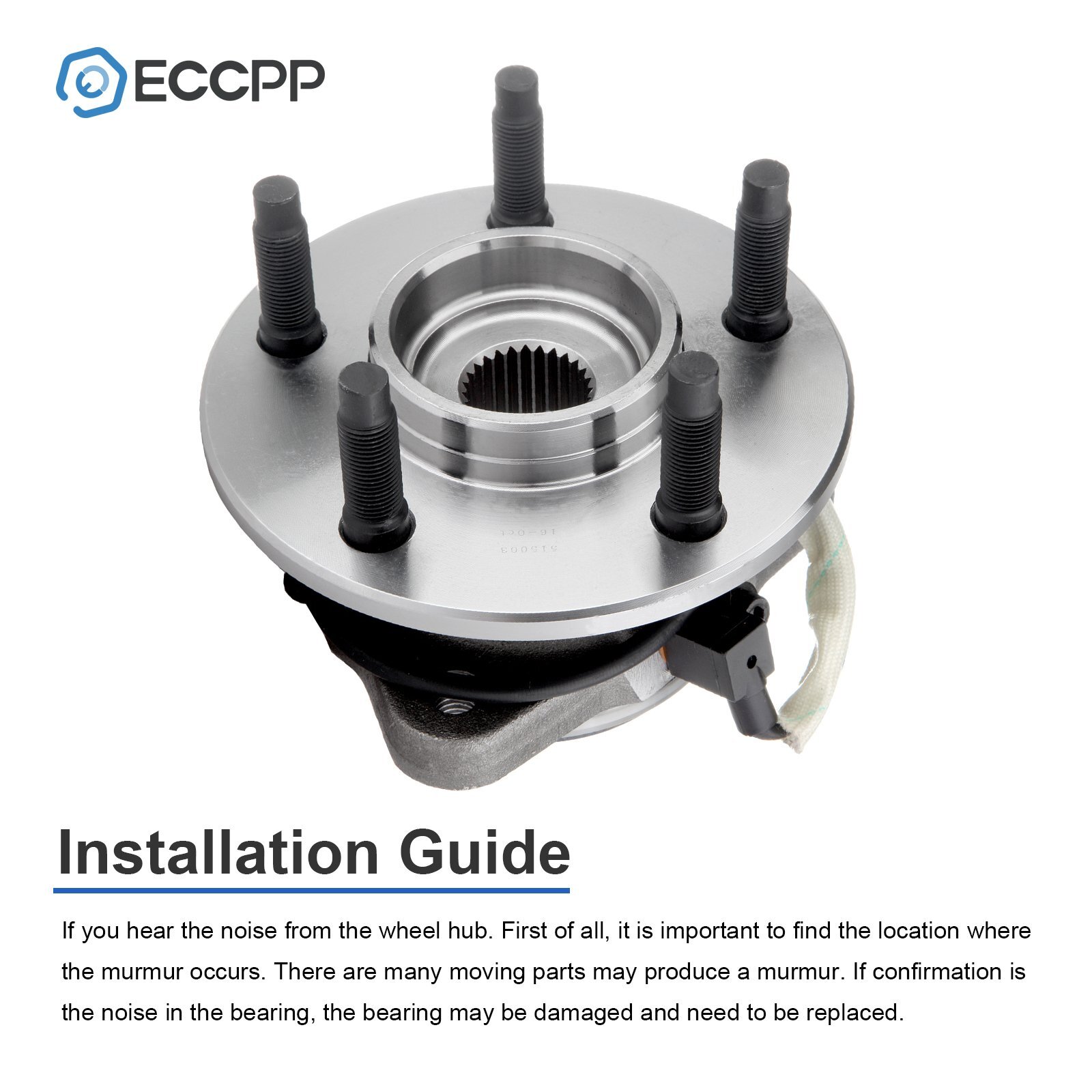

Installation:
Installation is in the reverse order of the removal
Caution:
- Do not reuse the wheel stud.
- Do not reuse the cotter pin.
- Place a washer (A) as shown to install the wheel studs (1) by using the tightening force of the nut (B).
- Clean the mating surfaces of the joint sub-assembly and the wheel hub and bearing. Apply lubricant to the surface (A) of the joint sub-assembly.
- Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut
6. Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub lock nut. Do not use a power tool.
7. Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the wheel hub lock nut to the specification.
8. When installing a the cotter pin (1) and the nut retainer (2), securely bend the cotter pin to prevent rattles.
9. Align the matching marks (A) on the disc brake rotor and on the wheel hub and bearing.
