DESCRIPTION
ET69C02 Ethernet IP RJ45 to RS485 Bus Converter for Modbus RTU Master7107
Working voltage : DC 12V (DC 6.5-25V)
Working current : 20-25mA
Work Mode: UDP, Client, Server,Modbus Slave,Modbus Master,MQTT
anti-surge protection
The default baud rate is 9600BPS. The baud rate can be by WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS
The parity can be none parity, even parity and odd parity

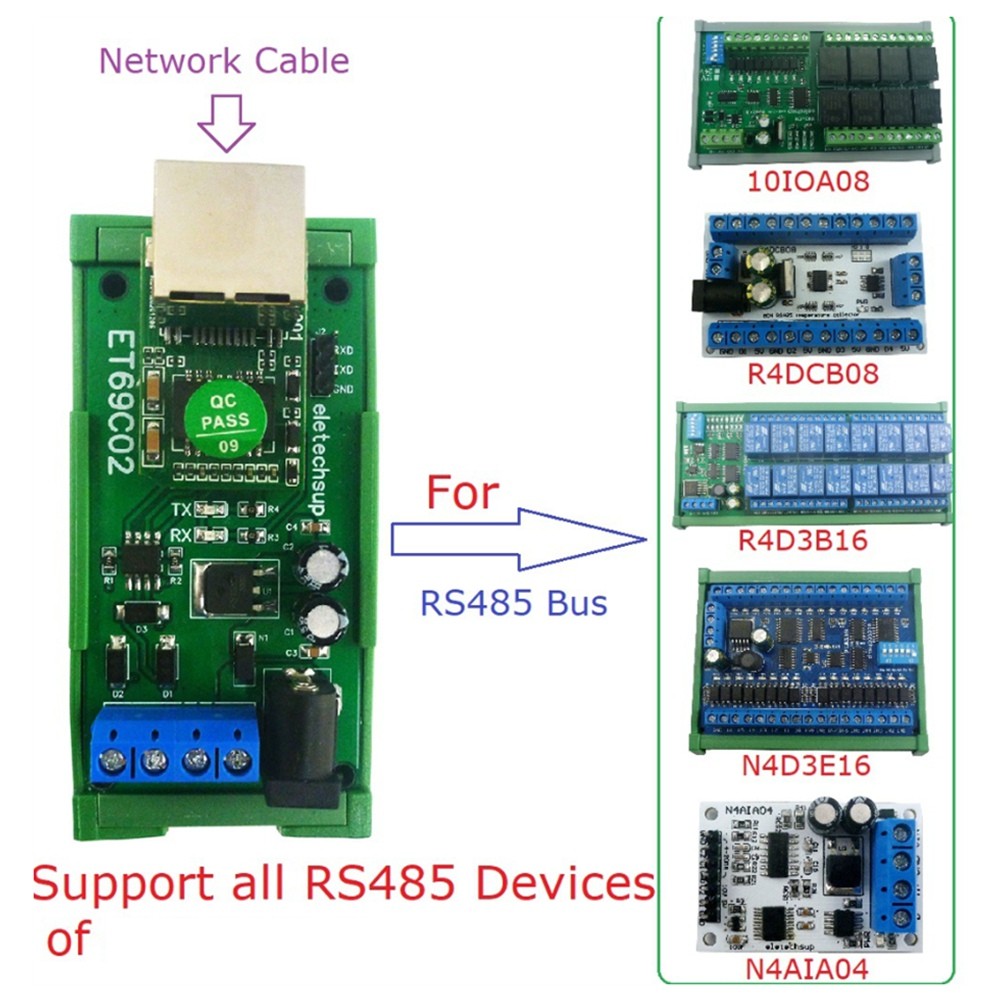

Ethernet to RS485 Bus
Support all RS485 devices of , such as: 10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
Colour:Green
Material:plastic
Package Contents:
1PCS x ET69C02 DC 12V Ethernet to RS485 Converter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
