Package Include:
1 X AA5052 Aluminum Shroud
1 X 14" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Fans Details：
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050”
Thickness (in): 2.500”
Number of Blades: 8 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
the radiator size of this fan shroud:
Overall Diameter: Height 27" x Width 21 6/7"
Core Diameter: Height 18 " x Width 17 5/8"
Vehicle Fitment
1991-1994 Ford Explorer 4.0L
1985-1994 Ford Ranger 2.8L 2.9L 3.0L 4.0L
1991-1994 Ford Bronco II 2.8L 2.9L
1994 Mazda B4000 4.0L
1991-1994 Mazda Navajo 4.0L

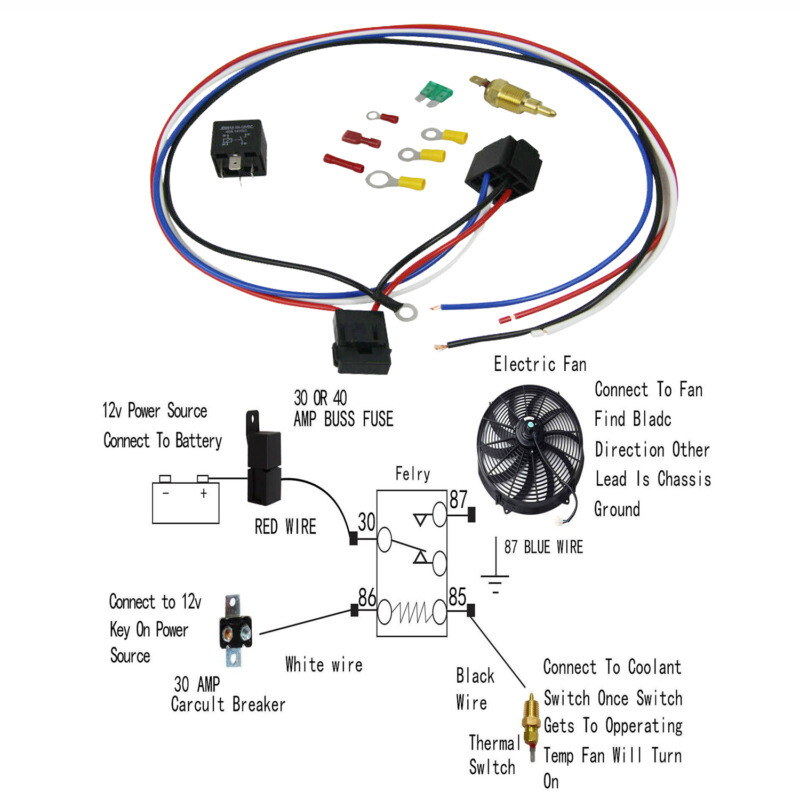

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
