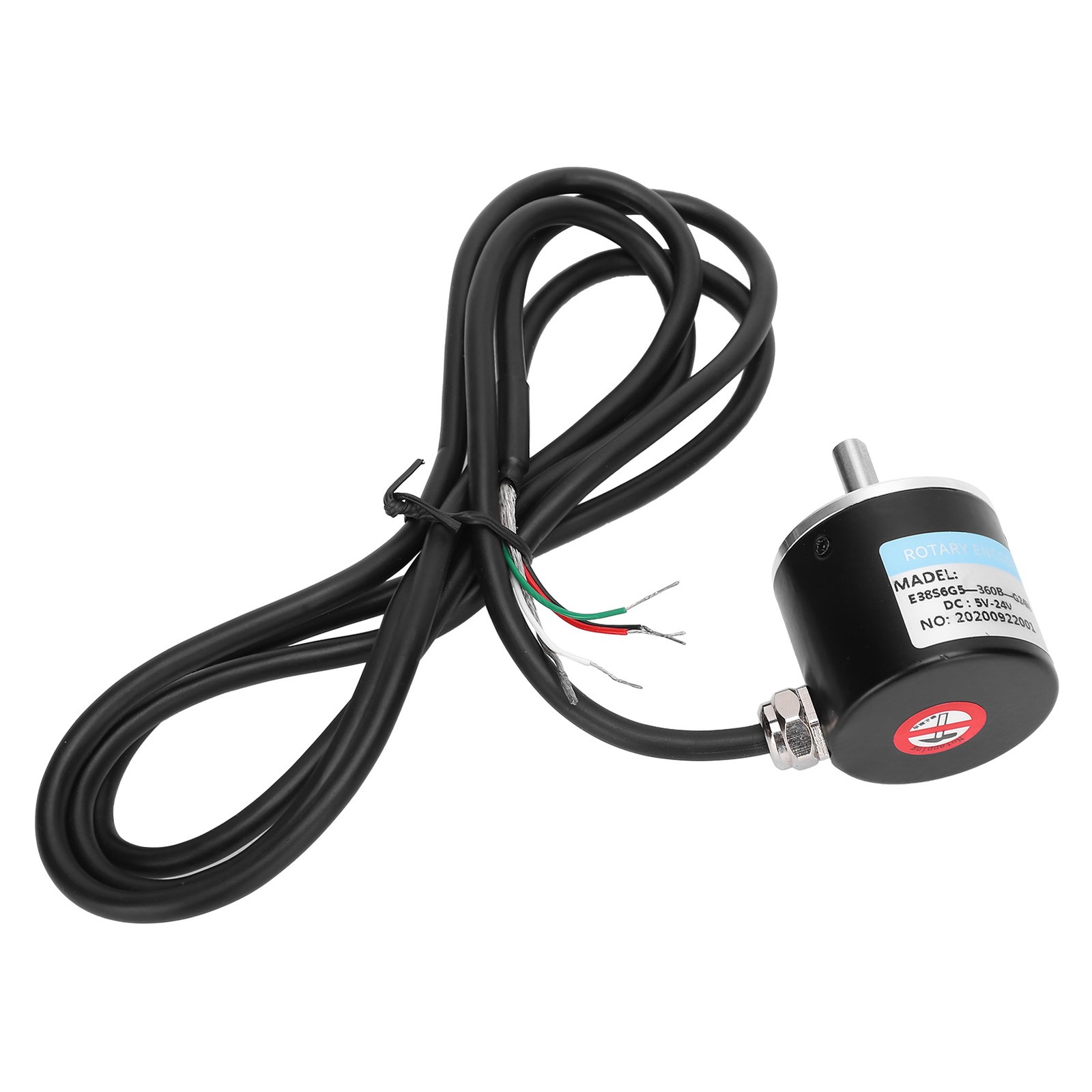

Feature: 1. 3000‑6000 rpm comprehensive speed, 30KHZ maximum corresponding frequency. AB two‑phase, with more stable working performance. Specification: Condition: 100% Brand New Item Type: Encoder Material: Aluminium + Plastic Color: Black + Silver Shaft Diameter: Approx. 6mm/0.23in Package List: 1 x Encoder 3 x Screws 6 x Gasket Note:
1. This product is composed of components, so please be careful not to drop it. 2. When installing, if the eccentricity or deviation angle is too large, it will shorten its service life. 3. Do not use in strong impact, vibration, corrosive, large magnetic field, high temperature, high humidity and acid‑base environment. 4. An error in the number of pulses may be caused when the power is turned on or off. After the power is turned on, there is a 0.5S delay time for use. 5. After the product is fixed, do not pull the cable with a force exceeding 29.4N 6. When there is a high‑voltage line or power line nearby, please use a conduit to cover the cable. 7. When wiring, pay attention not to short‑circuit the terminals, and ensure that the wiring is correct. Wrong wiring will damage the internal circuit. It is recommended to insulate the unconnected terminals. 8. wire should be grounded. 9. Do not disassemble the product by yourself. |
