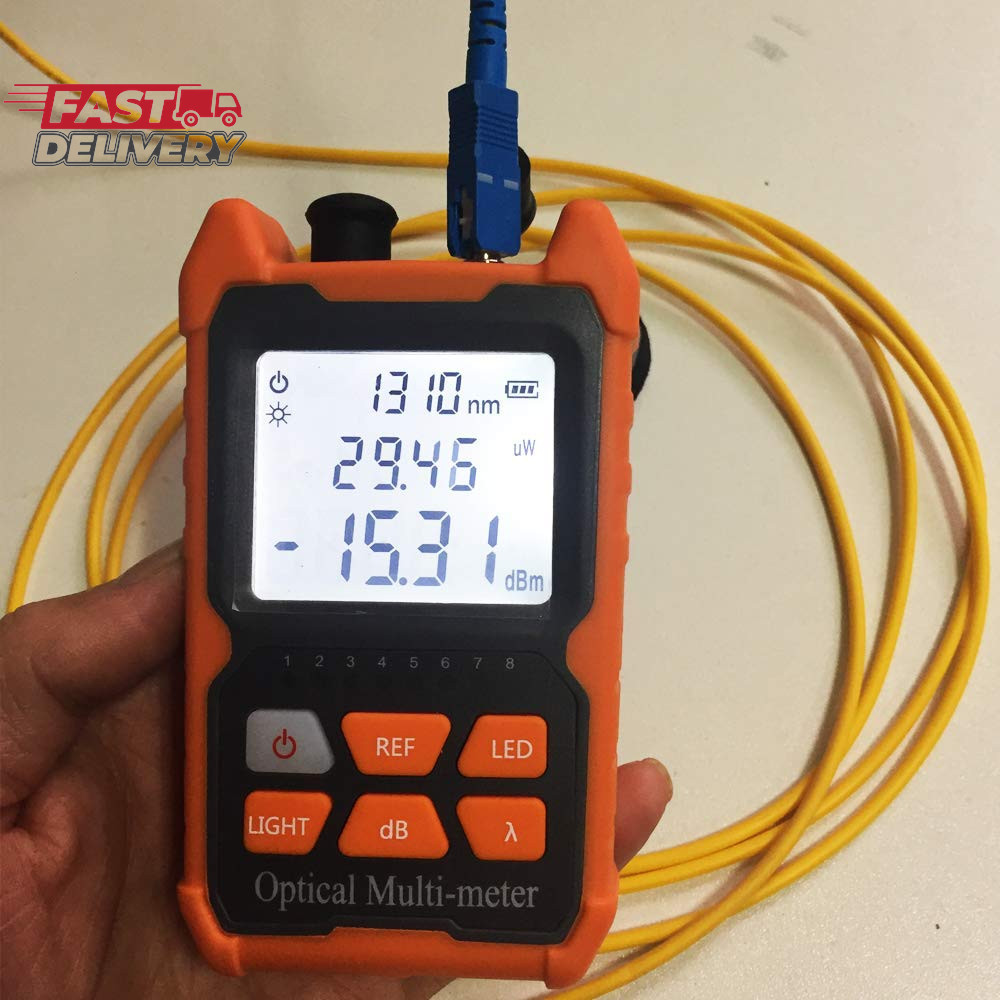

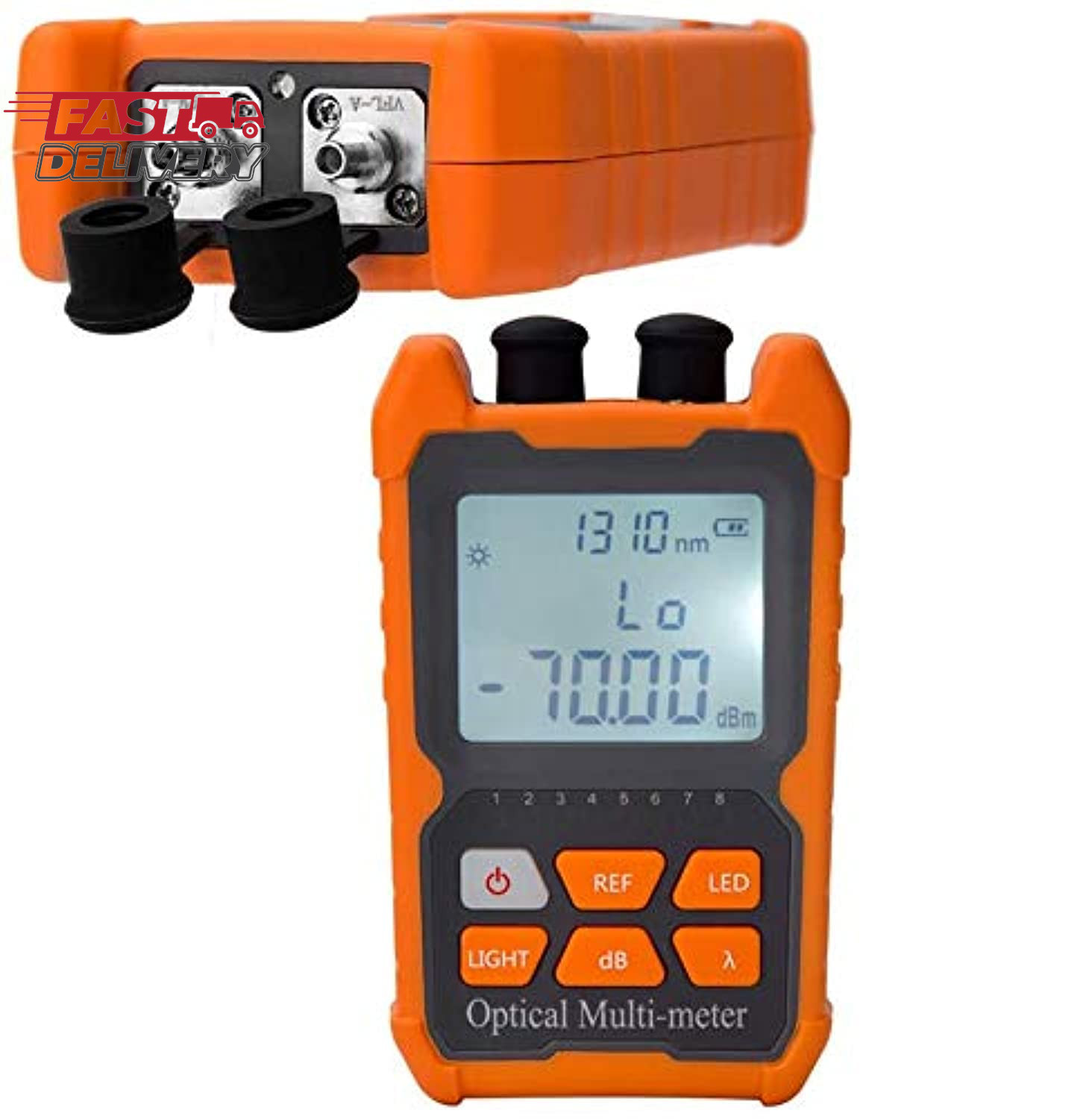

Hand-held optical power meter,VFL inte-grated machine series products are mainly used for continuous optical signal power measurement,optical fiber link loss testing and optical fiber line on-off testing.It is controlled by a single chip micropro-cessor with complete functions.Widely used in optical cable construction and maintennance,optical fiber communication,optical cable sensing,optical CATV and other field.The fuselage design meets the requirements of human boday function and adopts advanced thermoplastic moulding technology,which is beautiful and durable.The red-light integrator of optical power can be well protected by using embedded detectors and lasers.The machine has compact shape,automatic shutdown function,three red light modes,backlight display,wavelength memory function,optical fiber work frequency identification,support user calibration,wide test range,support lighting.
Product characteristics:
- support lighting
- support automatic shutdown
- support backlight switch
- support wavelength memory
- support user calibration
- supporting simultaneous display of linear mW and non-linear index dBm
- supporting SC/FC/ST interface
- supporting external power supply such as charging treasure,computer.etc.
- supporting simultaneous linear (m W) and non-linear (dBm) display
- supporting RJ45 testing
Specification
- Calibration Wavelength: 800~1700nm
- Optical Connector:FC/SC/ST universal interface
- Detector Type: InGaAs
- Measurement Range: -70 ~ 6dBm
- Accuracy: ±0.05dB
- Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625,1650nm
- Display resolution:mW:0.1% ,dBm:0.01dBm
- Integrated OPM, VFL, and RJ45 Functions
- Working temperature:-10~+60℃
- Storage temperature :-30~+70℃
- Auto off time:10Min
- Battery continuous operating time:≥72h
- Dimension(mm): 11.2x6.6x3cm
- Weight: 140g
