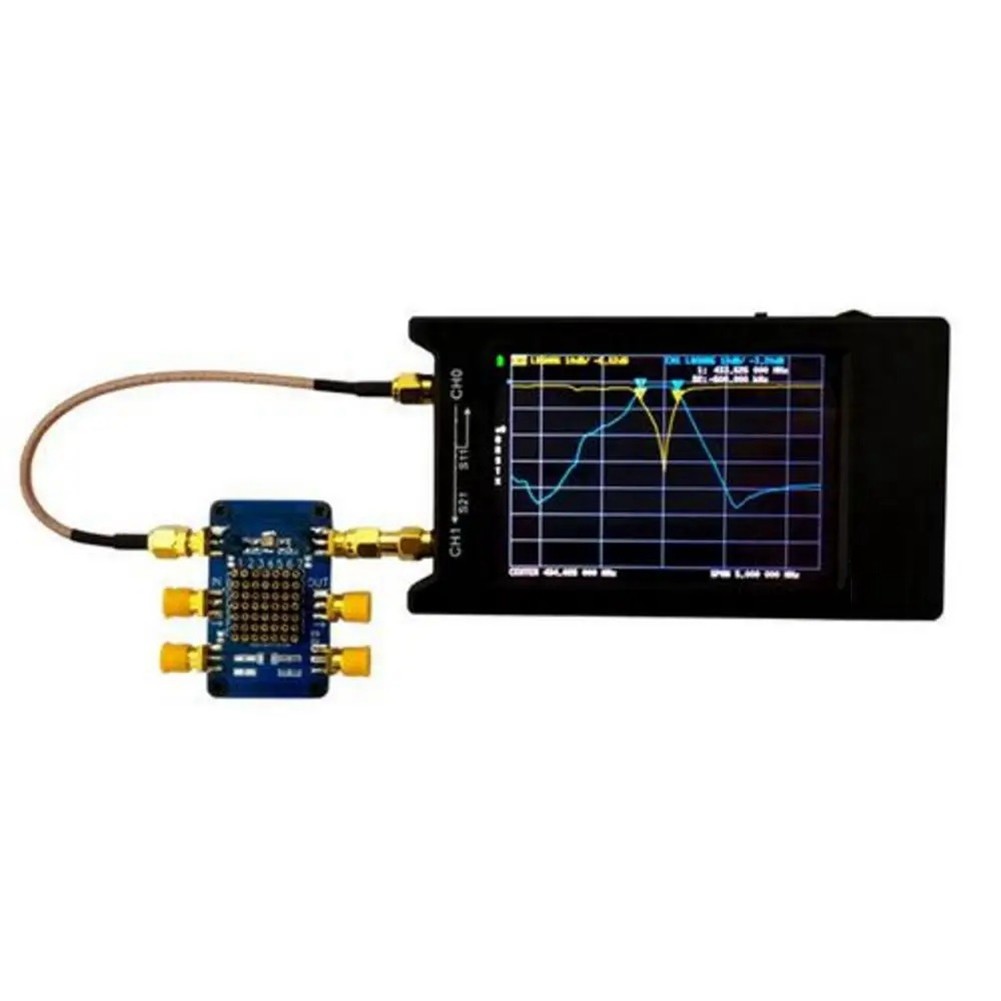

For Testboard Kit VNA Test Demo Board Analyzer Testing Board Demo8369
This test board kit is used for or other vector network analyzer user-friendly measurement DIP and SMT devices.
This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over. Please that you have enough Hands-on ability. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs, our store is not responsible for circuit guidance.
Note:Due to different production batches, the appearance is different, which does not affect the use.
Colour:Blue
Material:PCB+ electronic component
Package Contents:
1 * Testboard
6 * SMA Female Adapter
4 * 6MM Copper Stud
4 * M2.5 Screw
2 * 40pin Round Socket
2 * 0805 49R9 Calibration Resistance
