For Chevy Corvette 14-19 DFC Hi-Carbon Alloy GEOMET Vented Rear Brake Rotor

Product Details

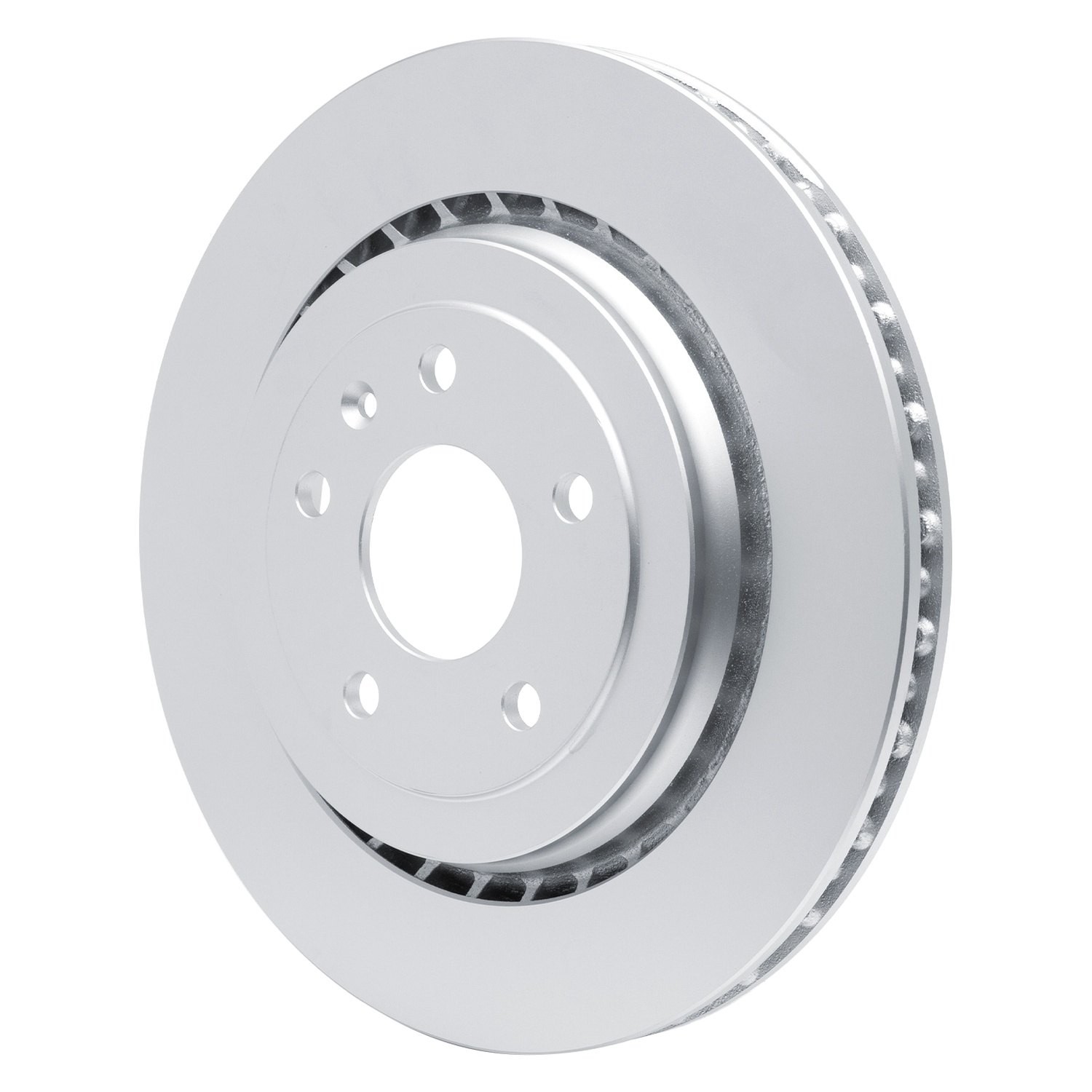

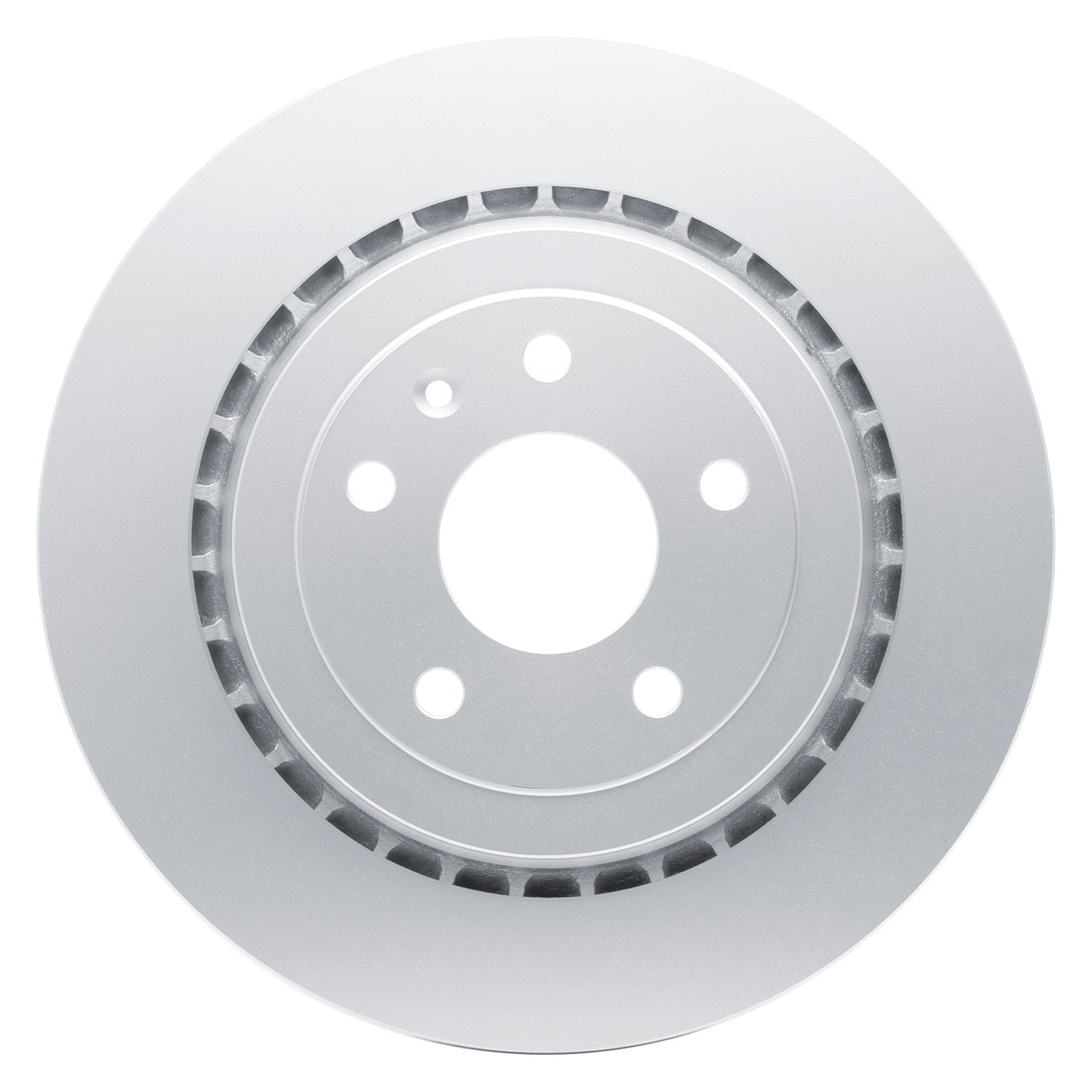

Hi-Carbon Alloy GEOMET® Vented Rear Brake Rotor (900-47047) by Dynamic Friction Company®. Quantity: 1 Per Pack. Carbon Iron Formulations to Enhance Noise Dampening Characteristics and Increase Durability. DFC endeavors to match the latest technologies as applied by the Original Equipment Manufacturers (OEMs). OEM technology is getting better and better every year.

Specifications:

• Rotor Design: Rotors Only
• Rotor Construction: 1-Piece
• Rotor Material: Cast Iron
• Rotor Type: Vented
• Rotor Diameter: 339mm (13.35")
• Rotor Height: 48mm (1.89")
• Nominal Thickness: 26mm (1.02")
• Minimum Thickness: 24mm (0.94")
• Lug Holes Quantity: 5
• Lug Holes Size: 120mm (4.72")
• Bolt Circle: 120mm (4.72")
• Center Hole Diameter: 70.7mm (2.78")
• Quantity: 1 Per Pack

Features:

• Engineered with premium G3000/G11H18 iron castings for strength, stability, and durability
• Original Equipment (OE) vane configuration to ensure proper and maximum heat dissipation
• Dipped cores to provide for a smoother vane structure
• Disc Thickness Variation (DTV) - .010mm maximum
• Lateral Runout - .050 mm maximum
• 100% precision mill-balanced for smoother stopping and zero vibration at any speed
• Fined Turned finish (1.6 RMS) for improved initial rotor and pad break-in
• GEOMET® coated to provide high-performance corrosion protection

Benefits:

• Ready to Install - No additional preparation needed. Saves time and money during installation process
• Superior Corrosion Protection - Provides excellent cyclic corrosion performance when tested according to automotive manufacturer's test methods incorporating heat, salt spray (withstands 400 hours), and humidity (SAE J2334, GMW 14872, Ford CEPT: 00.00-L-467, Asian CCT)
• Environmentally Friendly: Meets the following regulations: Environmental Protection Agency (EPA), Chrysler CS-9003, General Motors GMW 3059, Ford WSS-M99P9999-A1 (Hex 9), the EU Directives on End of Life Vehicles (ELV) and Electrical Equipment (RoHS)
• No Toxic Metals: Free of chromium, nickel, cadmium, lead, barium, and mercury

Each rotor is engineered to match the OE vane configuration, including the OE split-core technology to ensure proper and maximum heat dissipation. Additionally, all cores are dipped with a specifically formulated paint in order to provide a smoother finish inside the vane structure. The smooth finish will improve air flow as well as reduce the amount of machining required in order to properly balance the finished rotor during the mill-balancing process. Next, the castings are sent to state of the art machining facilities, where each rotor is machined to the tightest tolerances available in the market today. They can guarantee specifications of .010mm disc thickness variation (DTV) and .050mm maximum lateral runout. Though in practice, they regularly achieve .007mm DTV and .025mm maximum lateral runout. Then, the rotors are fine-turned to a maximum of 1.6 RMS. The objective of these strict tolerances is to create the smoothest possible finish, which improves initial break-in due to the increased contact between the pad and the rotor. After all of the machining processes are completed, each rotor passes a 100% electronic inspection station that measures over 20 attributes to ensure that each rotor meets OE specifications. This further guarantees that each and every rotor delivered to you is trouble free. Coupled with application-specific DFC brake pads, these rotors provide the best possible braking right out of the box compared to anything else in the market! Finally, they apply a genuine GEOMET® Finish throughout the entire part, which promises to deliver superior corrosion protection. The GEOMET® coating is processed dry, shipped dry, and ready to install without any additional preparation. An average brake job takes 1.25-2.5 hours per axle. Without the need to clean an oil covered rotor, this saves a tremendous amount of time and money during the installation process. The GEOMET® Finish is simply and safely swept away by the friction material with no harmful effects. Manufactured for european and heavy vehicles, High Carbon iron formulations (Molybdenum, Chromium, and Carbon) enhances noise dampening characteristics, while providing high strength, and increased thermal conductivity compared to standard discs, which increases durability. Engineered with High Carbon castings to enhance noise dampening characteristics, while providing strength, stability, durability, and performance.
